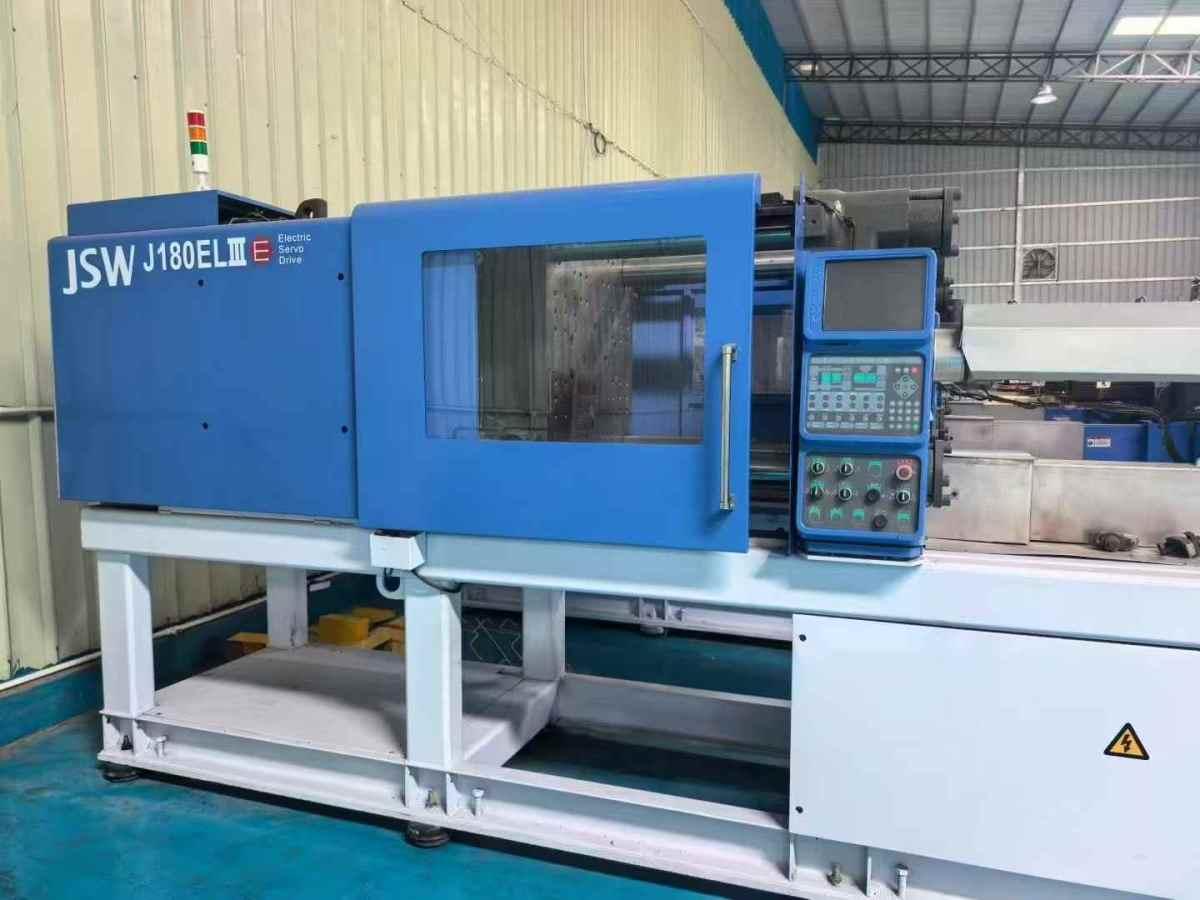

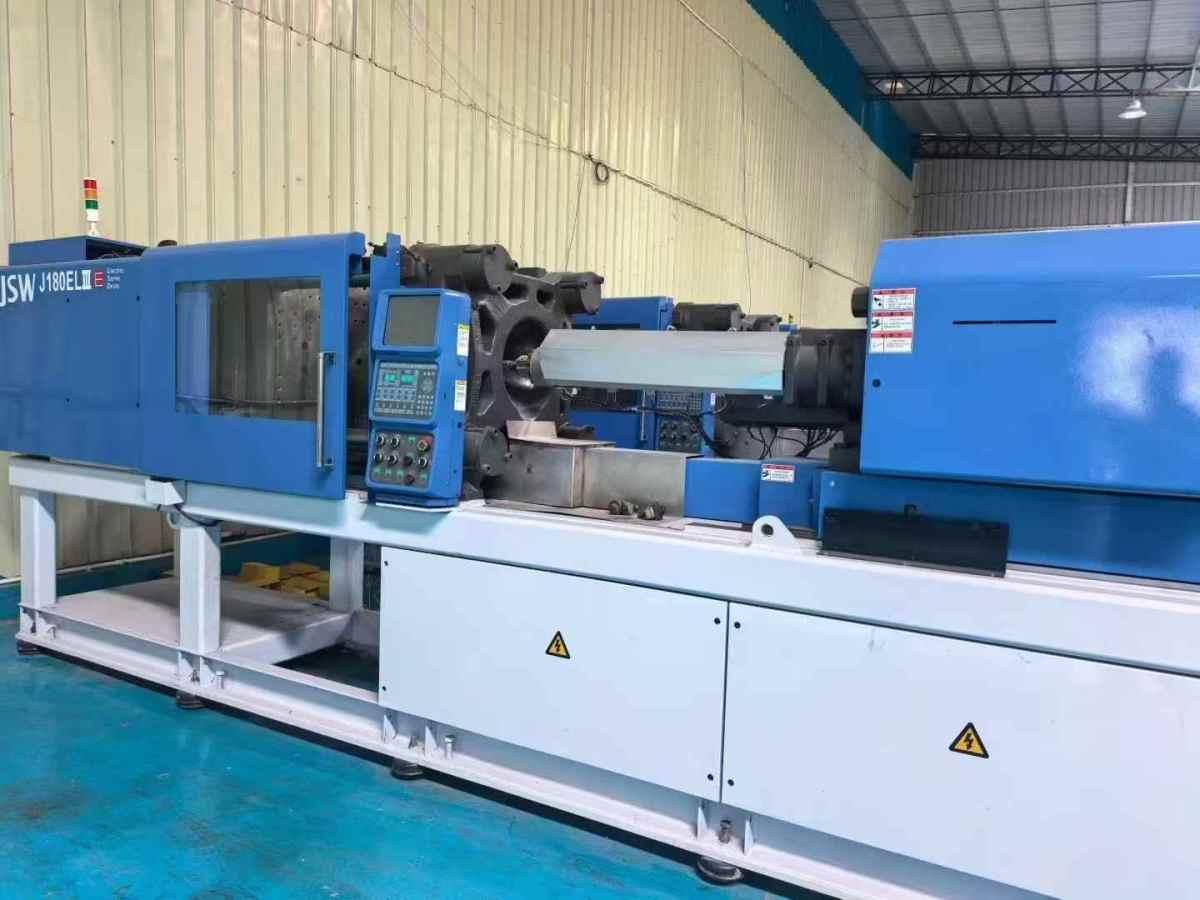

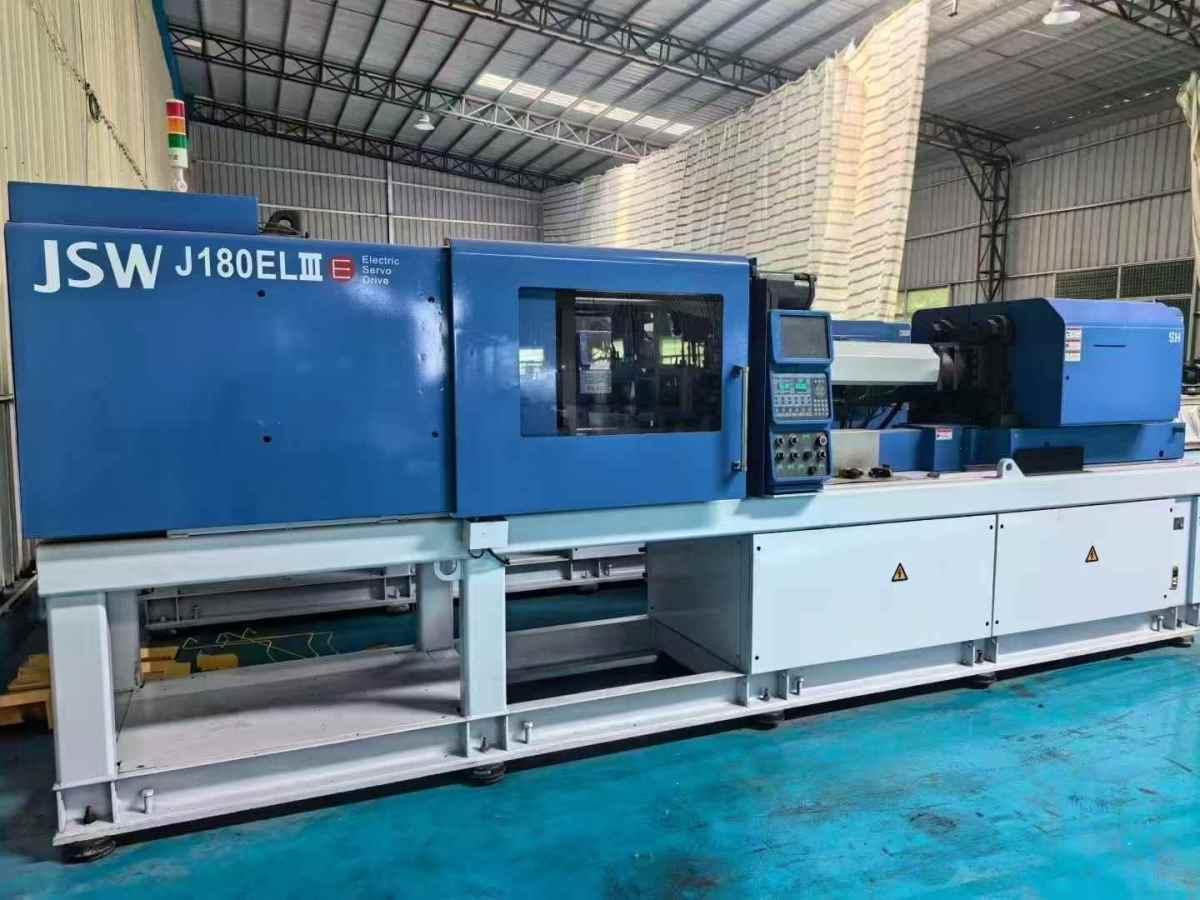

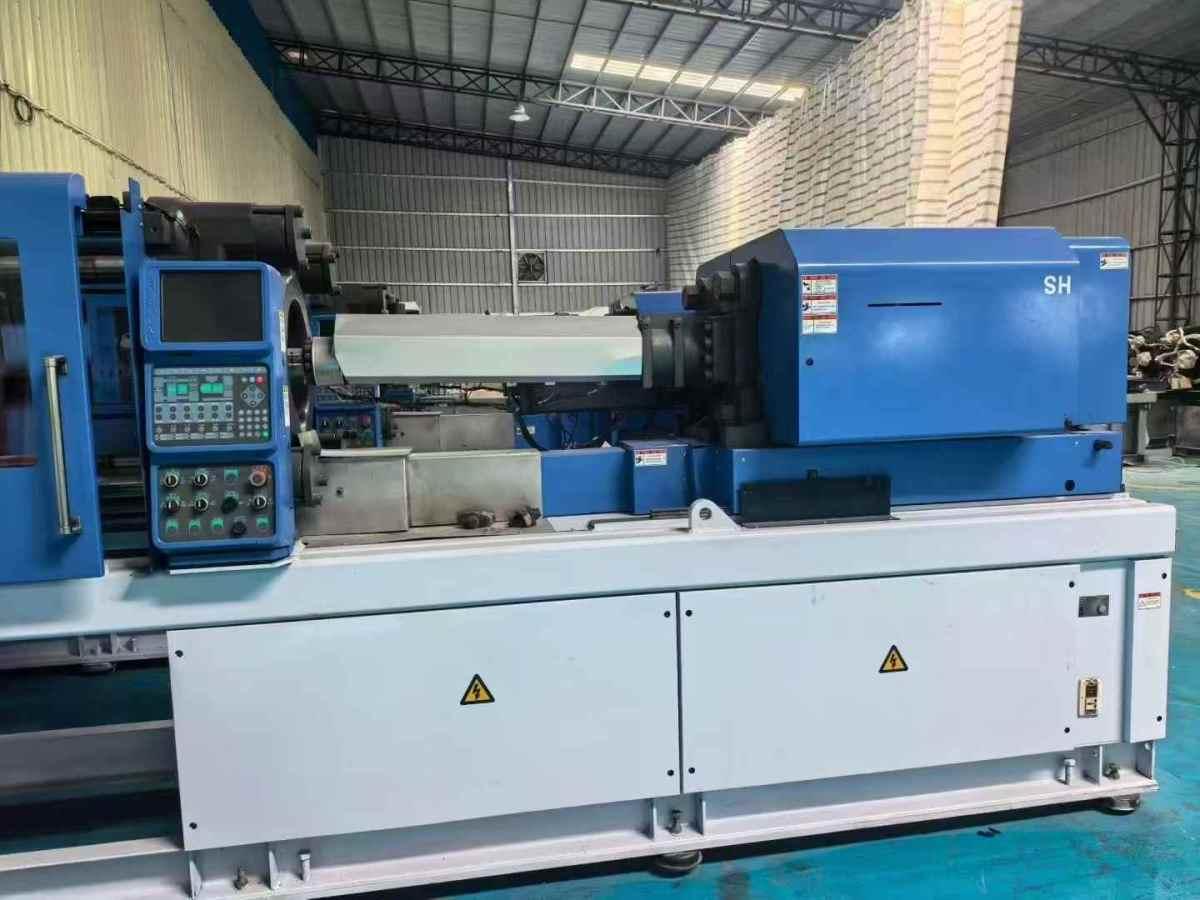

JSW J180ELIII injection molding machine

Nominal locking force: 180 tons
The inner spacing of the pull rod: 780x780mm
Maximum mold opening travel: approximately 550mm
AppVertical machining centerble mold thickness: 200-650mm
Maximum ejection travel: approximately 120mm
Maximum top force: approximately 100kN
Standard swing diameter: φ46mm
Maximum travel of the screw: approximately 200mm
Theoretical injection volume: approximately 332 cm³
Injection weight: Approximately 300g
Maximum injection pressure: approximately 177 MPa
Maximum injection speed: approximately 300 mm/s
The maximum speed of the screw: approximately 250 rpm
