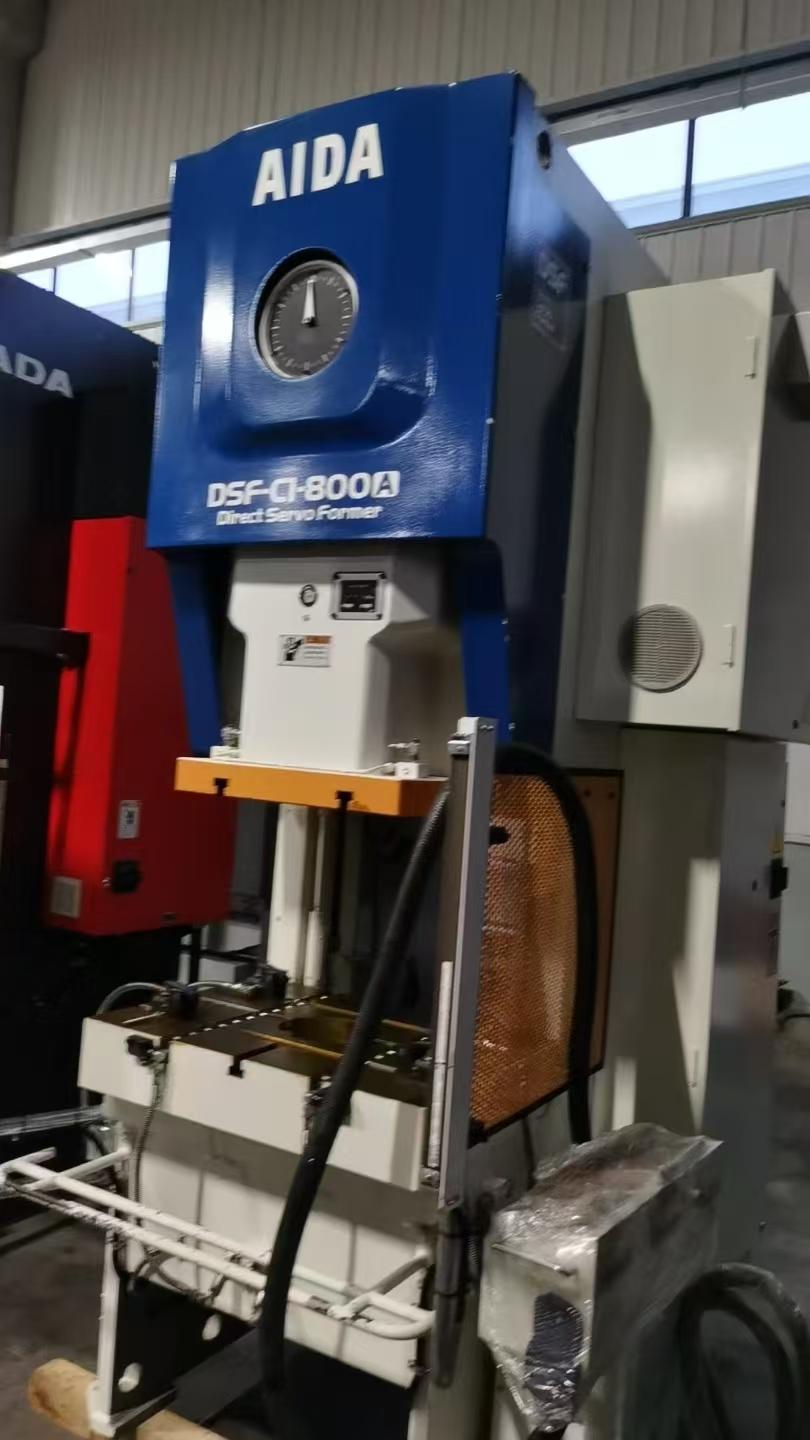

AIDA DSF-C1-800A2 Punch / press

Nominal stamping capacity: 800KN
Maximum travel of the slider: 160mm
travel frequency: 1 to 80spm
Maximum closed mold height: 320mm
The fine adjustment range of the slider mold height is 80mm
Standard gas supply air pressure: 0.5MPa
Maximum allowable upper mold weight: 183kg
Emergency stop braking time: 140ms
The maximum stop time of the glass scale safety circuit is 160ms
Reference inclination Angle of the safety monitoring device: 10°
