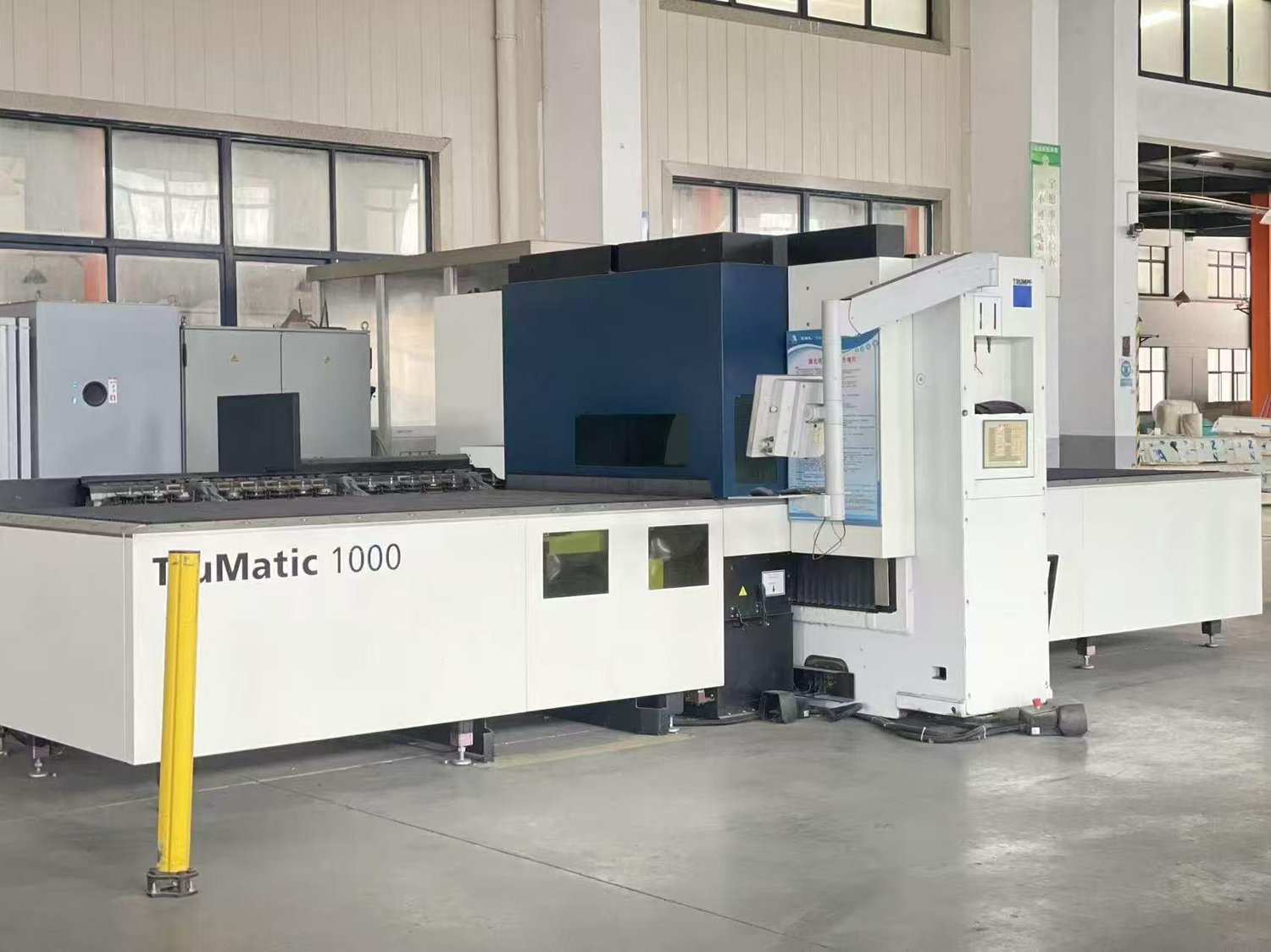

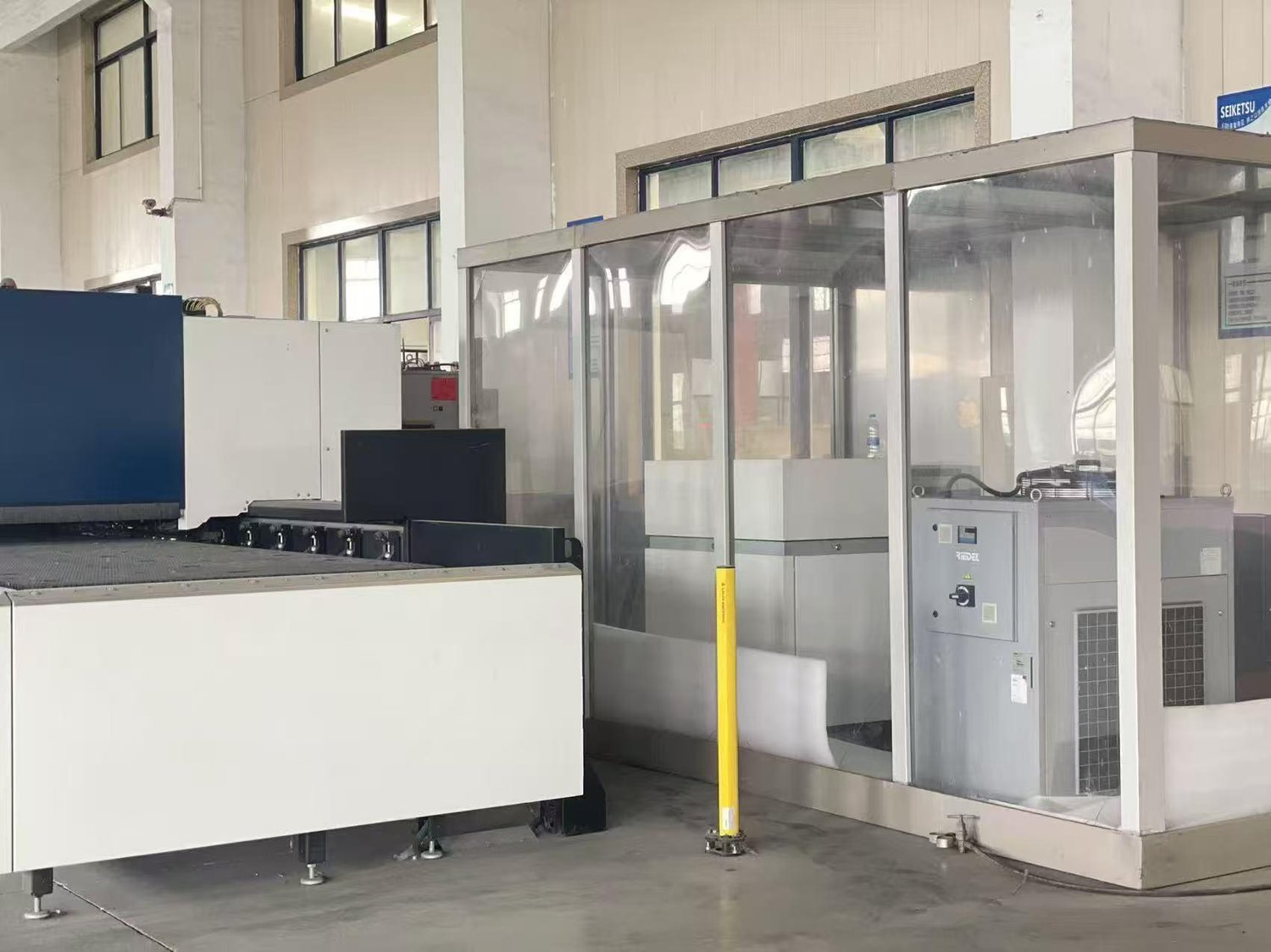

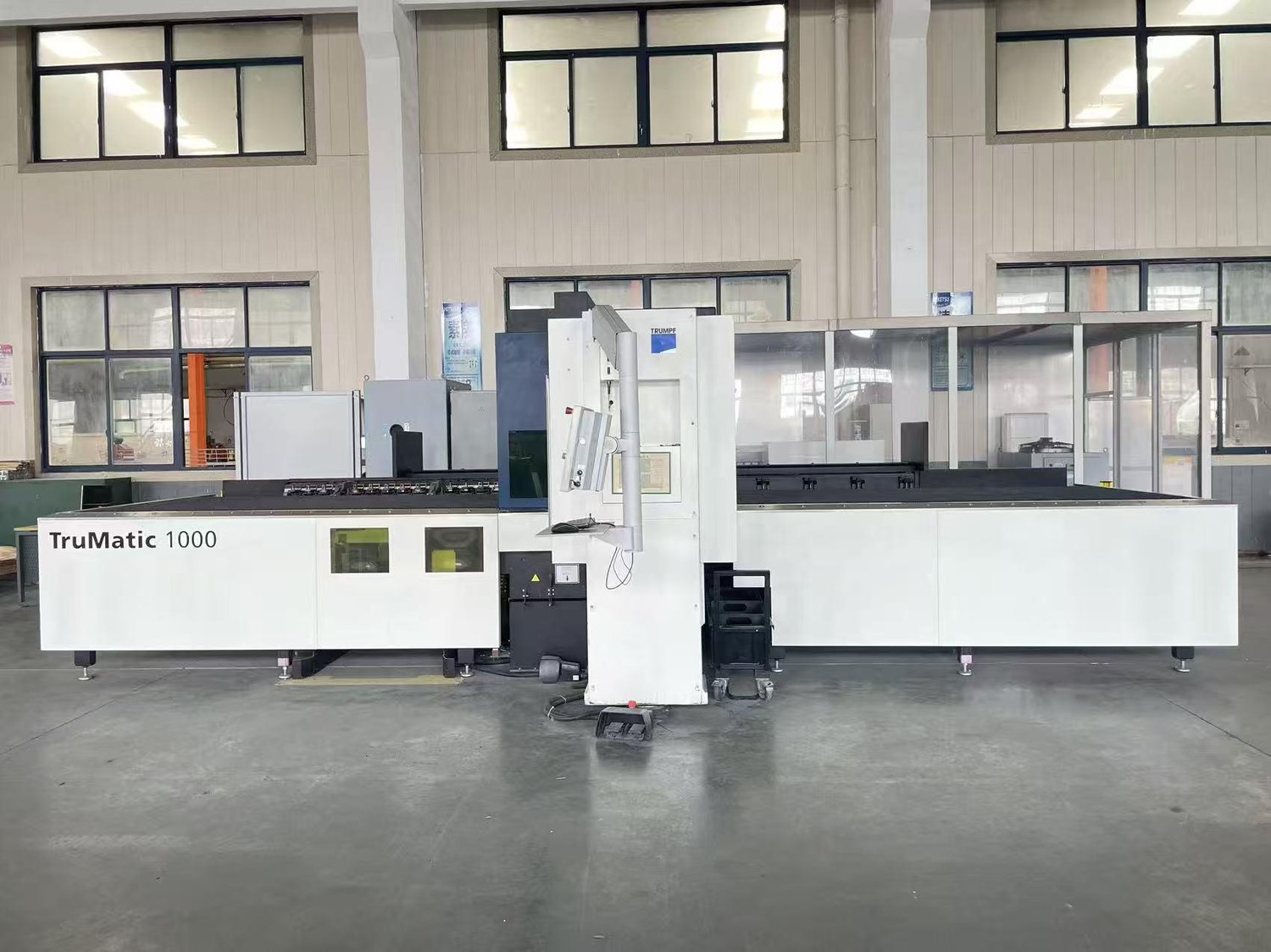

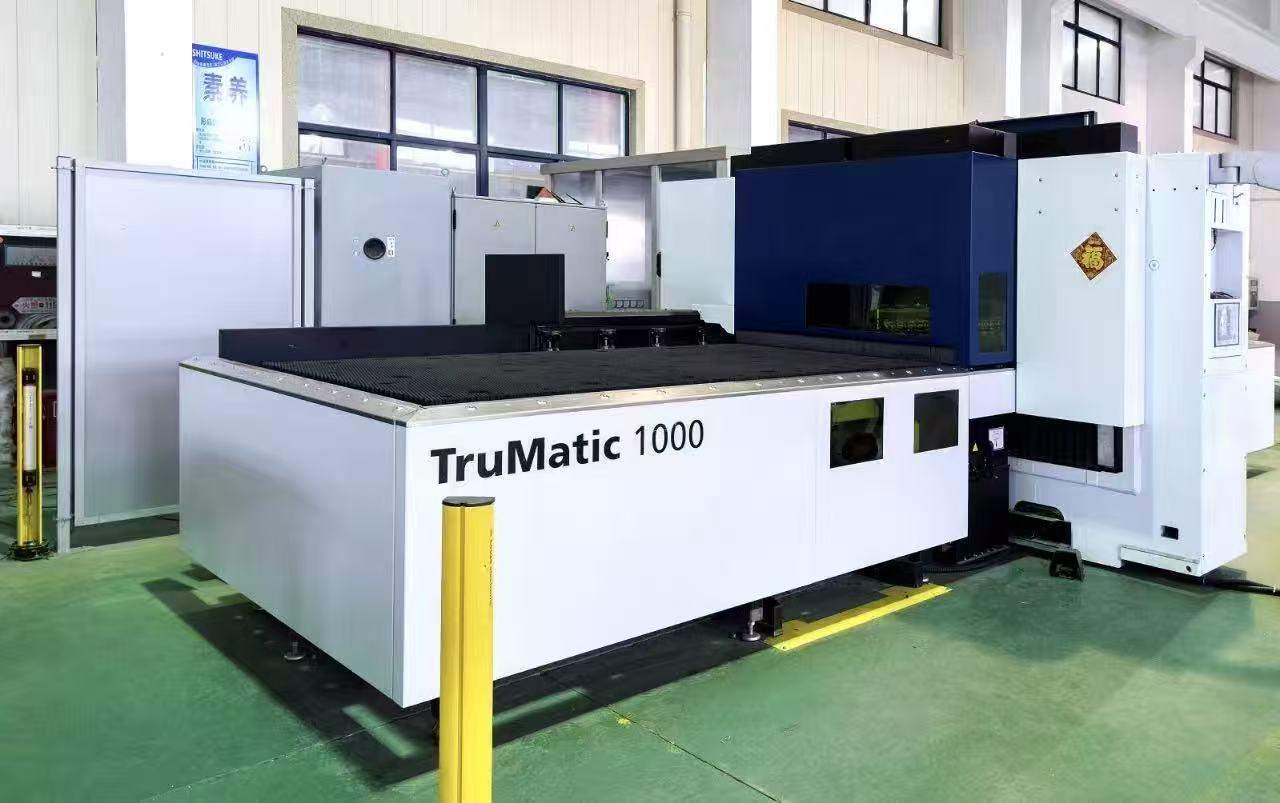

TRUMPF TruMatic 1000 Punch / press

Work Area
Rated working area of the X-axis: 2500 mm
Rated working area of the Y-axis: 1250 mm
Capabilities
Maximum sheet thickness: 6.4 mm
Maximum stamping force: 165 kN
Speed
Simultaneous (X and Y axes) speed: 100 m/min
Maximum stamping stroke rate (E = 1 mm): 600 strokes per minute
Maximum marking stroke rate: 1000 strokes per minute
Maximum axial acceleration (stamping):
X-axis: 10 m/s²
Y-axis: 8 m/s²
Programmable Component Layout
CNC System
Maximum component size, hopper: 180 x 180 mm
Flip board size (X x Y): 400 x 1250 mm
