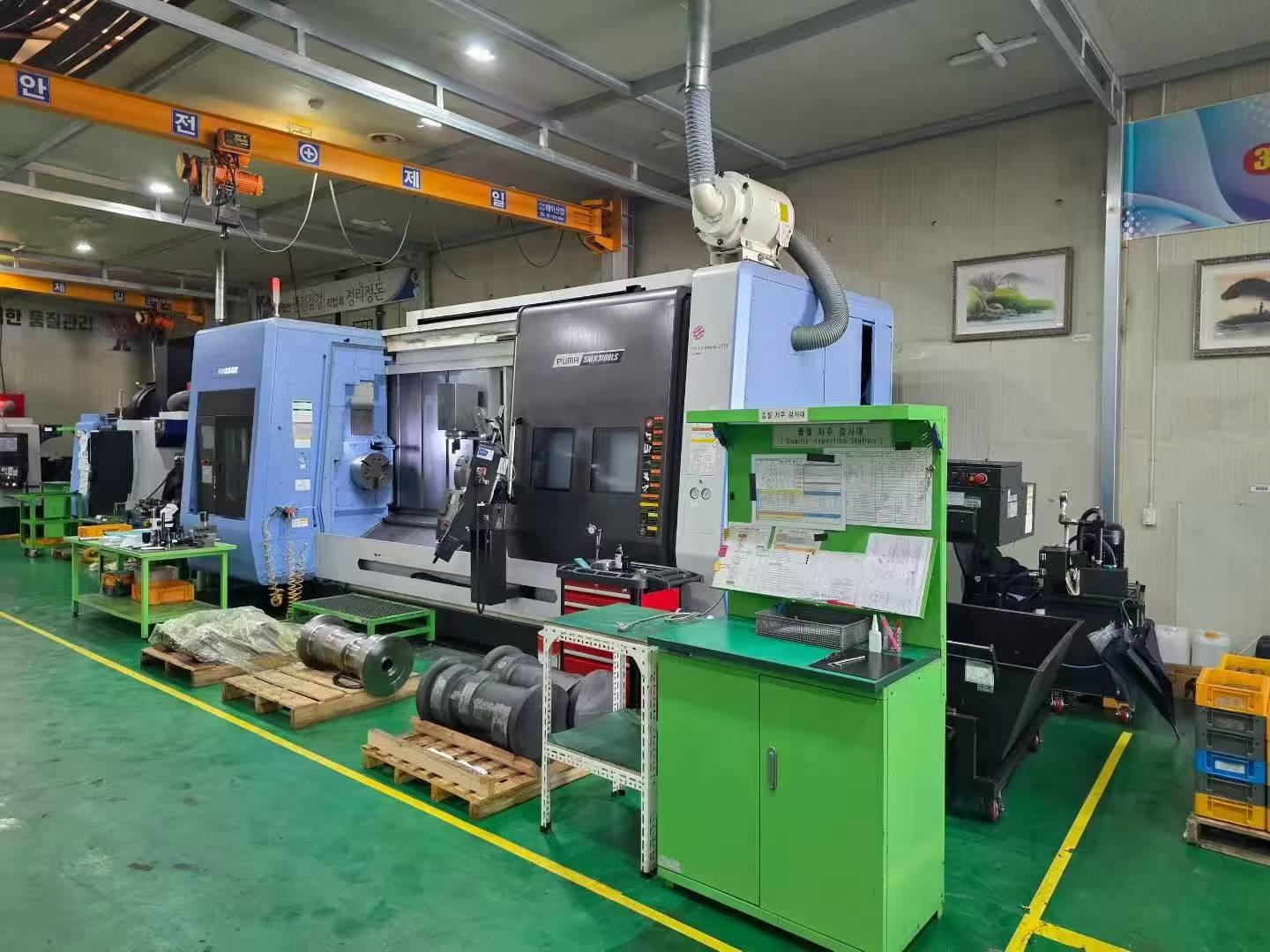

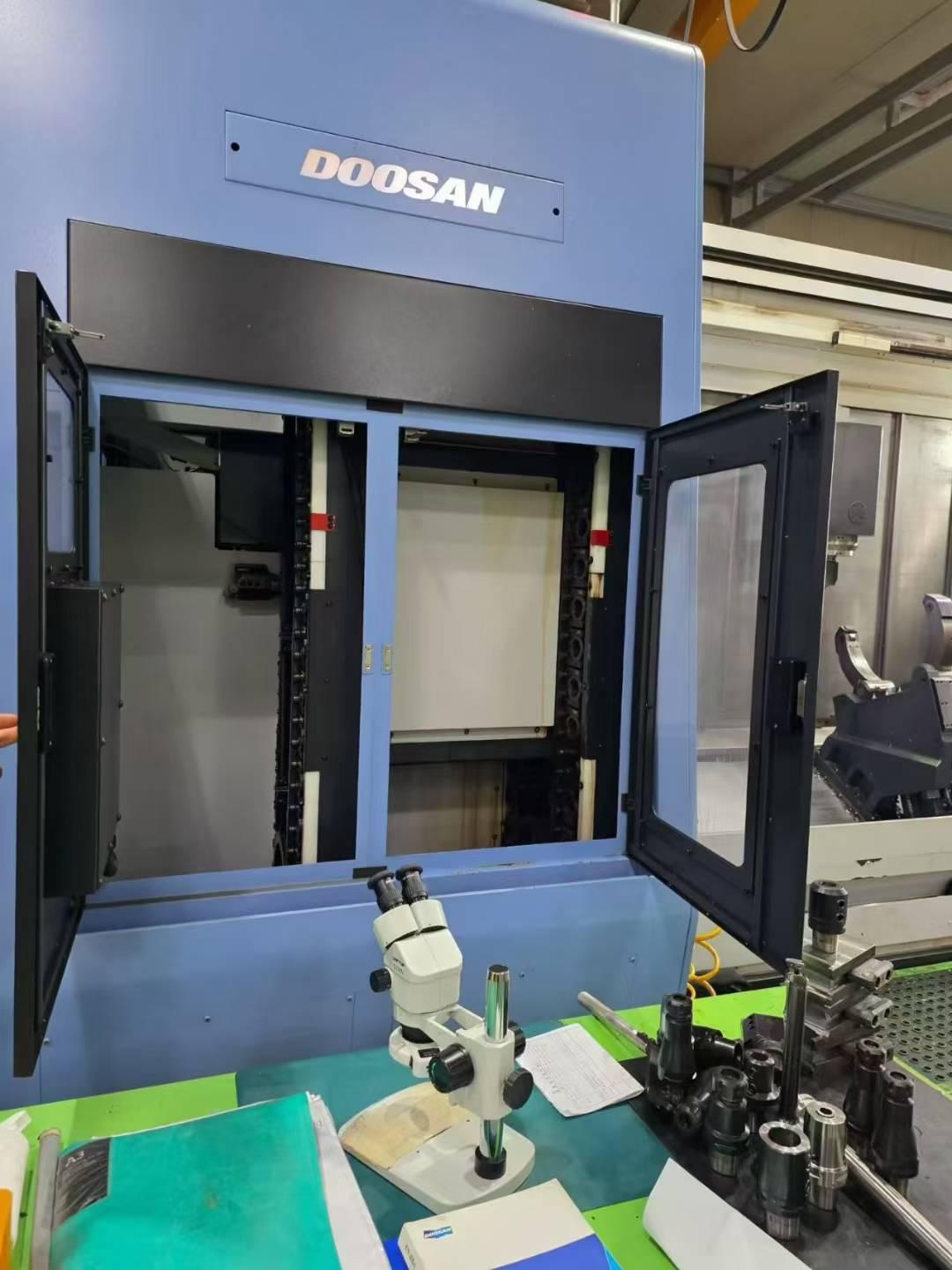

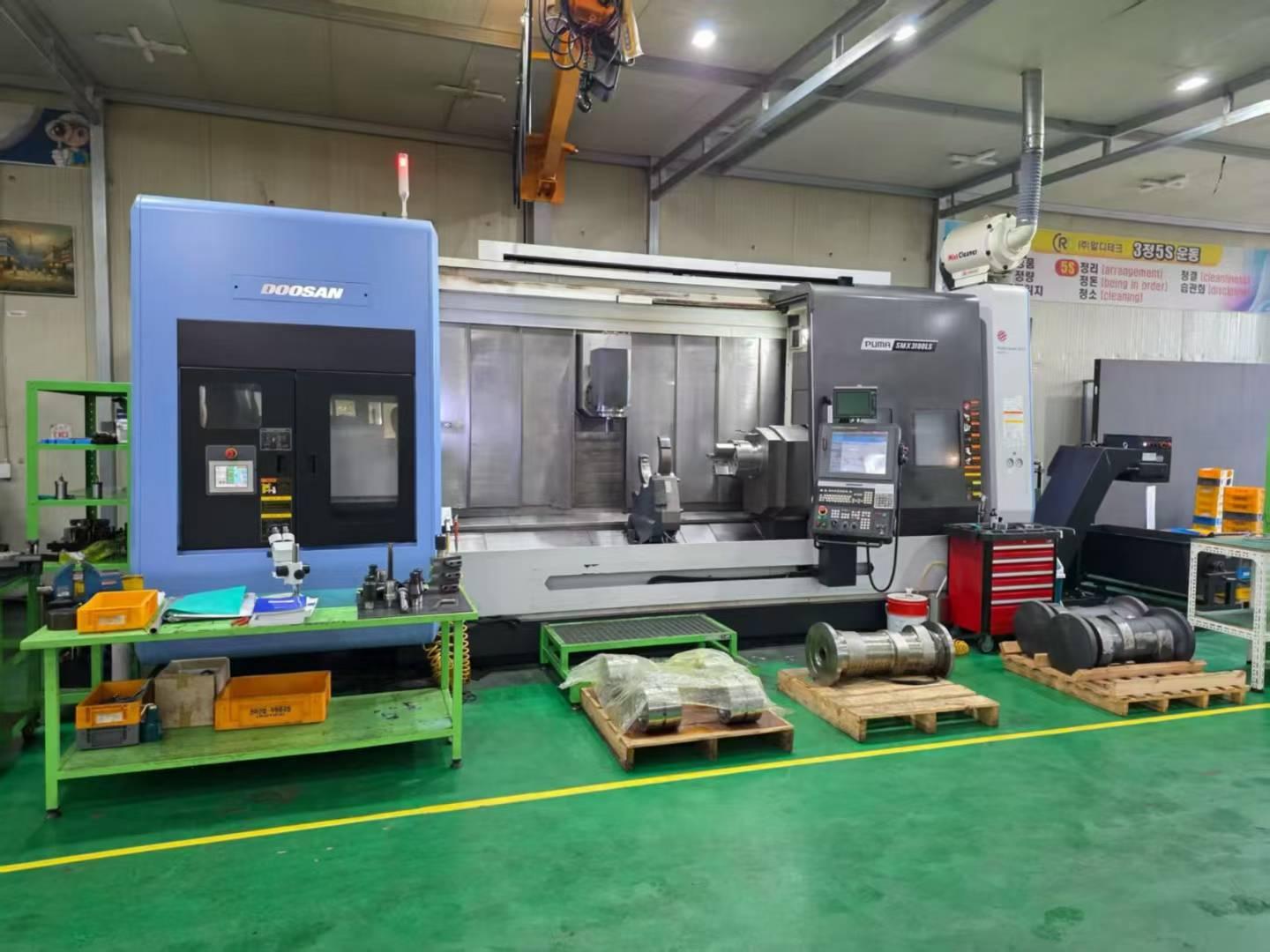

DOOSAN PUMA SMX3100LX Turn Mill Machining Centre

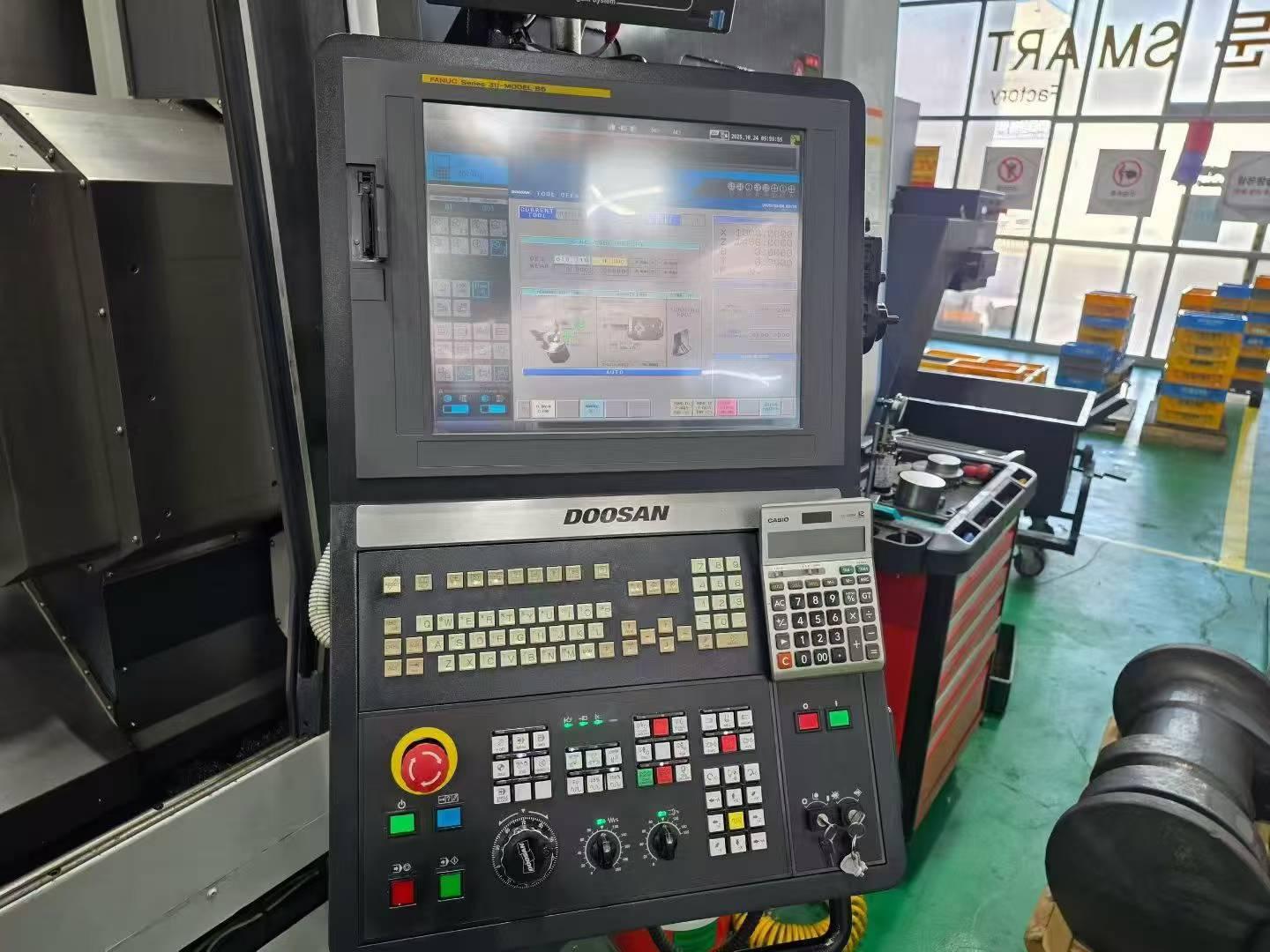

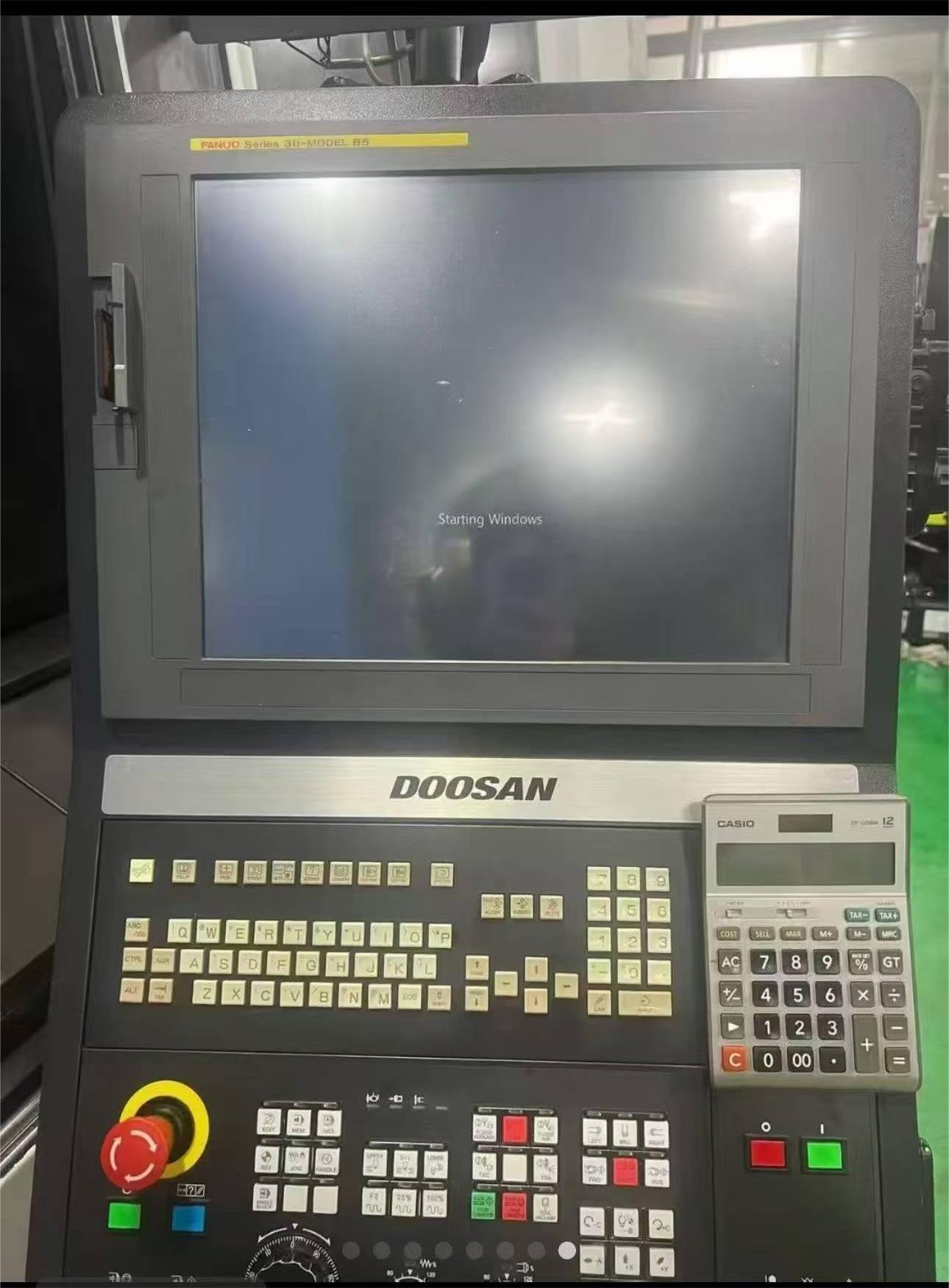

CNC System: FANUC 31i
Swing Diameter: 660 mm
Maximum Machining Diameter: 660 mm
Maximum Machining Length: 2540 mm
Maximum Machining Diameter (Manual): 102 mm
Maximum Machining Diameter (Automatic): 81 mm
Y-axis Travel: 300 mm (±150 mm)
Spindle Seat: A2-11
Spindle Speed: 3000 rpm
Spindle Motor Power (Continuous / 30 minutes): 25/30 kW

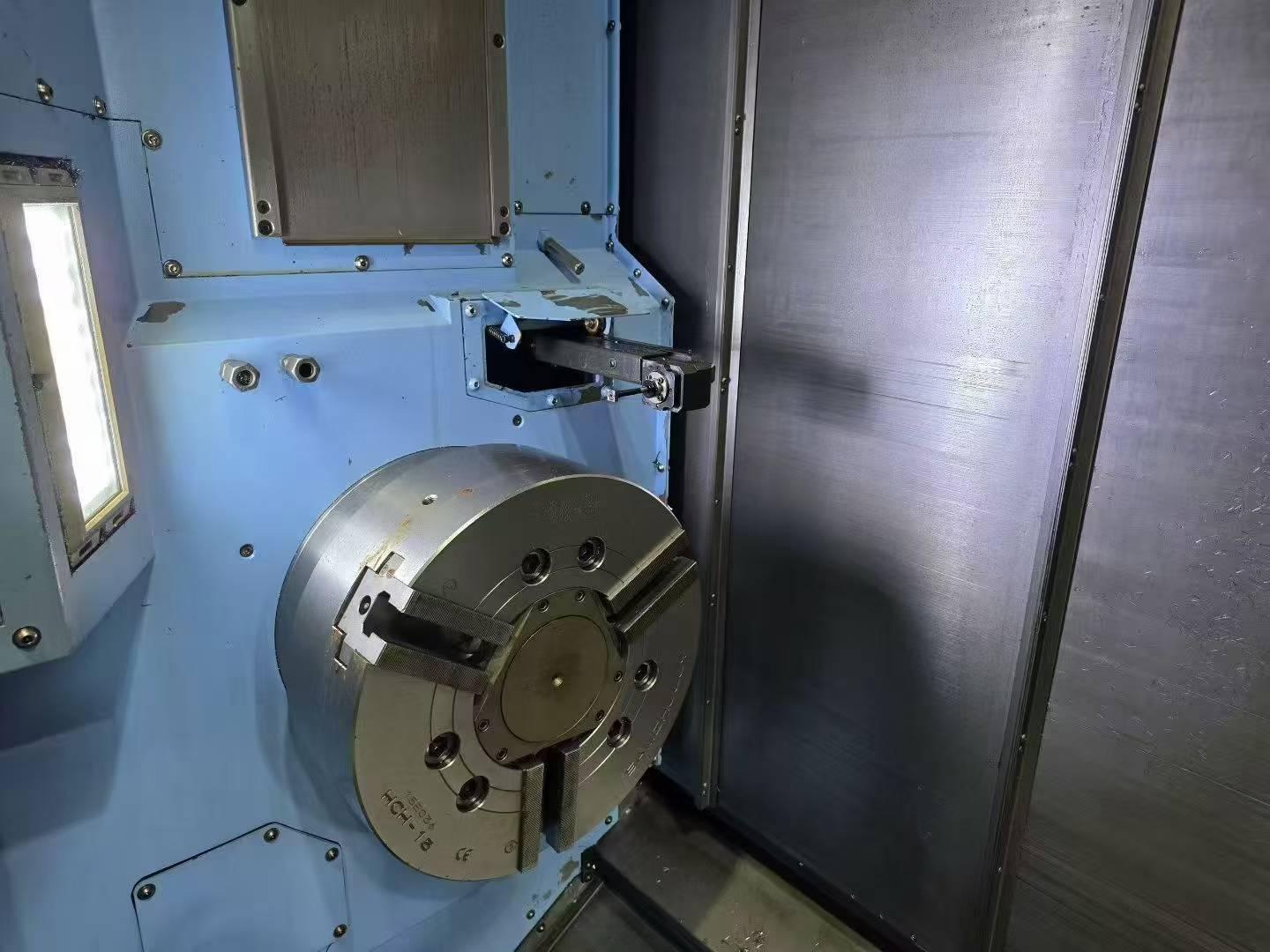

Sub-Spindle Parameters
Sub-Spindle Seat: A2-8
Sub-Spindle Speed: 4000 rpm
Sub-spindle Motor Power (Continuous / 30 minutes): 22/26 kW
Tool Head Parameters
Tool Interface: CAPTO C6
Tools position: 40

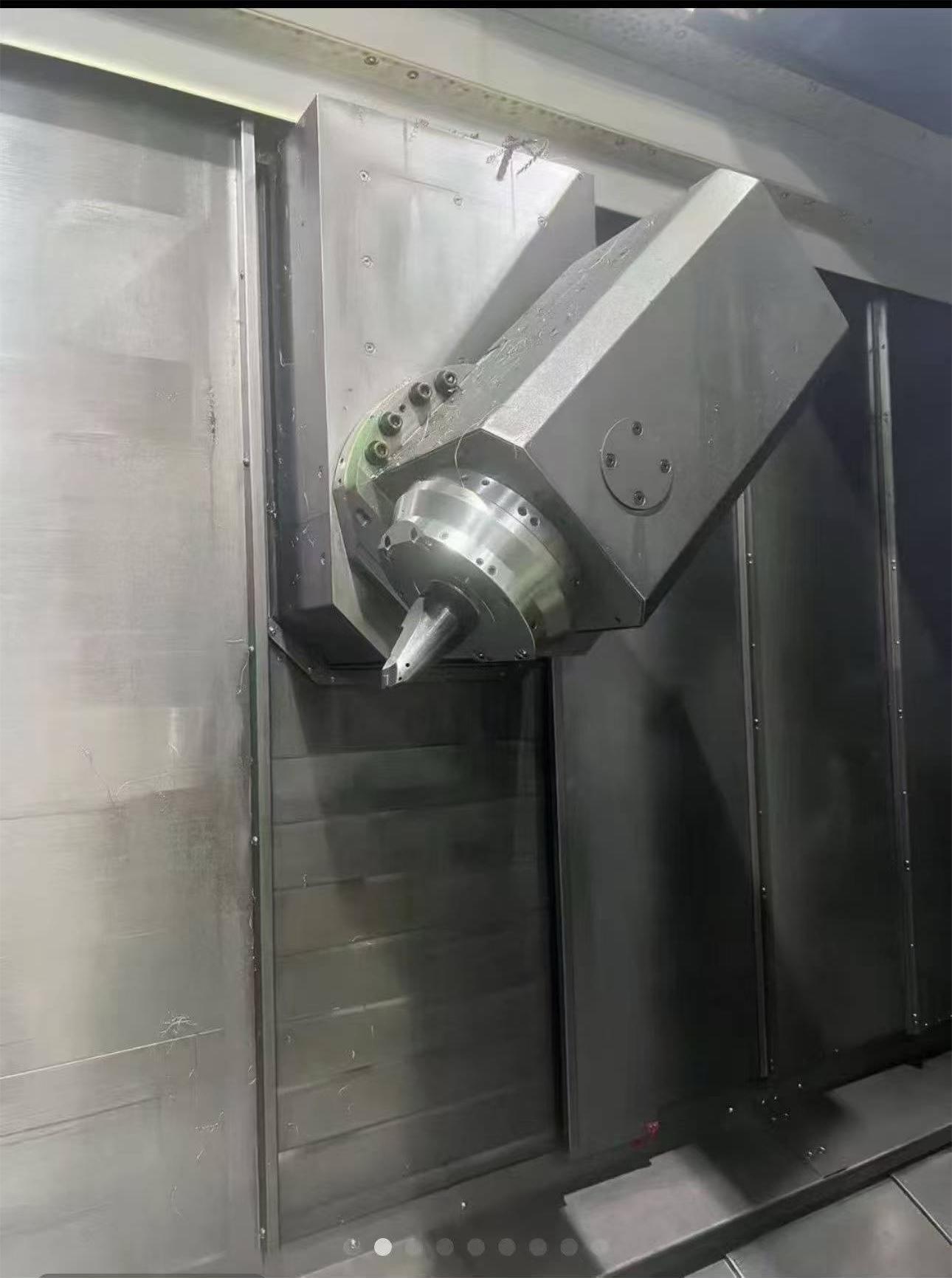

Mill Head Parameters
B-axis Rotation Angle / Positioning: 240° (±120°)
AC Motor Power (30 minutes): 15/18.5 kW
