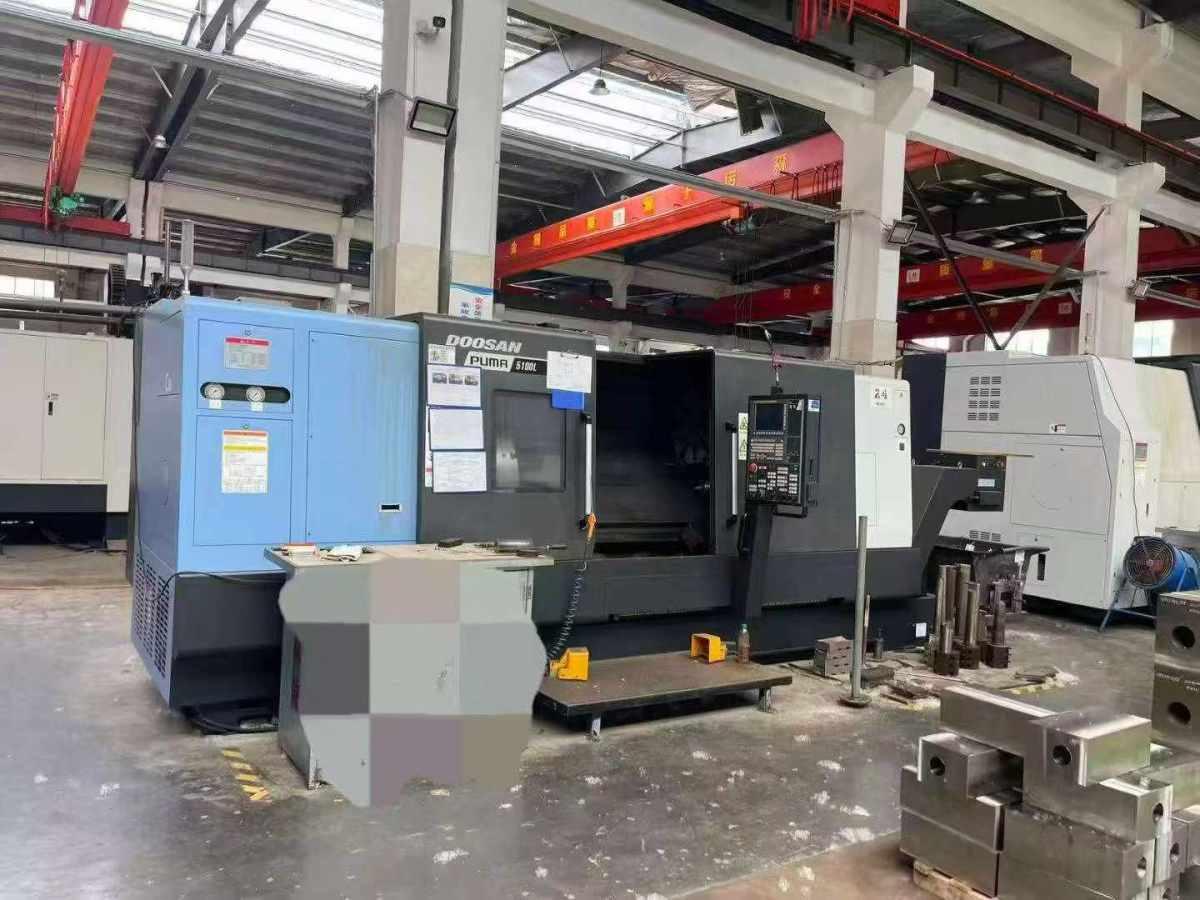

DOOSAN PUMA 5100LC CNC turning lathe

Maximum turning diameter: 650 mm
Maximum Machining length: 2042mm
X-axis travel: 362mm
Z-axis travel: 2155 mm
X-axis rapid movement speed: 16 m/min
Z-axis rapid movement speed: 20 m/min
Maximum spindle speed: 1000 r/min
Maximum power of spindle: 45 kW (60 hp)
Maximum torque of spindle: 4463 N·m
The diameter of spindle through hole is 274mm

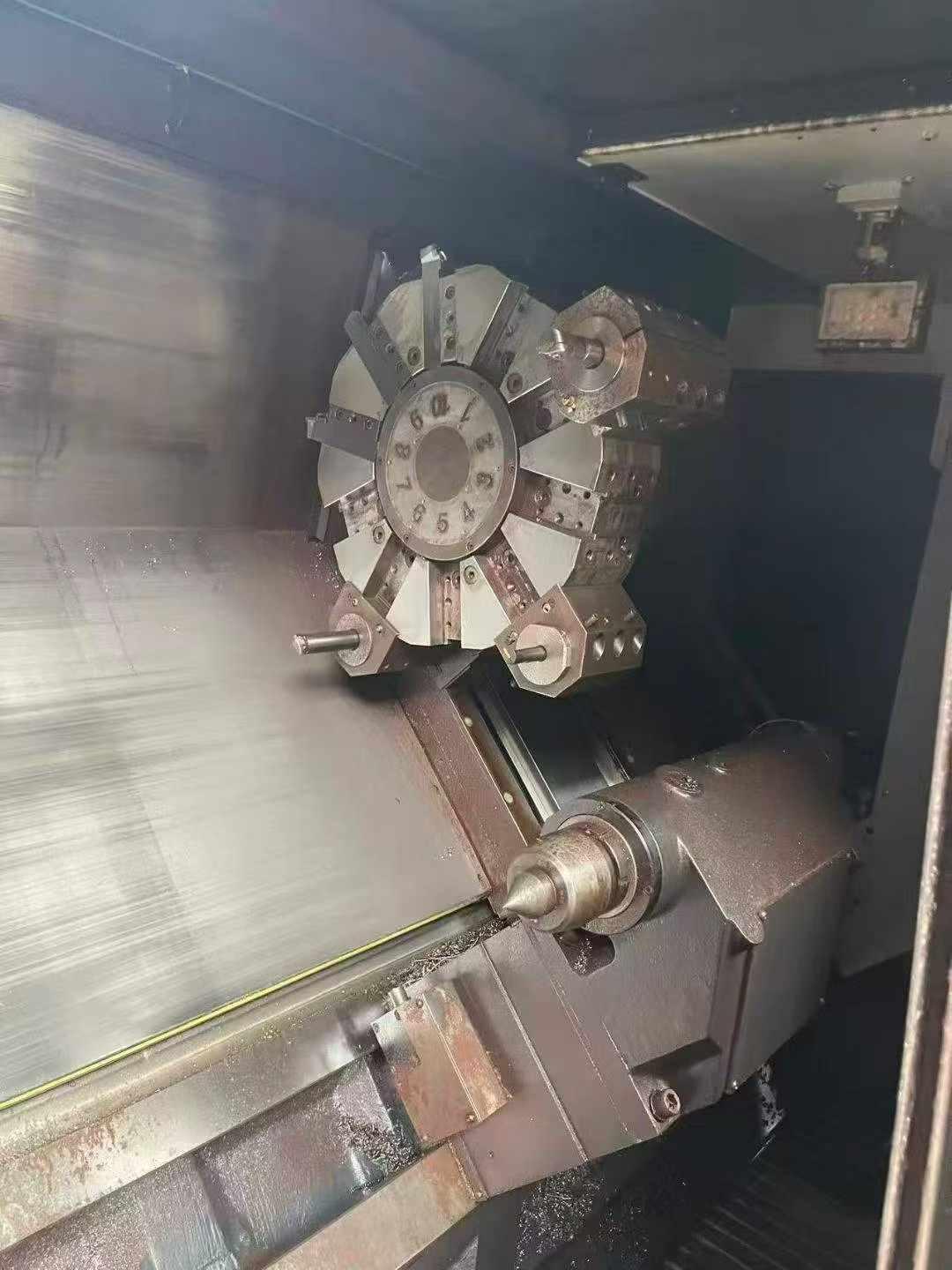

Number of turret workstations: 12
