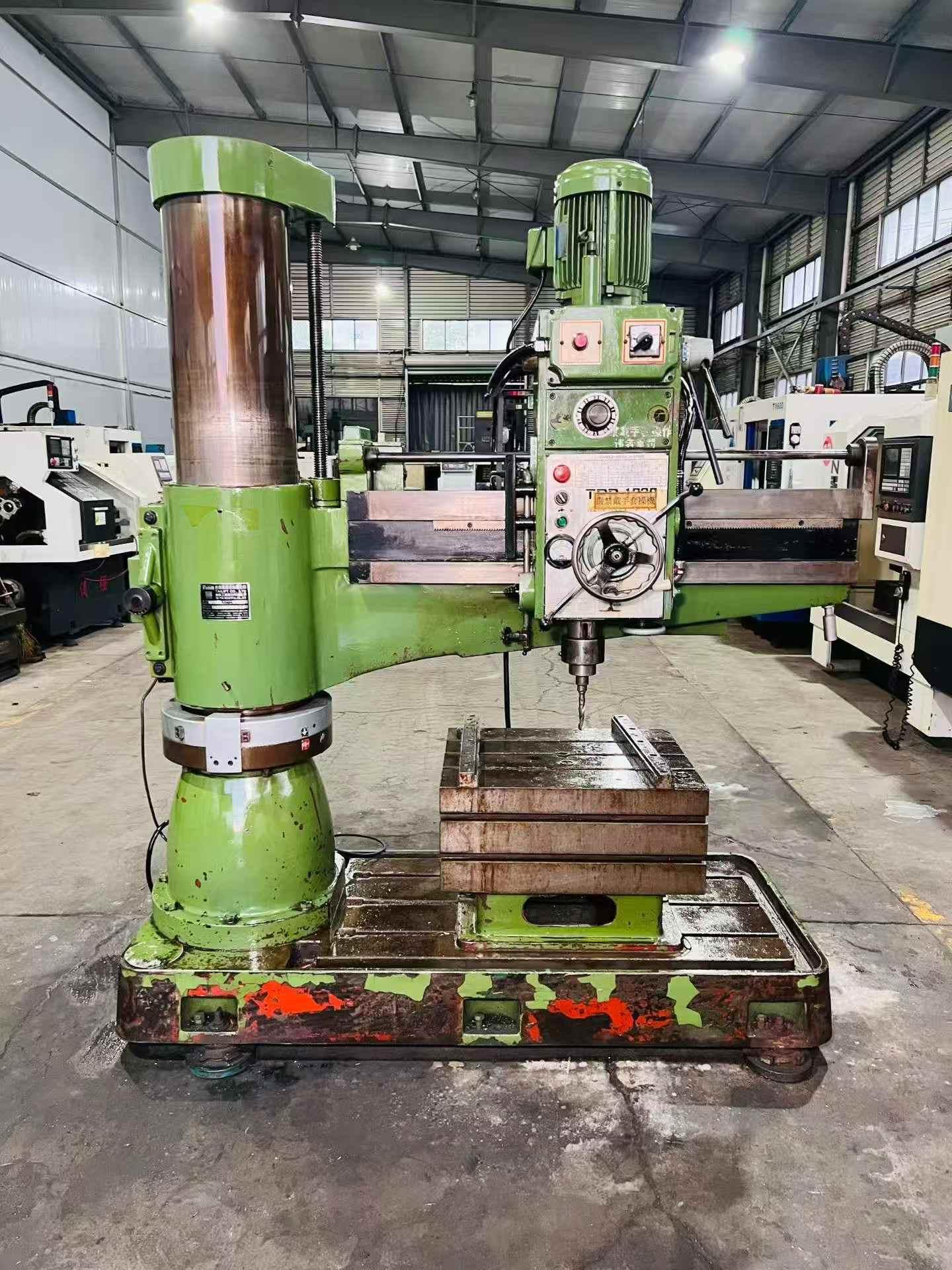

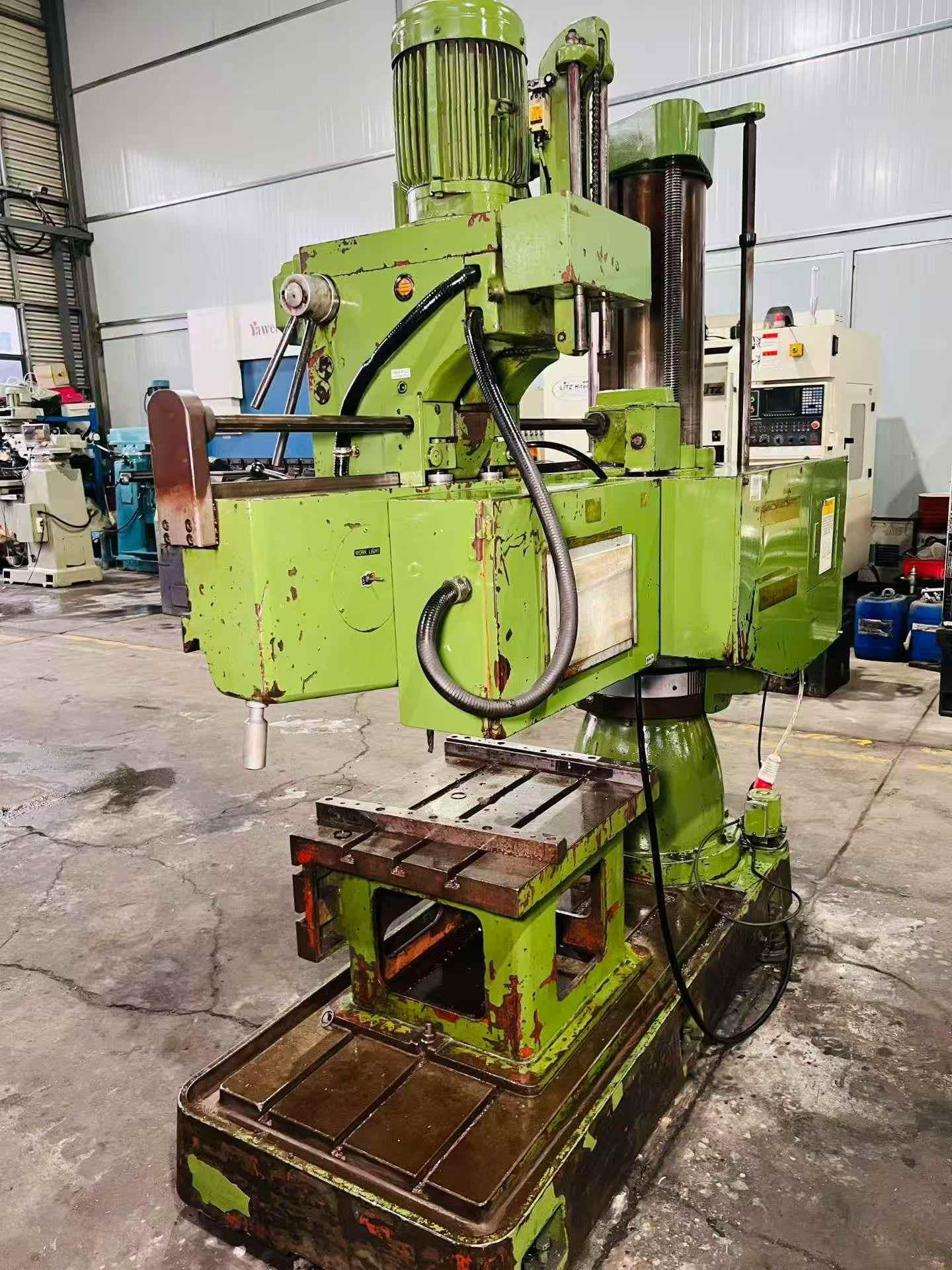

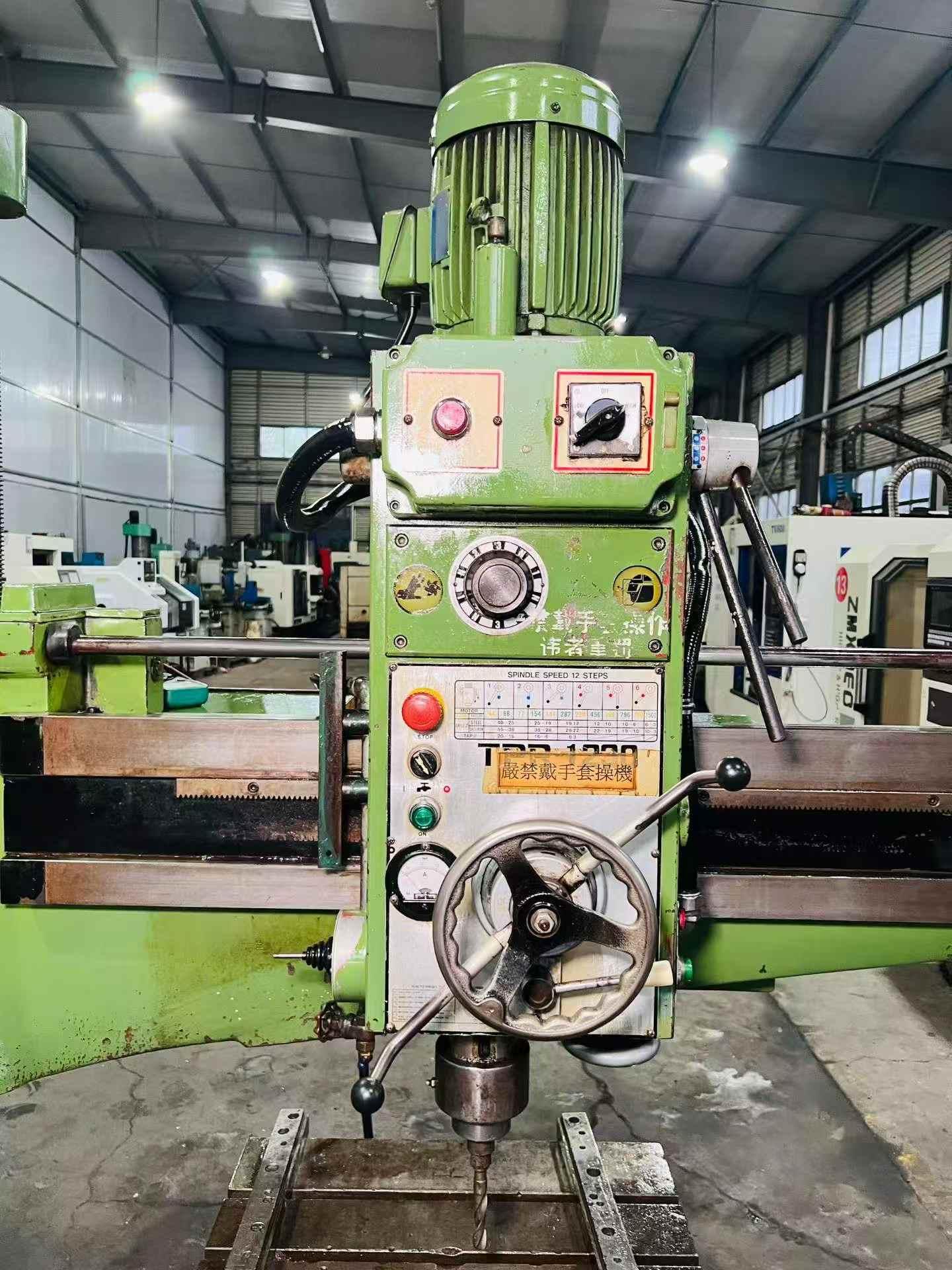

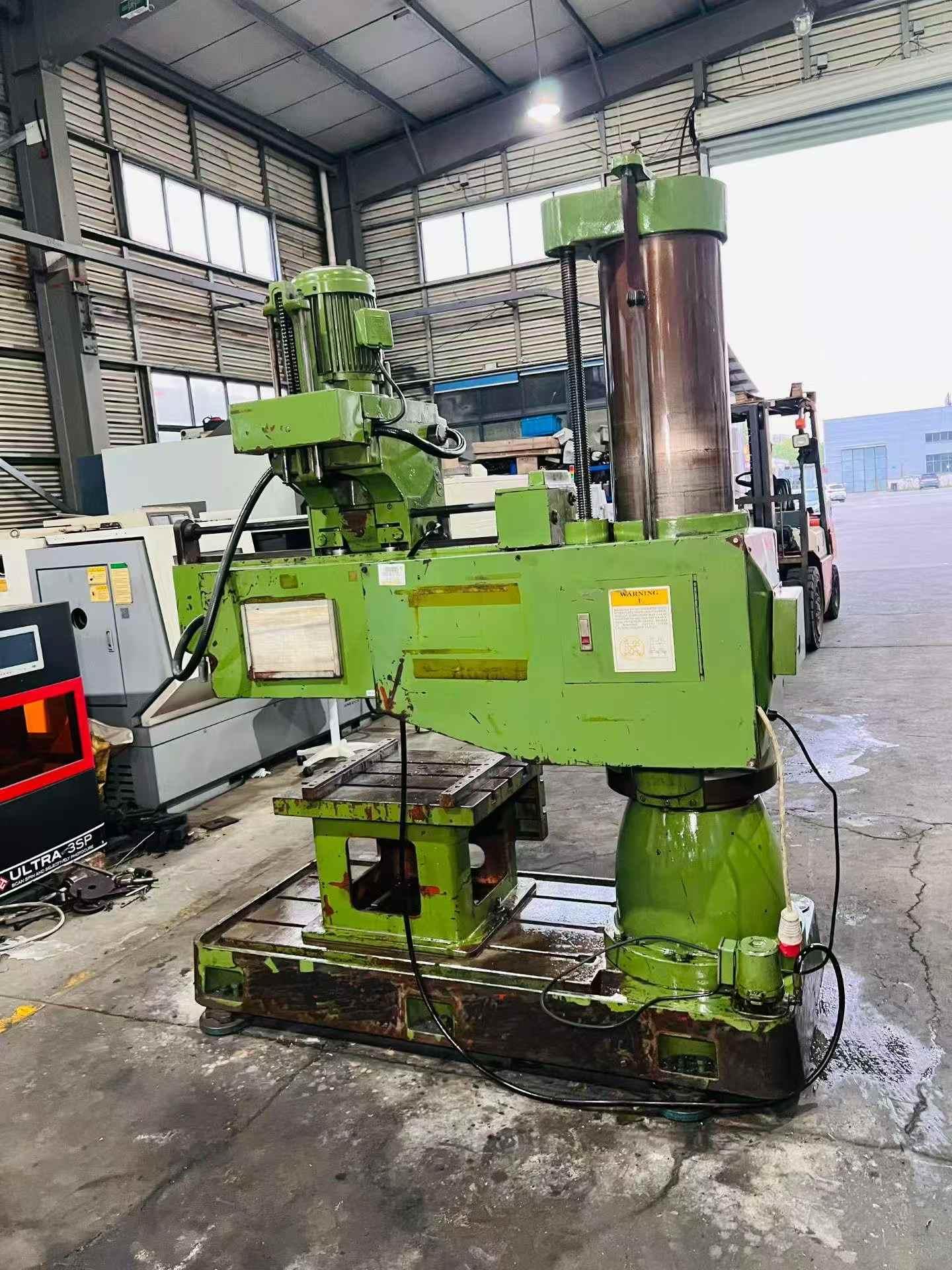

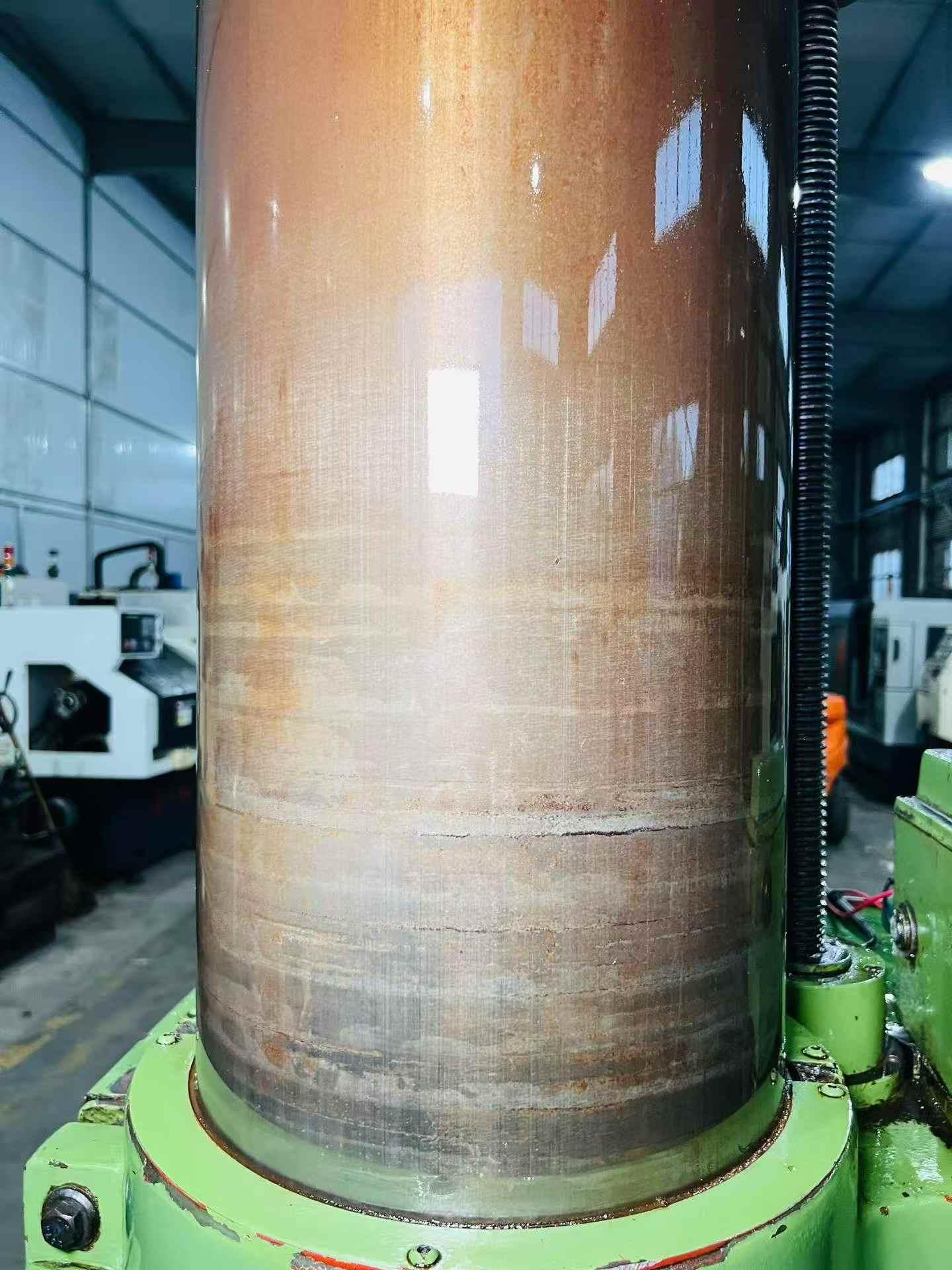

Tailift TPR-1230 Radial drill
[Product Information]:
- Inventory number：67540
- Brand：Tailift
- Model：TPR-1230
- Origin：Taiwan, China
- Location：China
- Year：2004
- Create Time：2026-04-18
Specifications:
Maximum drilling diameter (medium carbon steel) : φ 42mm
Maximum drilling diameter (cast iron) : φ 55mm
Maximum tapping diameter (medium carbon steel) : M25
Maximum tapping diameter (cast iron) : M38
Distance from spindle center to the surface of the column: 300-1230 mm
spindle travel: 250mm
spindle taper: MT4/MT5
Spindle speed range: 60-2000 rpm
spindle feed rate: 0.1-0.3 mm/rev
Main motor power: 3.7kW
hydraulic clamping motor power: 0.75 kW
