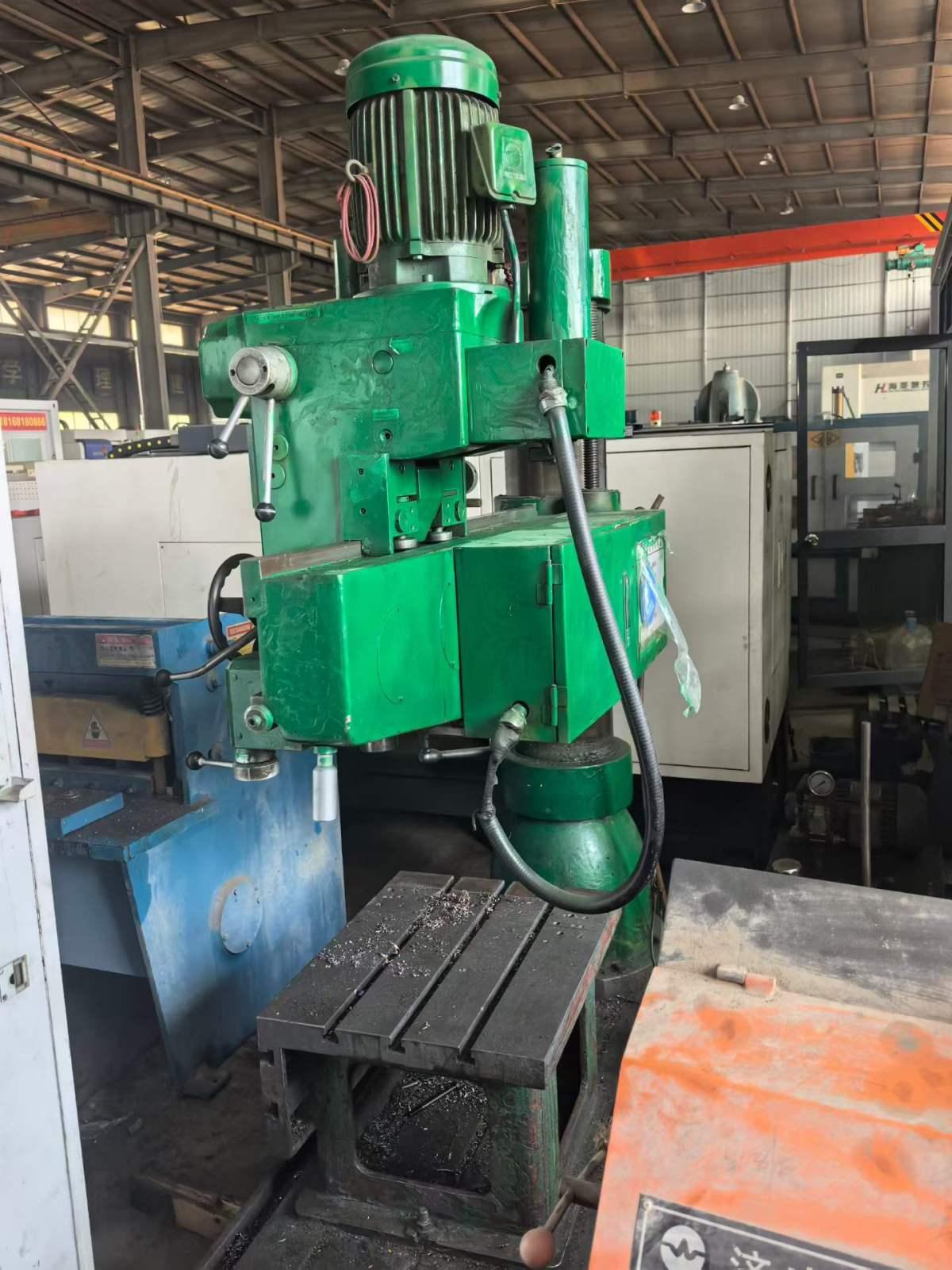

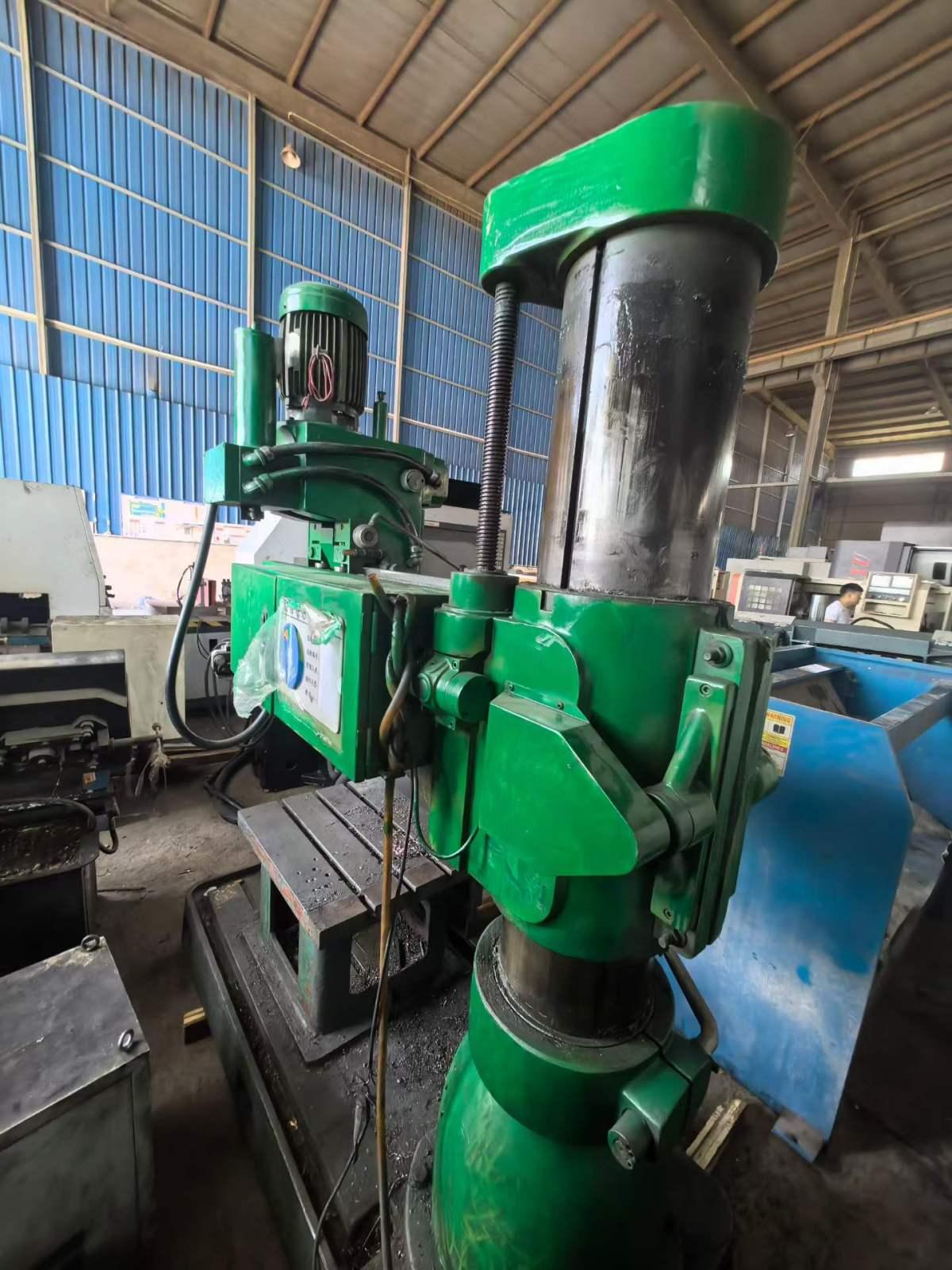

TAILIFT TPR-1100 Radial drill
[Product Information]:
- Inventory number：68005
- Brand：TAILIFT
- Model：TPR-1100
- Origin：Taiwan, China
- Location：China
- Year：2008
- Create Time：2026-05-28
Specifications:
Maximum drilling diameter (for steel parts) : 45mm
Maximum drilling diameter (cast iron) : 55mm
The maximum distance from spindle center to the surface of the column is 1100mm
The travel of the horizontal movement of spindle head on the rocker arm is 820mm
The vertical lifting travel of the rocker arm on the column is 600mm
Swing arm rotation Angle: 360°
spindle taper: MT4
Spindle speed: 37-1253rpm
spindle drive motor: 2.2kW
