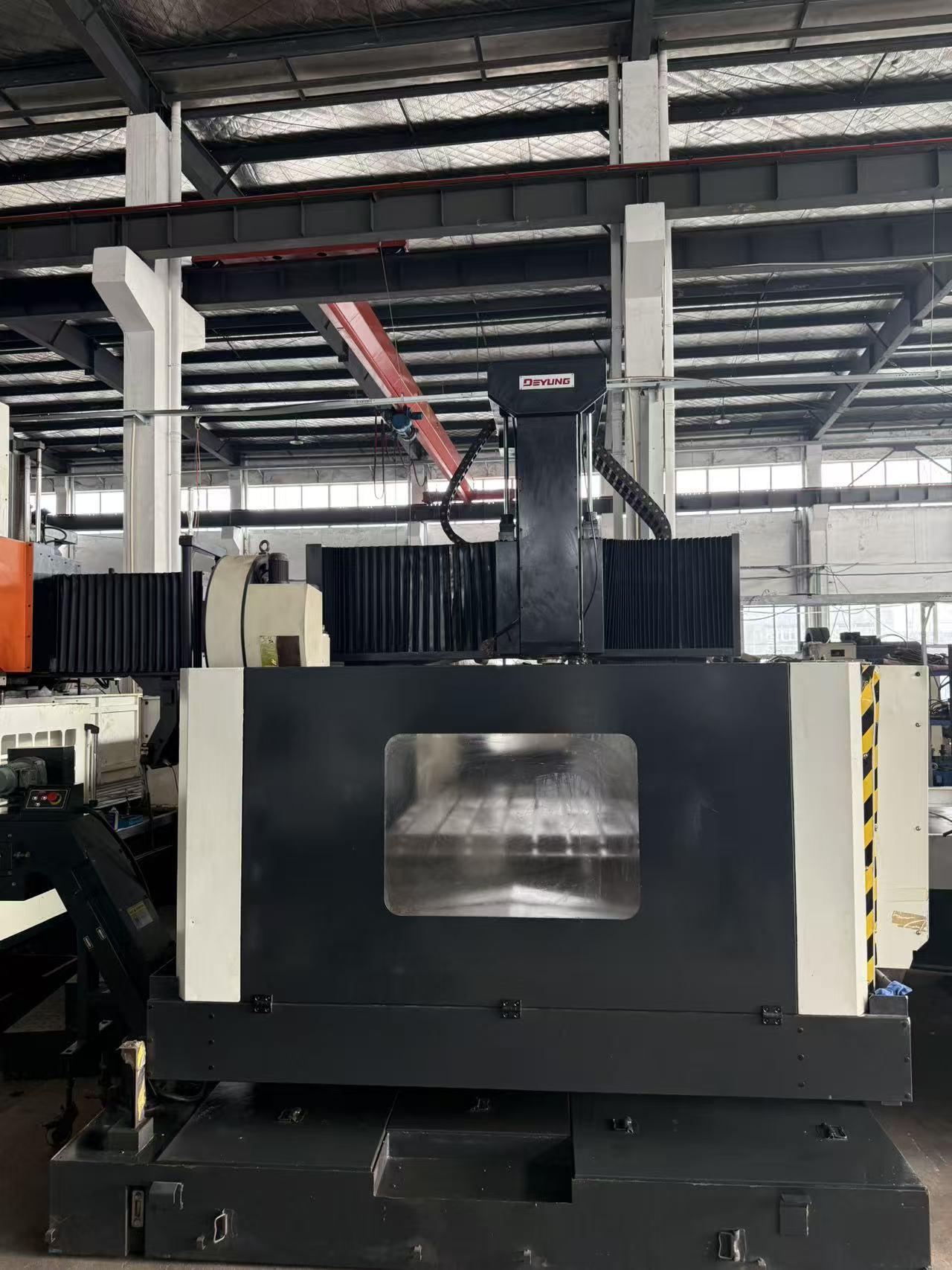

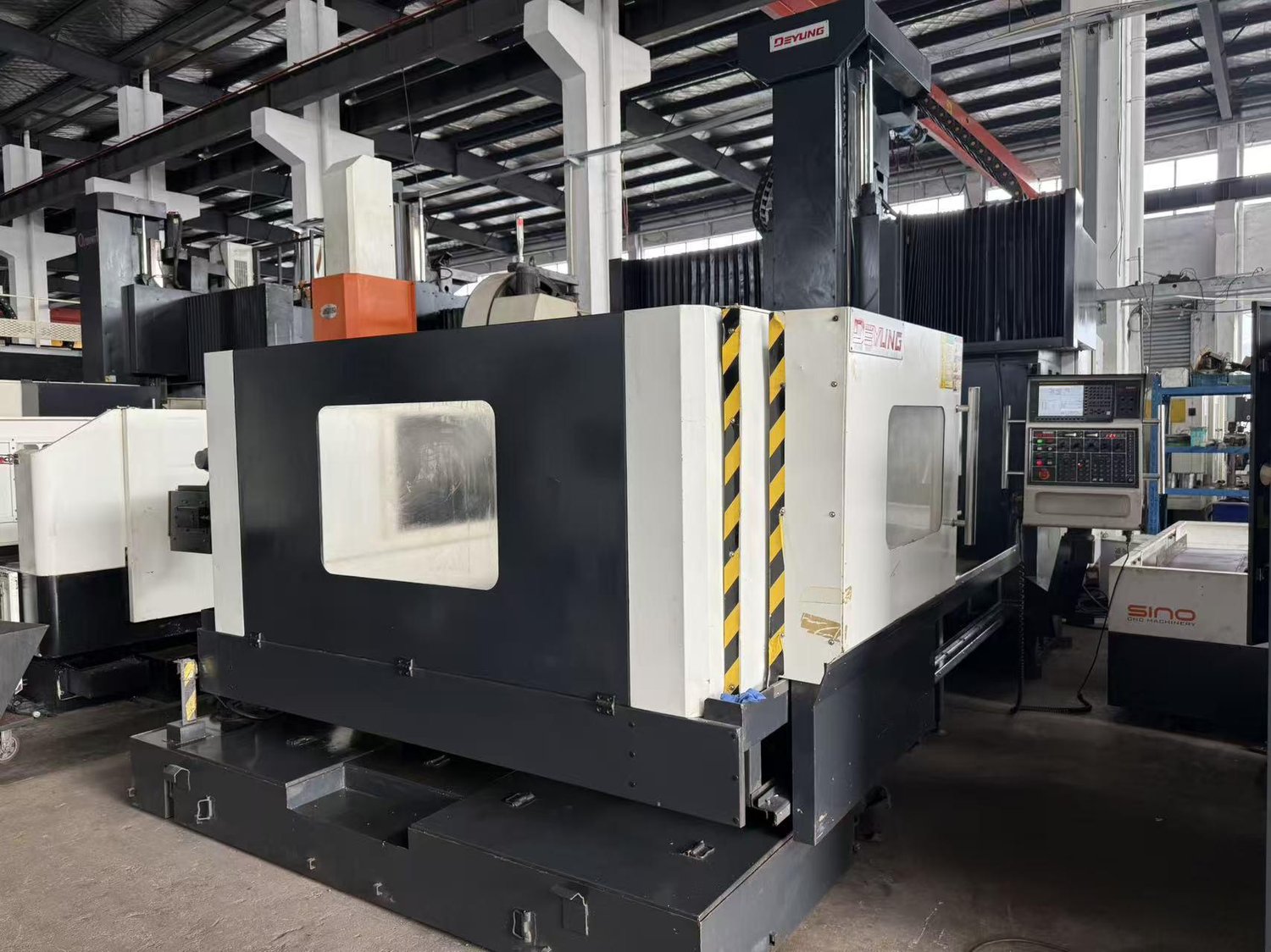

Deyung GSA-2518 Gantry machining centre

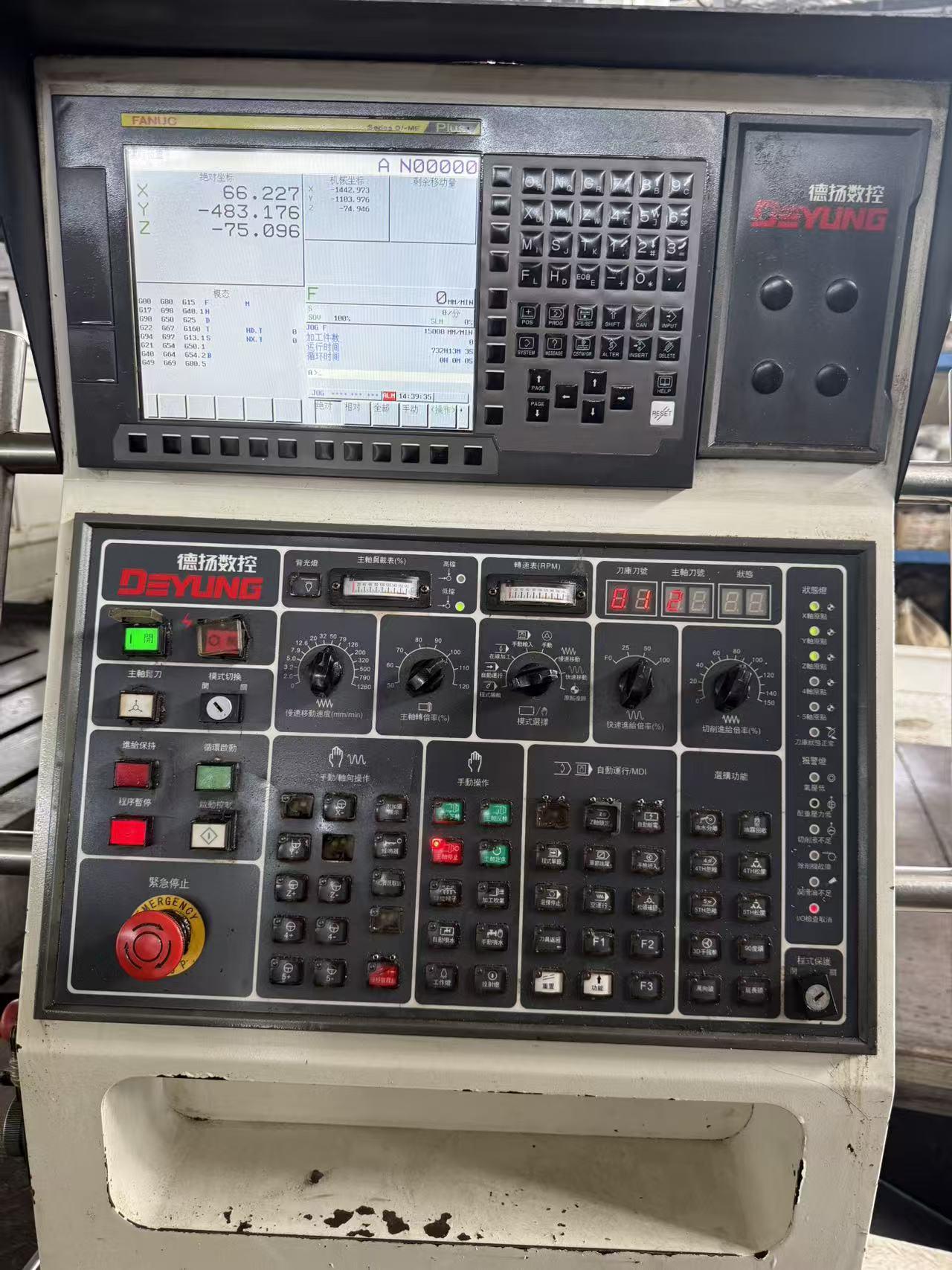

CNC System: FANUC MF Plus
Three-Axis Travel (X × Y × Z): 2502 × 1802 × 802 mm
Worktable Size (L × W): 2500 × 1600 mm
Tool Magazine Capacity: 24
Tool Holder Type: BT50
Spindle Speed: 6000 rpm
Guideway Configuration: Two linear guideways and one box guideway

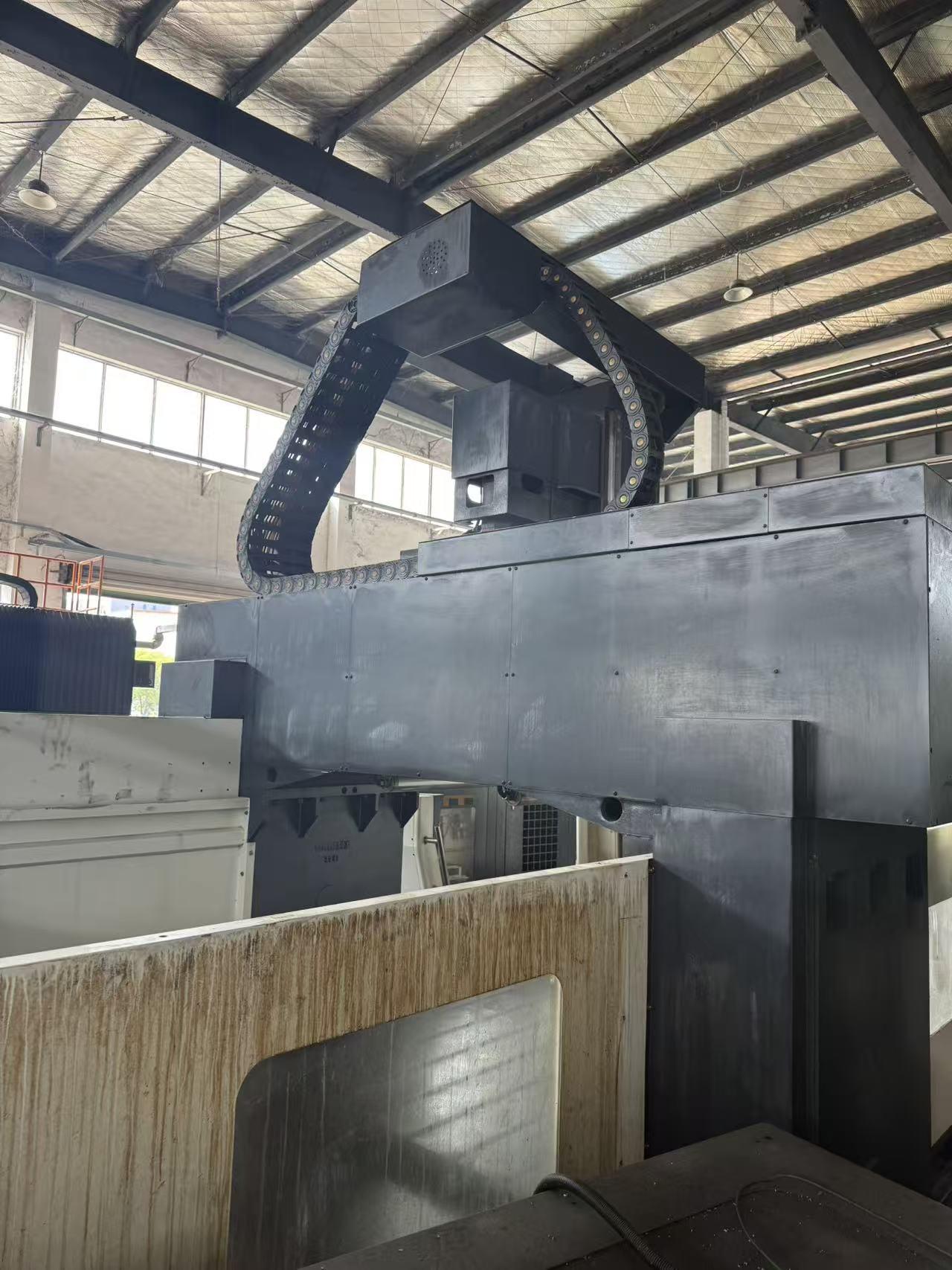

Gantry Height: 1120 mm
Gantry Width: 1910 mm

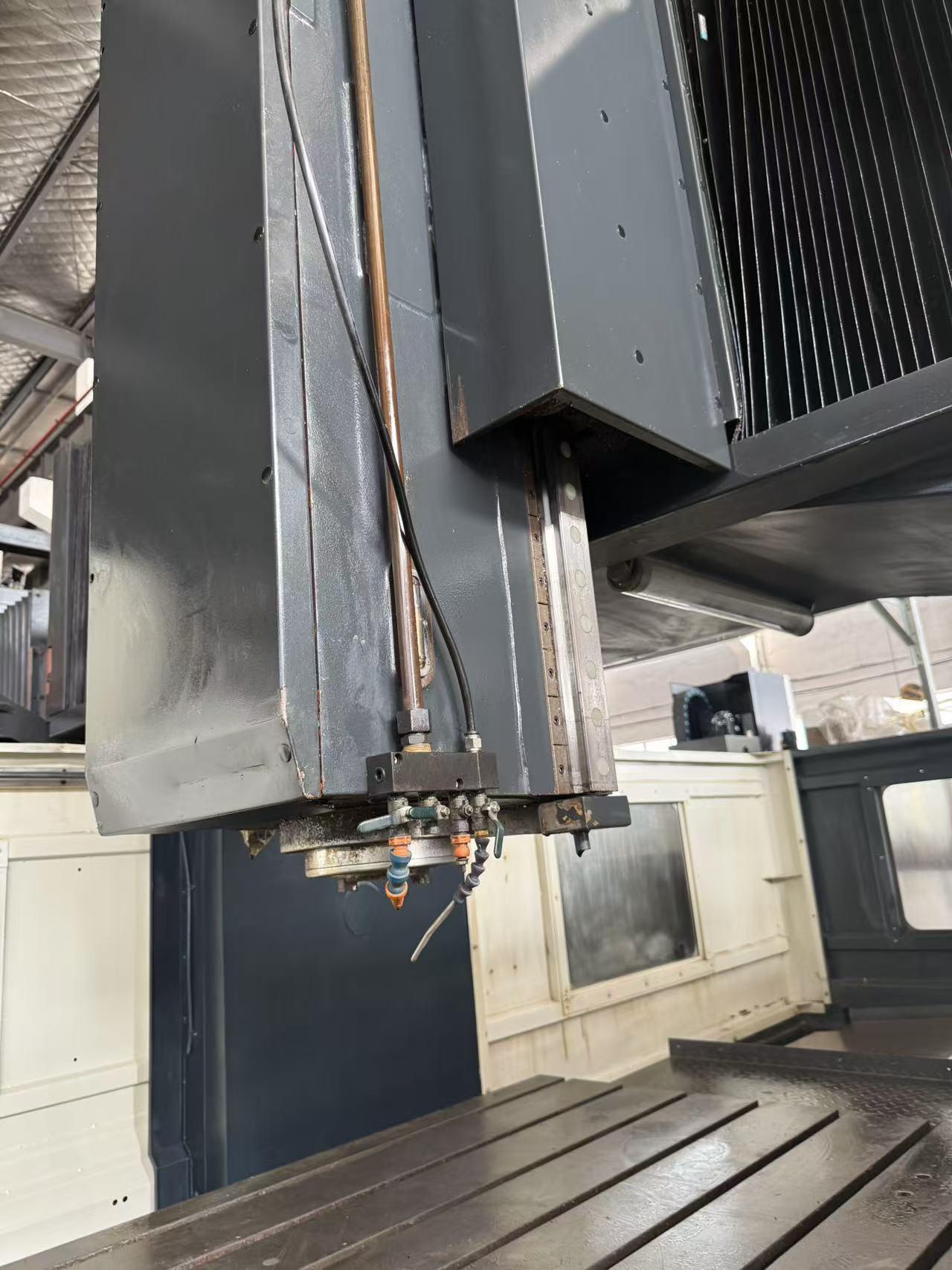

Distance from Worktable to Spindle Nose: 1120 mm
Configuration:

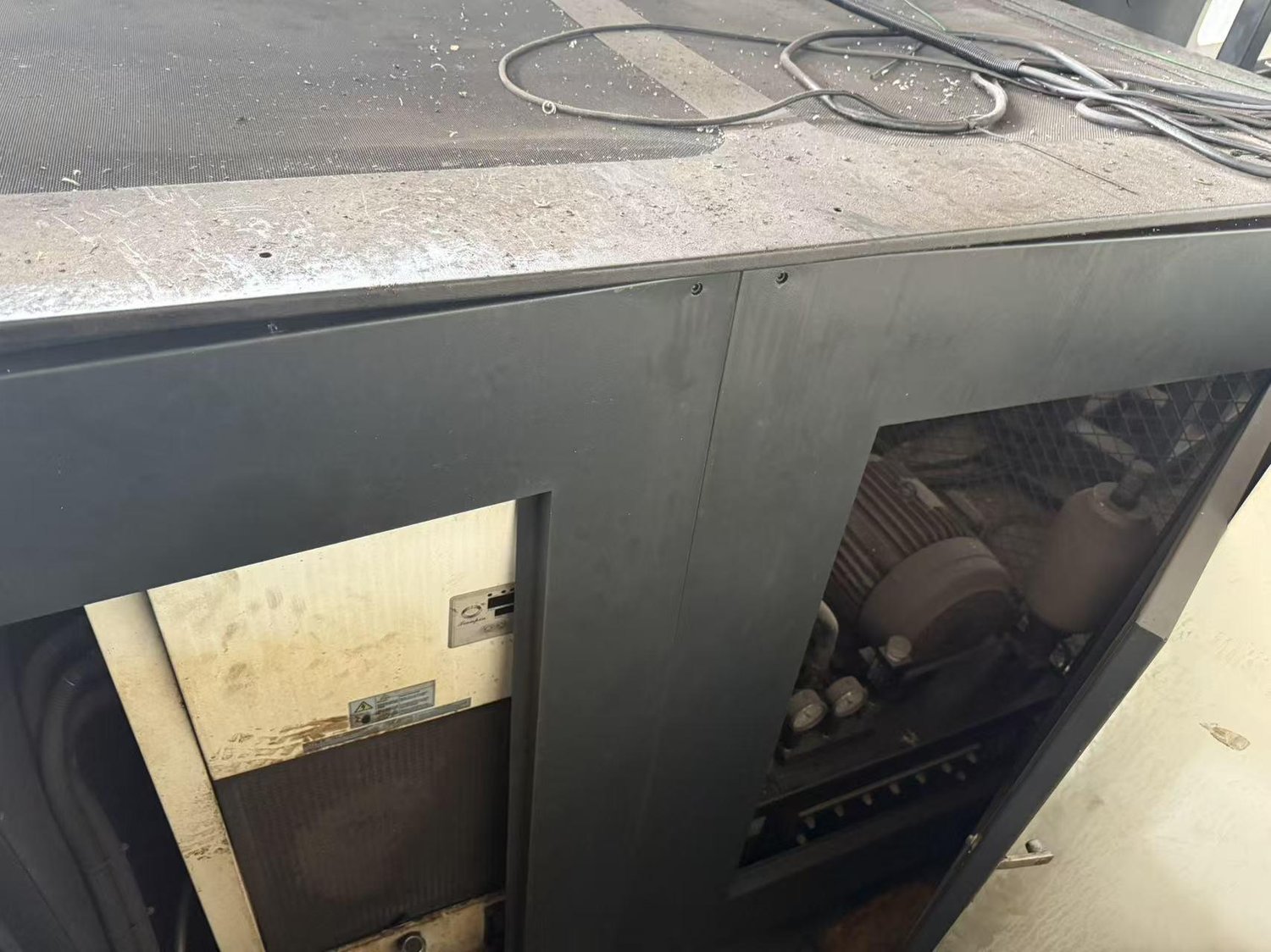

Spindle with oil chiller

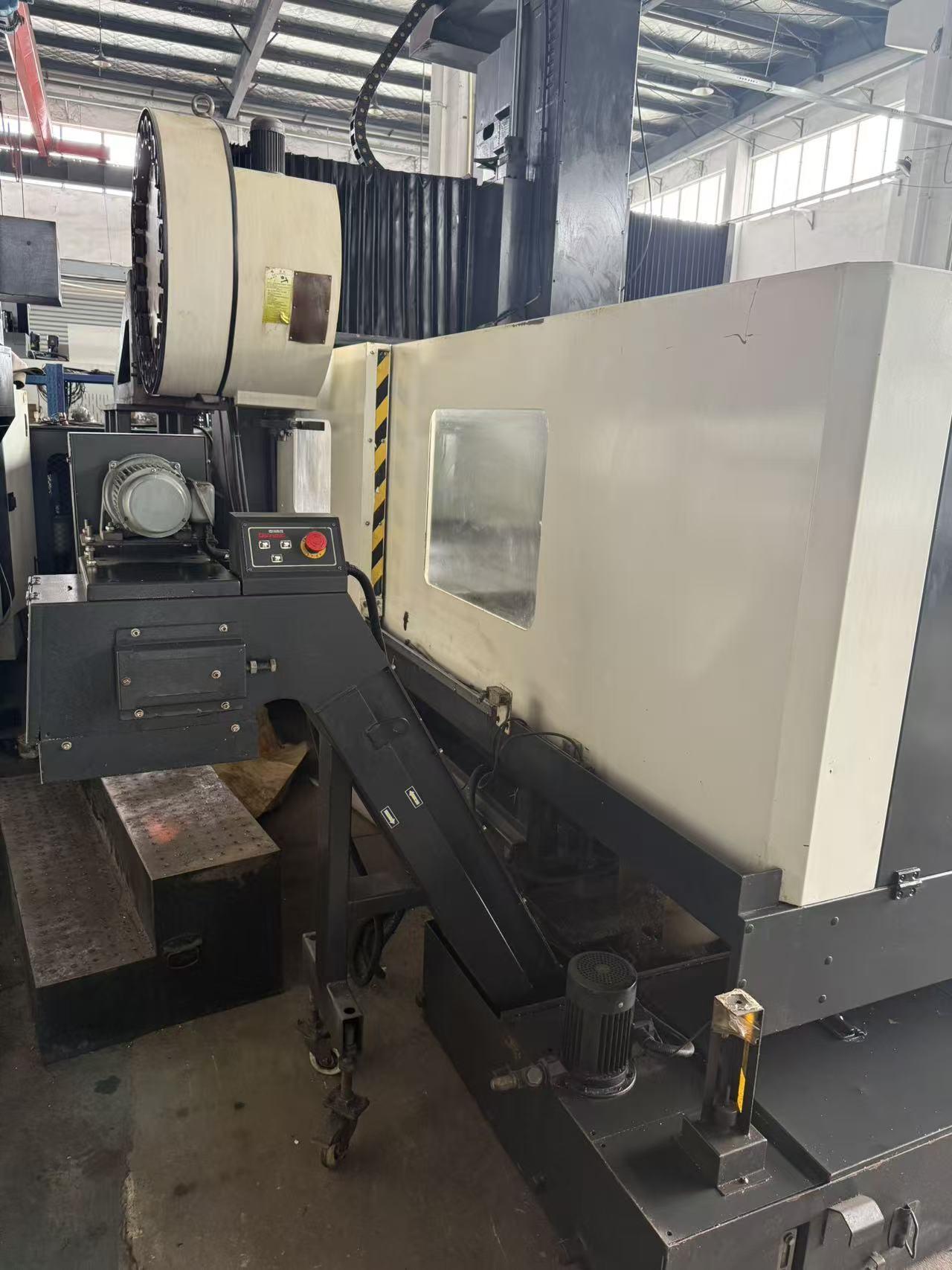

Double-helix chip conveyor with hinge-type chain
