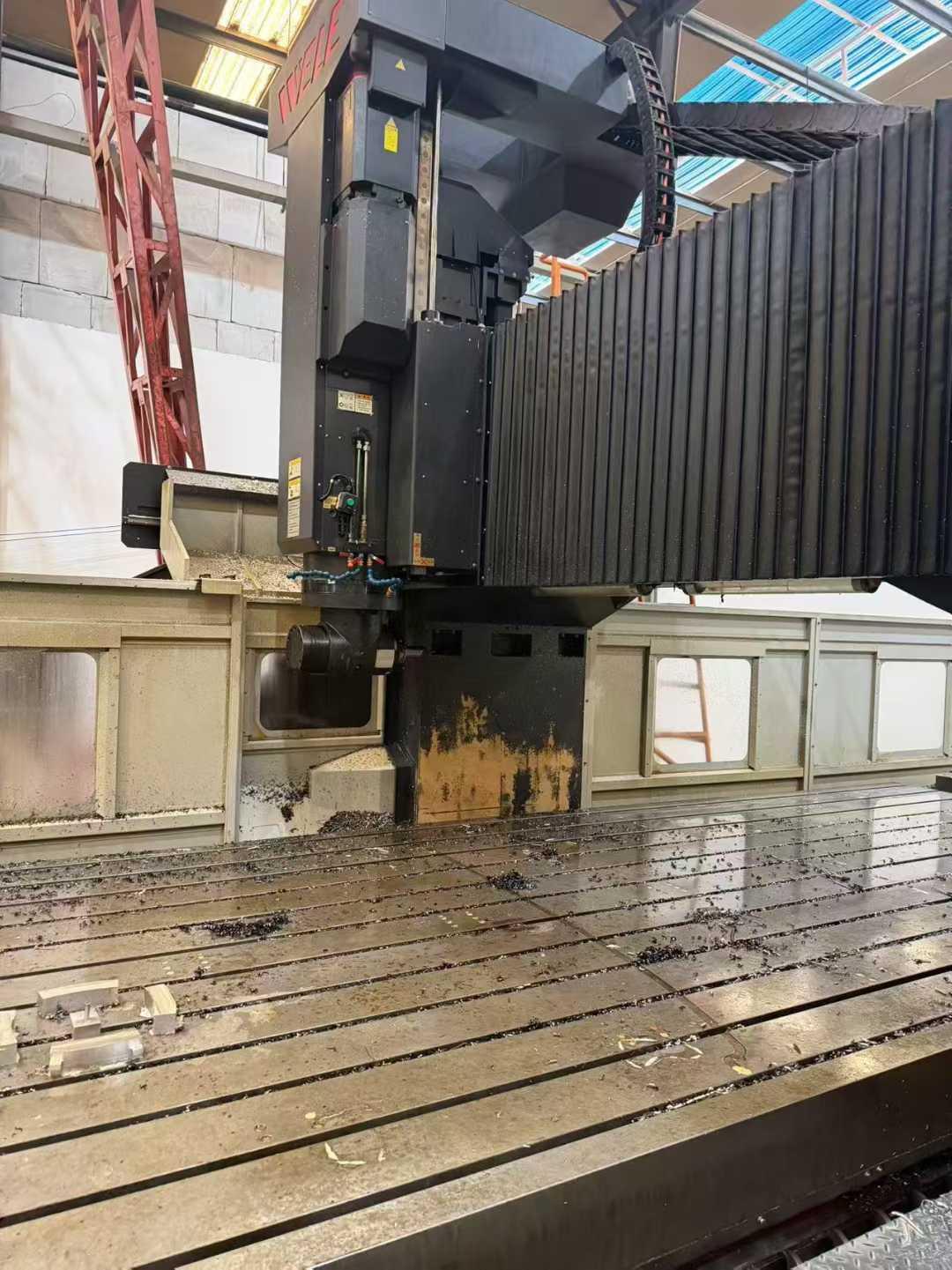

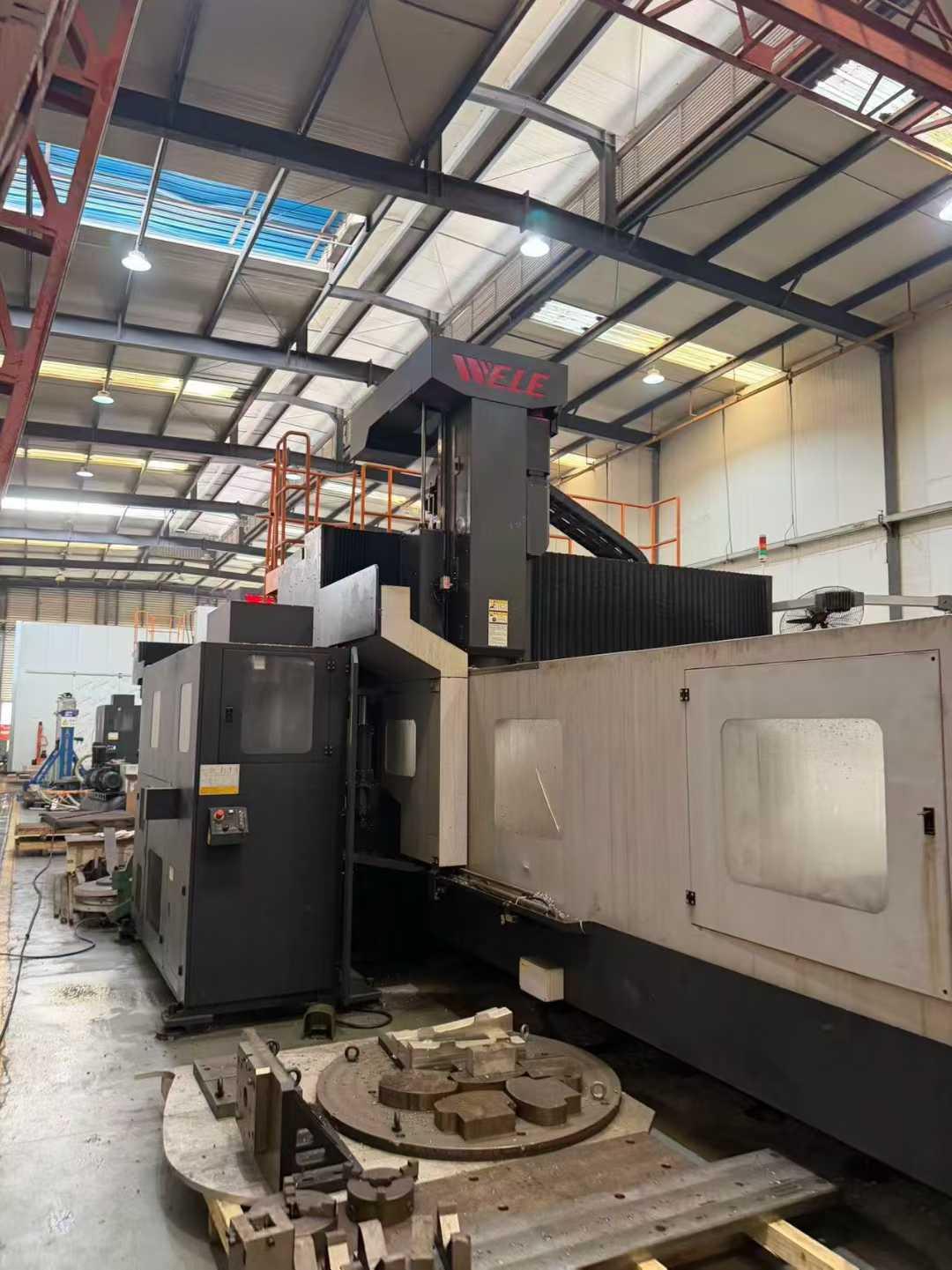

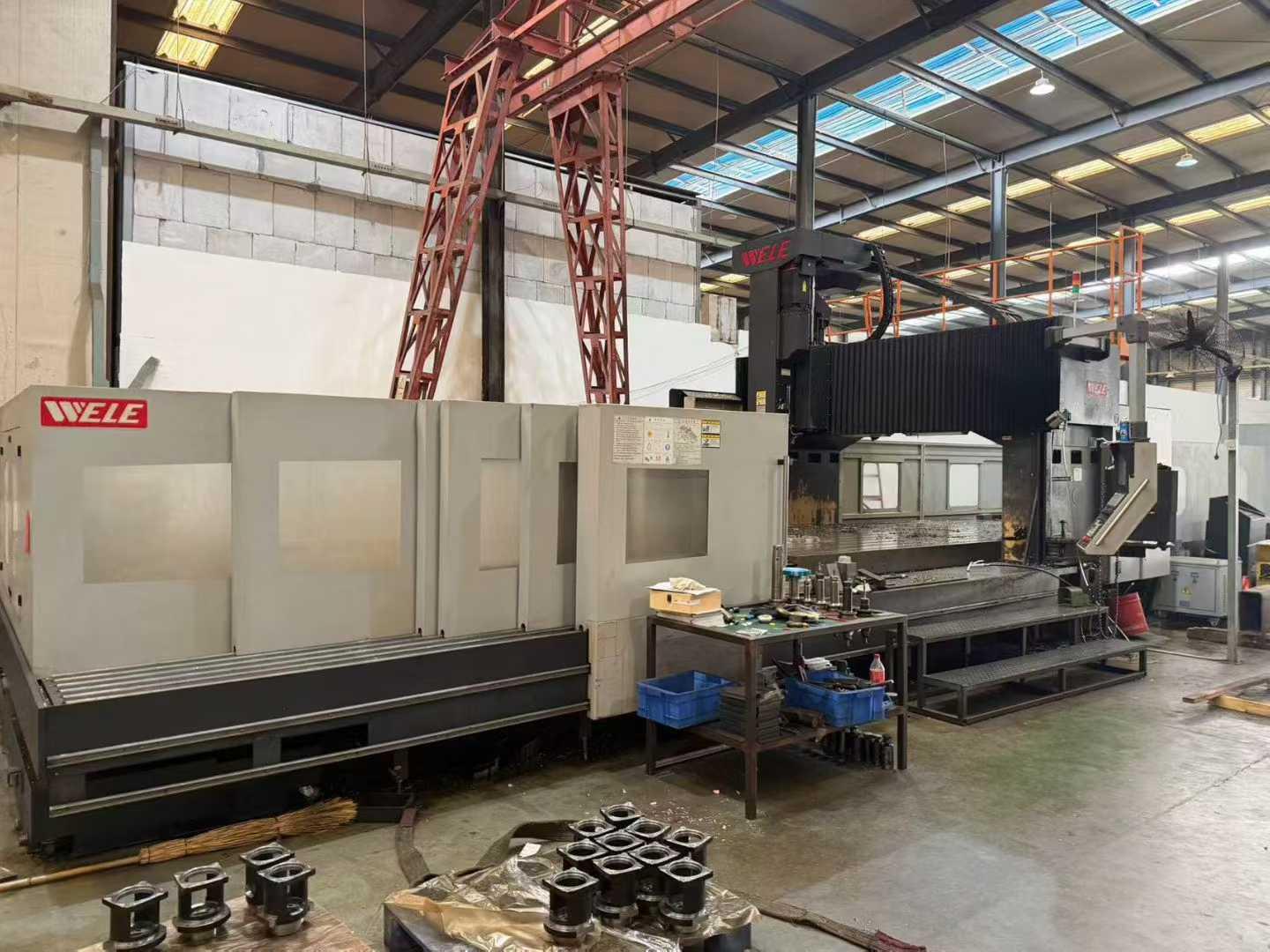

WELE LB-625 Gantry machining centre

X-axis travel: 6060mm

Y-axis travel: 2550mm

Z-axis travel: 800 mm

‌ WorkWorktable size: 6000 mm × 2400 mm

T-slot (width × spacing × quantity) : 28mm × 200mm × 12

‌ Spindle speed: 10-6,000 rpm

Horsepower (continuous / 30-minute rated) : 22/26 kW (30/35 HP)

drive mode: Two-speed gear automatic speed change

Taper: No.50

Maximum torque (continuous/rated for 30 minutes) : 626/740 Nm

Internal diameter of the front bearing: 100 mm

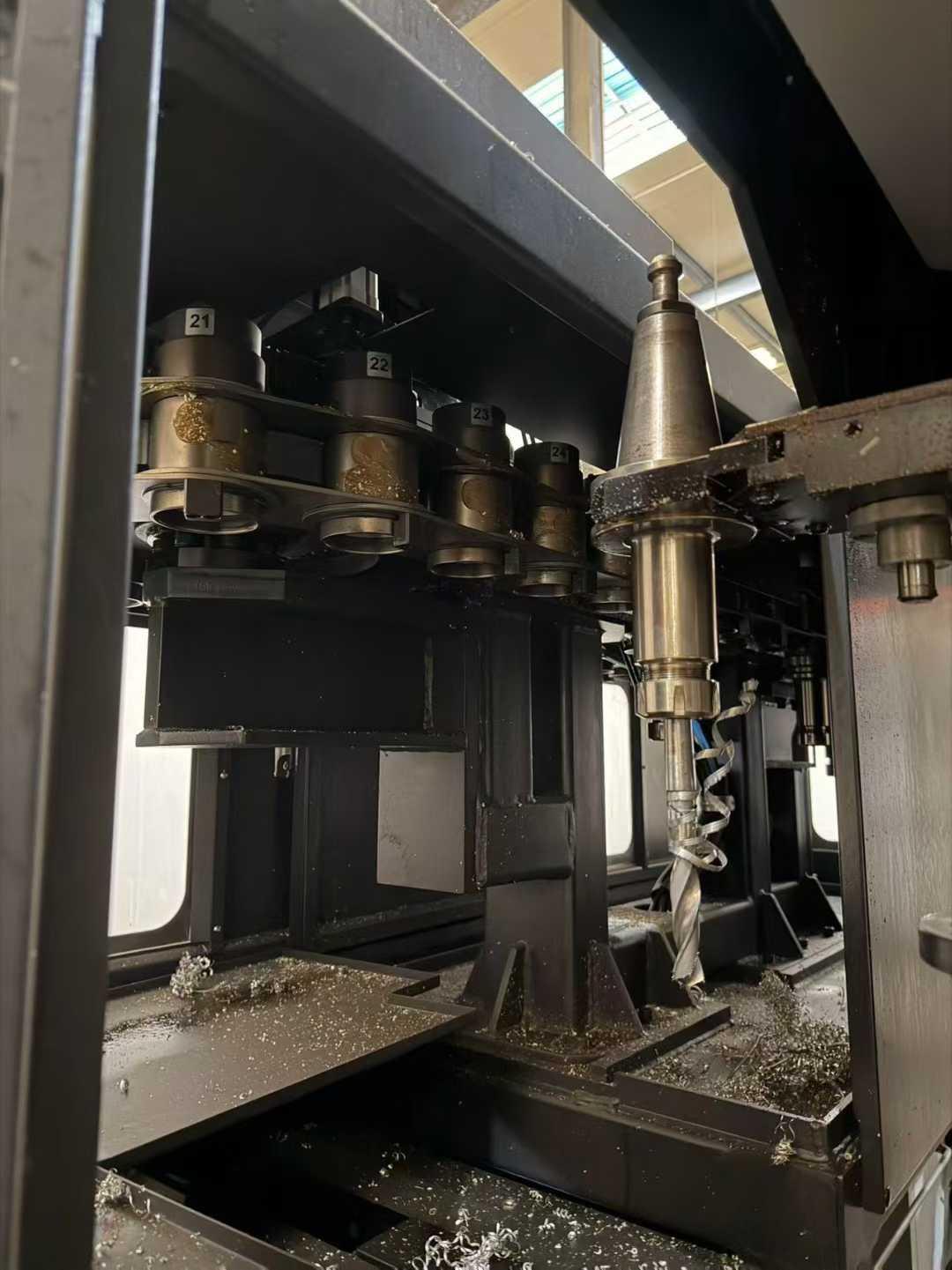

tools magazine: 32
