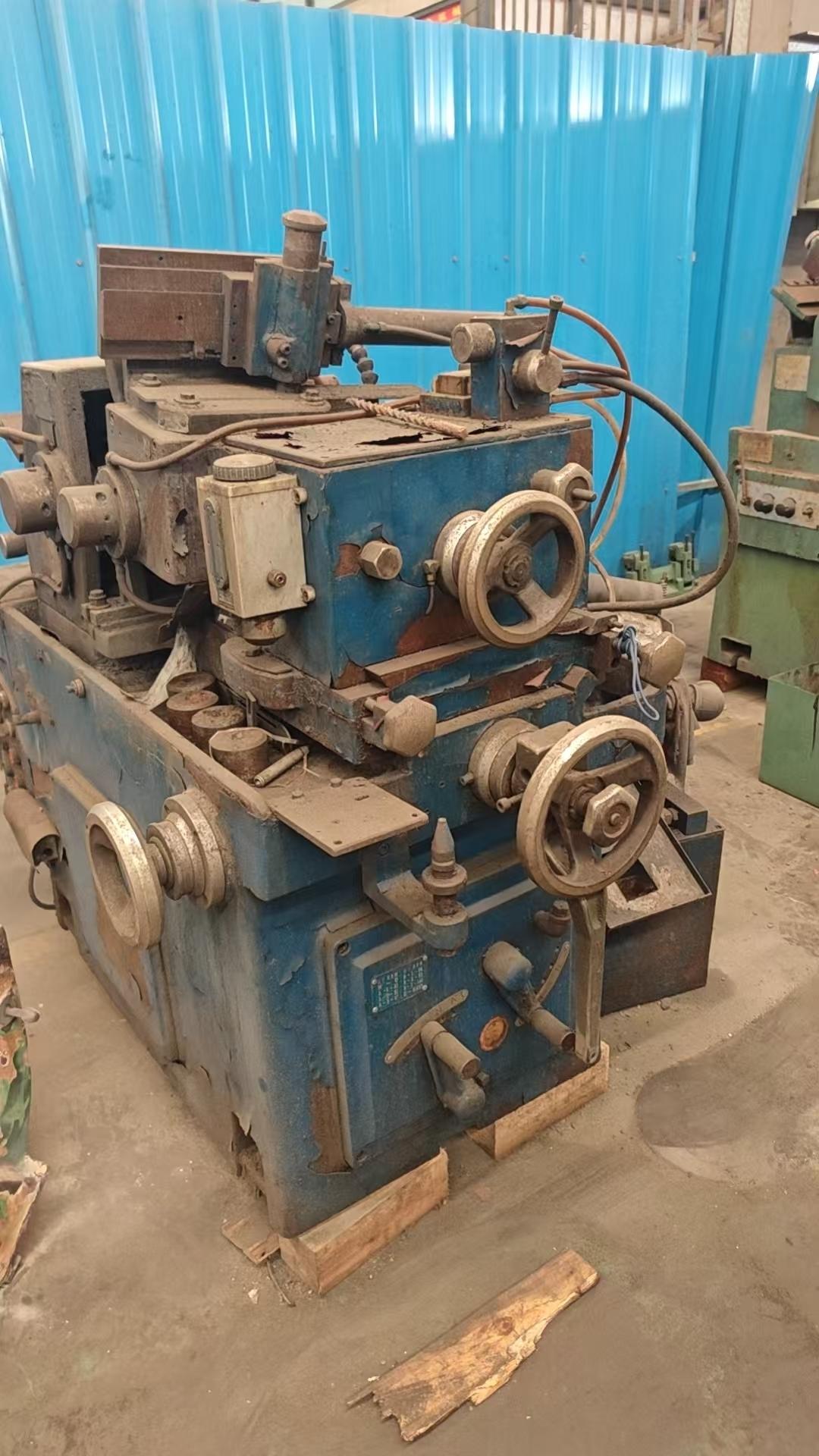

JAINNHER JHC-12S Centreless grinding machine
[Product Information]:
- Inventory number：67198
- Brand：JAINNHER
- Model：JHC-12S
- Origin：Taiwan, China
- Location：China
- Year：2013
- Create Time：2026-03-21
Specifications:
Workpiece diameter: Ø1 to Ø25 mm
External diameter of the grinding wheel: Ø 305mm
Grinding grinding wheel width: 150mm
Internal diameter of the grinding wheel: Ø 120mm
Grinding grinding wheel speed: 1900 R.P.
External diameter of the adjustment wheel: Ø 205mm
Adjustment wheel width: 150mm
Internal diameter of the adjustment wheel: Ø 90mm
Grinding wheel speed range: 10 to 300 R.P.
Adjust the wheel tilt Angle: +5° to -3°
Adjust the rotation Angle of the wheel: ±5°
