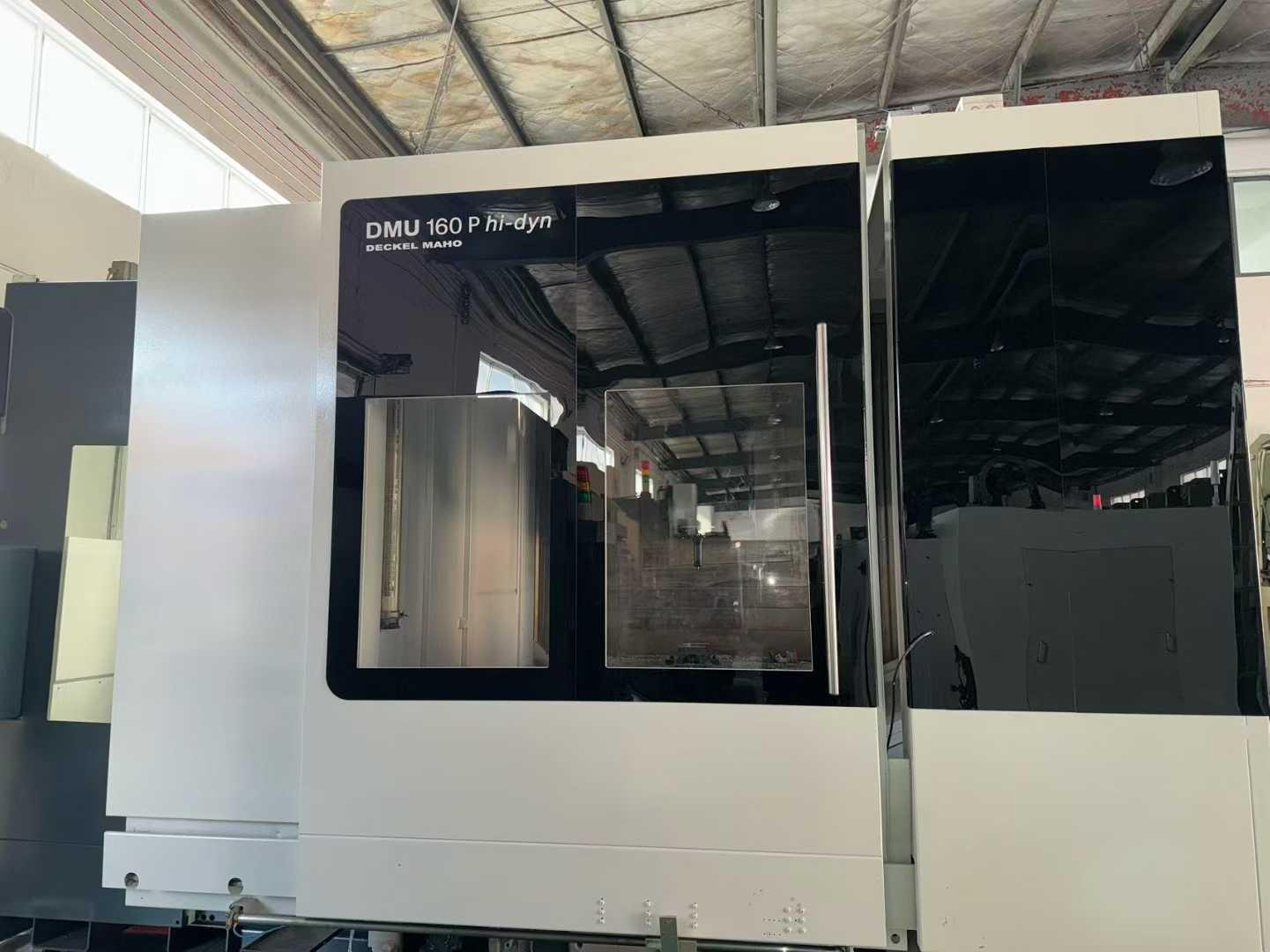

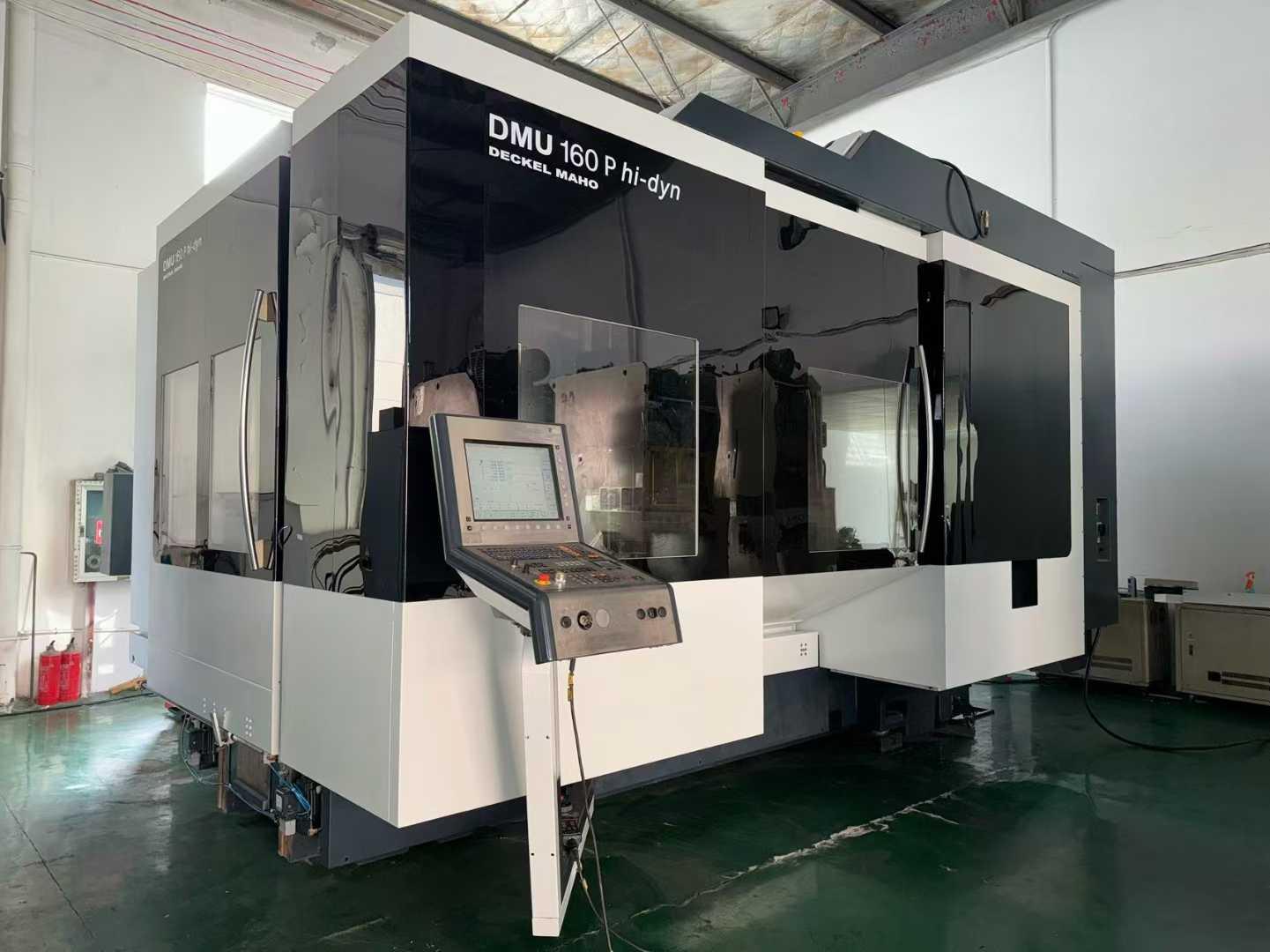

DMG DMU 160P hi-dyn 5 axis machining centre

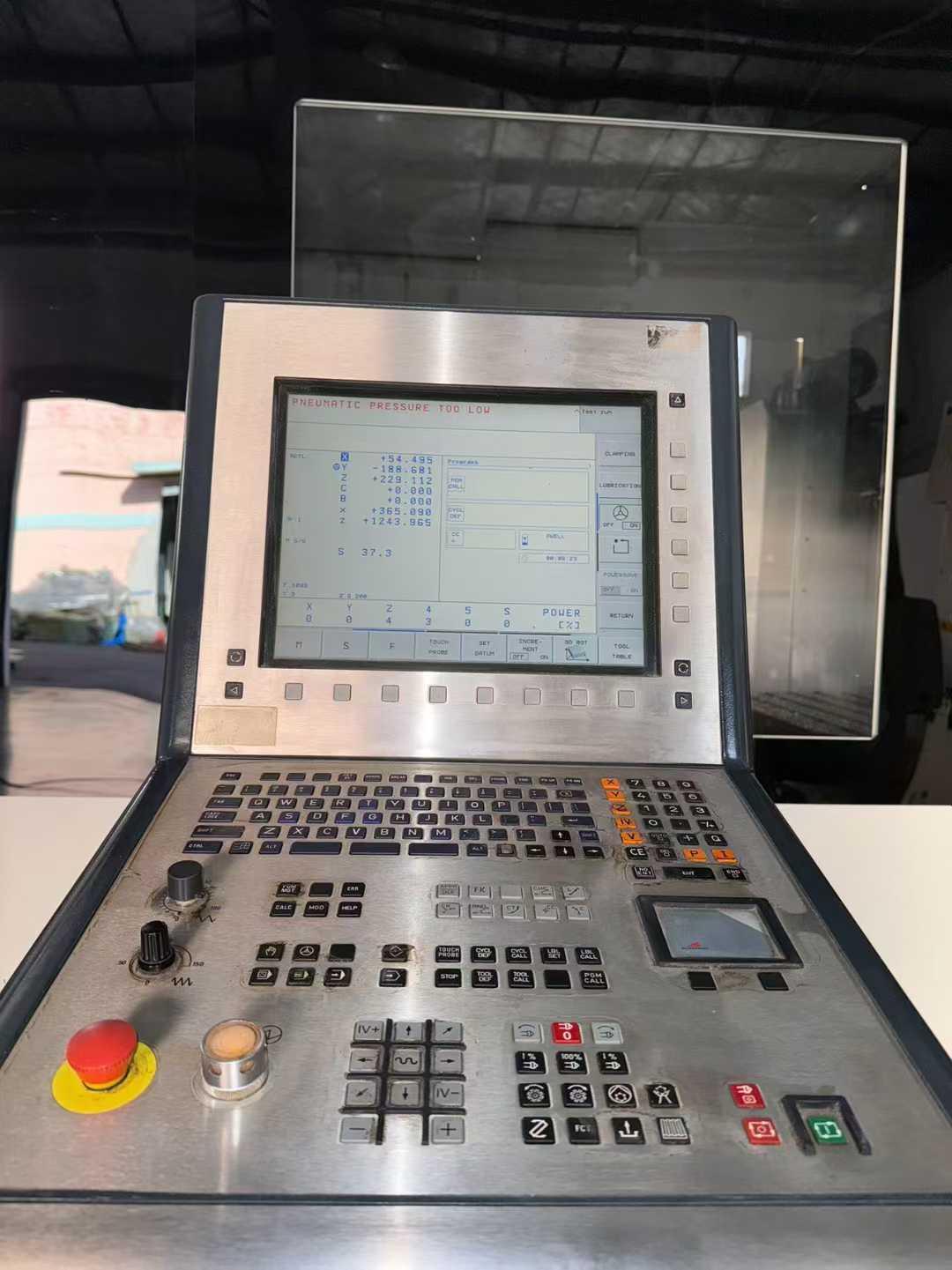

CNC System: Heidenhain iTNC 530
Spindle Type: SK40
Spindle Speed: 18,000 rpm
Three-Axis Travel: 1600 × 1250 × 1100 mm
B-Axis Travel: +181.5° / -0.5° (continuous 0.001°)
C-Axis Travel: 360° (continuous 0.001°)
Three-Axis Rapid Traverse: 60,000 mm/min
Tool Magazine Capacity: 60 tools

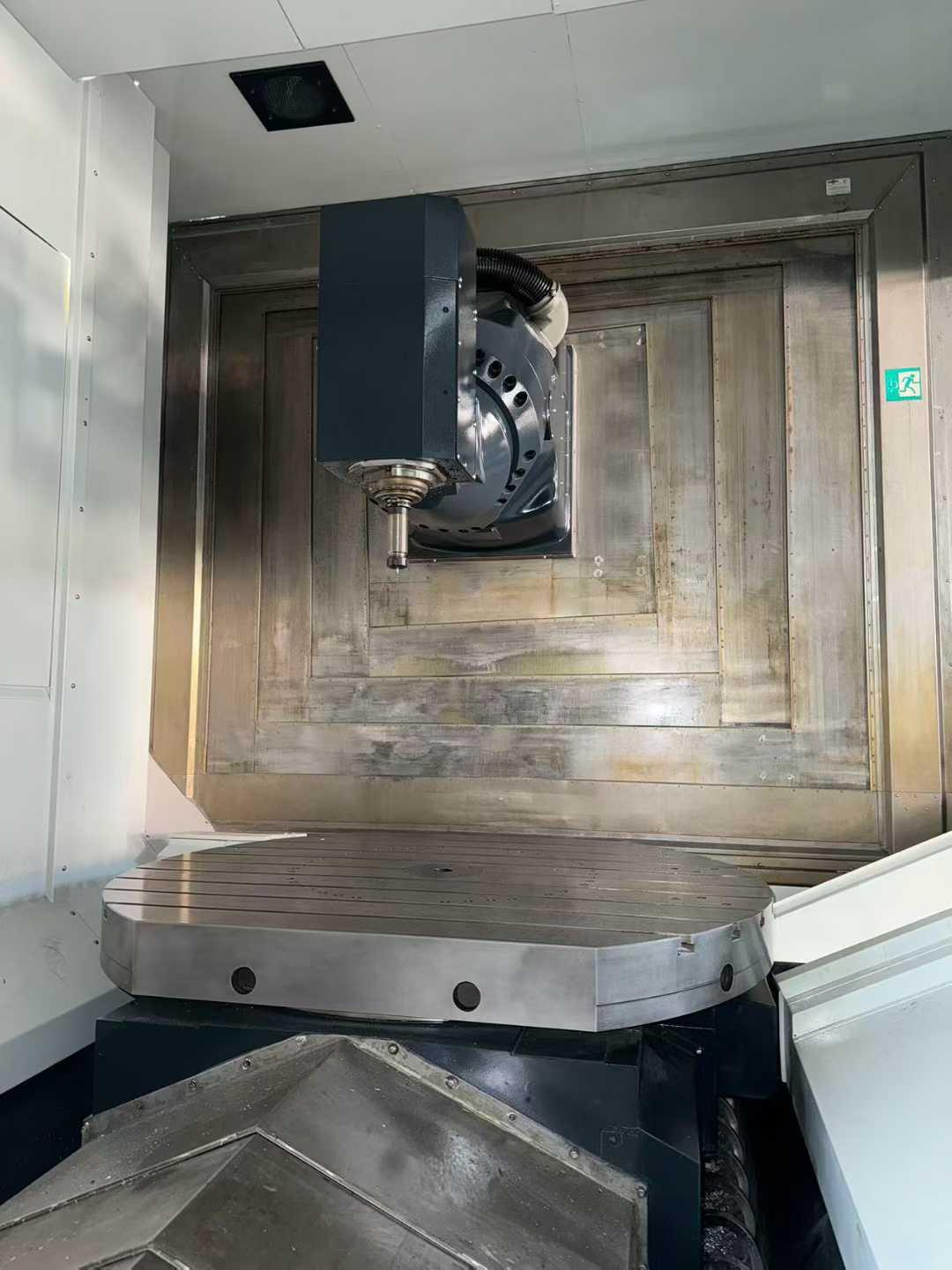

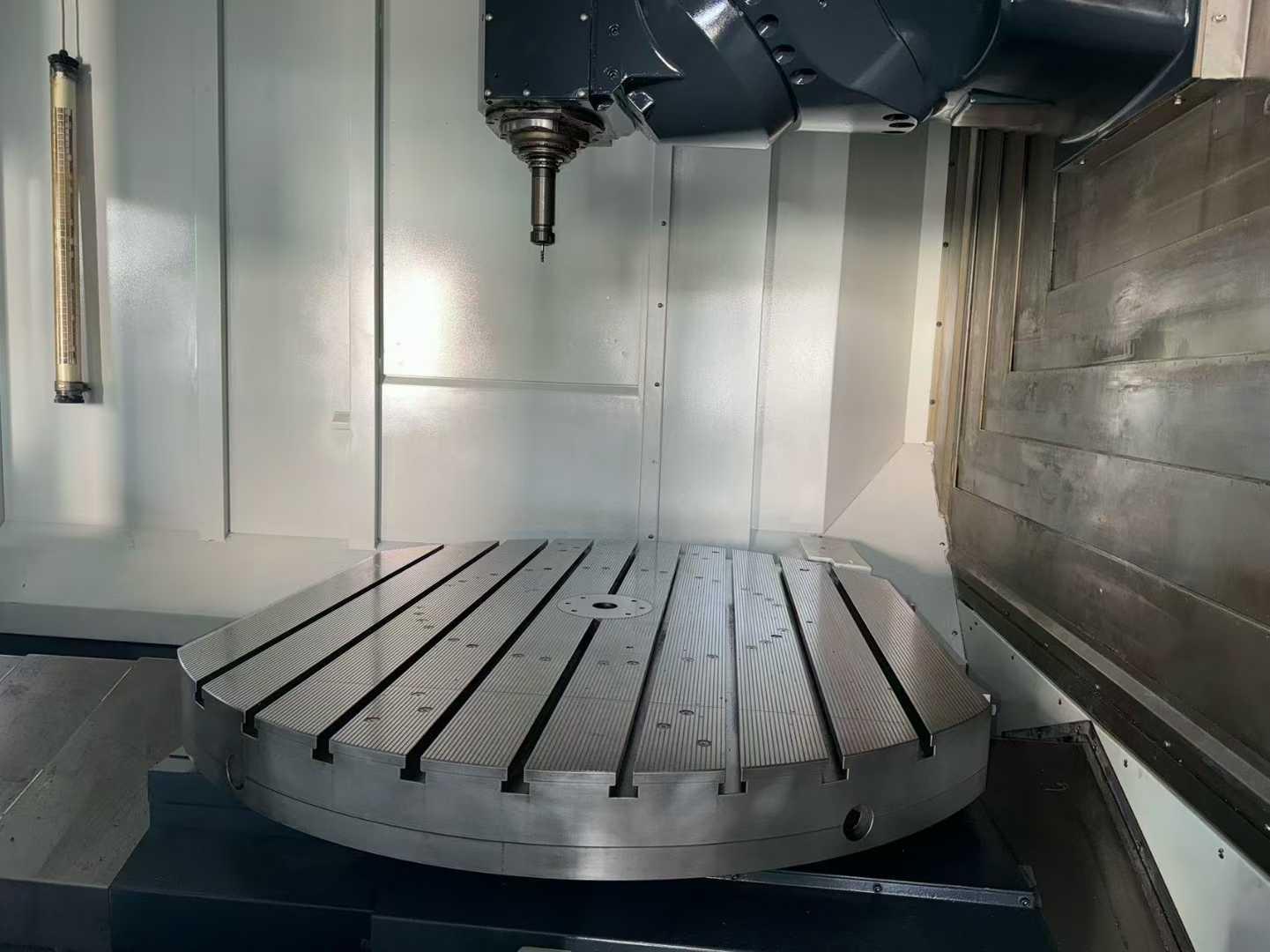

Rotary Worktable Size: ∅1500 × 1250 mm
Machine Footprint (L × W × H): approx. 6000 × 5000 × 3500 mm
Machine Weight: approx. 35,000 kg
Configuration:
Five-Axis simultaneous machining with RTCP tool tip following function
3D measurement system: Hexagon M&H IRP 25.10 receiving unit
Heidenhain HR410 electronic handwheel
German BLUM laser tool presetter
Heidenhain linear glass scale
Second operator panel on the tool magazine
Roller linear guideways
Filtered water tank
Chip conveyor
Oil mist collector
