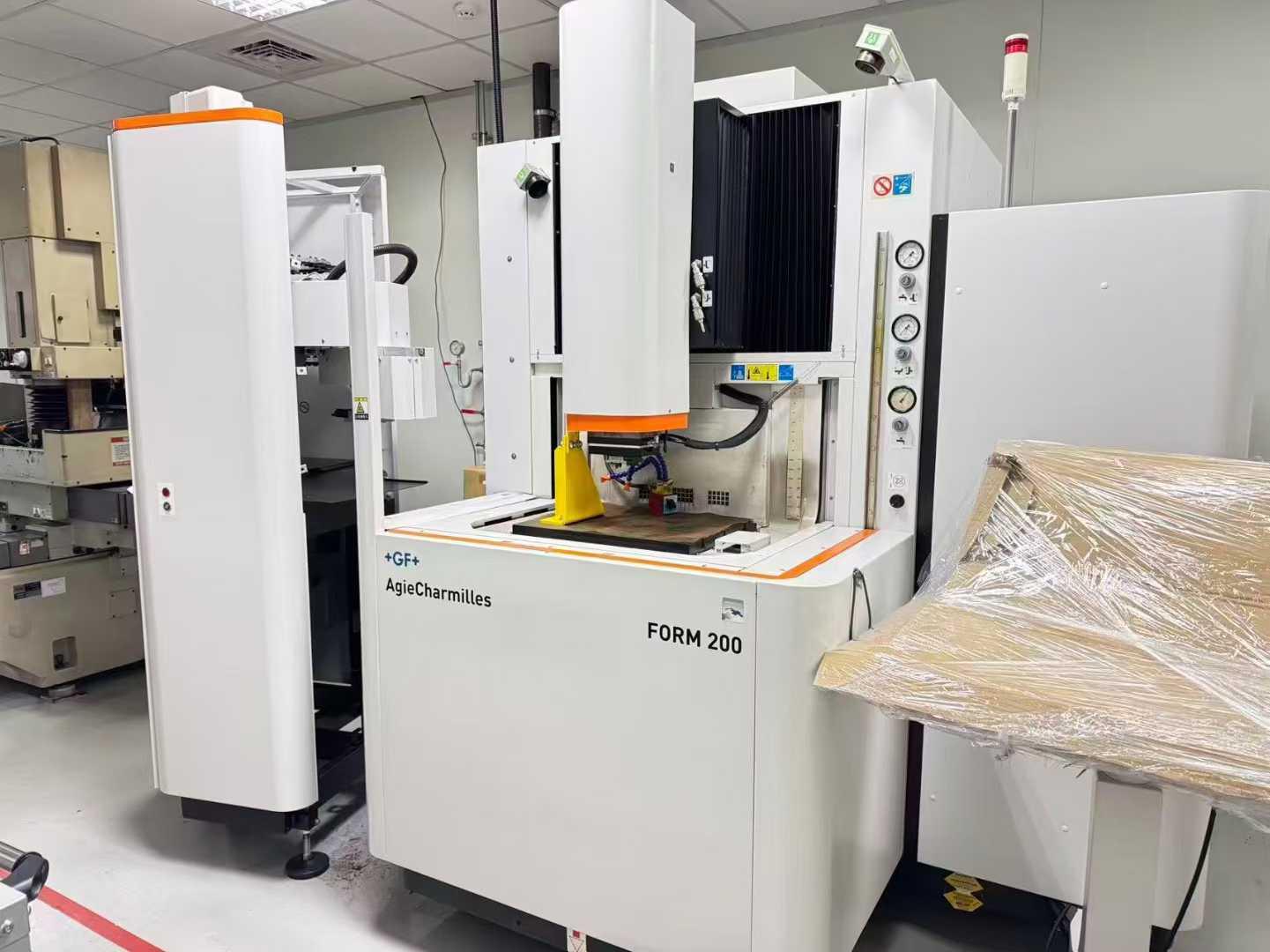

AgieCharmilles FORM200 Spark eroder

Three-axis travel: 350 × 250 × 300 mm
Three-axis feed rate: 6 * 6 * 15m/min
Three-axis positioning resolution: 0.05 μm
Working water tank dimensions: 790 × 530 × 350 mm
Worktable size: 500 × 400 mm
Clamping surface height: 1000 mm
Distance between worktable and the chuck: 150 / 450 mm
Maximum electrode weight: 50 kg
Maximum workpiece weight: 500 kg
Maximum workpiece size: 790 × 530 × 275 mm
Dielectric level programming range: 100 – 325 mm
