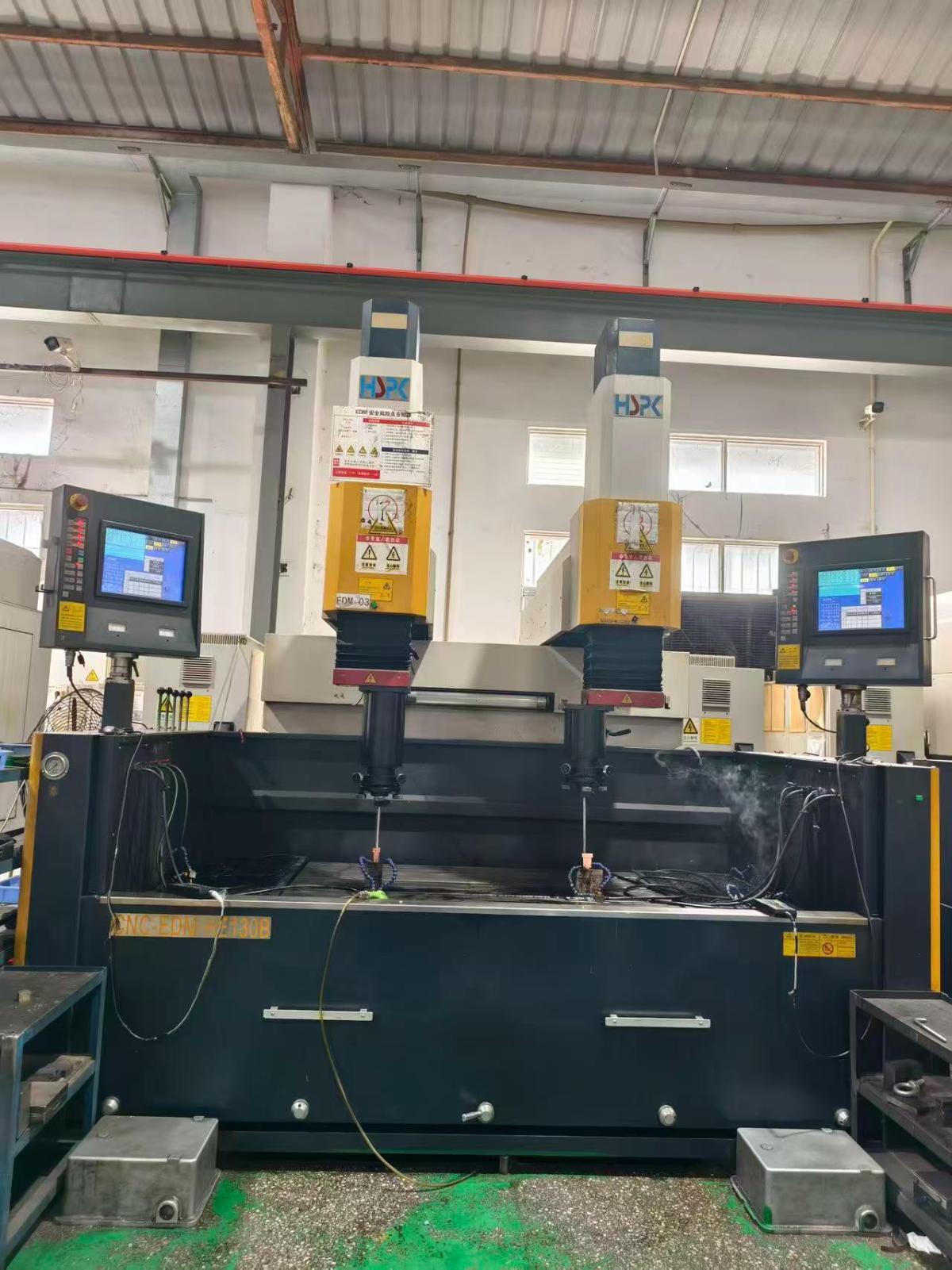

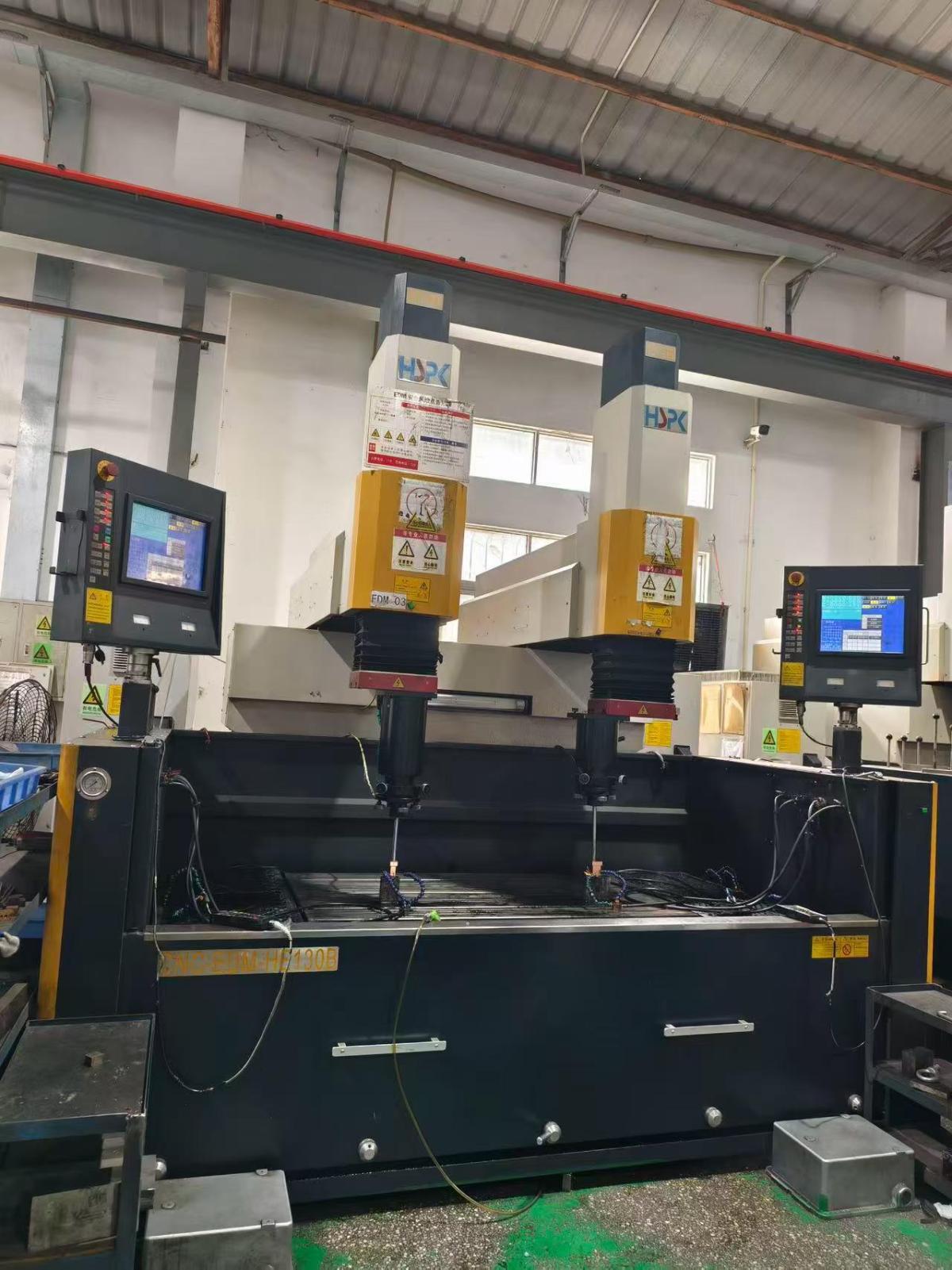

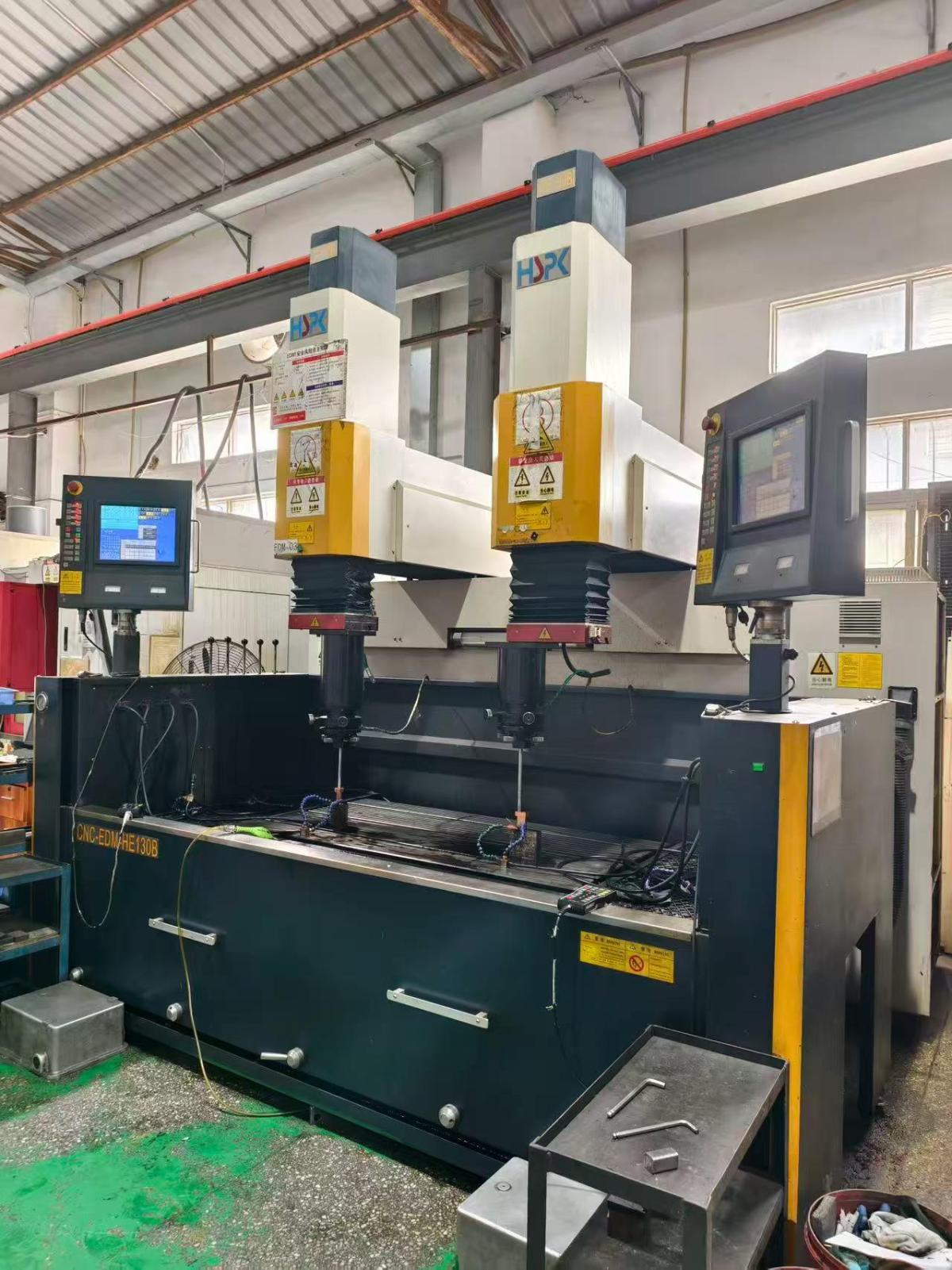

HSPK HE130B Spark eroder

Three-axis travel (X/Y/Z): 800 × 600 × 400 mm
Worktable size: 1500 × 800 mm
Distance between electrode plate and worktable: 600 - 1000 mm
Maximum electrode load: 80 kg
Maximum workpiece weight: 8000 kg
Height from worktable to ground: 710 - 730 mm
Lubrication type: Manual
Machine weight: 10,000 kg
Overall dimensions: 3000 × 3000 × 3100 mm
Working fluid tank:
Machining tank internal dimensions: 2500 × 1300 × 650 mm
Maximum dielectric level height: 550 mm
Machining fluid capacity: 1000 L
Working tank opening and closing method: Up/down (manual)
Dielectric level control: Manual
Filtration precision: 5 μm
Oil tank dimensions: 1900 × 1000 × 650 mm
