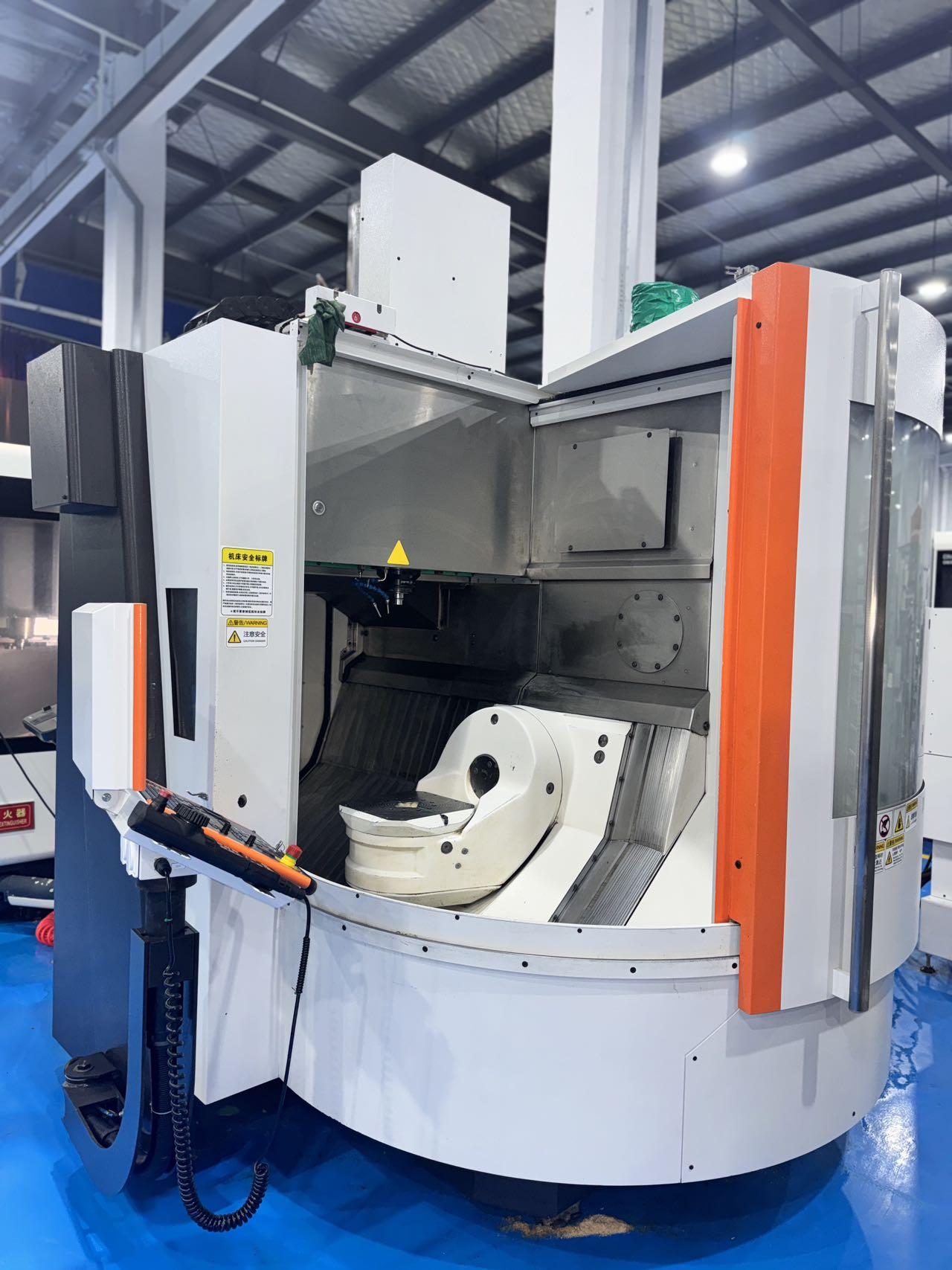

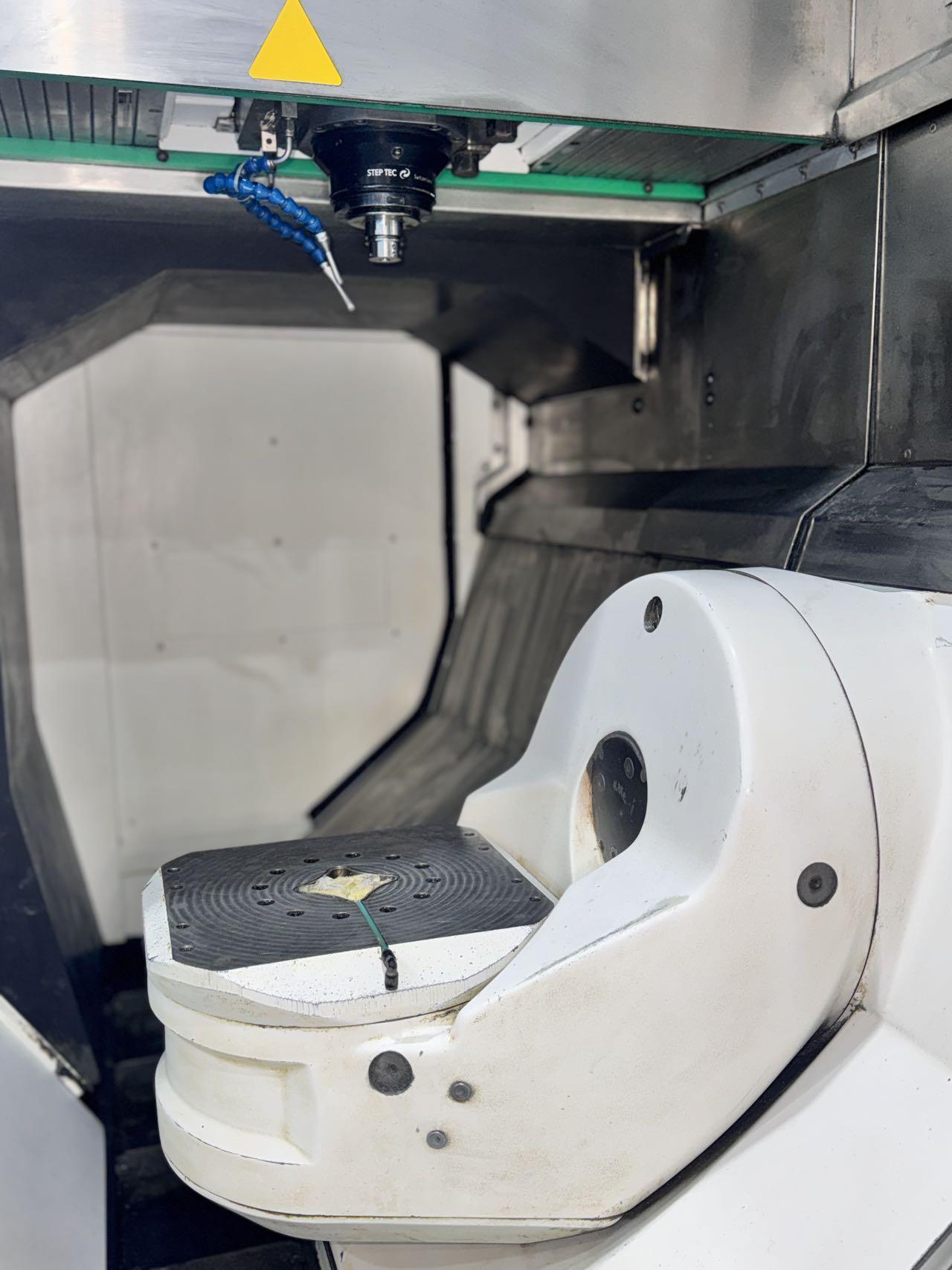

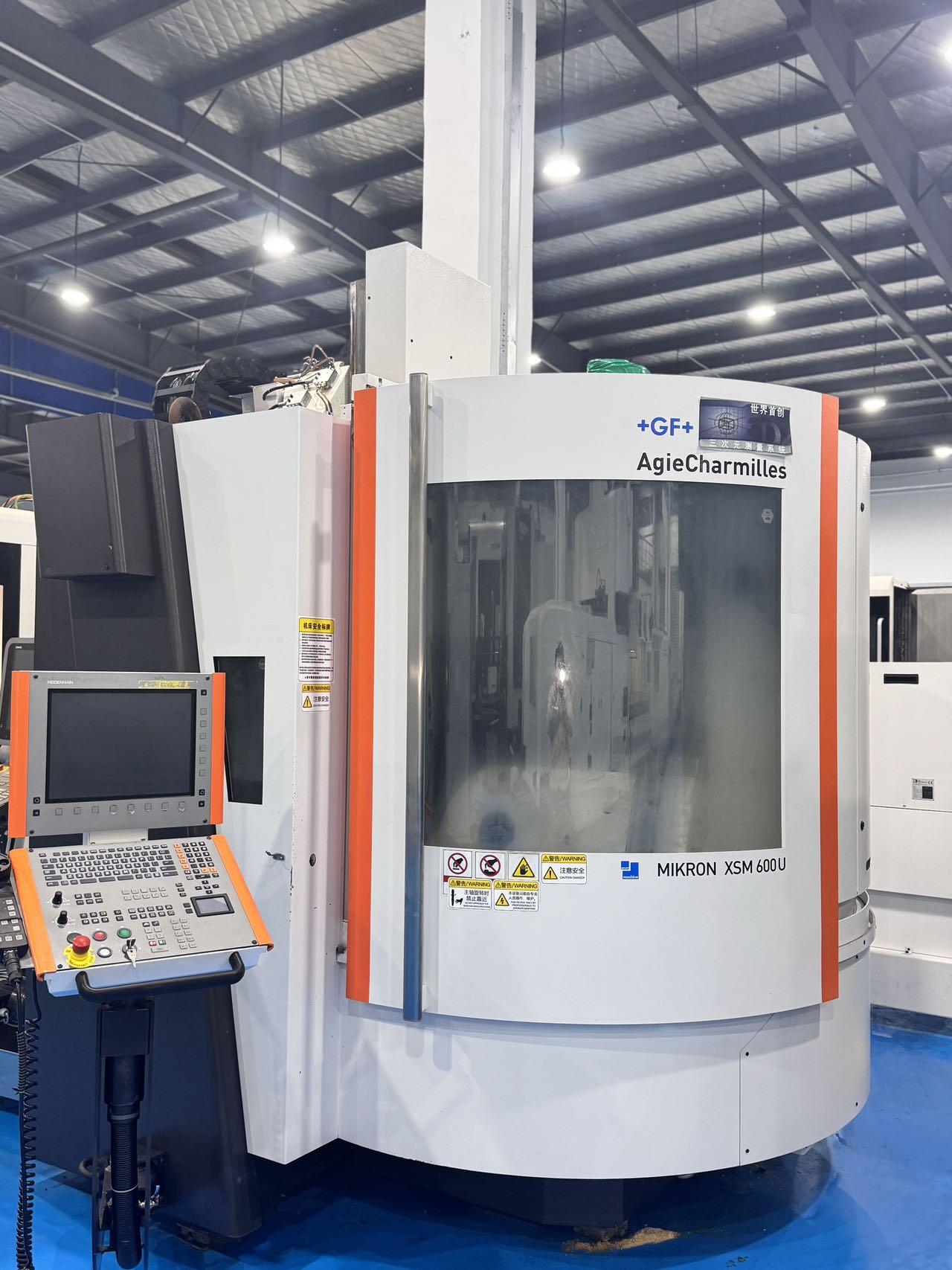

Mikron XSM600U 5 axis machining centre

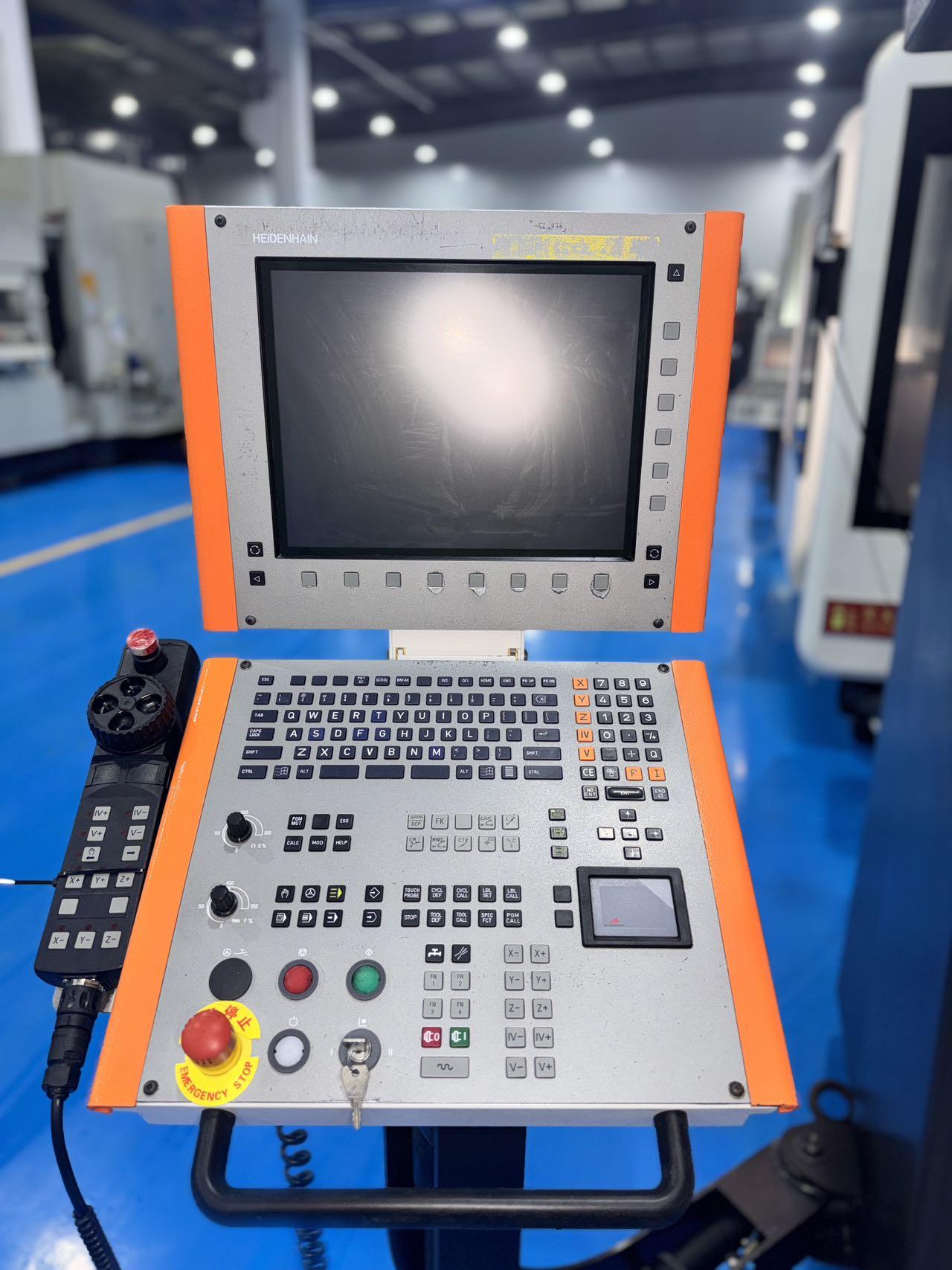

CNC System: Heidenhain iTNC530

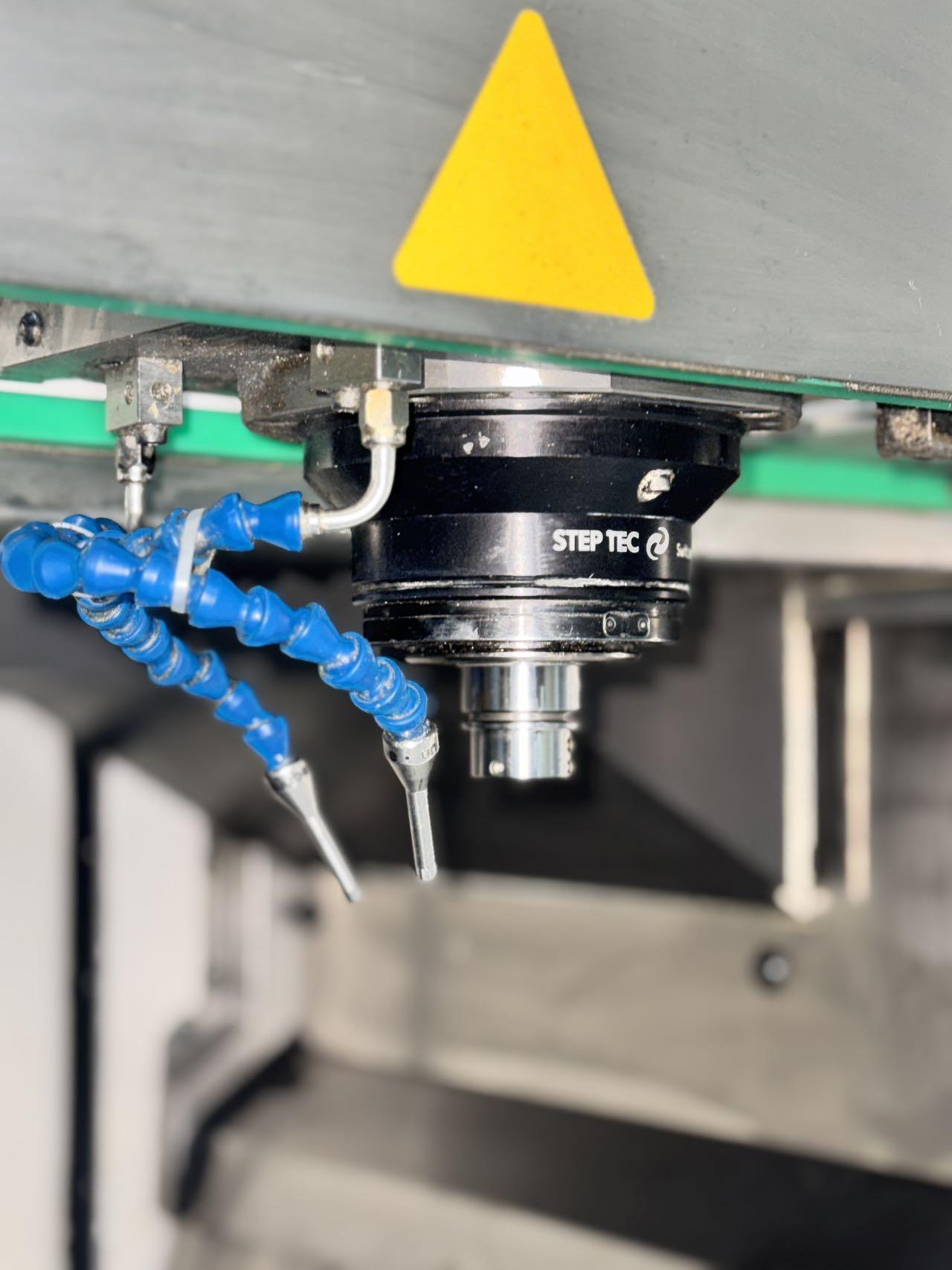

Spindle: HSK-E40
Spindle speed: 42,000 rpm
Spindle motor power: 16 kW

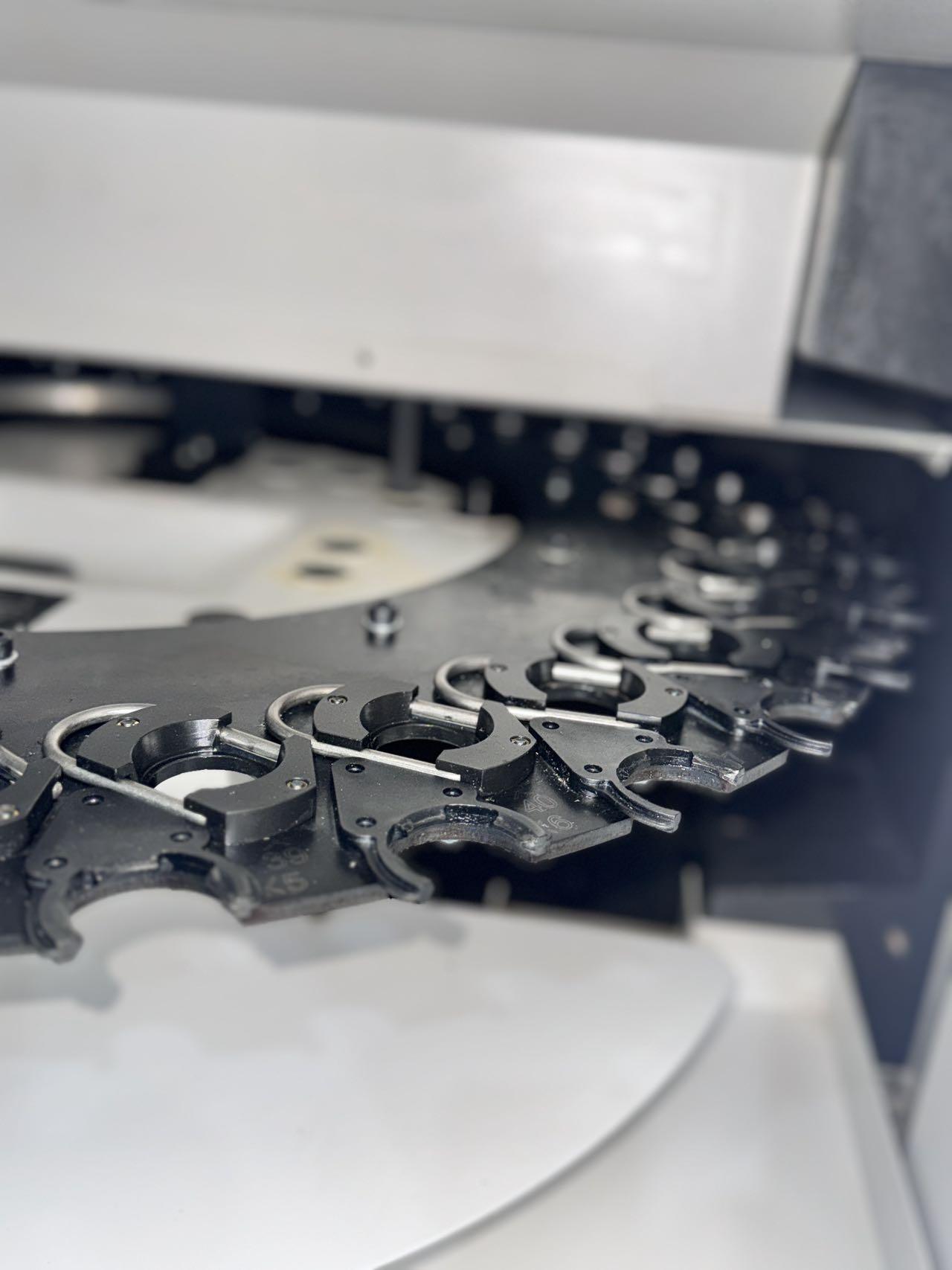

Magazine capacity: 68, disc-type tool magazine

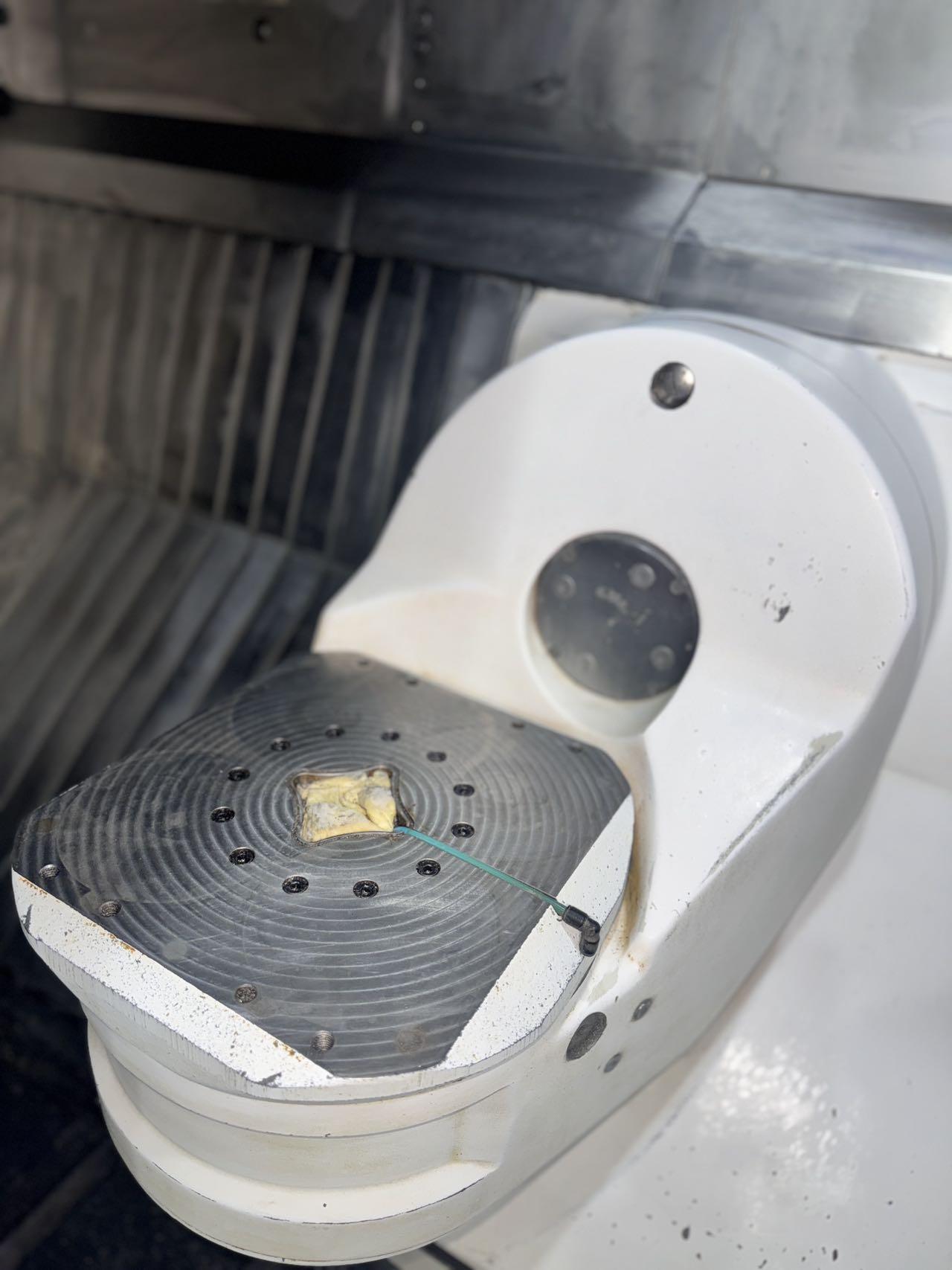

Simultaneous control axes: 5 axes simultaneous control (XYZCB)
Guideway type: Linear guideways
Three-axis travel: 800 mm × 600 mm × 500 mm
Three axes fast traverse: 18 m/min (all axes)
Worktable size: 400 mm × 400 mm
Distance from worktable to the end face of spindle: 650 mm
Machine dimensions: 2500 mm × 2500 mm × 3000 mm
Spindle core runout: 0.005 mm
Spindle mandrel positive busbar: 0.004 mm
Spindle mandrel side busbar: 0.004 mm
Three-axis repositioning Accuracy: 0.005 mm
