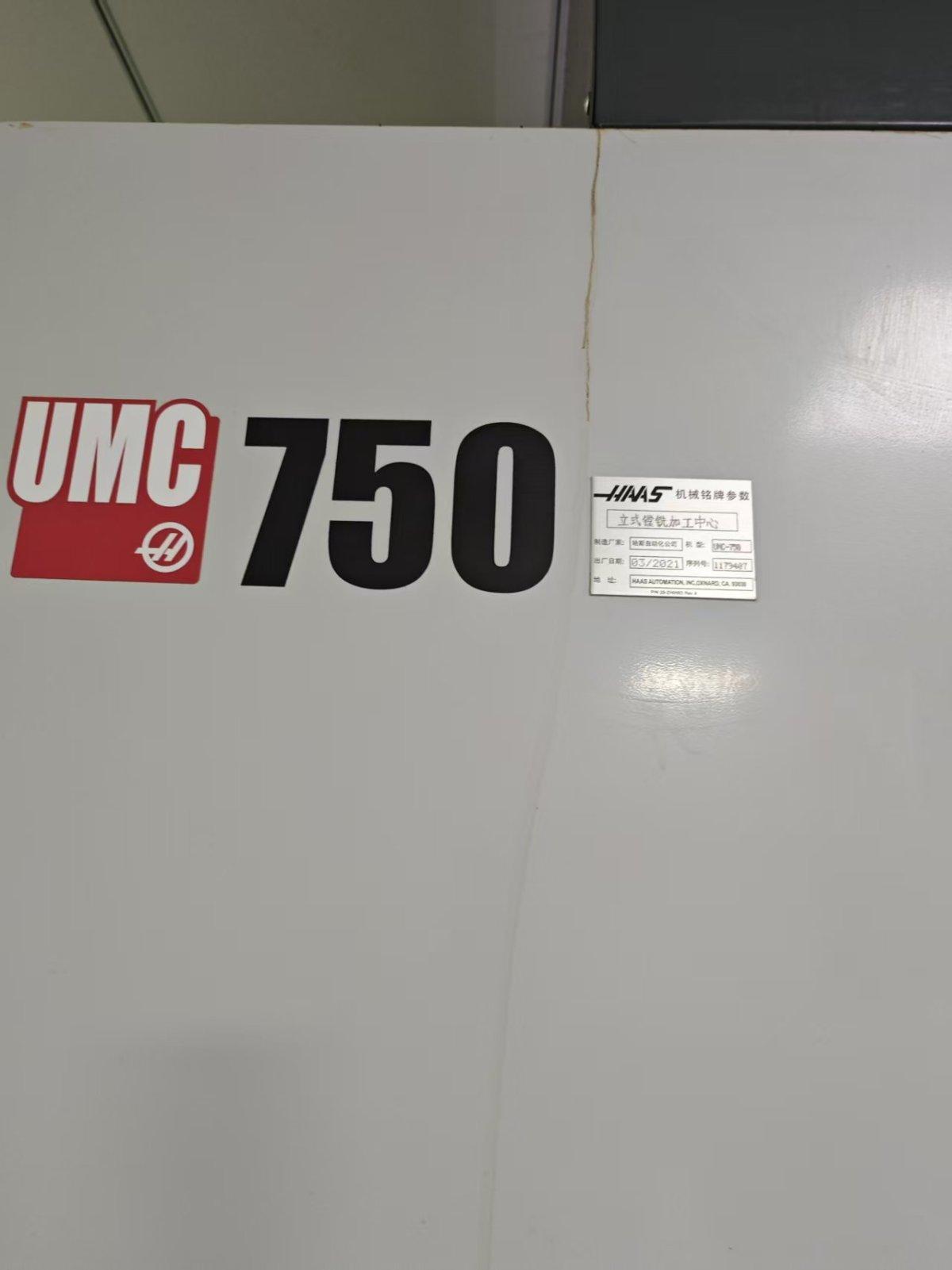

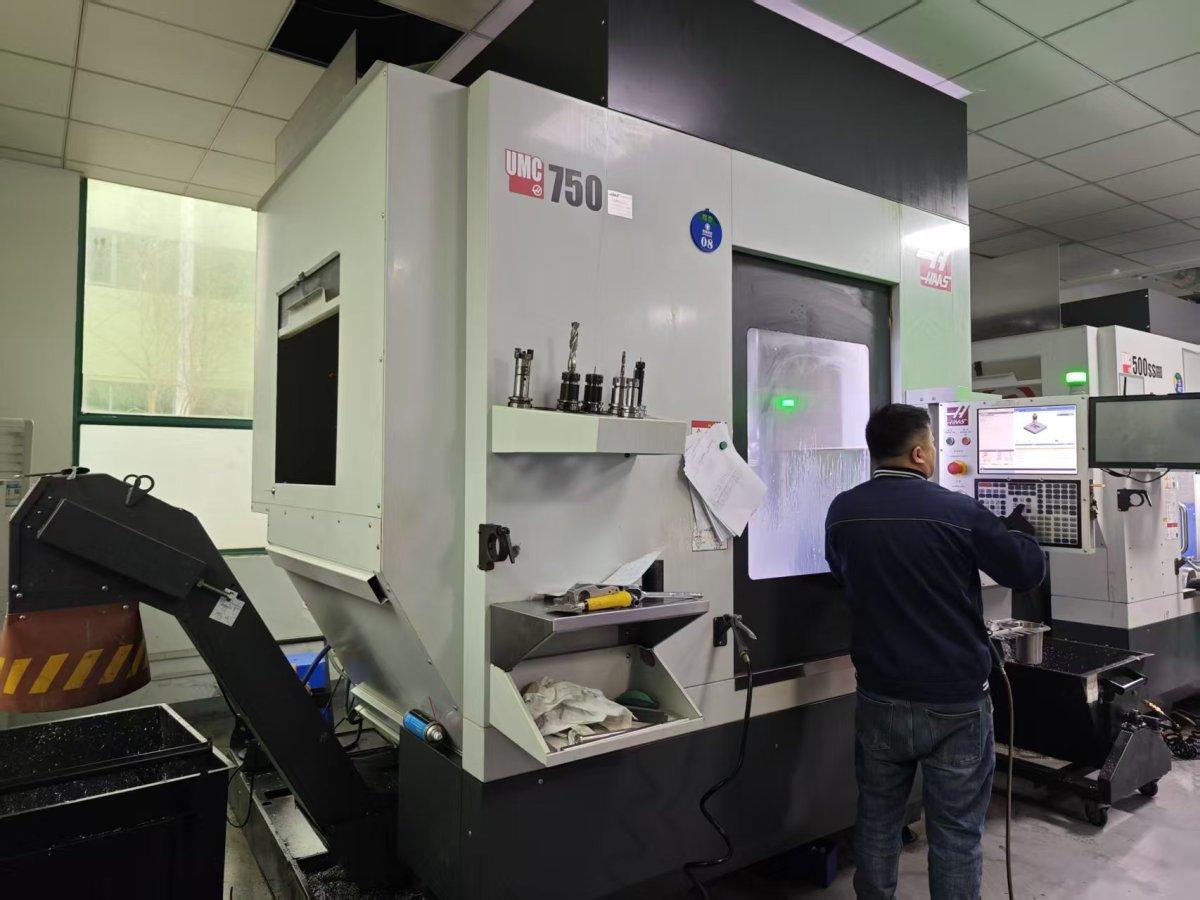

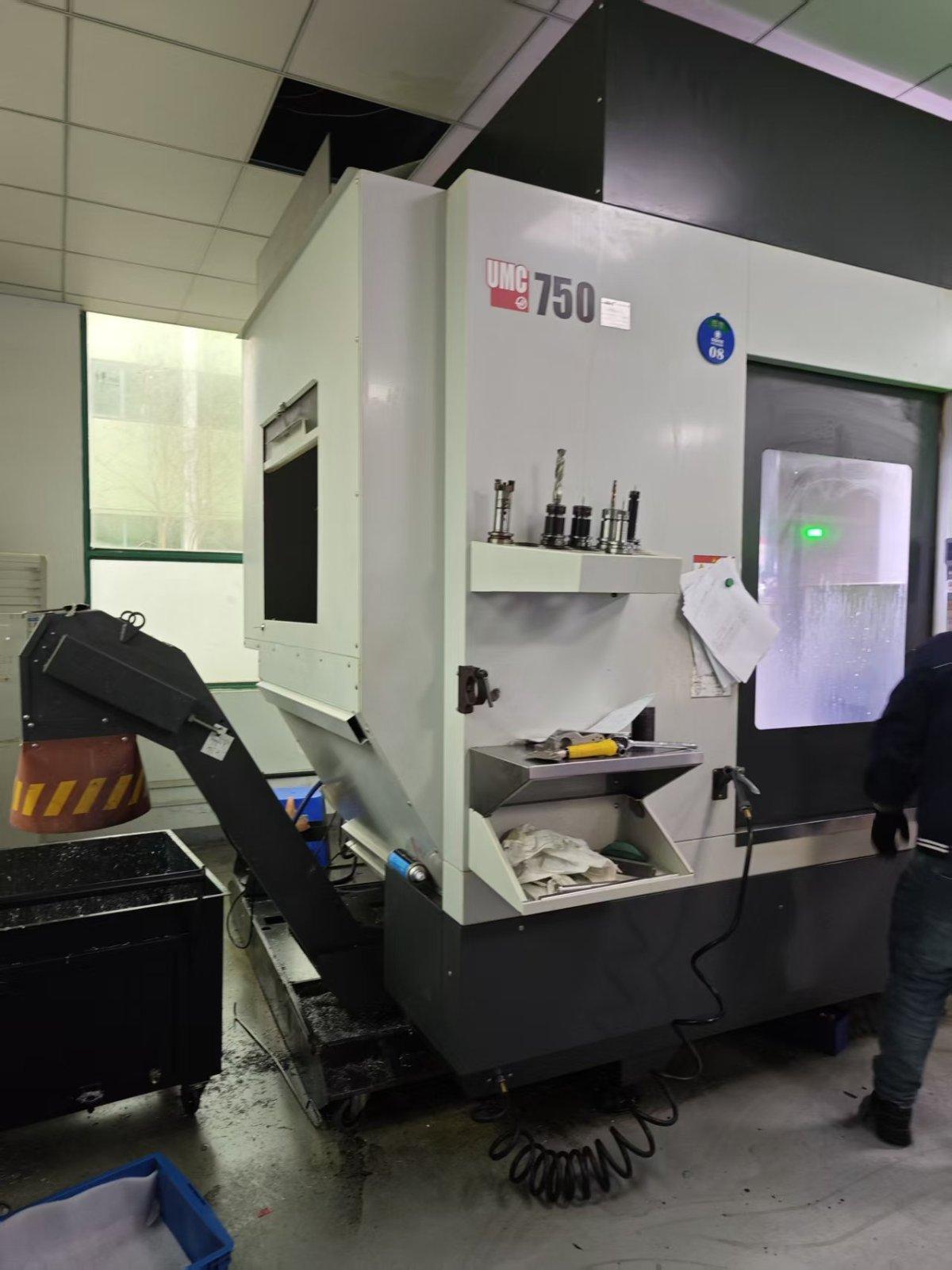

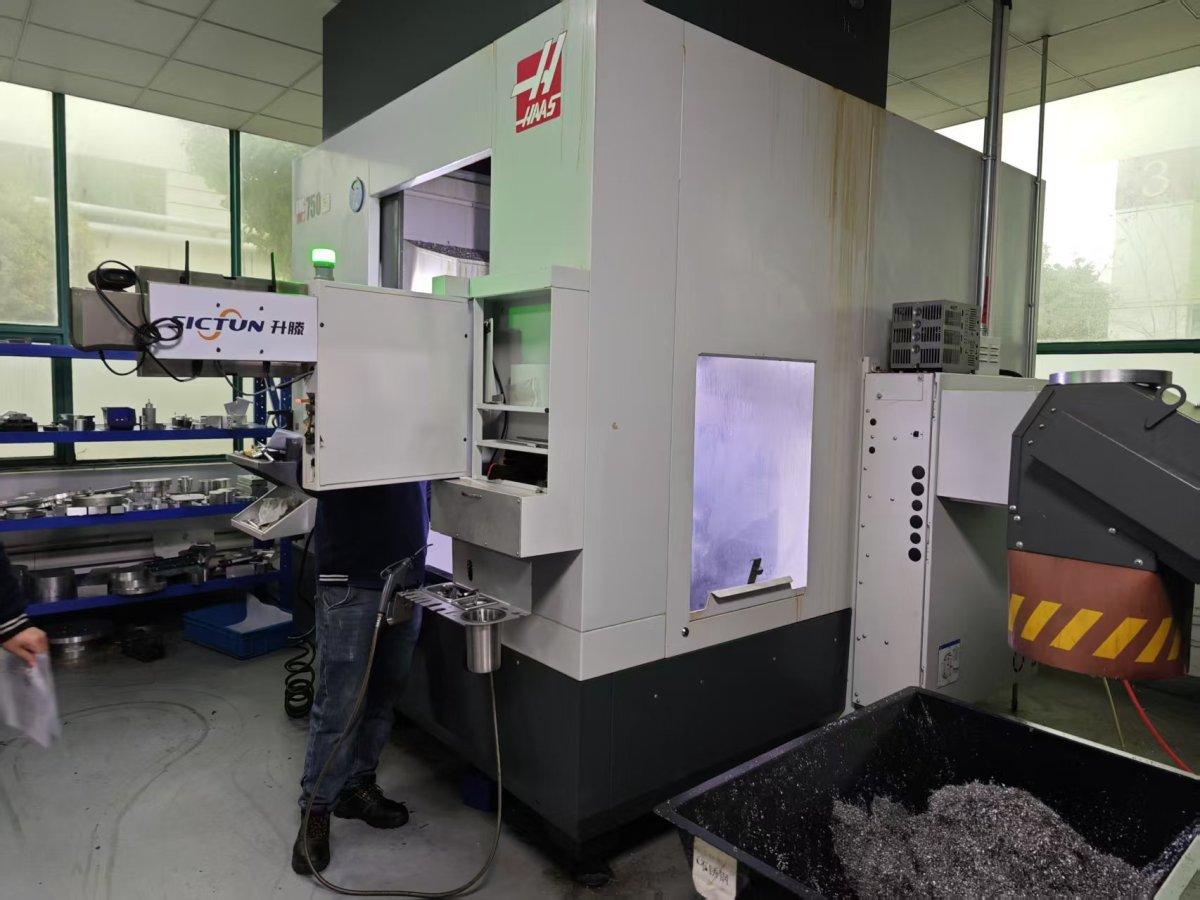

HAAS UMC-750 5 axis machining centre

Three-axis travel:** 762 × 508 × 508 mm
Distance from spindle nose to worktable:
Maximum: 610 mm
Minimum: 102 mm

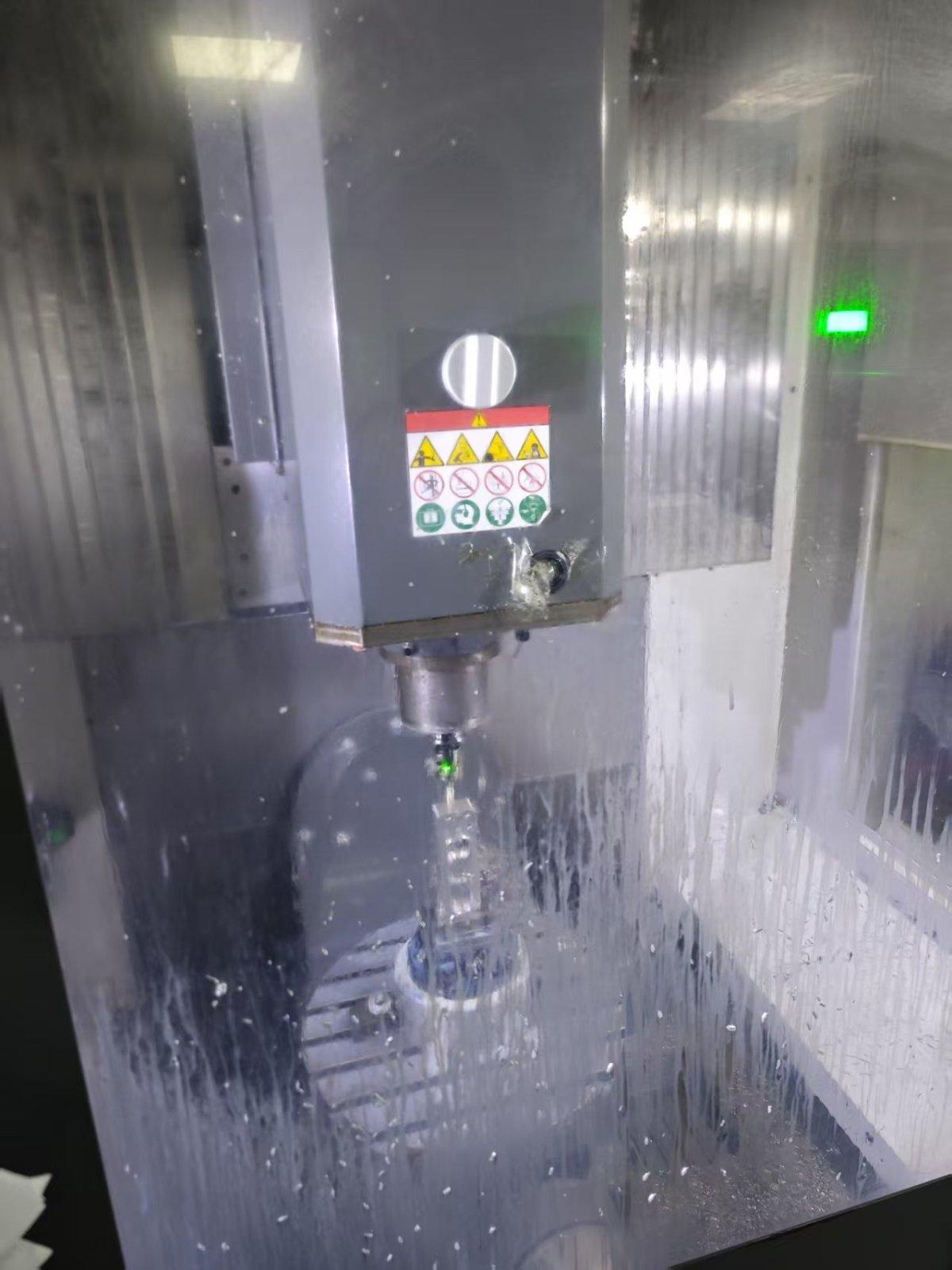

Spindle parameters:
Spindle power: 22.4 kW
Maximum spindle speed: 8100 rpm
Maximum torque: 122 Nm (at 2000 rpm)
Drive system: Direct-drive spindle
Bearing lubrication: Oil-air lubrication
Cooling method: Liquid-cooled spindle
B-axis (tilting axis):
Travel: 120° to -35°
Maximum speed: 50°/sec
Continuous torque: 3037 Nm
Brake torque: 2712 Nm
C-axis (rotary axis):
Travel: 360°
Maximum speed: 50°/sec
Continuous torque: 2514 Nm
Brake torque: 1220 Nm
Worktable parameters:
Worktable diameter: 500 mm
Maximum workpiece swing diameter: 686 mm
Maximum worktable load: 300 kg
Maximum load with pallet pool: 90.7 kg
T-slot width: 15.90–16.00 mm
Number of standard T-slots: 7
T-slot center distance: 63 mm
