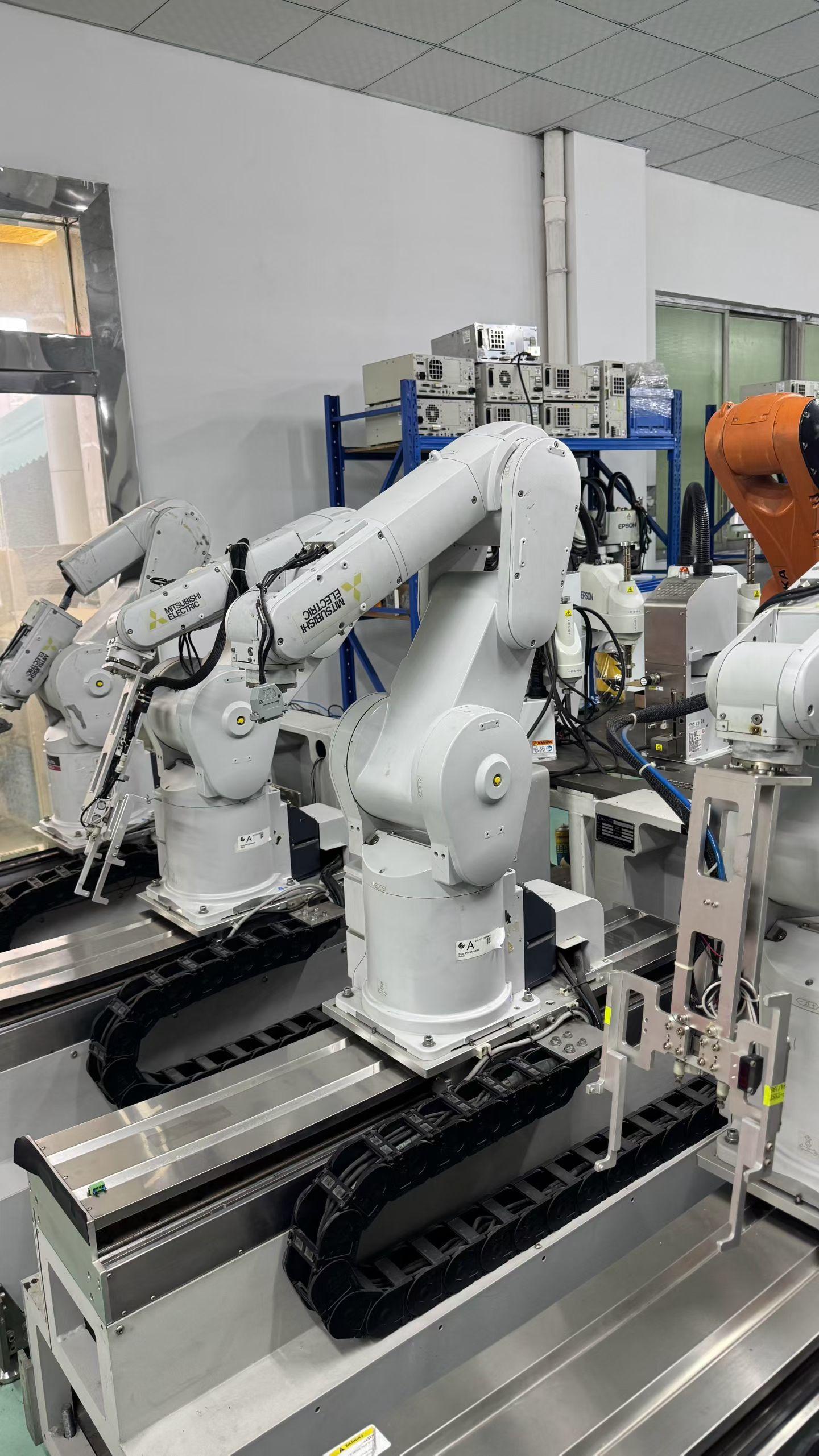

Mitsubishi RV-7FL-1D-S123 Robot

Load:
Maximum Load: 7 kg
Moment of Inertia:
J4 Axis: 0.45 kg·m²
J5 Axis: 0.45 kg·m²
J6 Axis: 0.10 kg·m²
Torque Capacity:
J4 Axis: 16.2 Nm
J5 Axis: 16.2 Nm
J6 Axis: 6.86 Nm
Connection Type:
Main Pneumatic Connection: 2 × 6 mm
Auxiliary Pneumatic Connection: 8 × 4 mm / 4 × 4 mm
Machine Cable: 5 meters, with connectors at both ends
Length:
Arm Length 1: 435 mm + 470 mm
Installation Method:
Installation Options: Can be installed on the floor, ceiling, or wall
Speed:
J1 Axis: 288°/s
J2 Axis: 321°/s
J3 Axis: 360°/s
J4 Axis: 337°/s
J5 Axis: 450°/s
J6 Axis: 720°/s
Maximum Combined Speed: 10,977 mm/s
