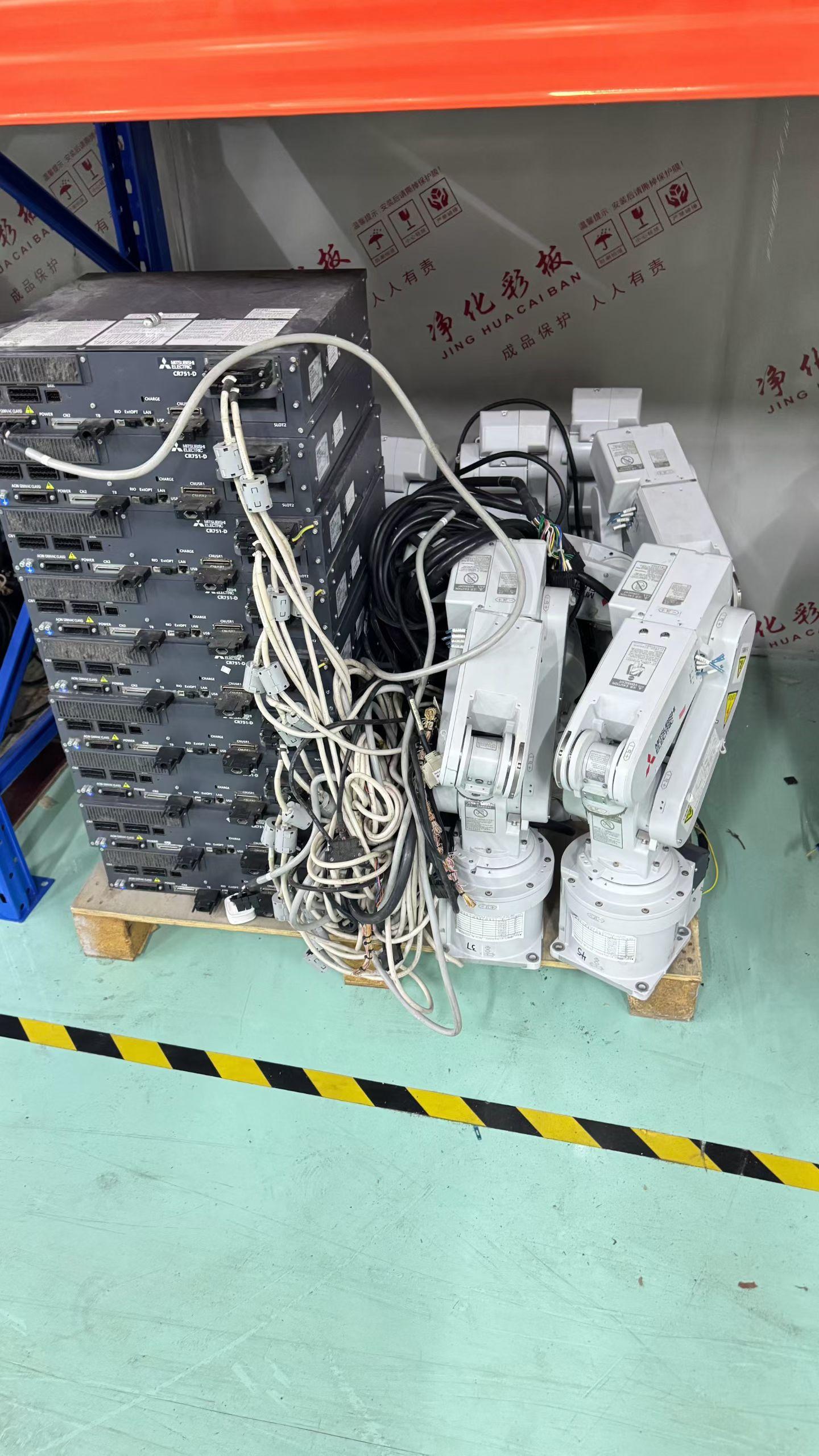

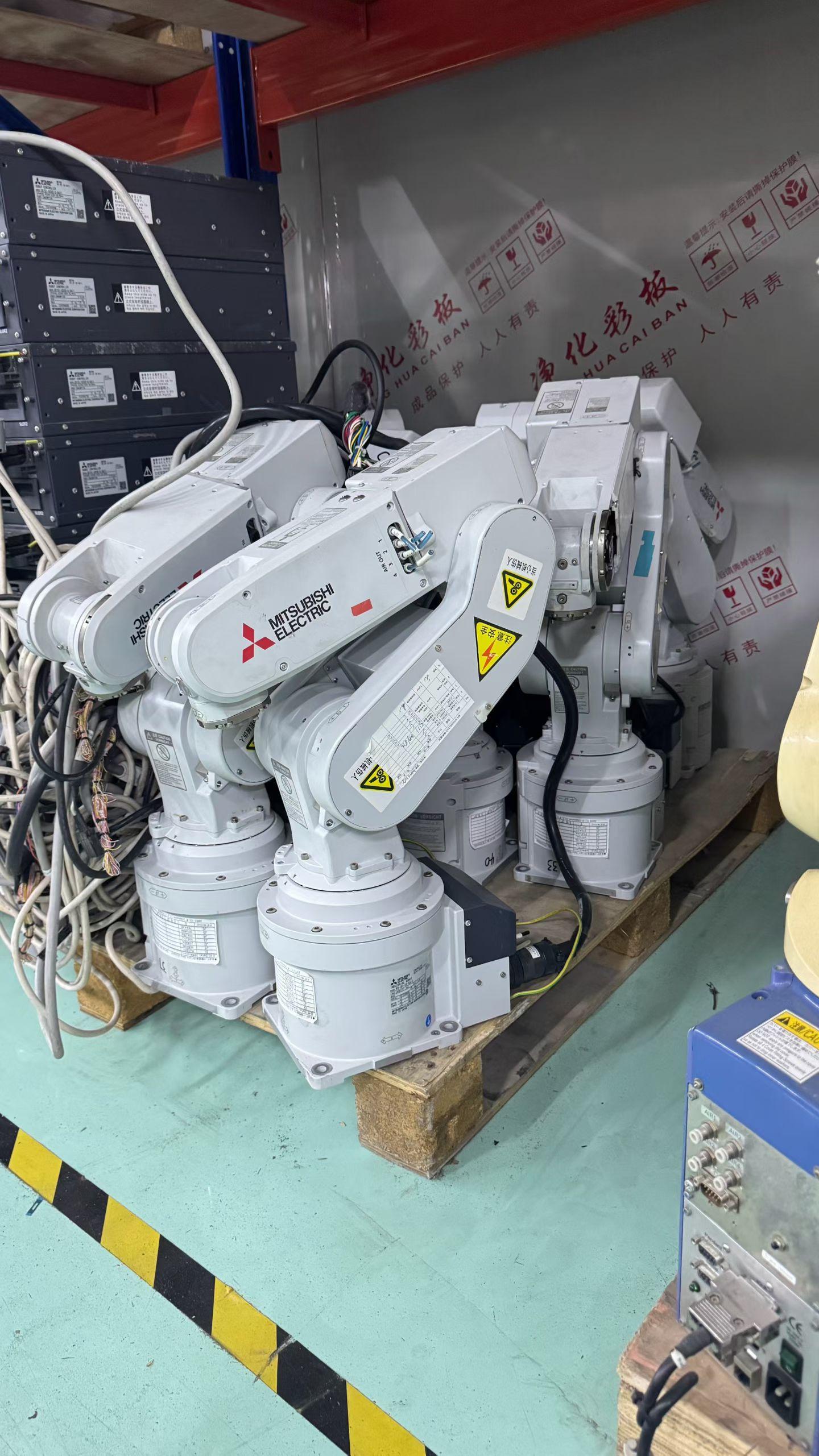

Mitsubishi RV-2F-1D-SA11 Robot

Load:
Maximum Load: 2 kg
Moment of Inertia:
J4 Axis: 0.18 kg·m²
J5 Axis: 0.18 kg·m²
J6 Axis: 0.04 kg·m²
Torque Capacity:
J4 Axis: 4.17 Nm
J5 Axis: 4.17 Nm
J6 Axis: 0.04 Nm
Connection Type:
Pneumatic Connection: 4 × 4 mm
Machine Cable: 5 meters, with connectors at both ends
Length:
Arm Length 1: 230 mm + 270 mm
Installation Method:
Installation Options: Can be installed on the floor, ceiling, or wall
Speed:
J1 Axis: 300°/s
J2 Axis: 150°/s
J3 Axis: 3000°/s
J4 Axis: 450°/s
J5 Axis: 450°/s
J6 Axis: 720°/s
Maximum Combined Speed: 4955 mm/s
