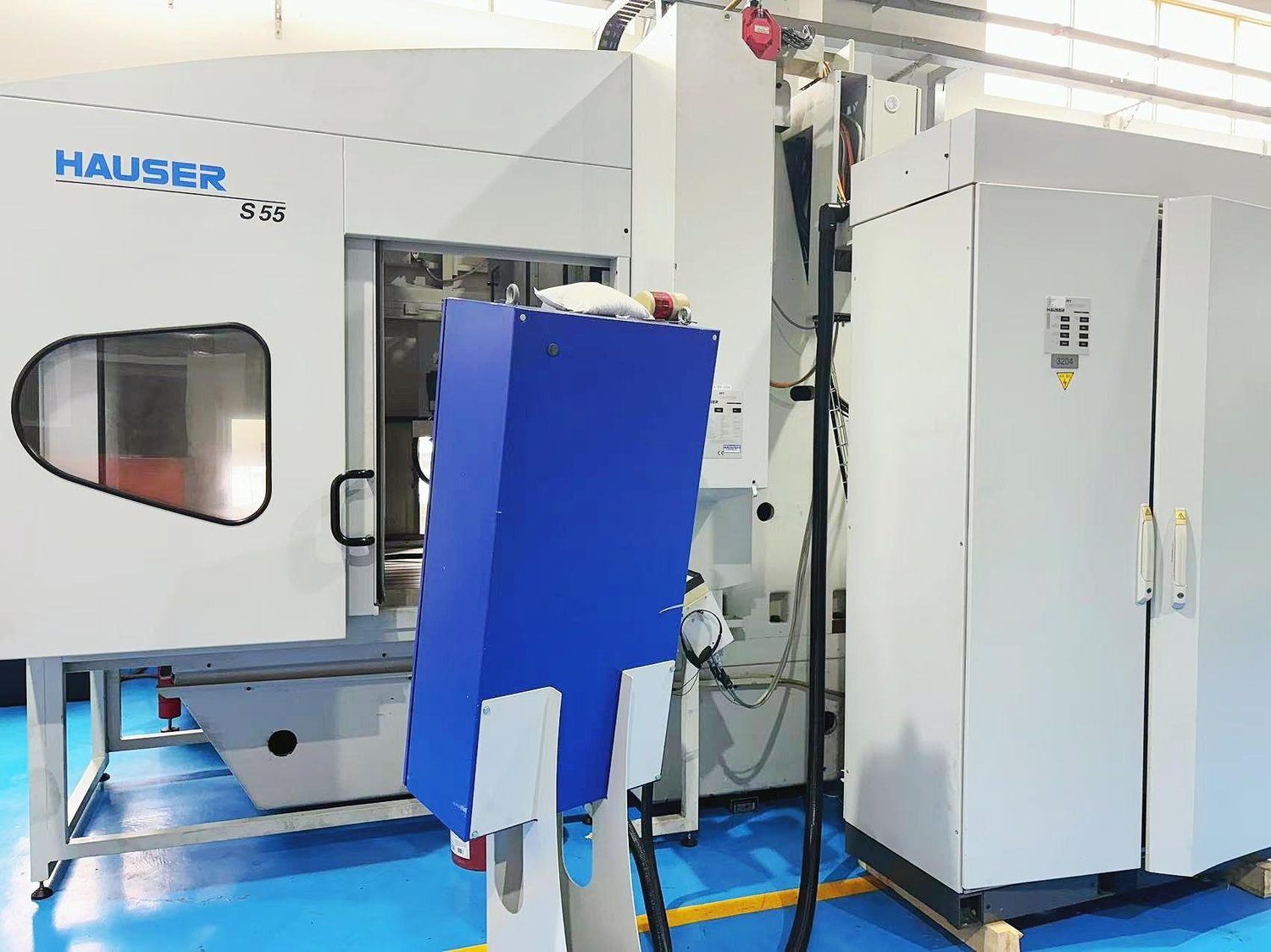

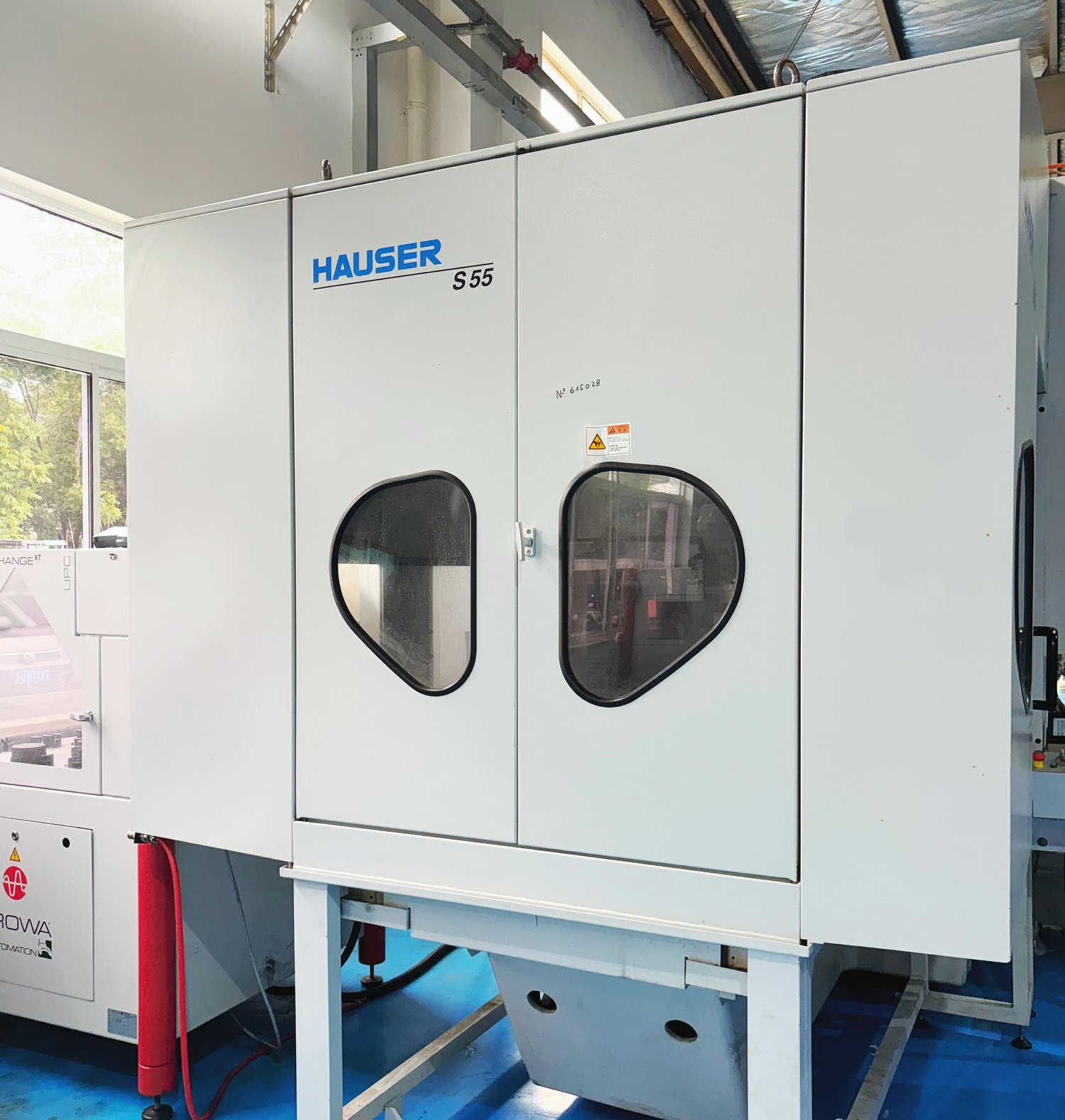

HAUSER S55-400 CNC Jig grinding machine

CNC System: FANUC 16MB
Three-Axis Travel (X/Y/Z): 1300 × 800 × 635 mm
W-Axis Travel: 635 mm
Width of Gantry Door/Column Passage: 970 mm
Structural Type: Gantry type

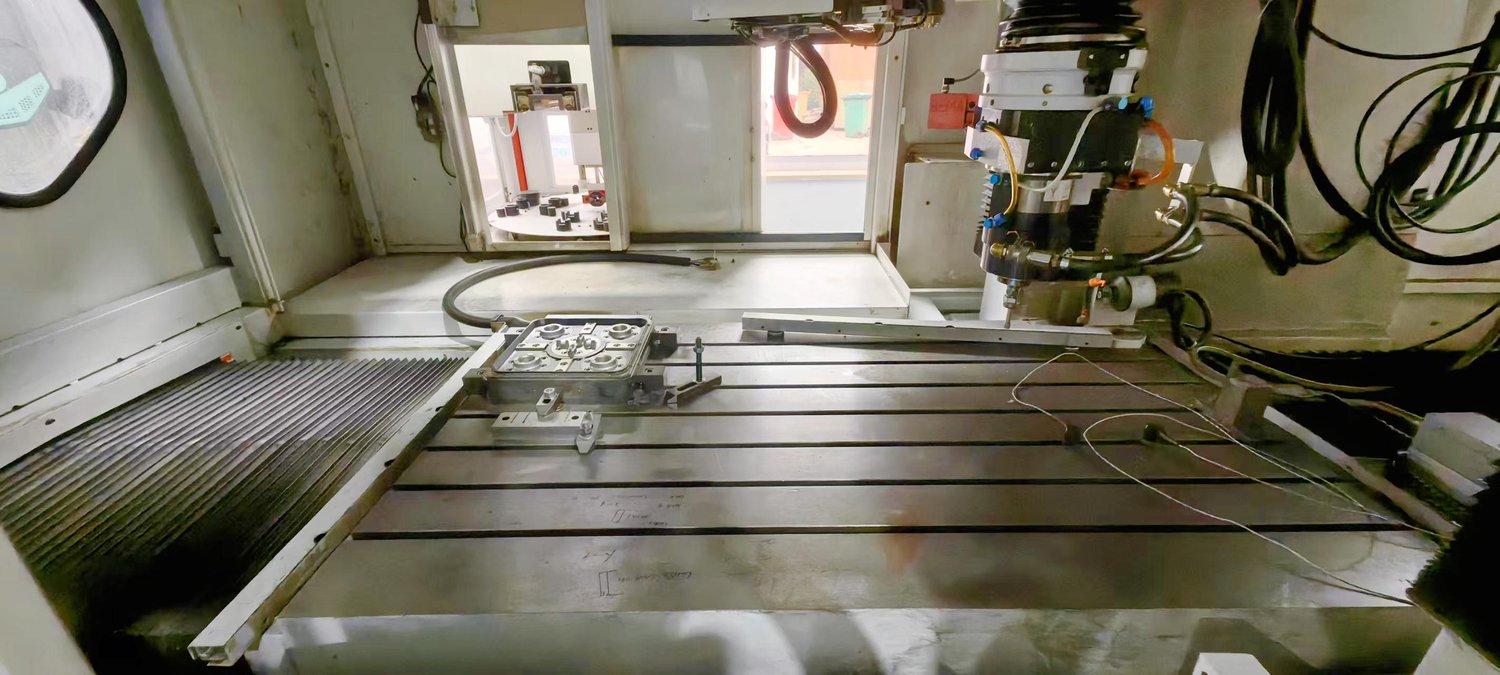

Worktable Dimensions: 1440 × 860 mm

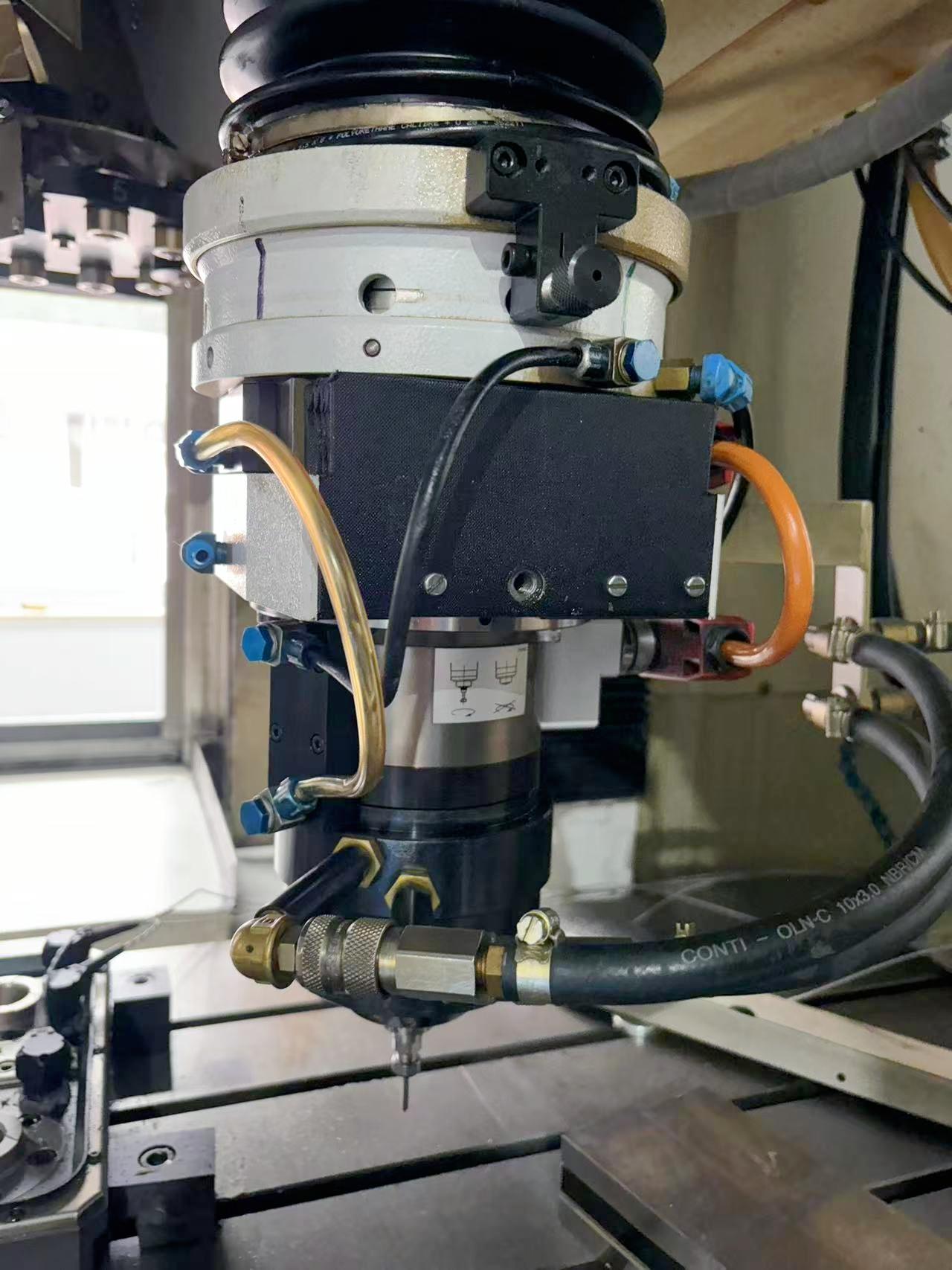

Spindle Speed Range: 4,500 - 80,000 rpm
Spindle Taper: HSK25
Maximum Grinding Diameter: 230 mm
Minimum Net Dosage: 0.1 µm
Supports High-Speed Air Turbine Spindle
Tool Magazine Capacity: 12 positions
Automated Equipment: Erowa Easy Changer XT
Pallet Capacity: 4 UPC pallets
Guideway Type: Hydrostatic rigid guideways for all 3 axes
Supported Functions:
Five-axis control
Direct programming via CAD/CAM
Automatic compensation and error correction
