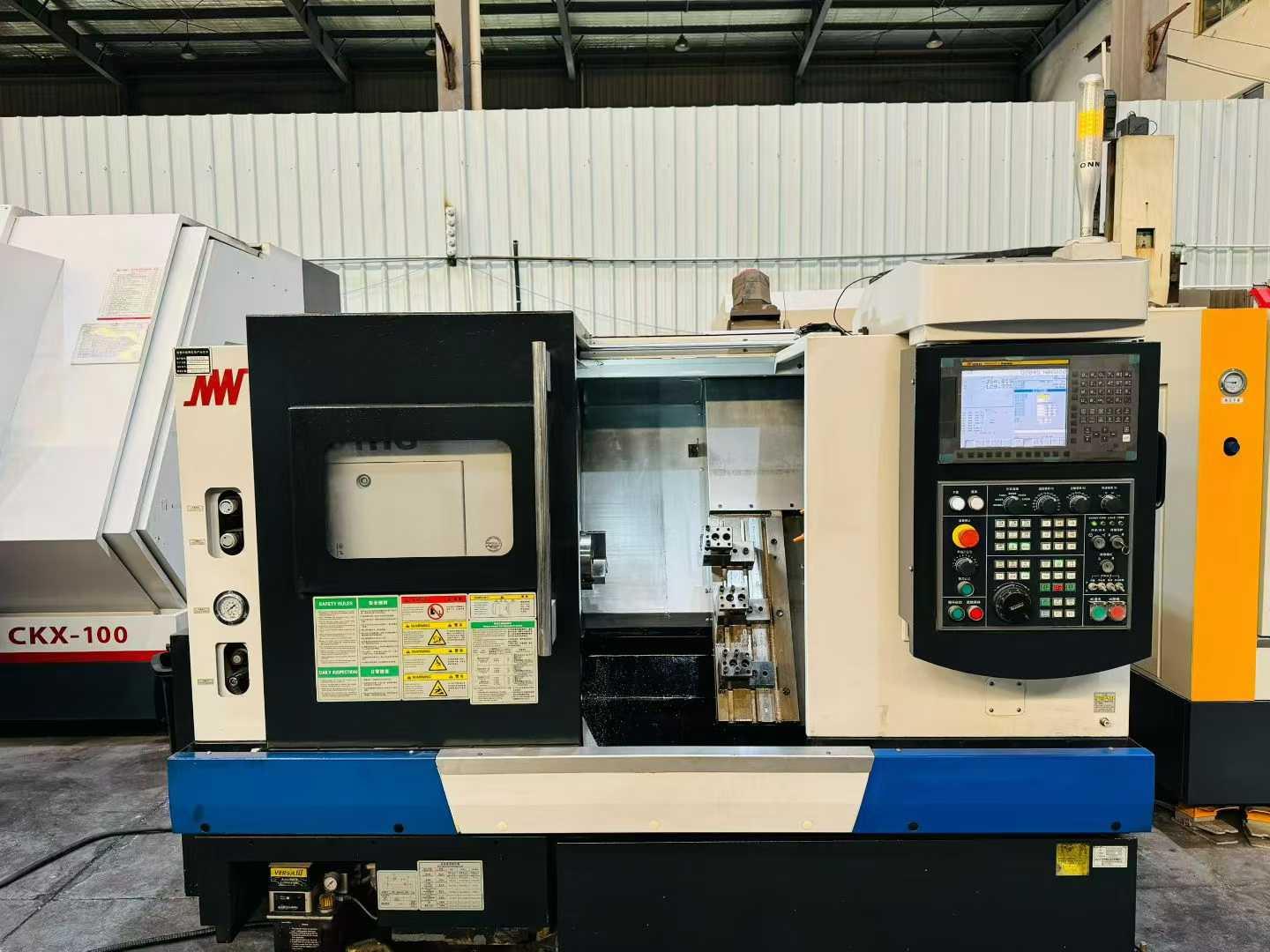

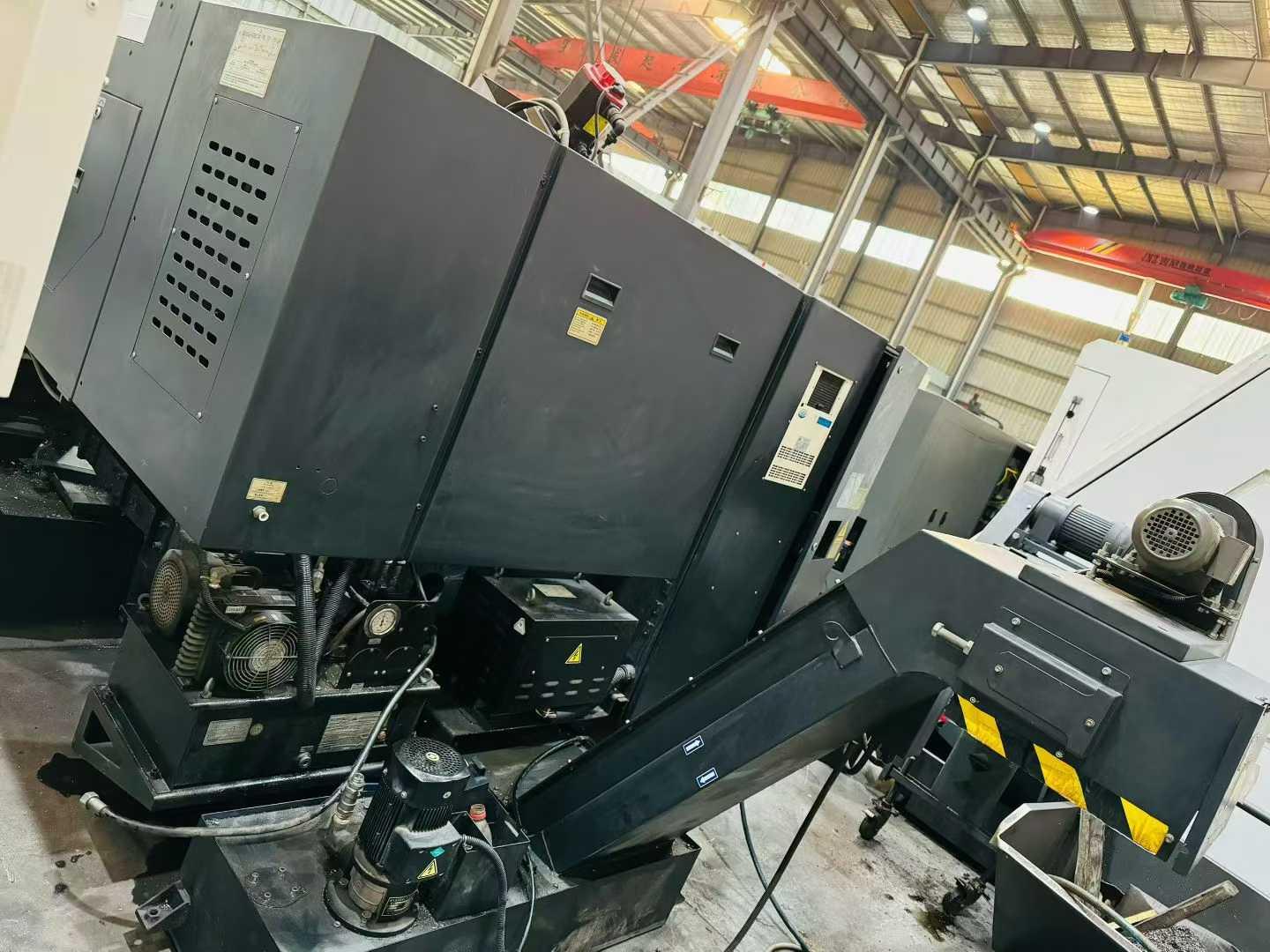

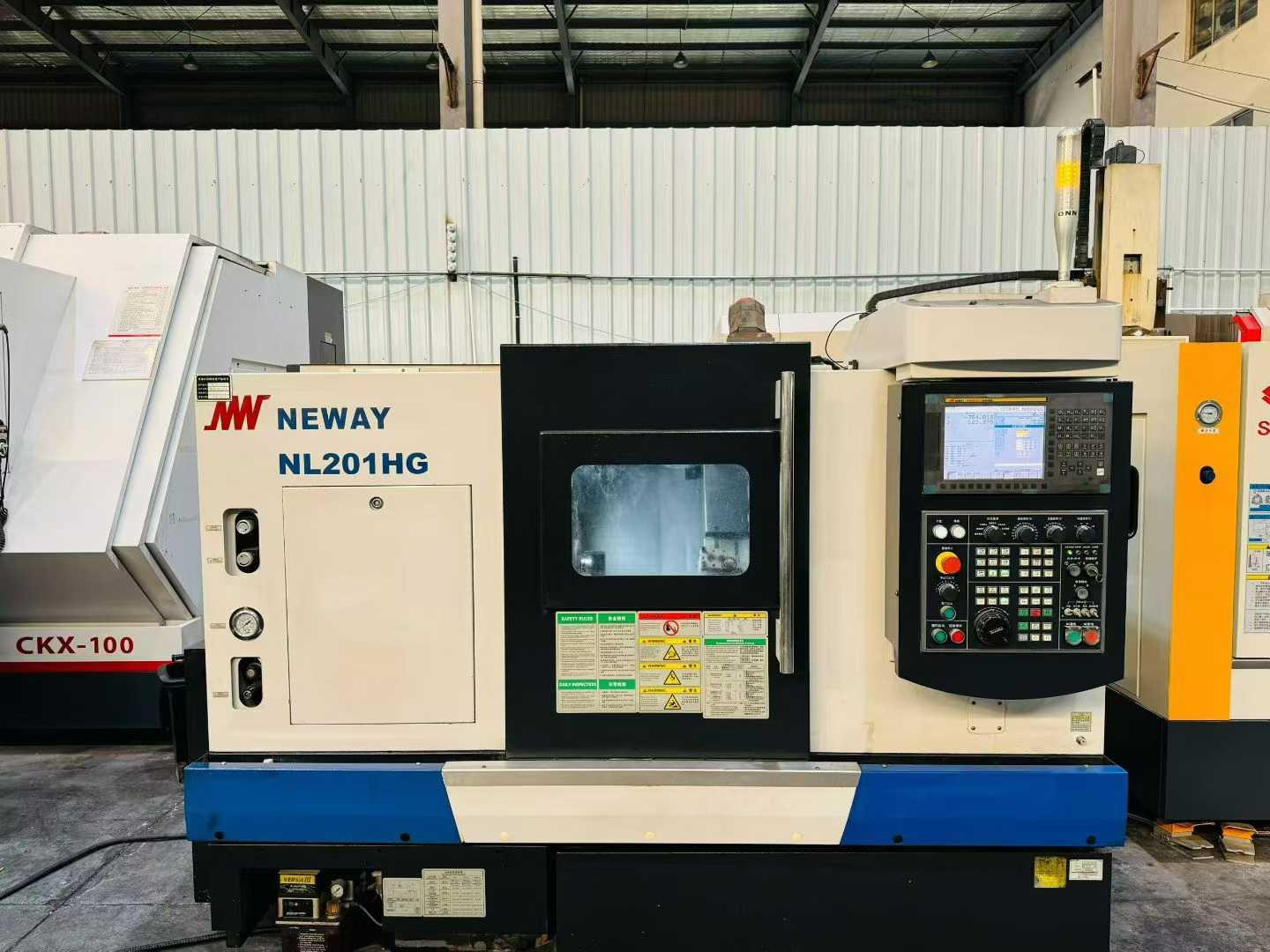

NEWAY NL201HG CNC turning lathe

[Product Information]:

Inventory number：810243
Brand：NEWAY
Model：NL201HG
Origin：The United States
Location：China
Year：2019
Create Time：2026-01-12

Specifications:

Swing diameter: Φ450 mm
Maximum machining diameter: Φ200 mm
Maximum machining length: 360 mm
X-axis travel: 300 mm
Z-axis travel: 400 mm
Spindle system
Spindle speed: 6000 rpm
End standard: ISA2-5
Through-hole diameter: Φ56 mm
Main motor power (S1 / S6): 7.5 / 11 kW
Movement and Feed
X-axis Fast Moving Rate: 24 m/min
Z-axis Fast Moving Rate: 30 m/min
Cutting Feed Range: 1–8000 mm/min
