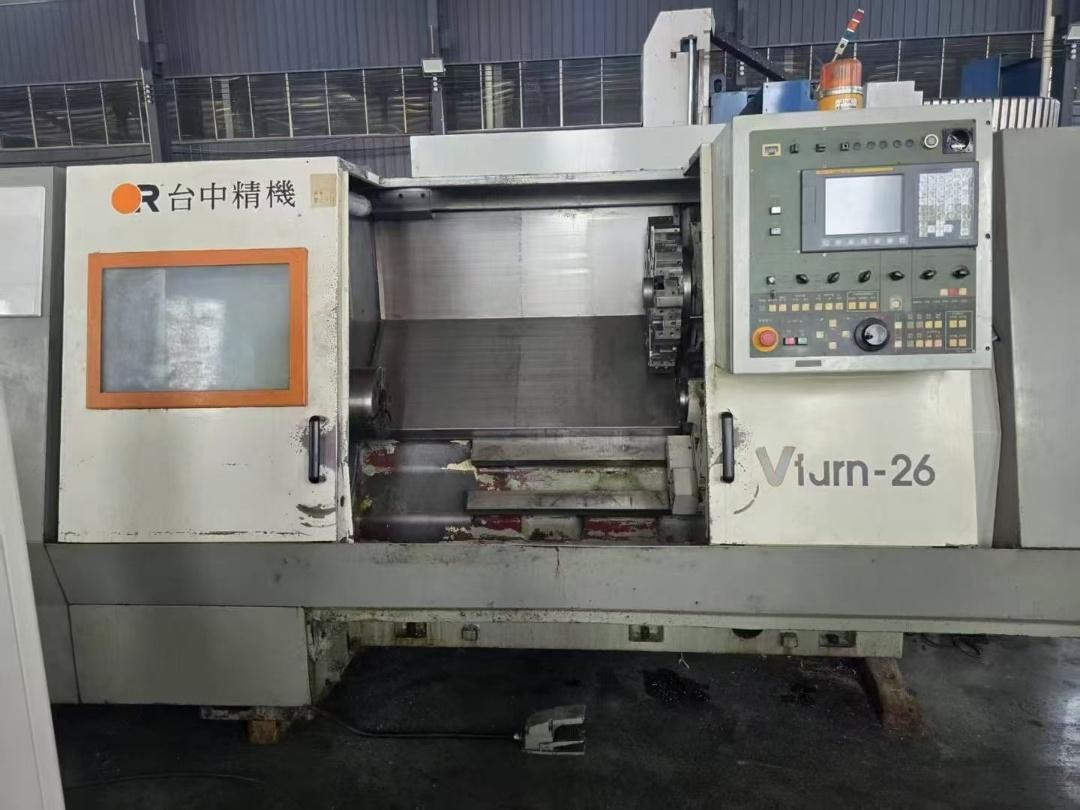

VICTOR V26/1100 CNC turning lathe

[Product Information]:

Inventory number：68014
Brand：VICTOR
Model：V26/1100
Origin：Taiwan, China
Location：China
Year：2014
Create Time：2026-05-29

Specifications:

Maximum machining diameter: φ380-430mm
Spindle diameter: φ600mm
Distance between the two top edges and maximum cutting length: 1130mm
X-axis travel range: 240mm
Z-axis travel range: 1100mm
Spindle: A2-8 interface.
Spindle speed: 3500 rpm
Spindle motor: 18.5-22kW
Main shaft through hole: φ75mm
Chuck: 10 inches.

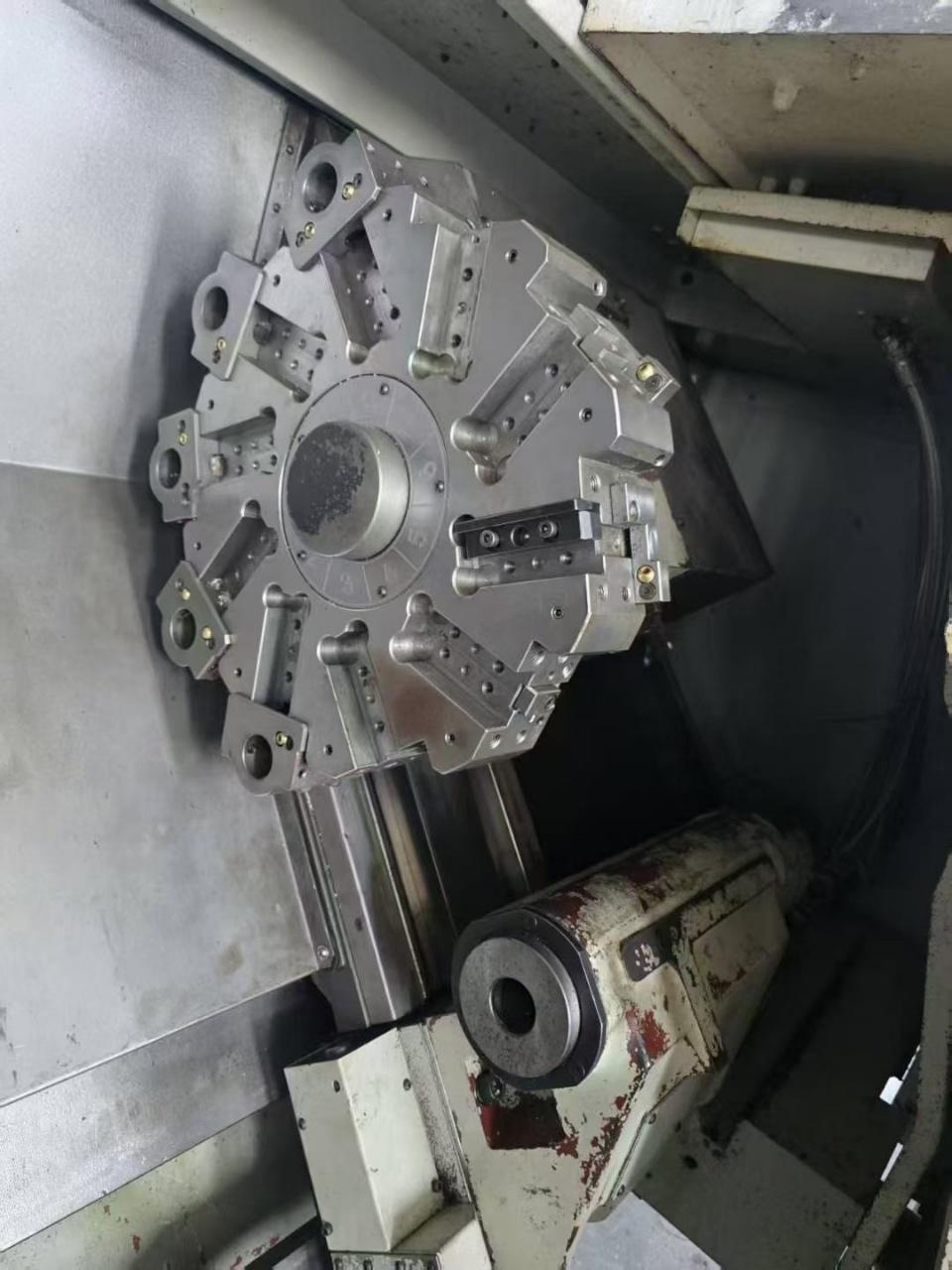

Workstation: 10-station servo turret.

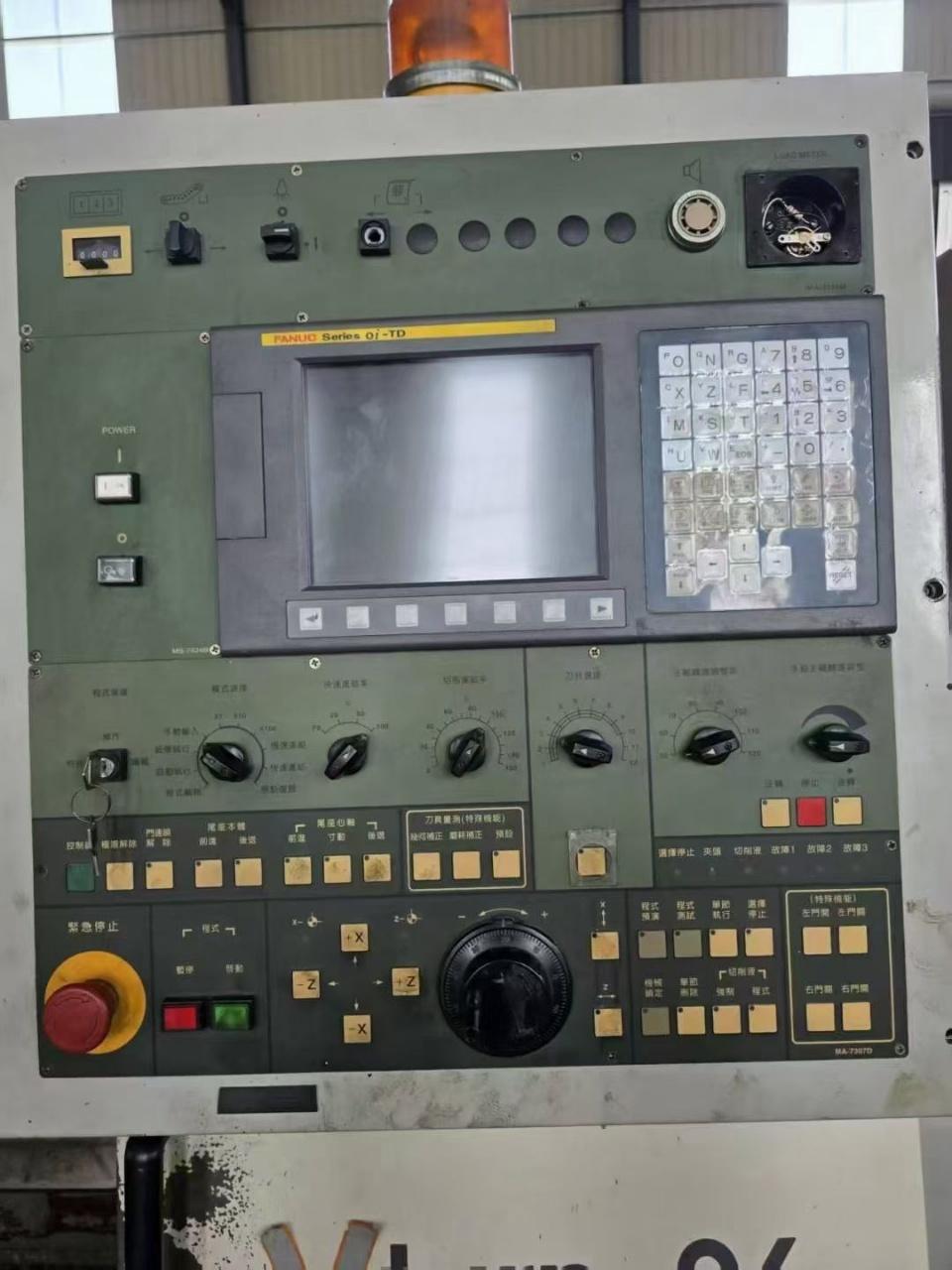

CNC System: FANUC Oi-TD
Total weight: approximately 6,000 kg
