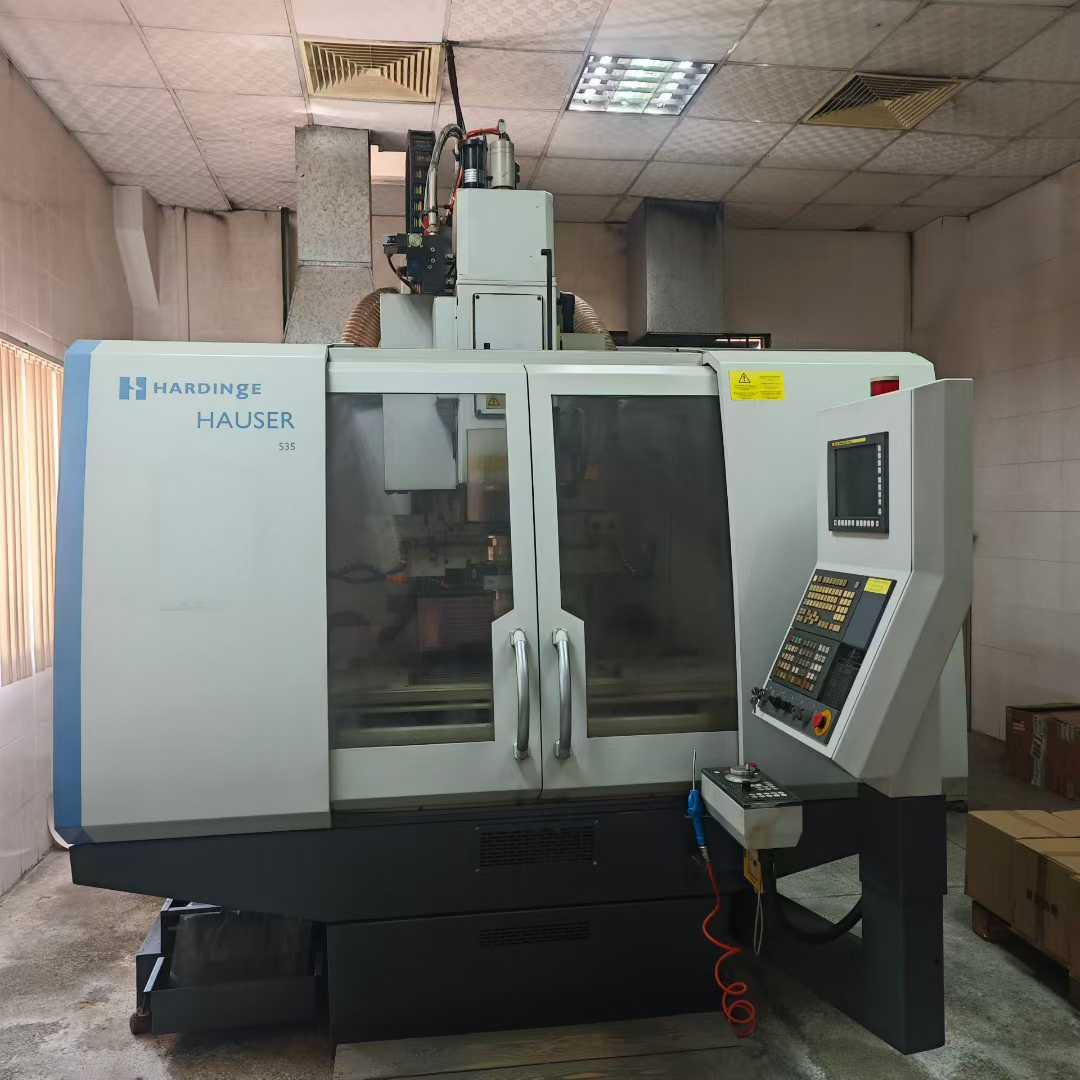

HAUSER S35-200 CNC Jig grinding machine

X * Y-axis travel: 500 * 300 mm
Vertical adjustment of grinding head (W): 450 mm
Grinding motor to table clearance: 0 – 500 mm
Distance from spindle center to column: 365 mm
Maximum grinding diameter (with Ø100 mm grinding wheel):
Without extension plate: 230 mm
With extension plate: 360 mm
Worktable surface size: 600 * 380 mm
T-slot (quantity * width): 6 * 10 mm
Maximum load: 300 kg
Machining speed of worktable and saddle (X, Y): 0 – 2000 mm/min
Rapid traverse speed of worktable and saddle (X, Y): 2000 mm/min
Vertical feed (W): 900 mm/min
Spindle sleeve diameter: 100 mm
Spindle speed (grinding motor): 4,500 – 80,000 rpm, stepless speed regulation
Spindle speed (grinding turbine): up to 130,000 rpm
Spindle speed (with groove grinding attachments): 3,900 – 18,300 rpm, stepless speed regulation
