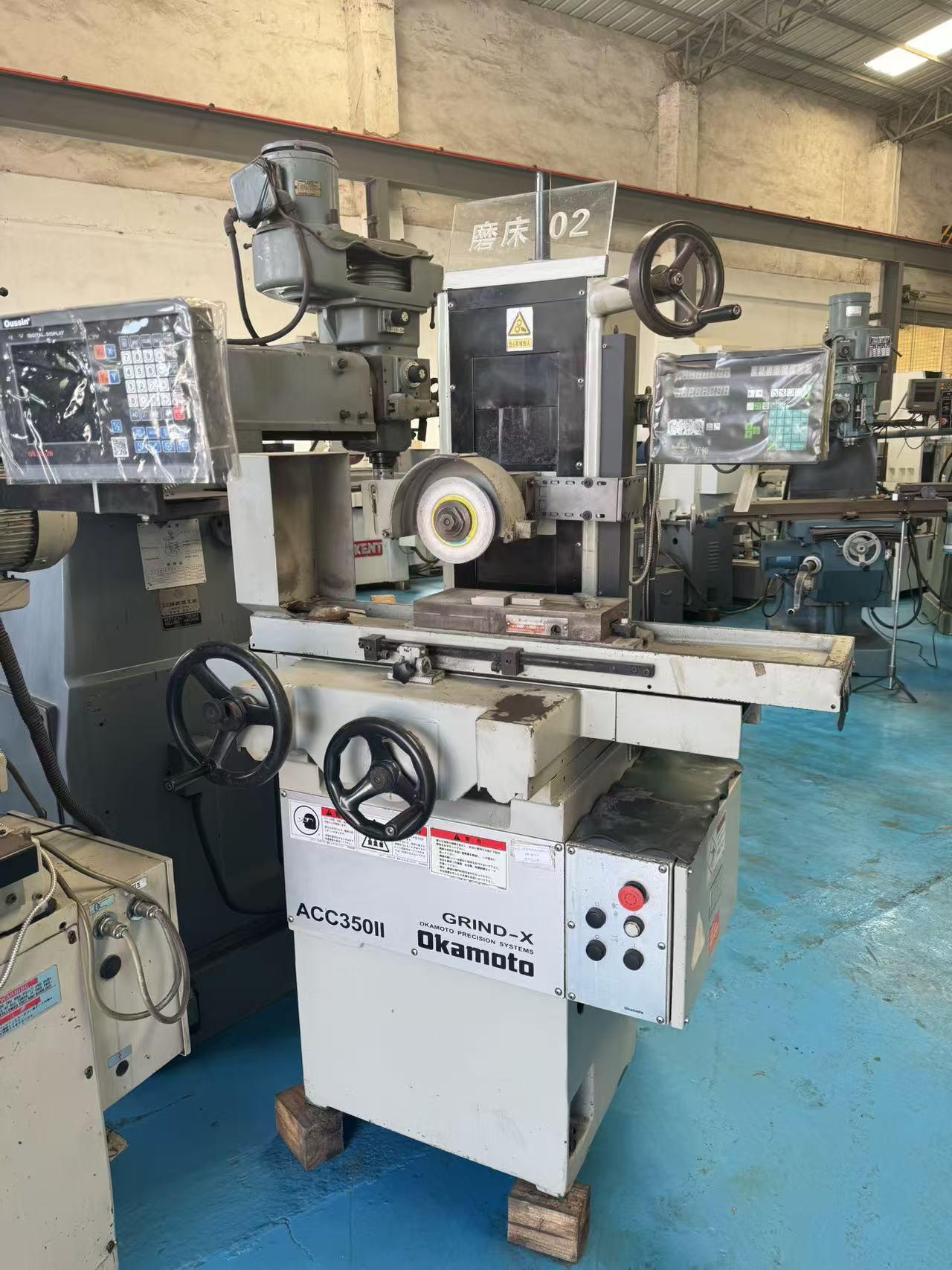

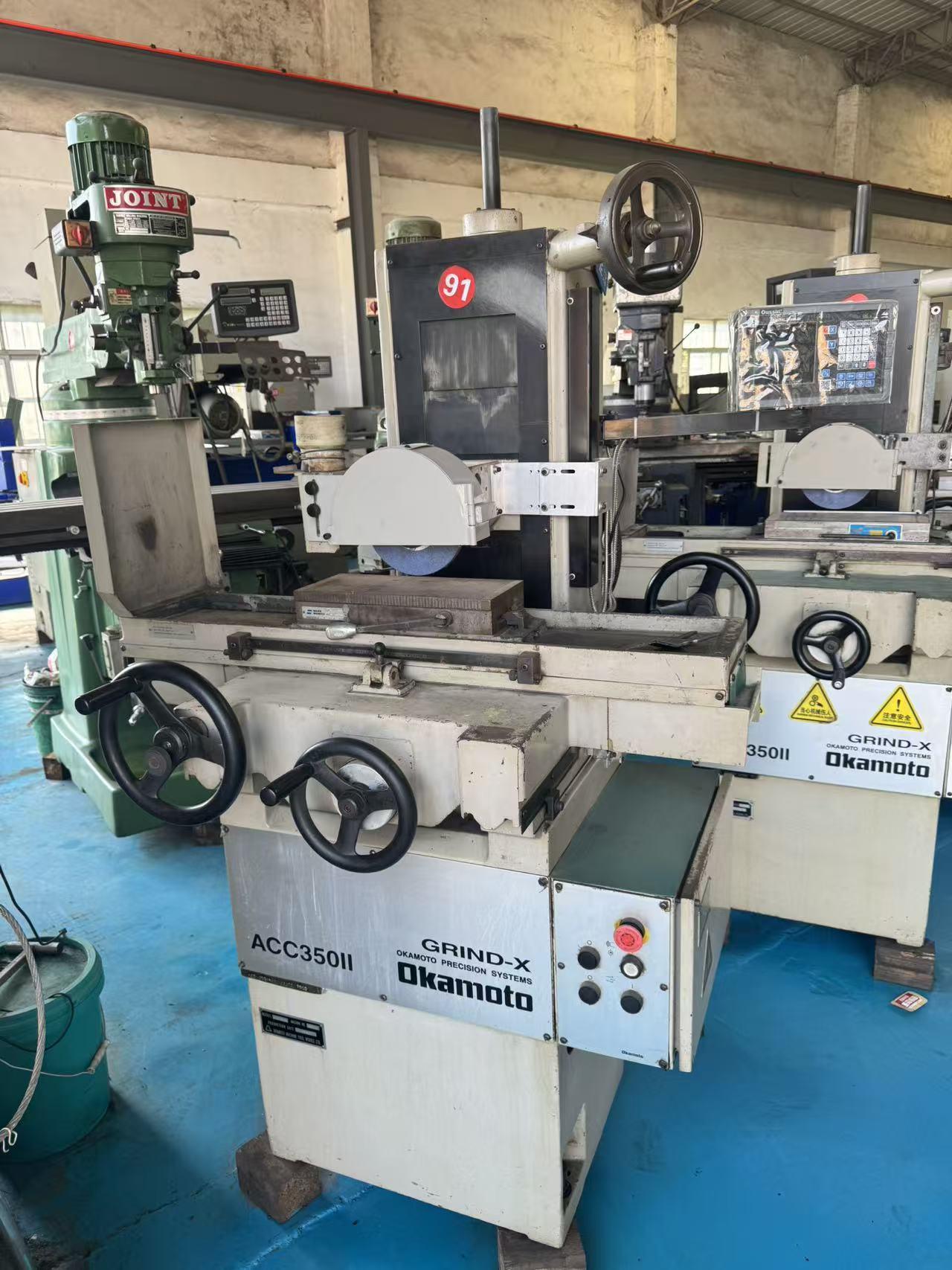

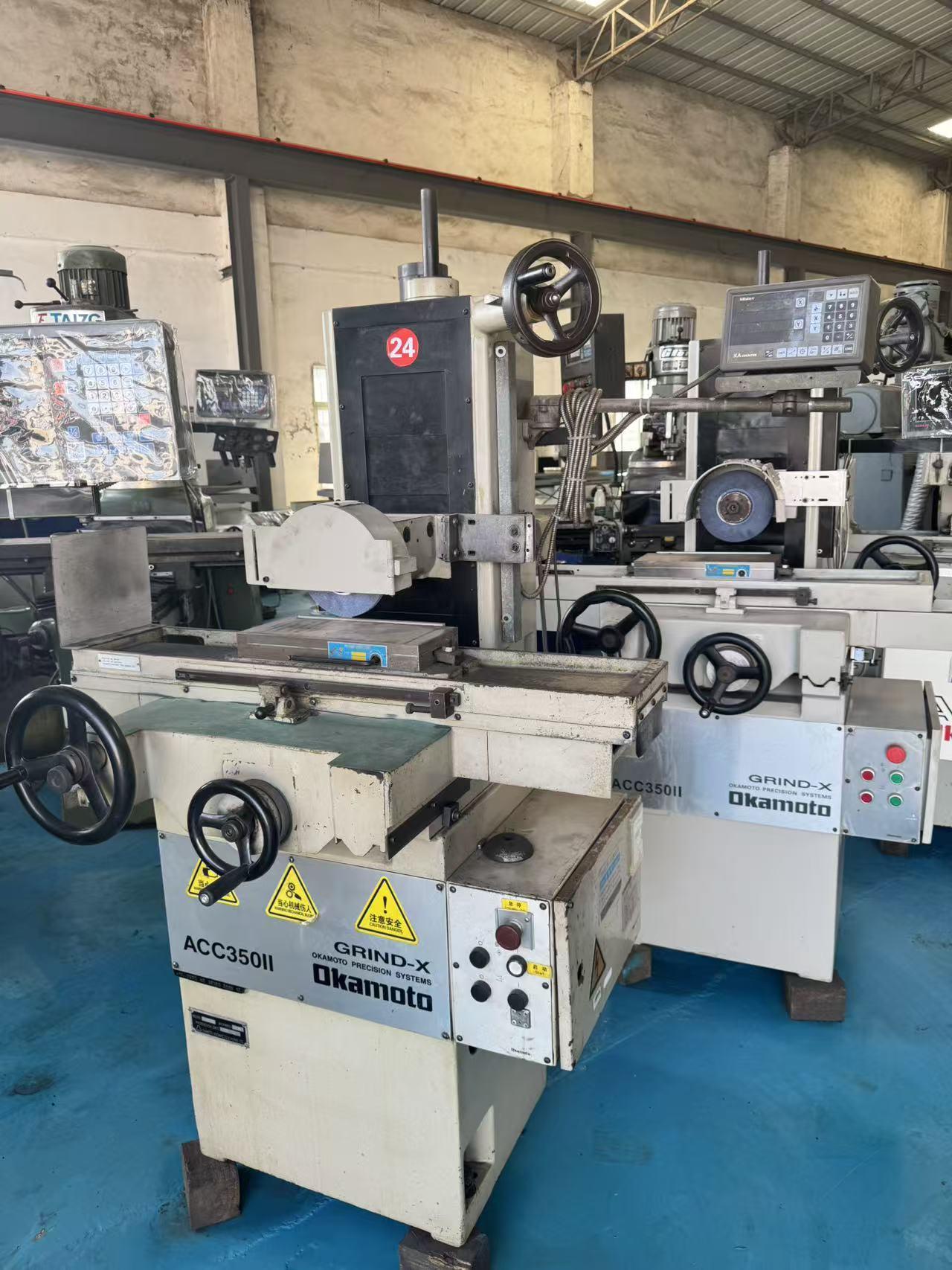

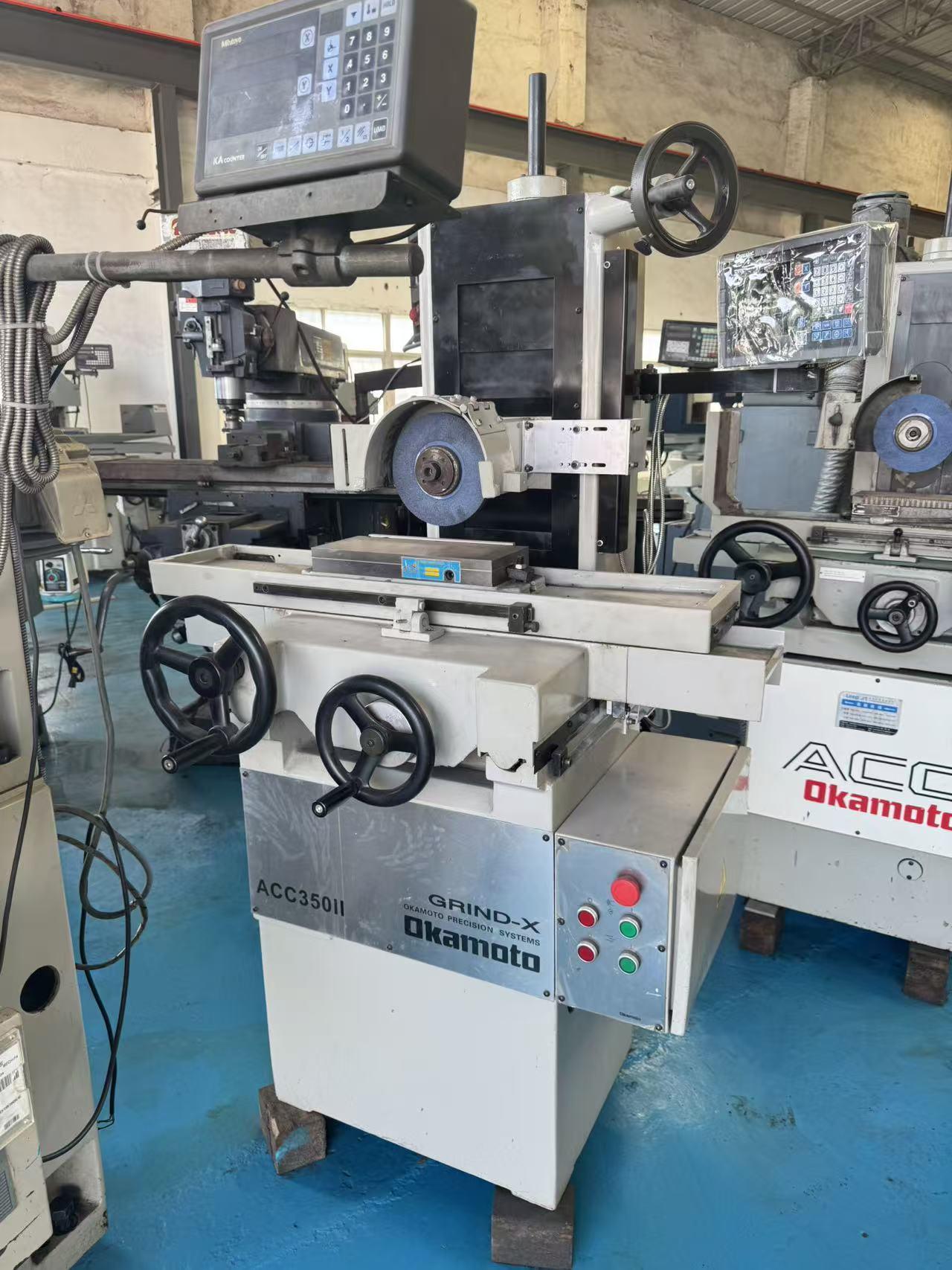

Okamoto ACC350II Surface grinder

Worktable size: 360*150mm
Distance from Worktable surface to under grinding wheel: 297.5mm
Chuck size: 350*150mm
Worktable load (including chuck ) : 120KG
T-slot (width * slots position):17*1mm
Longitudinal feed: maximum travel: 390mm
Manual feed rate: 100mm
Transverse feed: maximum travel: 210mm
Manual feed rate: 5.0mm
Handwheel graduation: 0.02mm
Vertical feed rate:
Manual feed per revolution: 1.0mm
Handwheel graduation: 0.005mm
grinding wheel diameter. Width. external diameter: 205*6-25*31.75(mm)
Speed: 2900rpm
spindle motor power: 1.5/2(kw/p)
Dust collection unit motor: 0.4/2(kw/p)
Dimension: 1555*1381*1918(mm)
Weight: 740KG
