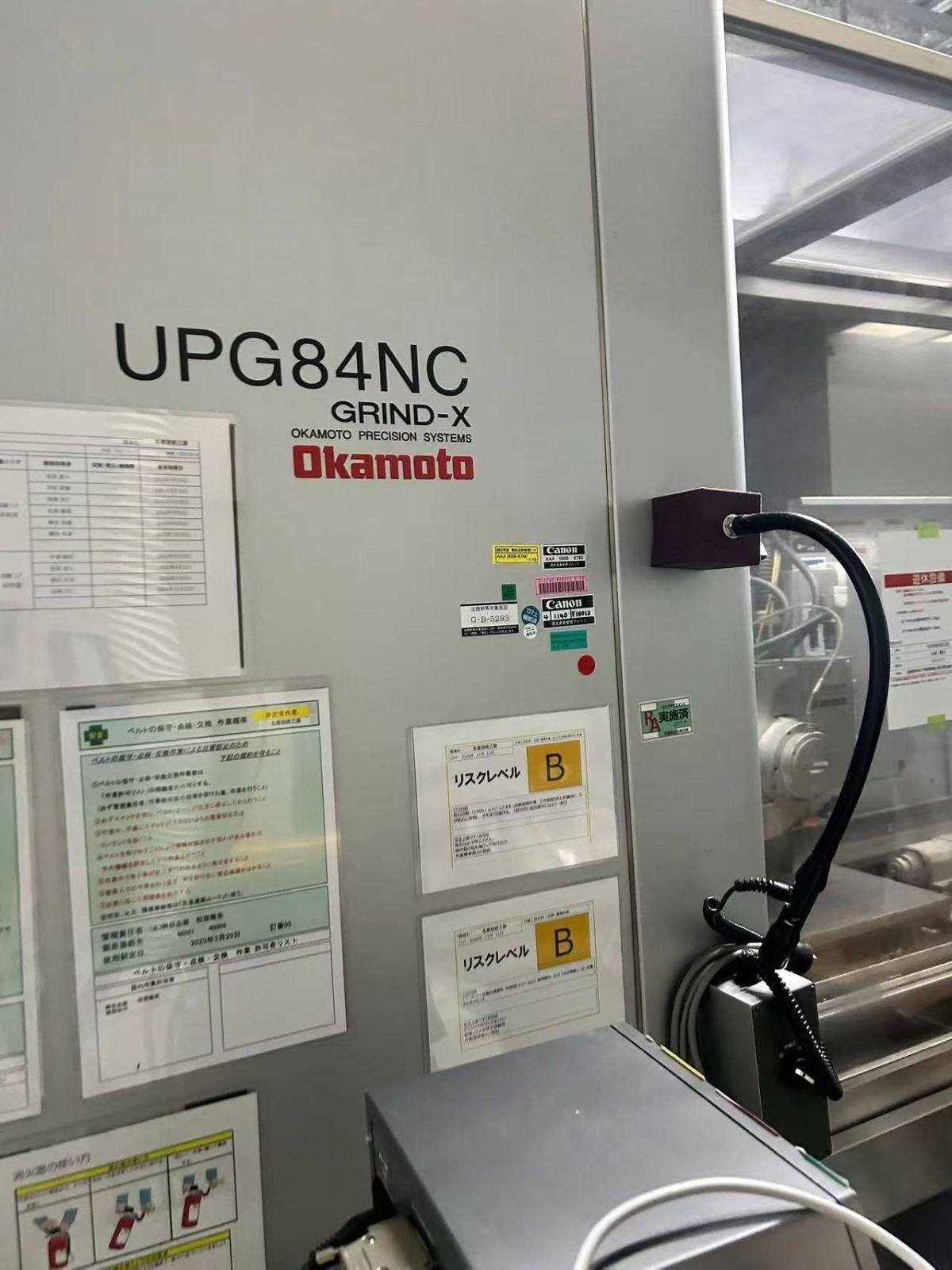

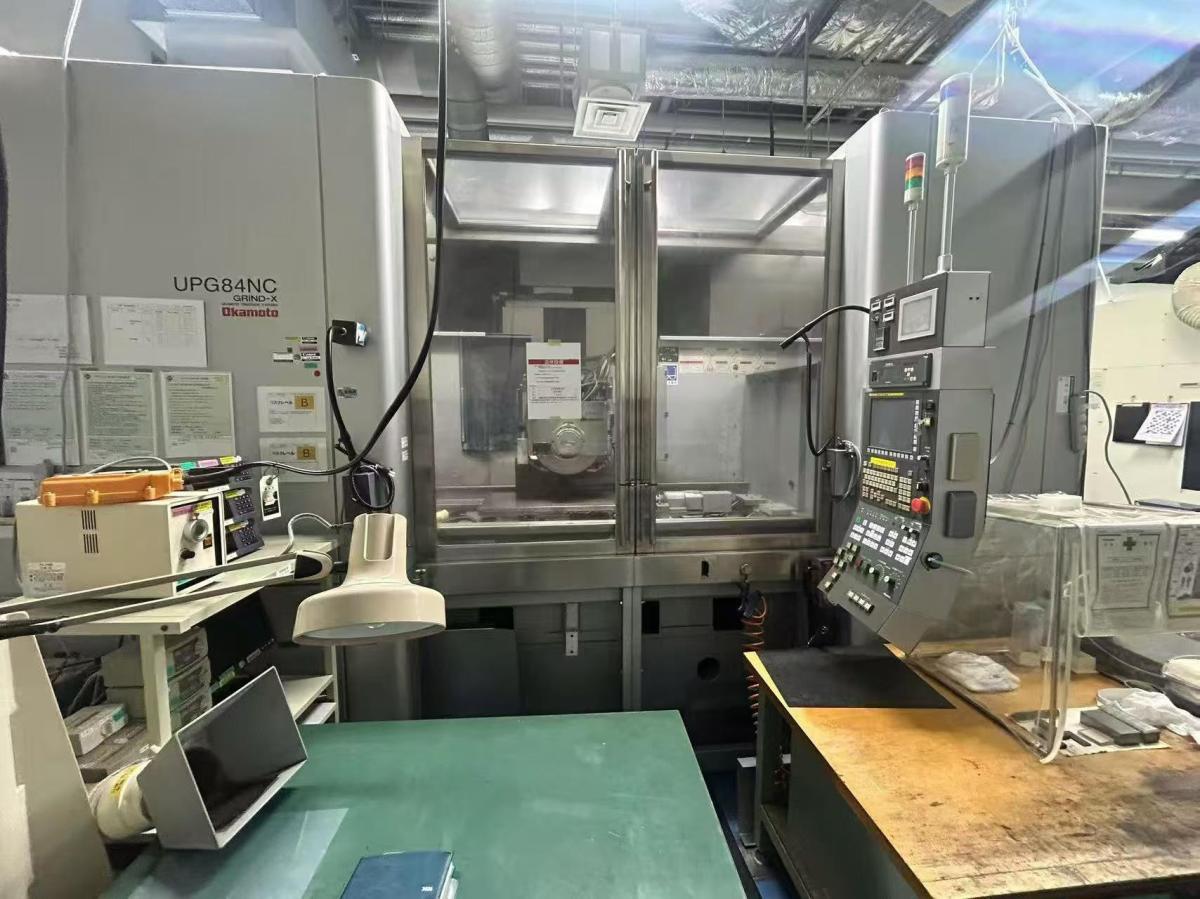

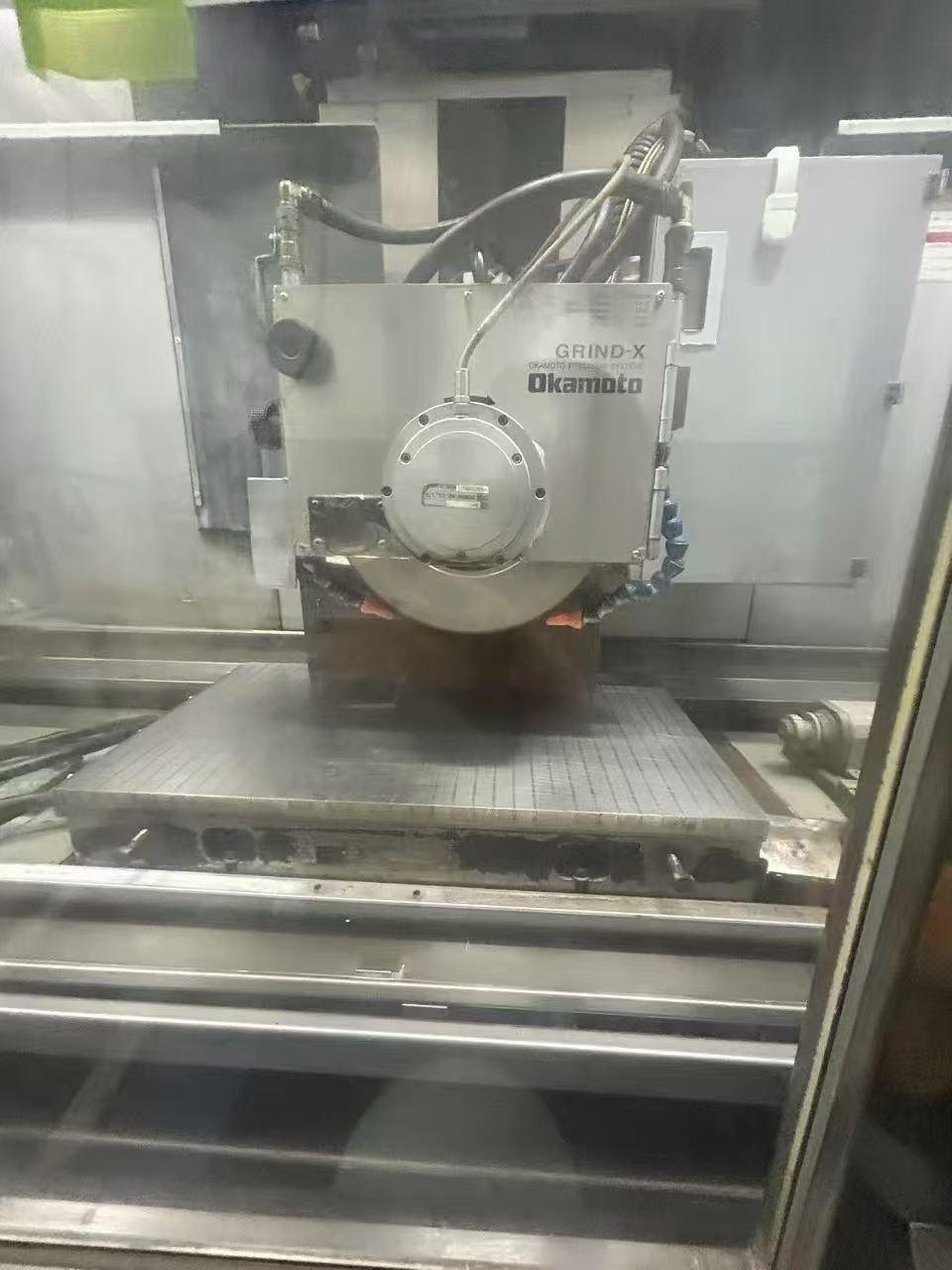

Okamoto UPG-84NC Surface grinder

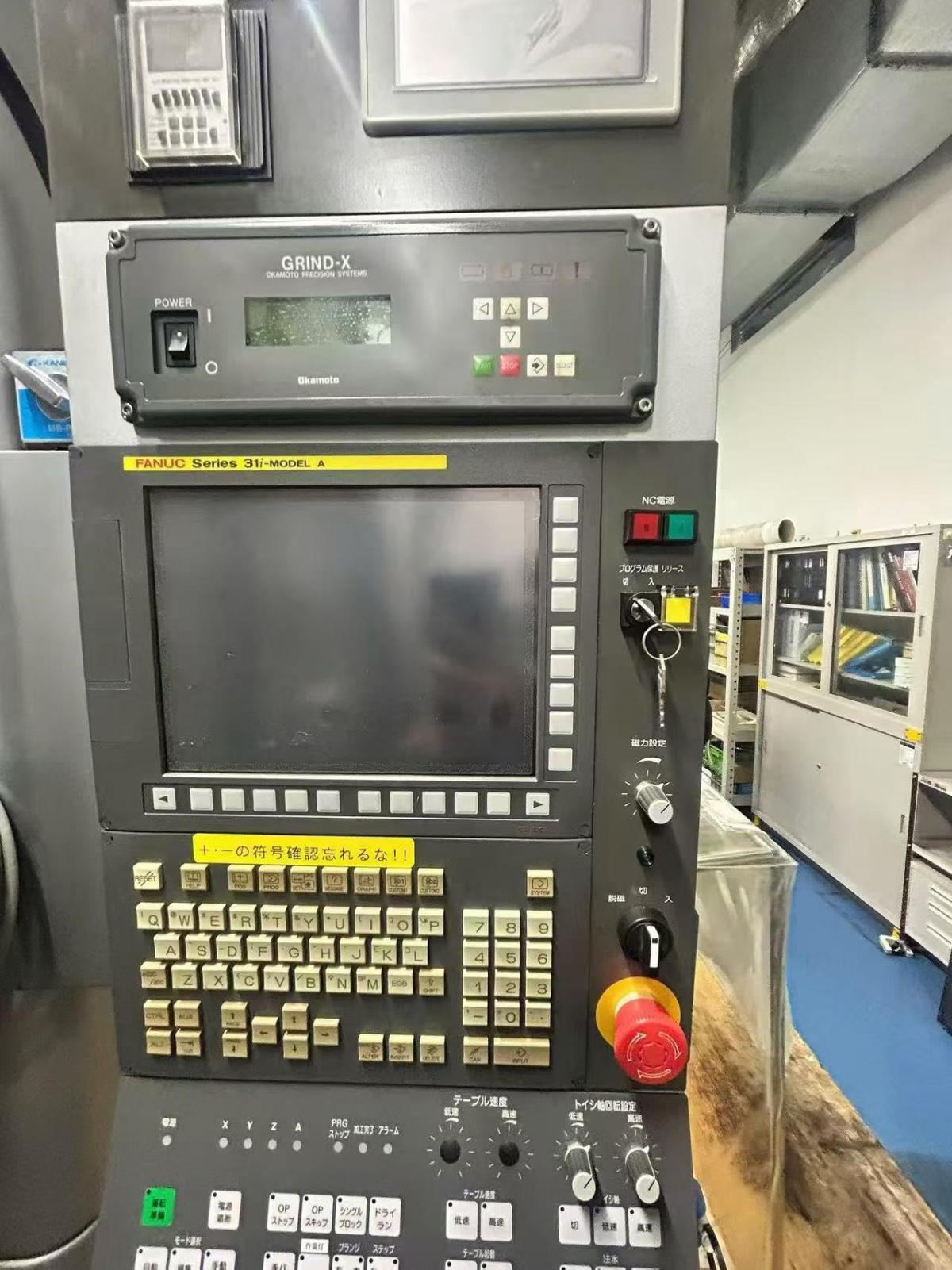

CNC System: FANUC 31i-A
Three-axis travel: 625 × 550 × 440 mm

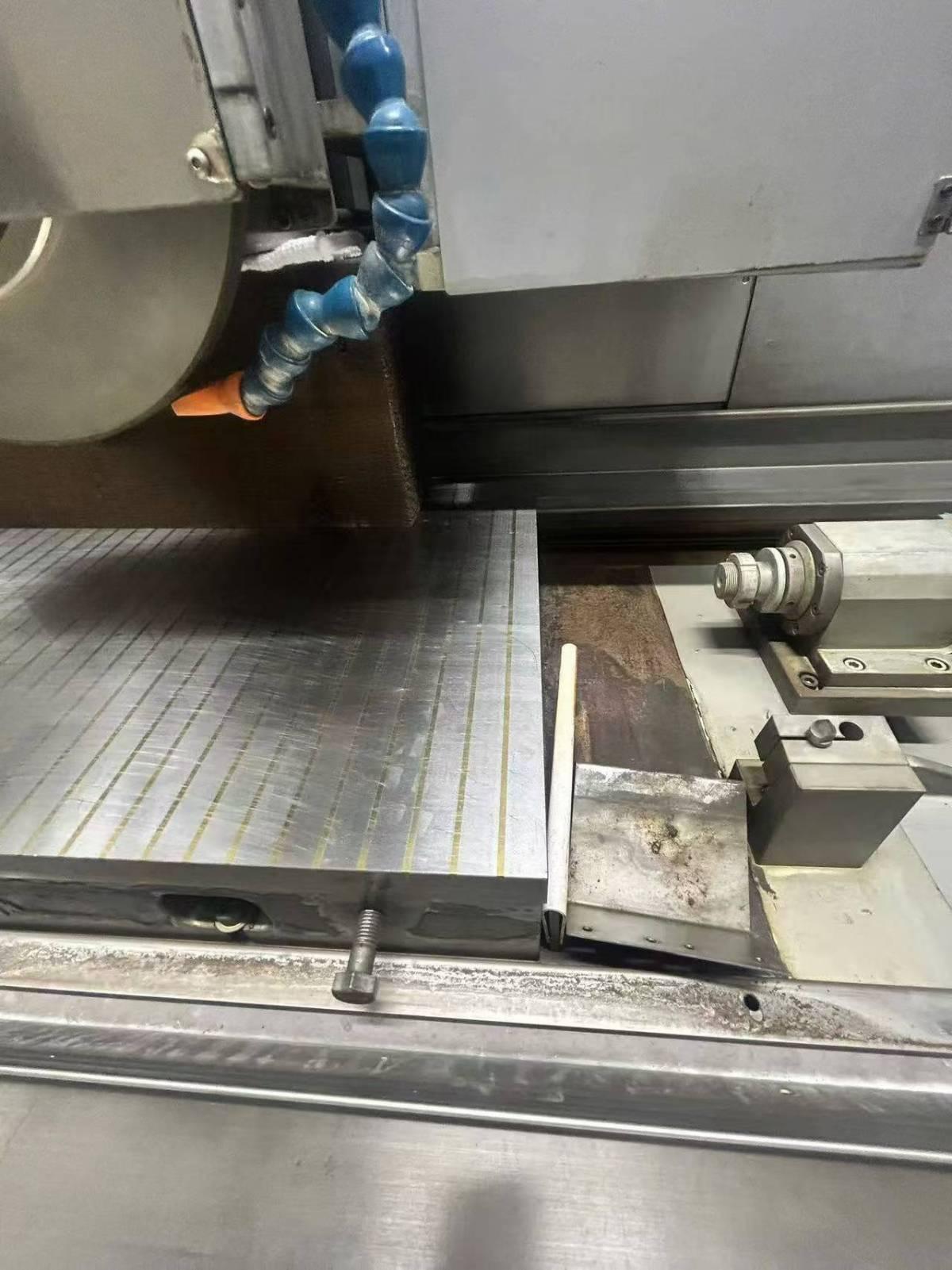

Worktable size: 850 × 400 mm
Maximum table load: 950 kg
Maximum workpiece weight: 700 kg
Minimum resolution: 0.00001 mm
Rapid traverse rate: 10,000 / 2,000 mm/min
Feed rate range: 0 – 10,000 / 0 – 800 mm/min
Grinding wheel speed: 500 – 2,500 rpm
Grinding wheel size: 355 × 38 × 127 mm
Spindle motor power: 5.5 kW
Servo motors: 3 kW × 3 axes

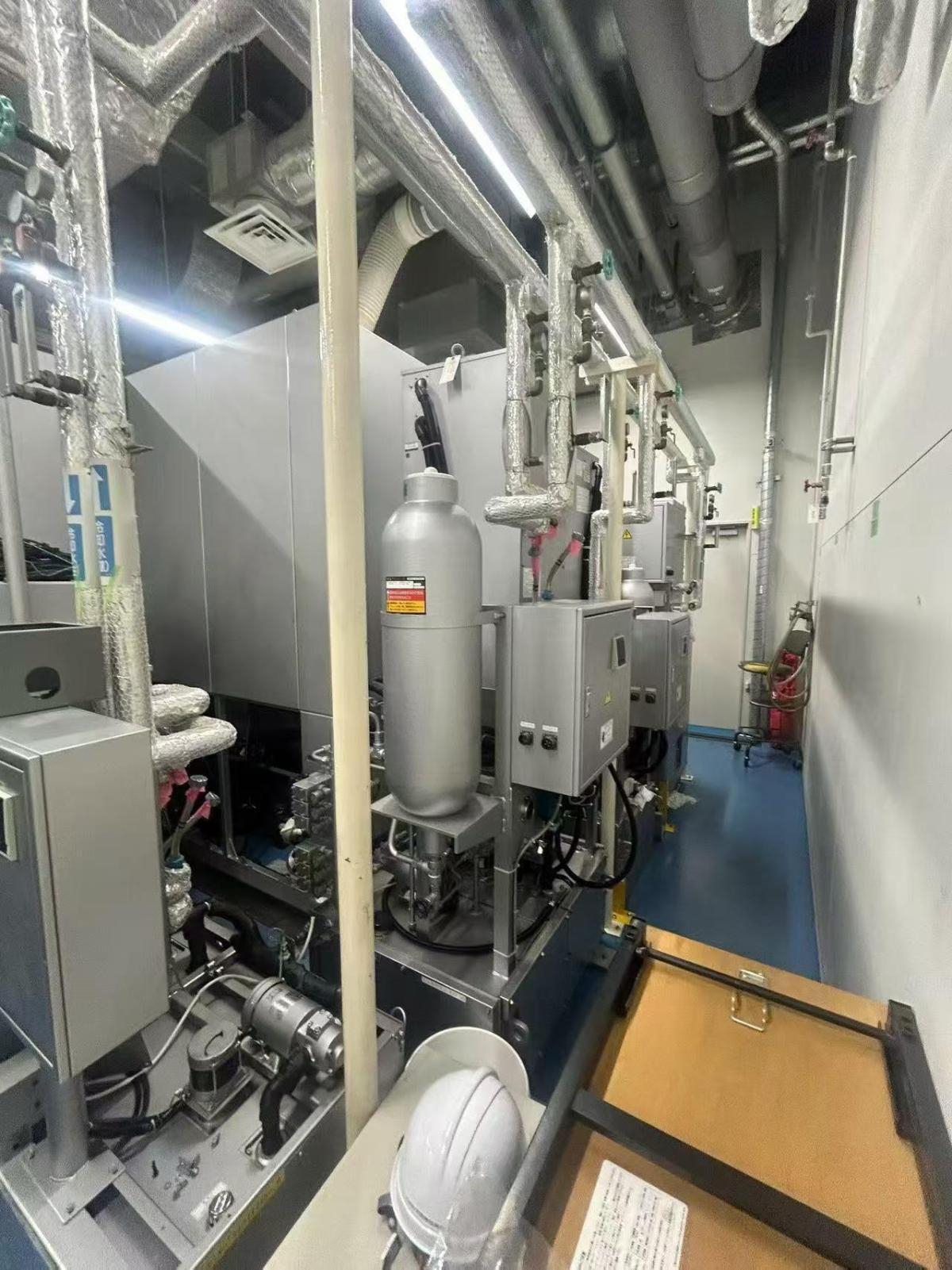

Hydraulic pump: 1.5 kW × 2
Coolant pump: 0.75 kW
Circulation pump: 0.2 kW
Machine weight: 7,000 kg
Machine dimensions: 4,420 × 3,700 × 2,700 mm
Power supply: AC 200V / 50Hz / 40 kVA
