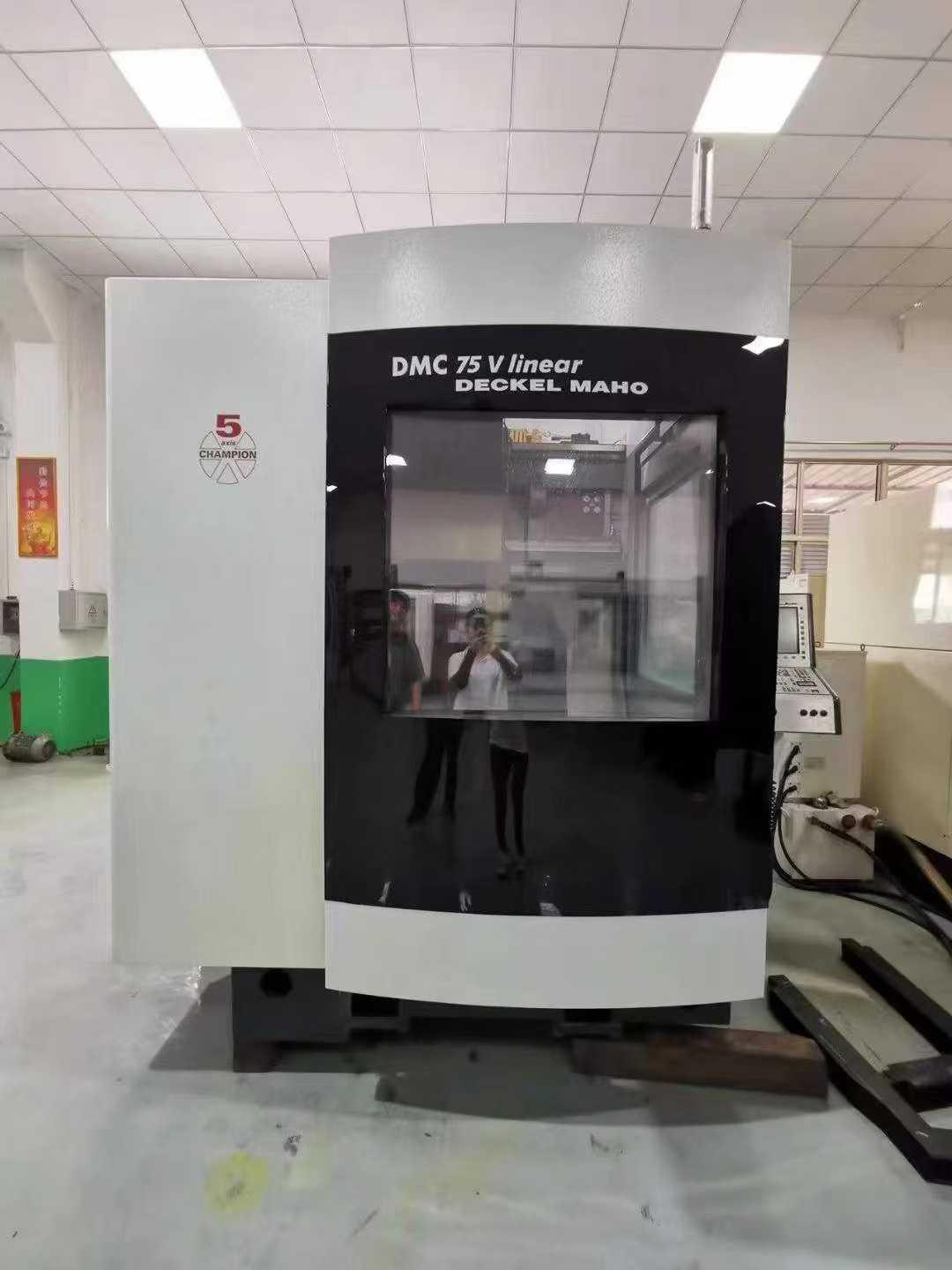

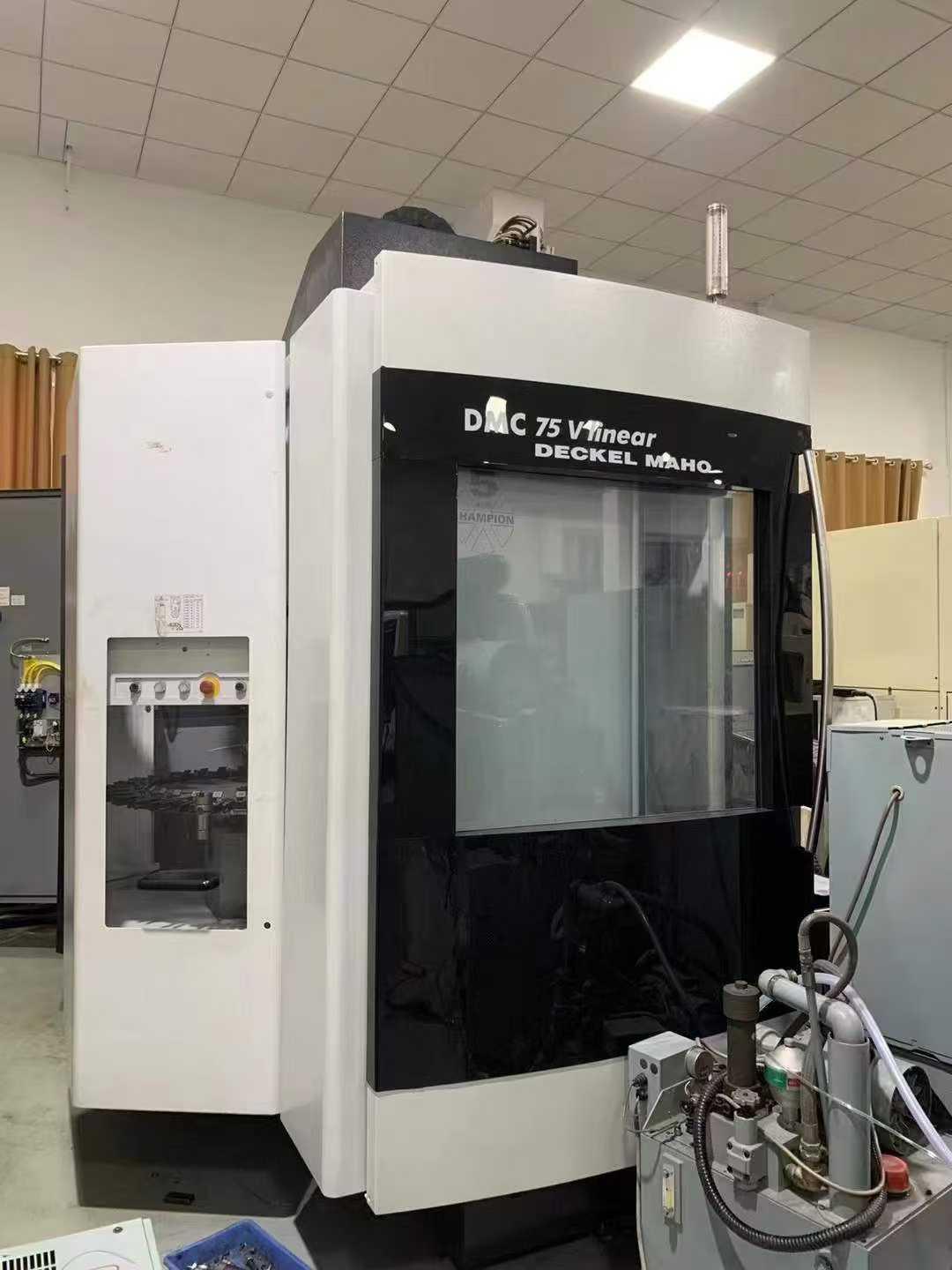

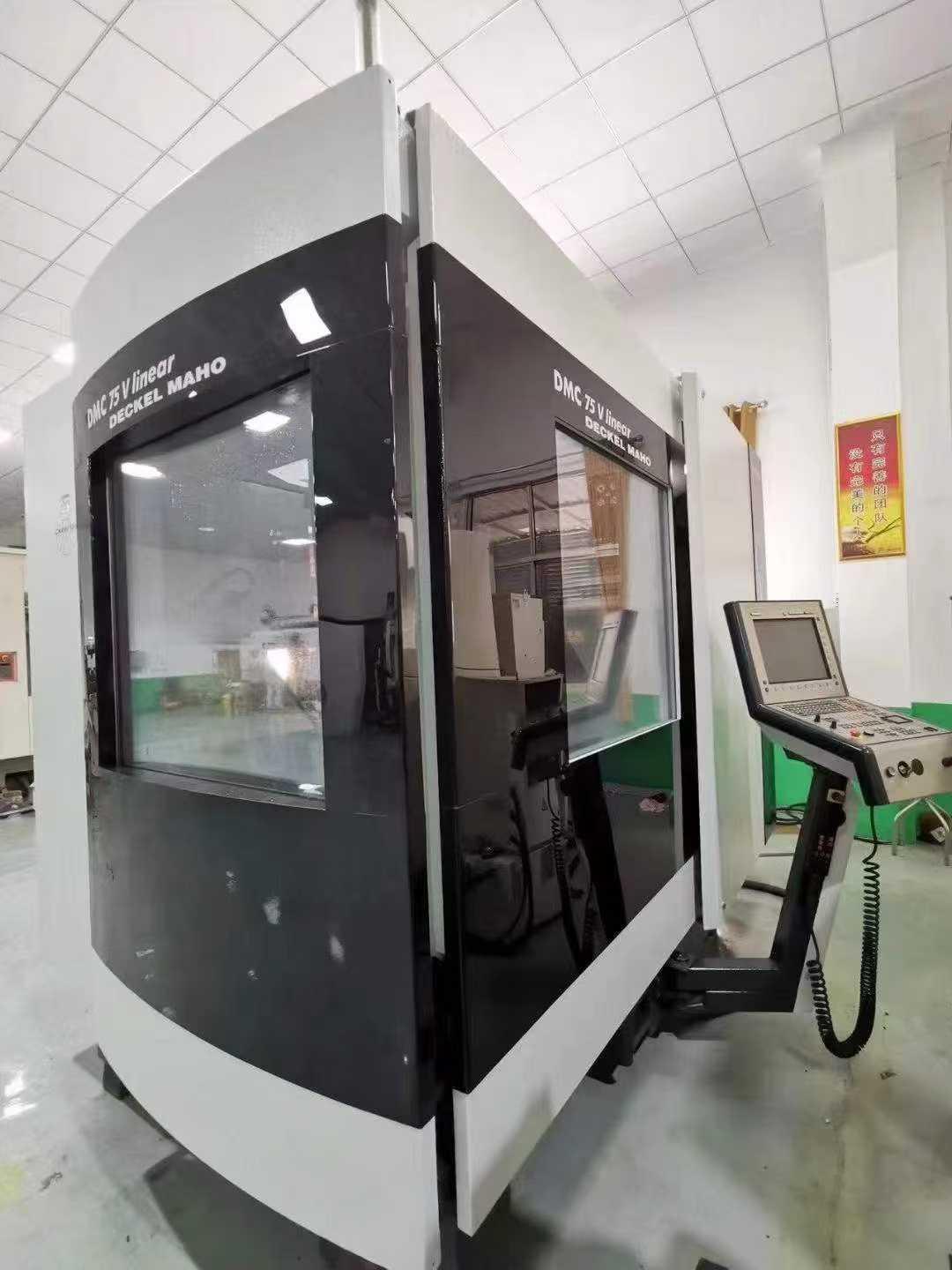

DMG DMC75Vlinear 5 axis machining centre

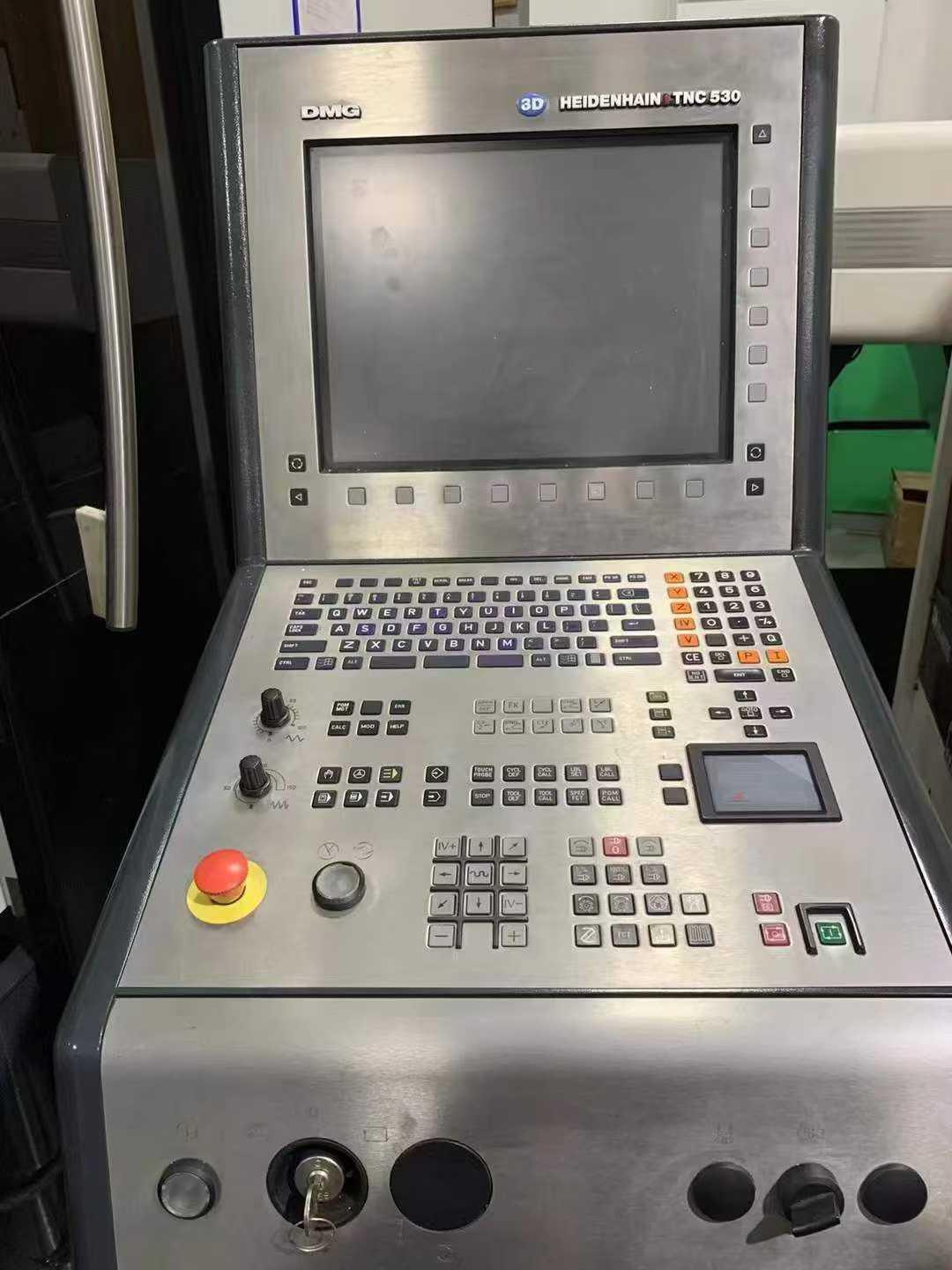

CNC System: Heidenhain TNC530
Three-axis travel: 750*600*560 mm
B-axis travel: -10° to 110°
C-axis travel: 360°
Distance from spindle to Worktable surface: 500mm
Spindle speed: 18000mm
Worktable size: 750mm
Worktable load: 600KG
Rotary Table Swing Radius: 325mm
5 axes machine radius: 325mm
Fast moving rate: 90m/min
Tool holder model: HSK63

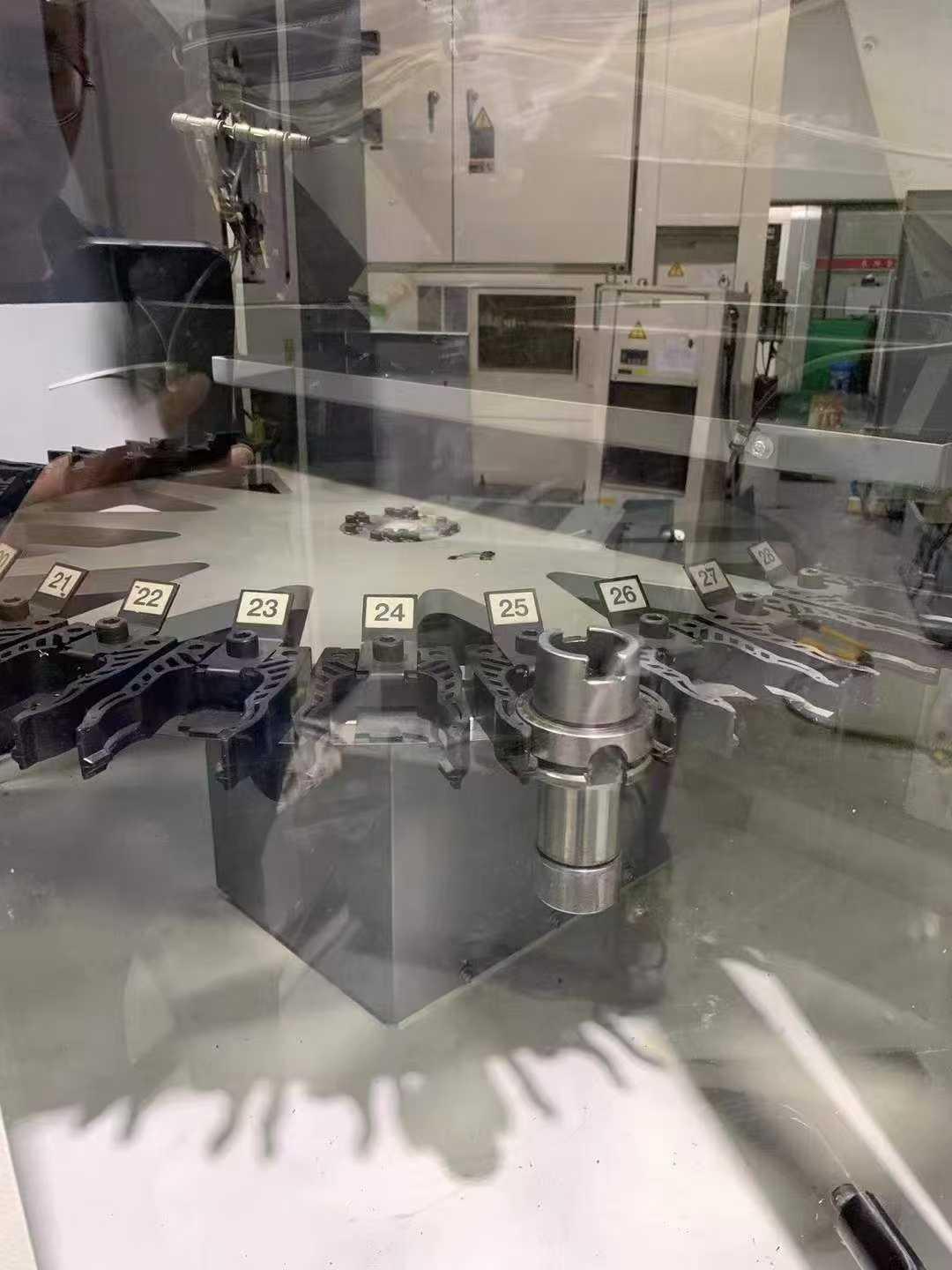

magazine capacity: 30 pieces
Tools magazine form: Disc type
Chip conveyor method: Helix Chip conveyor
Drive mode per axis: Linear motor
Guideway method: Linear guide
Spindle drive method: Electric spindle

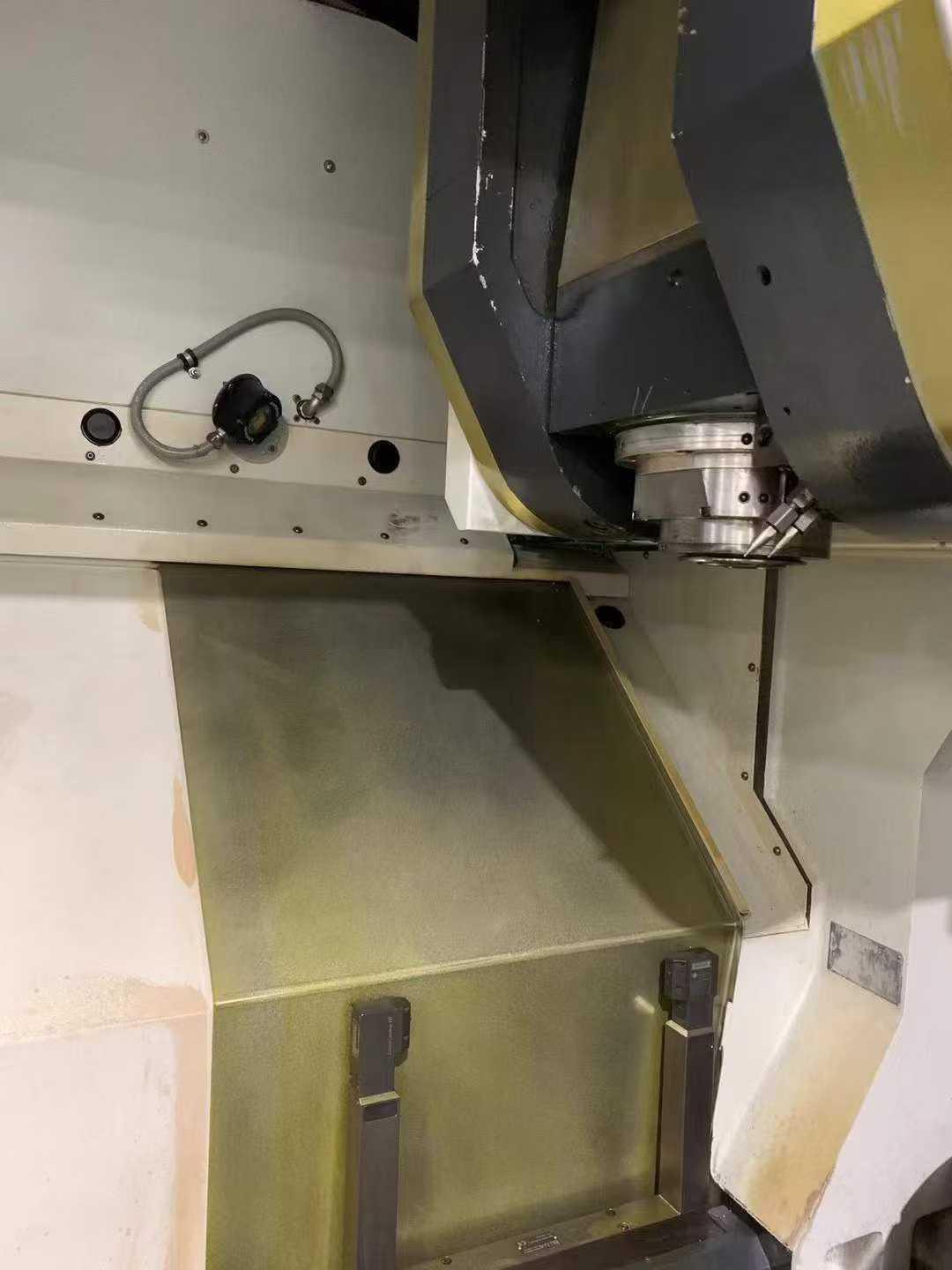

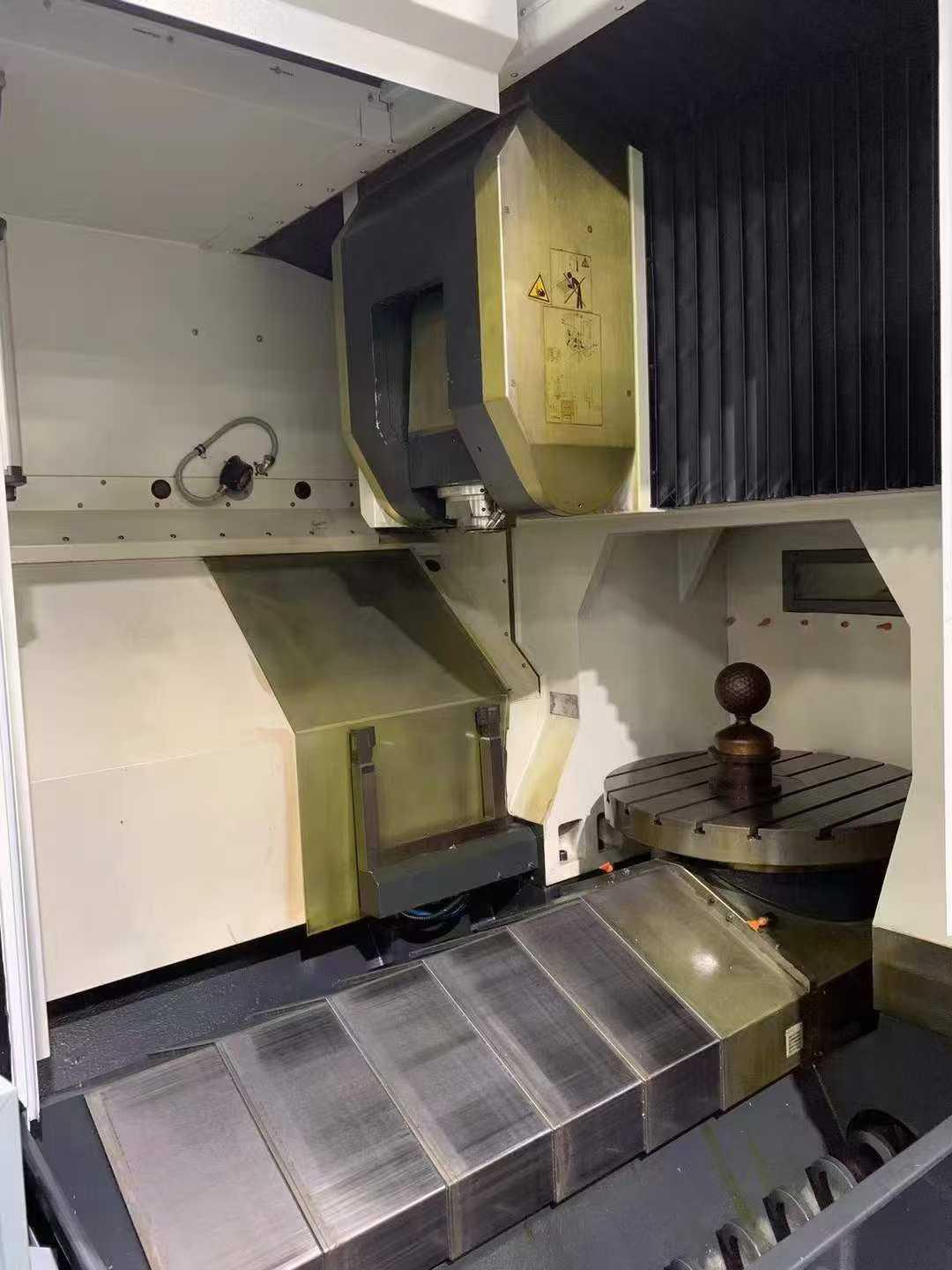

Machining structure:one swivel head and one rotary table
Machine Dimension: 3800*3000*2500 mm
Configuration：
Full-axis grating scale
Laser Tool aligner aligner Aligner
