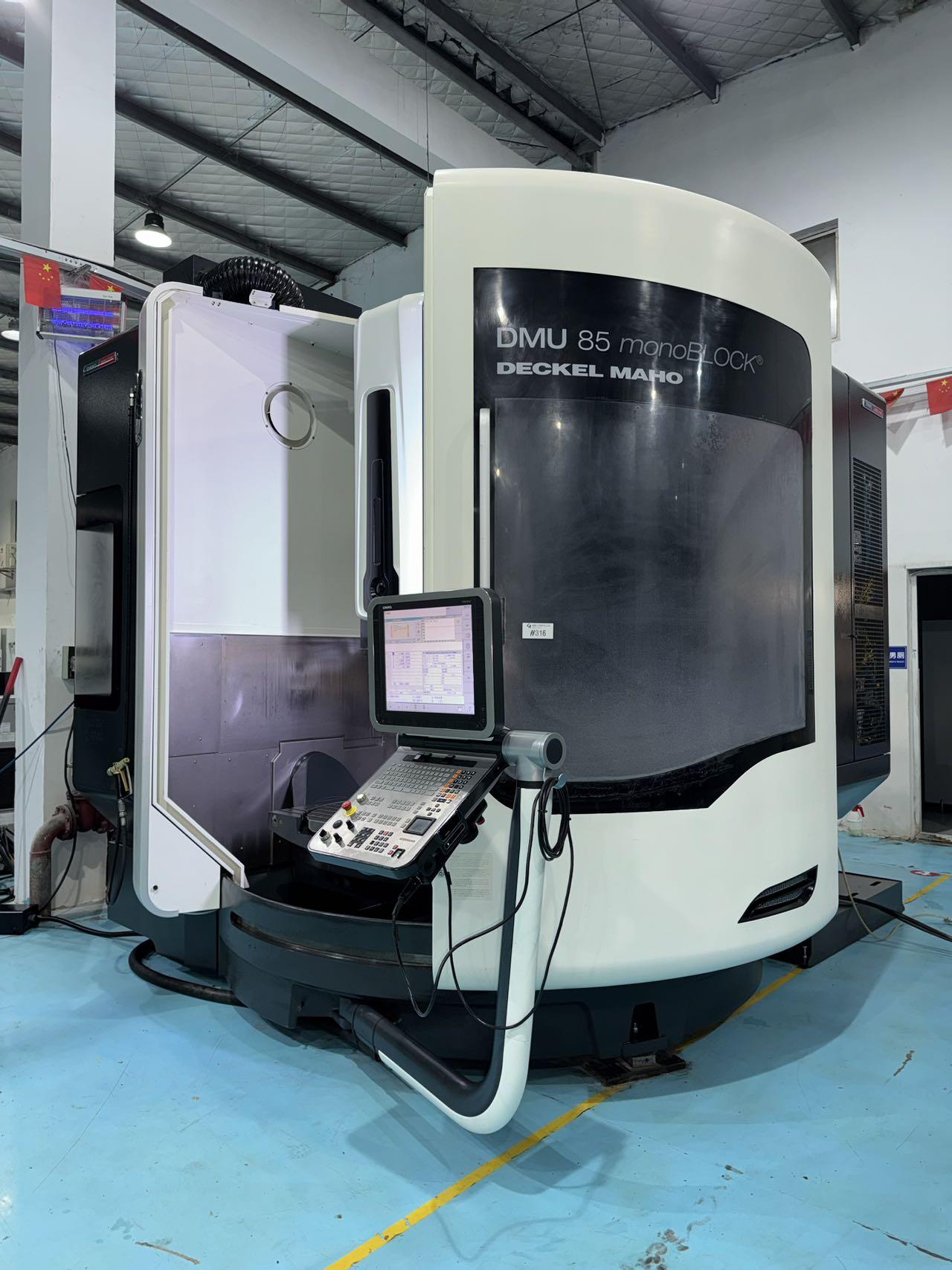

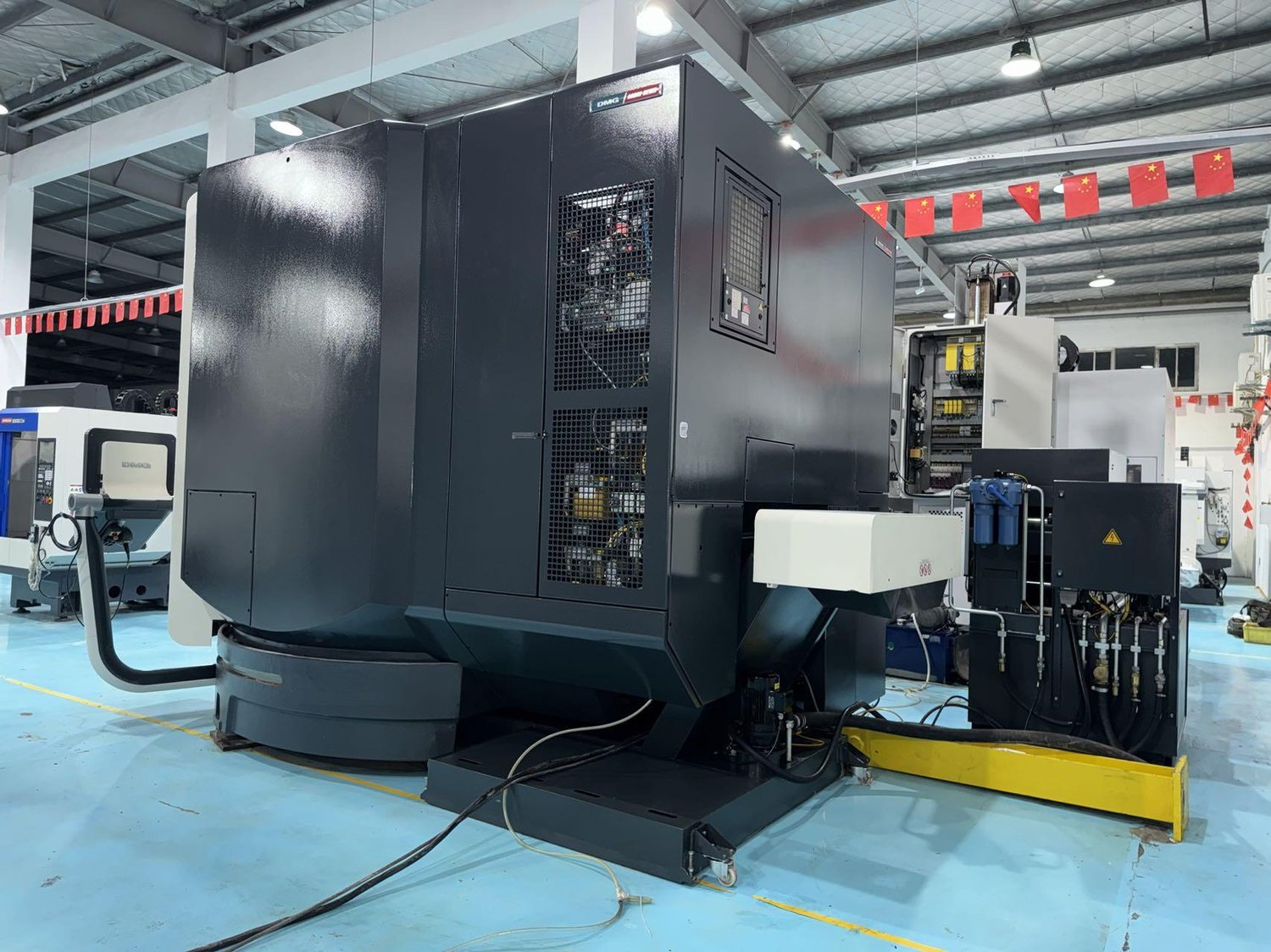

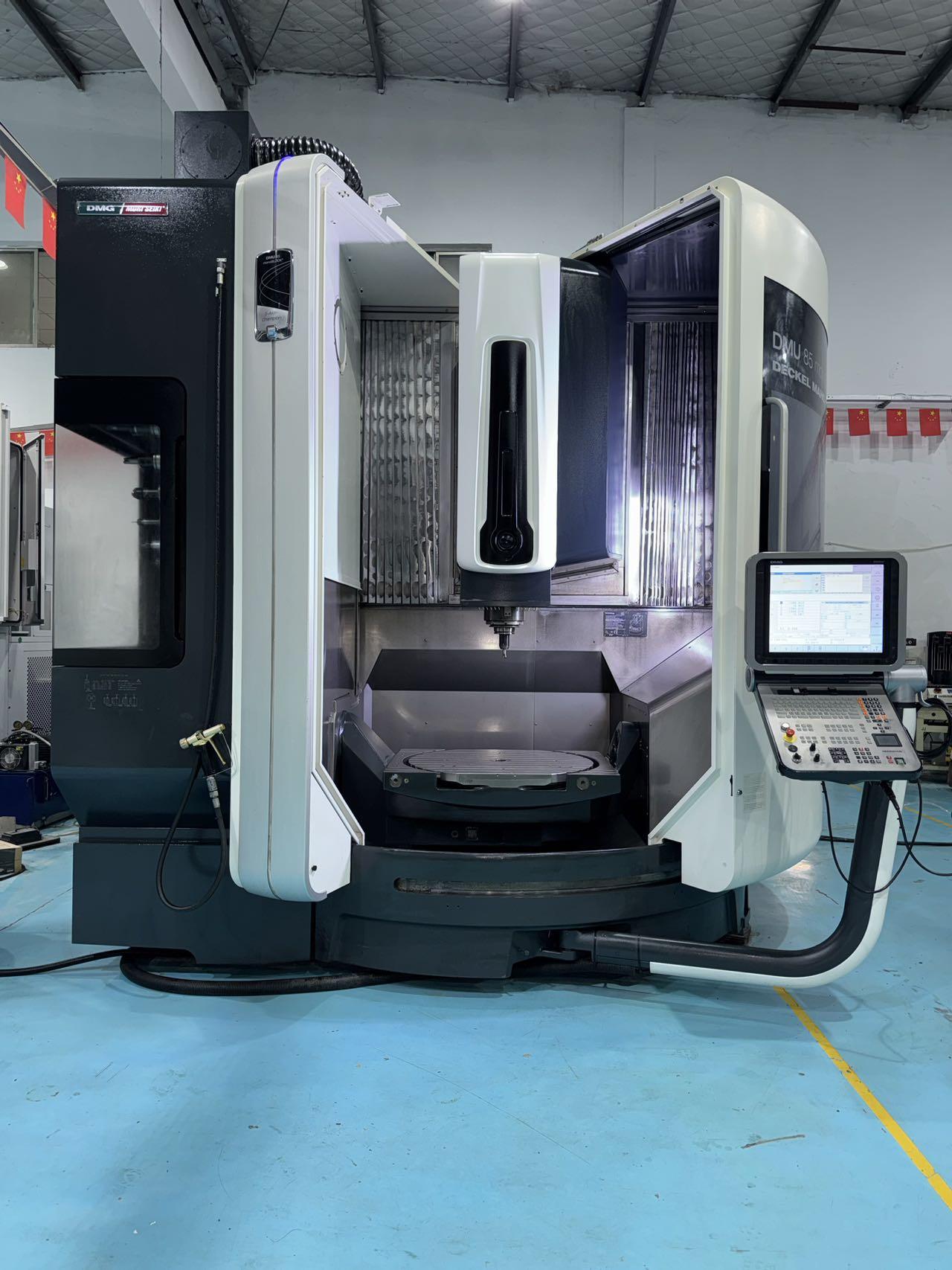

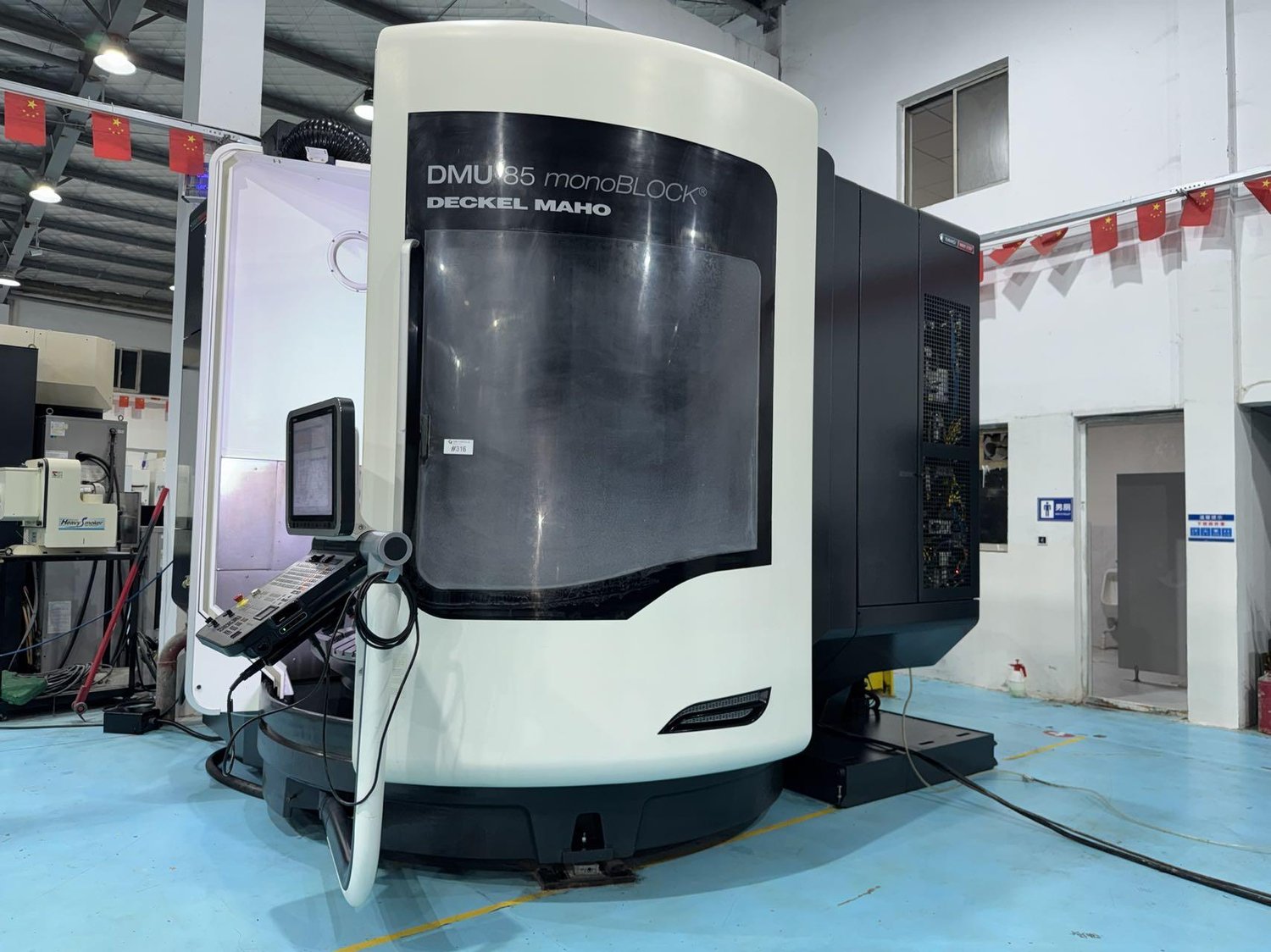

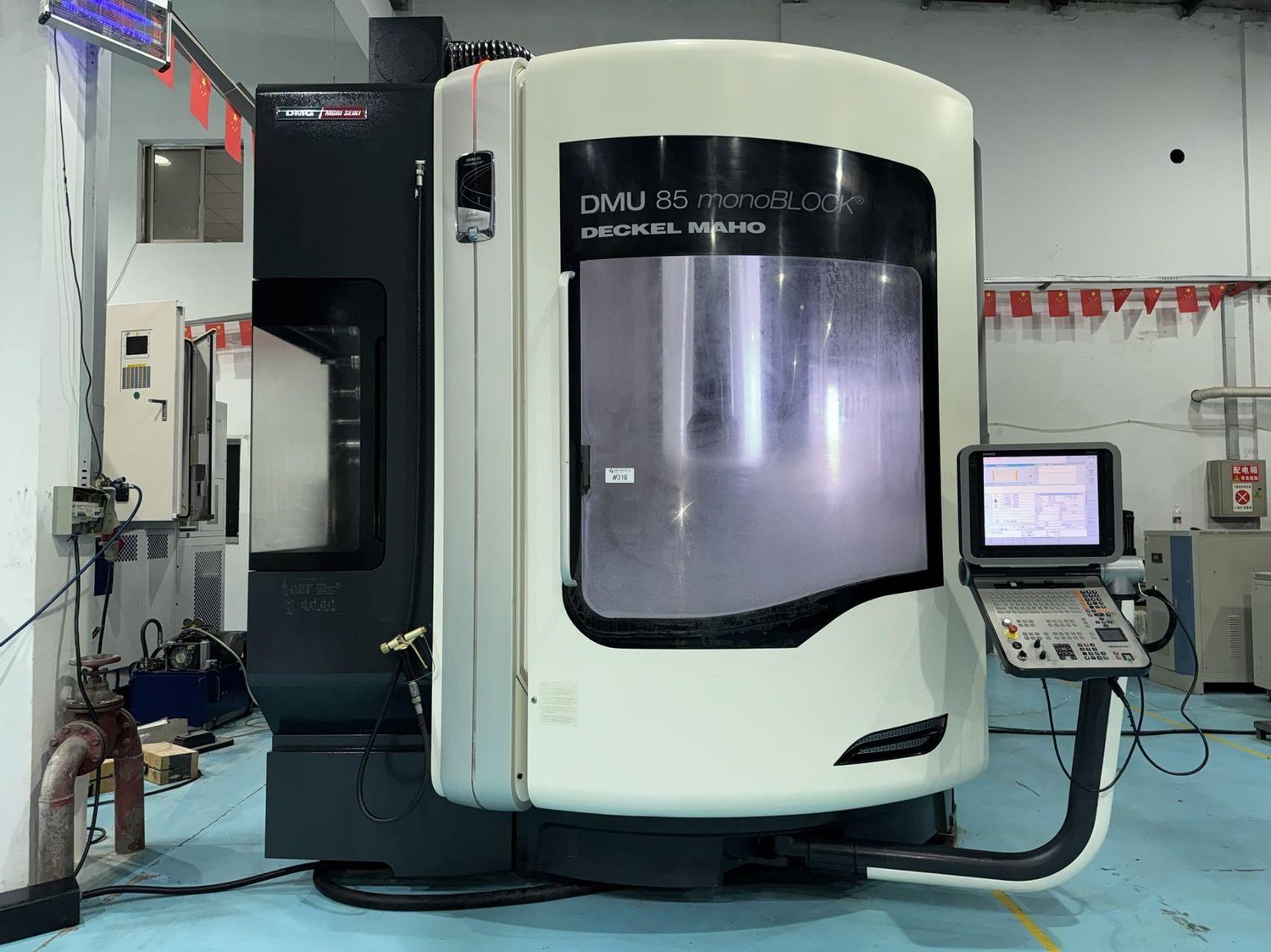

DMG DMU 85 MonoBlocK 5 axis machining centre

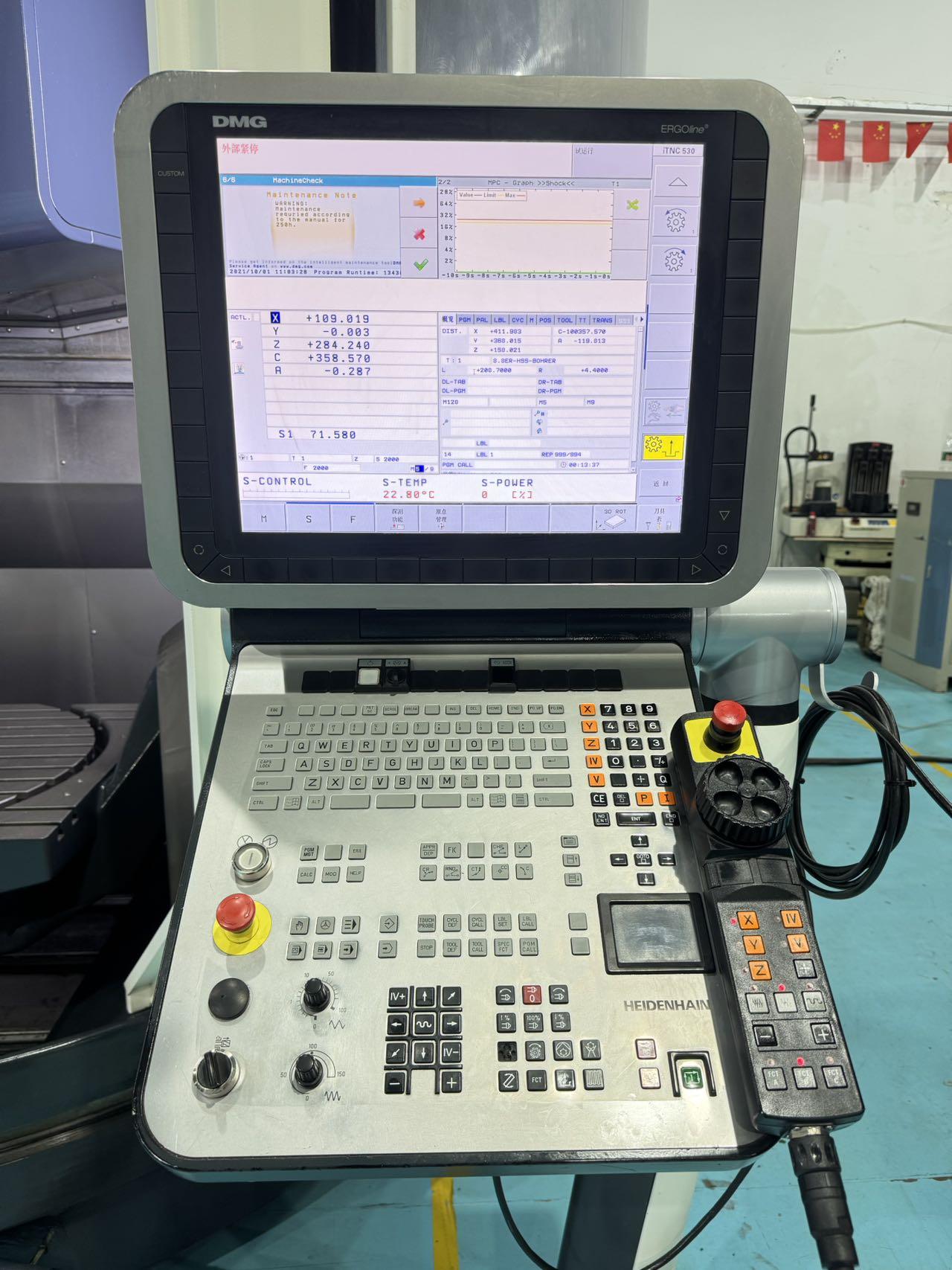

CNC System: Heidenhain
Three-axis travel: 935×850×650 mm
Axis travel: -120° to +120°
A-axis indexing Accuracy: 0.001
C-axis travel: 360° (continuous rotation)
C-axis indexing Accuracy: 0.001
Maximum machining diameter: 1040mm
Maximum machining height: 590 mm

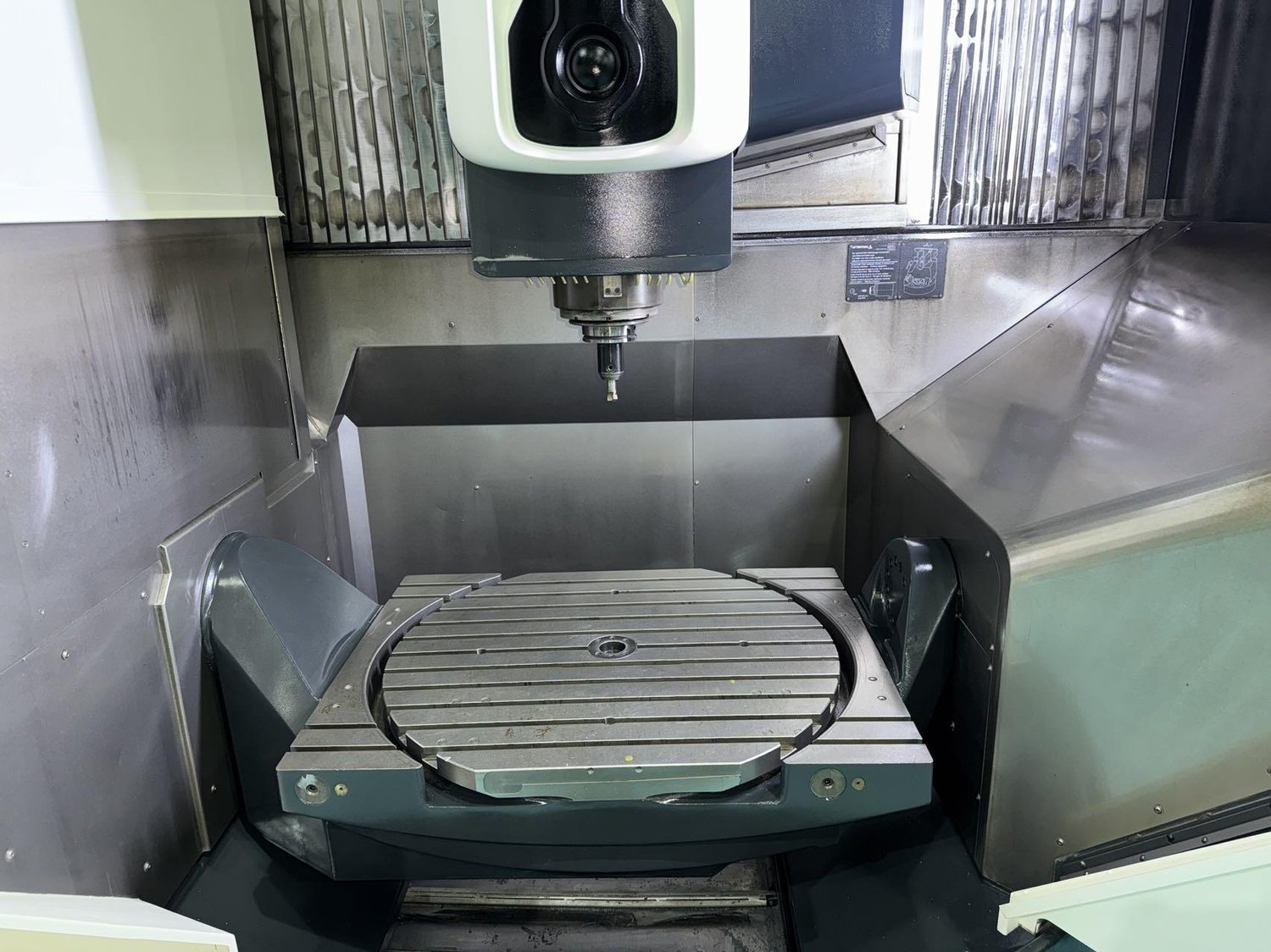

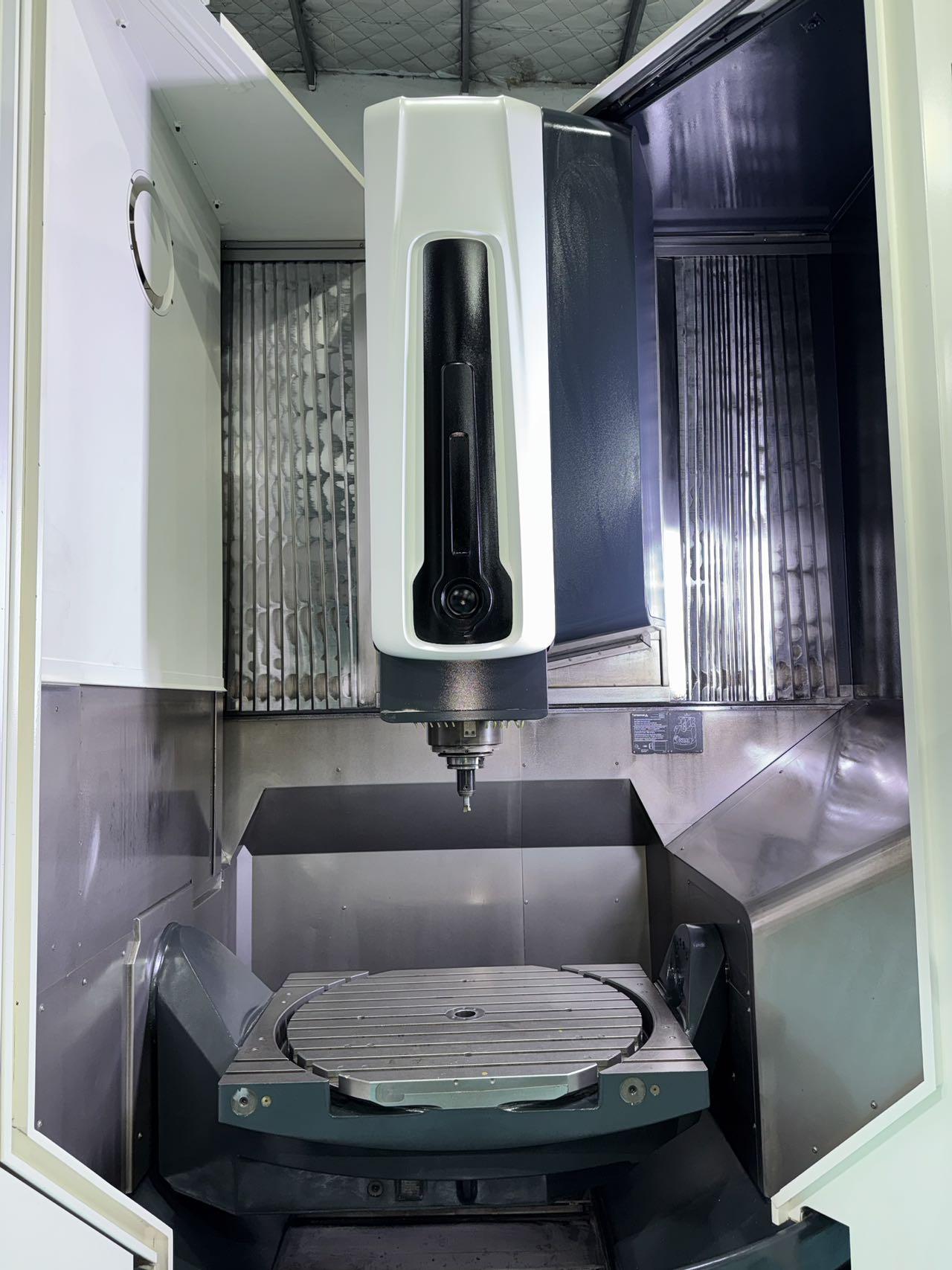

Rotary swing Worktable
Worktable size: 850×750 mm
Worktable load: 1500 KG
Rigid Worktable
Worktable size: 1000×750 mm
Worktable load: 2000 KG

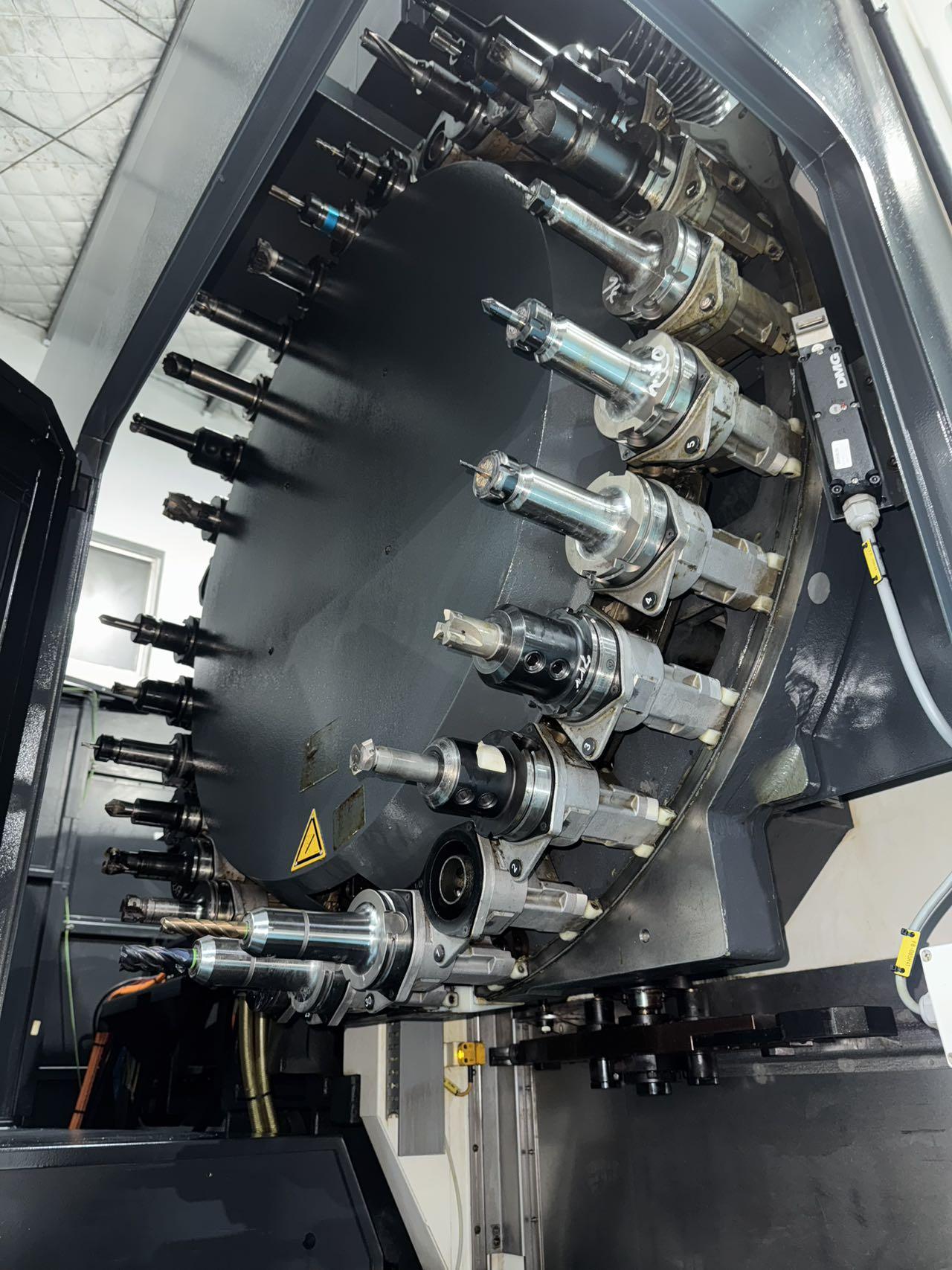

Tools magazine capacity: 30, ATC
Spindle: HSKA-100
Spindle speed: 10,000 rpm
Configuration:

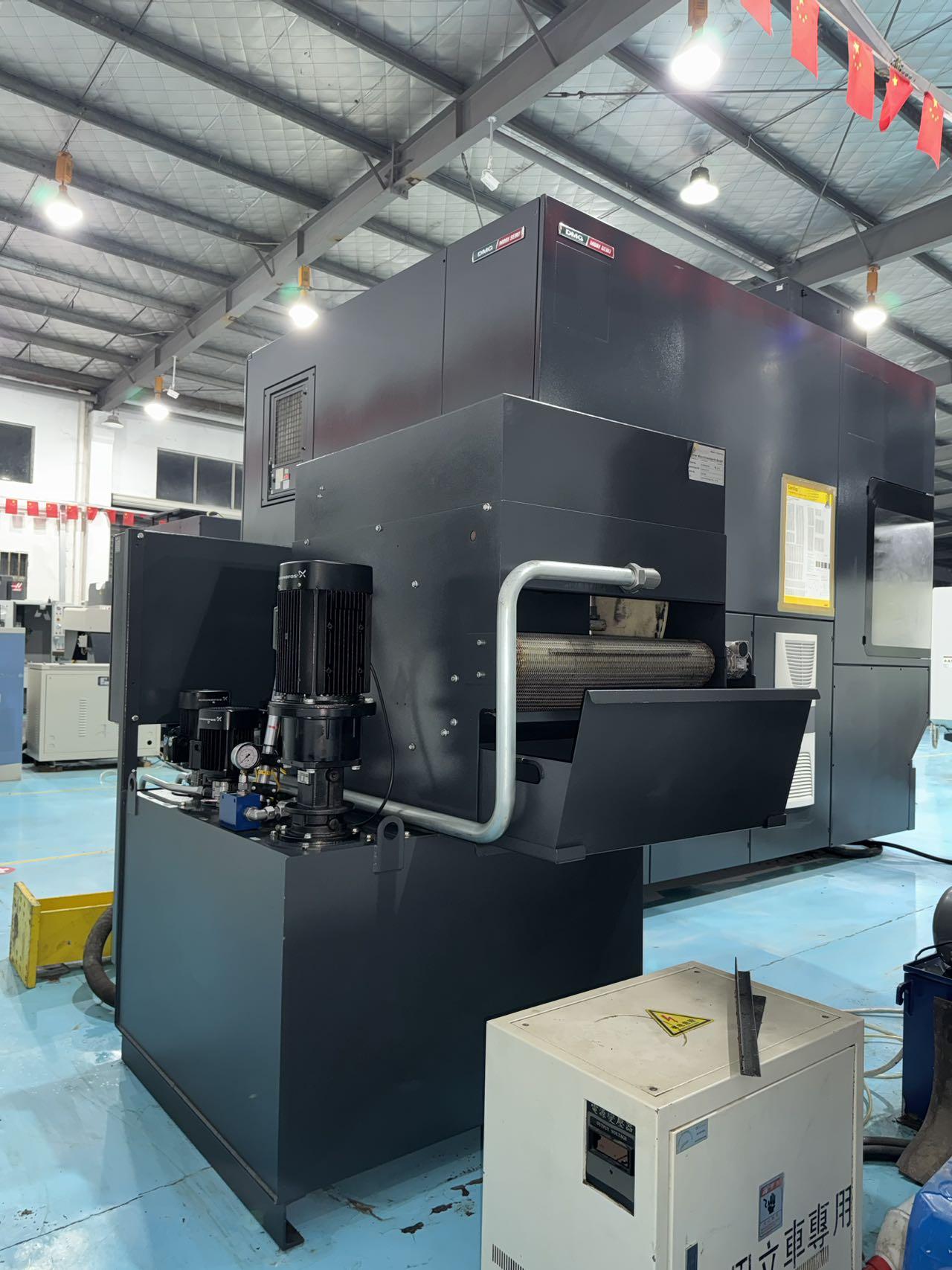

Equipped with a 40-kilogram center flushing
