HISION   GLU28×80
Gantry machining centre
[Product Information:]
  • Inventory number：484598
  • Brand：HISION
  • Model：GLU28×80
  • Origin：China
  • Location：China
  • Year：2021
  • Create Time：2024-09-08

Specifications:

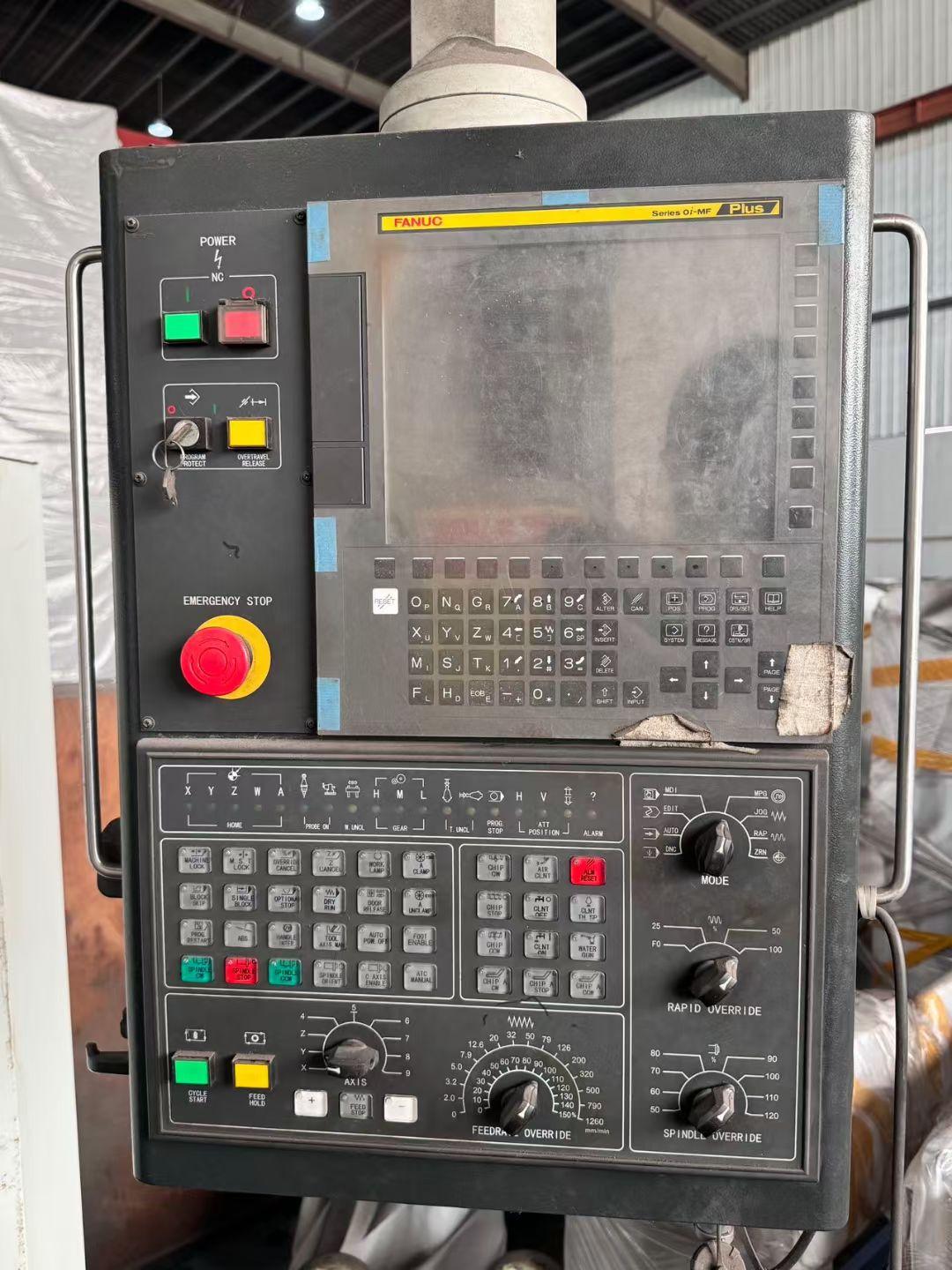

  • CNC CNC System: Fan Ke oi three-axis travel: 8500*2700*1000mm The three-axis feed rate: 6/10/10m/min gantry span: 2790mm Distance from the surface of spindle to workWorktable: 250-1250mm workWorktable size: 8000*2000mm The Max Load of workWorktable: 25tT type slot Number: 9 Spindle speed: 10-6000rpm main motor power: 22/26kw spindle torque: 720/850NM spindle diameter cell: φ100mm tools gallery: 24/40 tool holder form: BT50 Maximum length: 300mm maximum weight: 20kg
