• Inventory number：85558
• Brand：WASINO

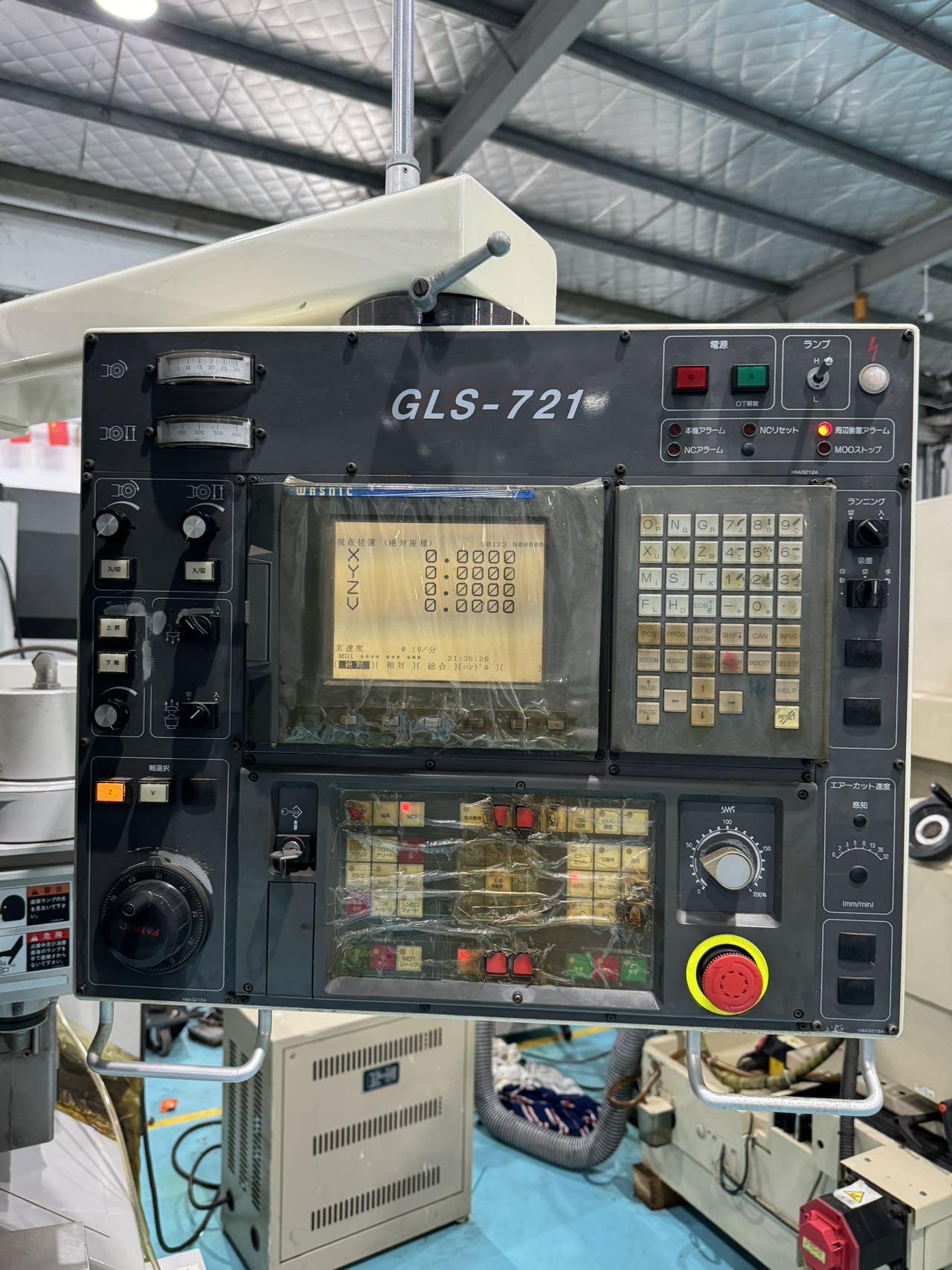

• Model：GLS-721
• Origin：Japan
• Location：China
• Year：2003
• Create Time：2024-11-23

Specifications:

• WorkWorktable size: 300*155mm

  Maximum grinding size: 130*80*70mm

  Longitudinal feed distance: 200mm

  Lateral feed distance: 135 mm

  Minimum setting unit: 0.0001mm

  grinding wheel lifting process: 0-60mm

  Lifting process speed: 30-400m/min

  grinding wheel travel X axis: 170mm

  grinding wheel travel Y-axis: 100mm

  Minimum setting unit: 0.0001mm

  Front discharge Angle: 1 ~ +2

  Horizontal discharge Angle: ±1

  Rotation Angle: ±10

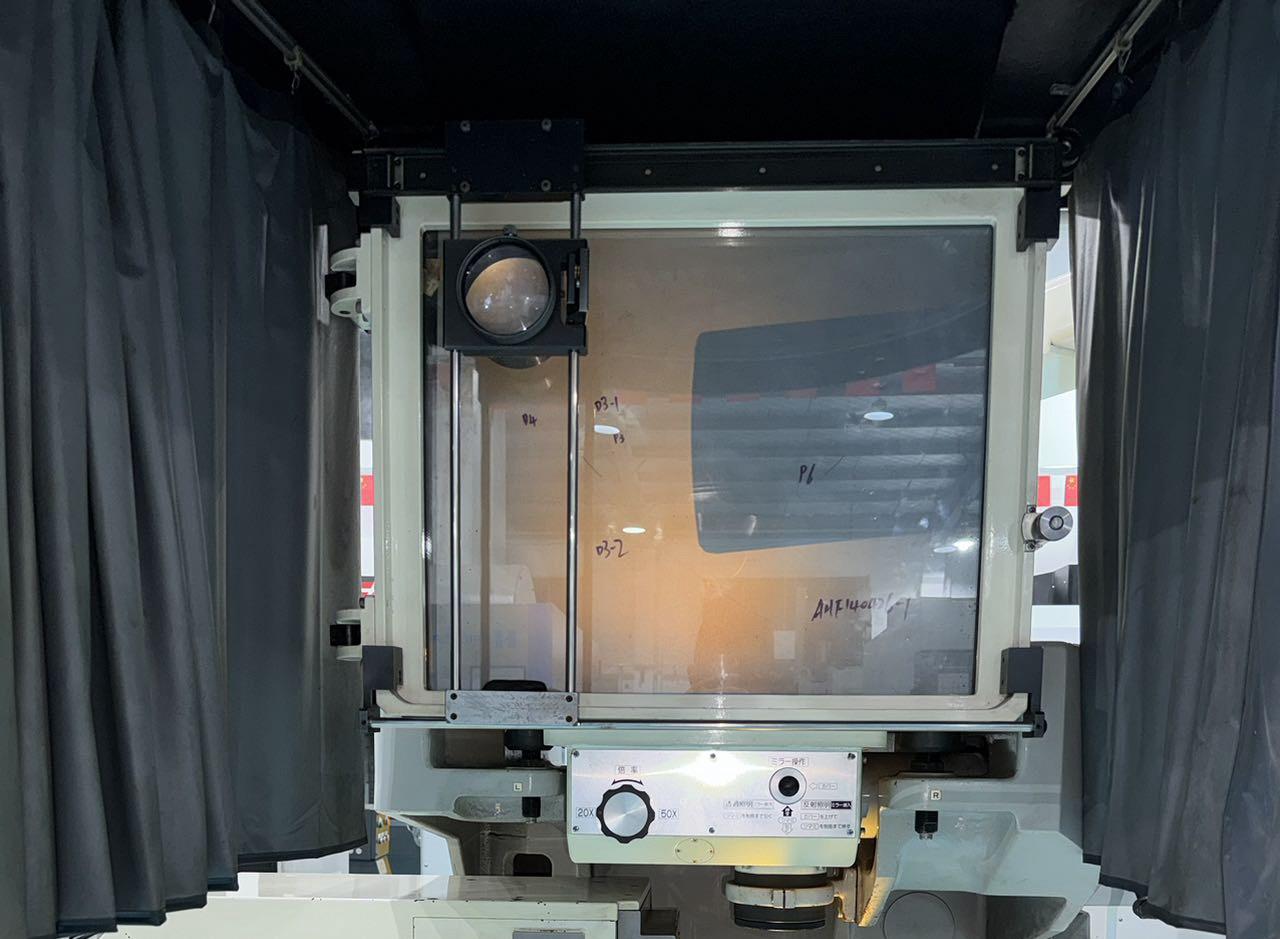

  Projector screen size: 420*520mm

  Magnification: 50x, 20x

  Sand wheel shaft: size (external diameter * width * Internal diameter) : Φ120 ~ 150 × 6× Φ31.75mm

  speed: 2000-20000rpm

  Motor capacity: 1.5 (2) *4 KW-P

  Body area (length * width) : 1850*1900mm

  Machine weight: 4000kg

  Power capacity: 18kva
