WELE   SB216

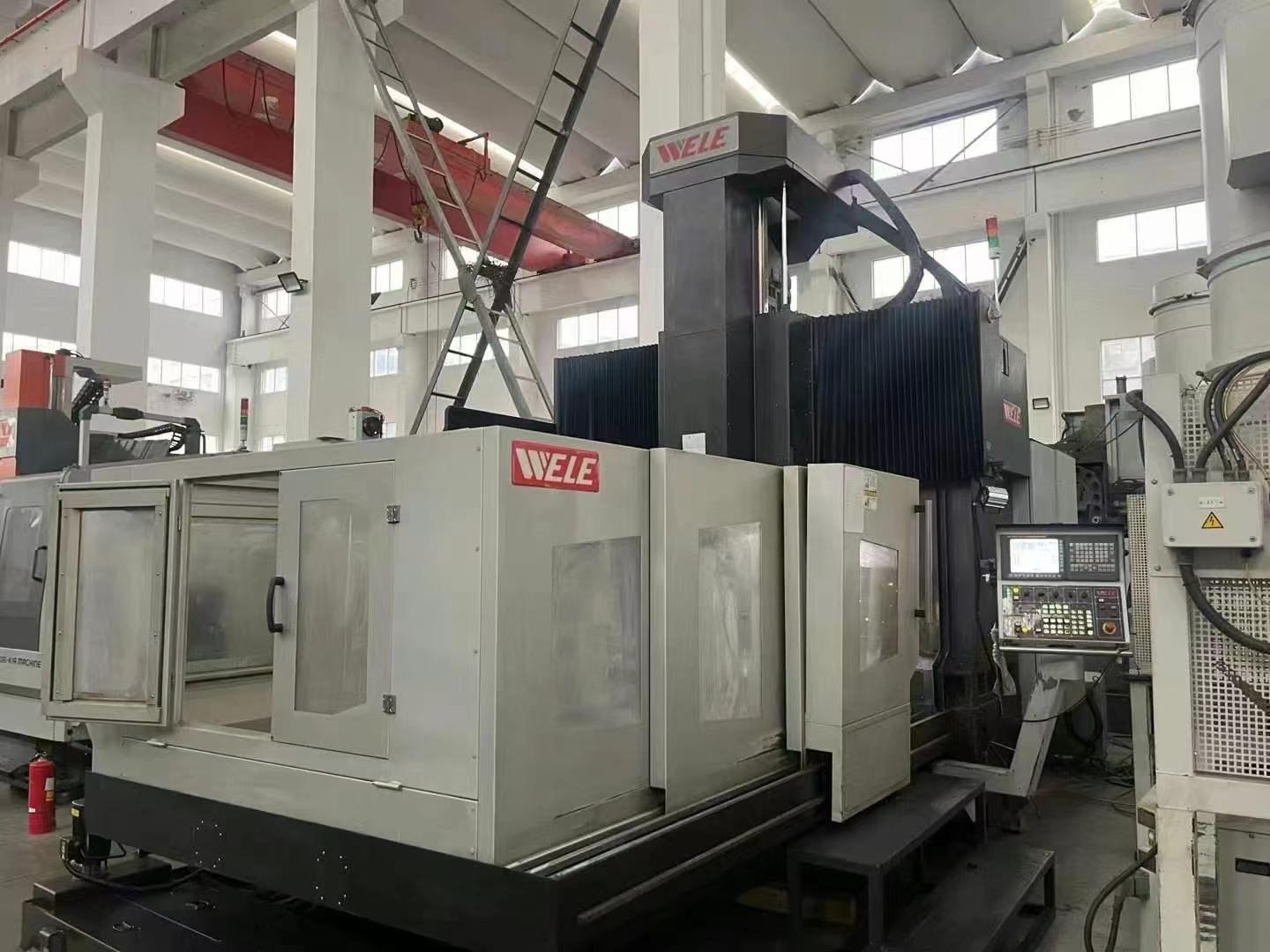

Gantry machining centre
[Product Information:]
  • Inventory number：460549
  • Brand：WELE
  • Model：SB216
  • Origin：Taiwan of China
  • Location：China
  • Year：2018
  • Create Time：2024-08-14

Specifications:

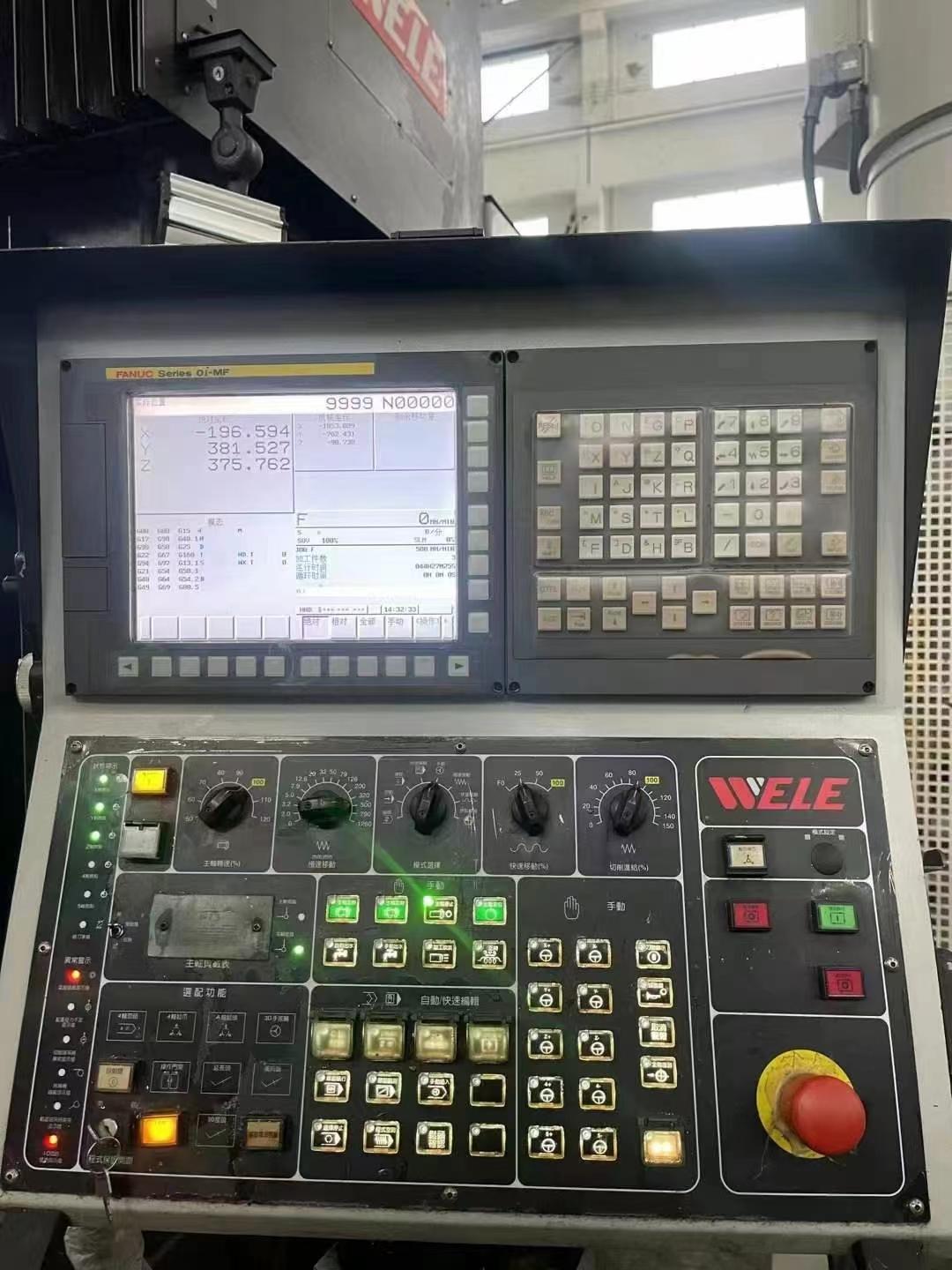

  • Fanuc oi-mf CNC system

    Three axes roller linear guideways

    Linear guideway width: 54mm

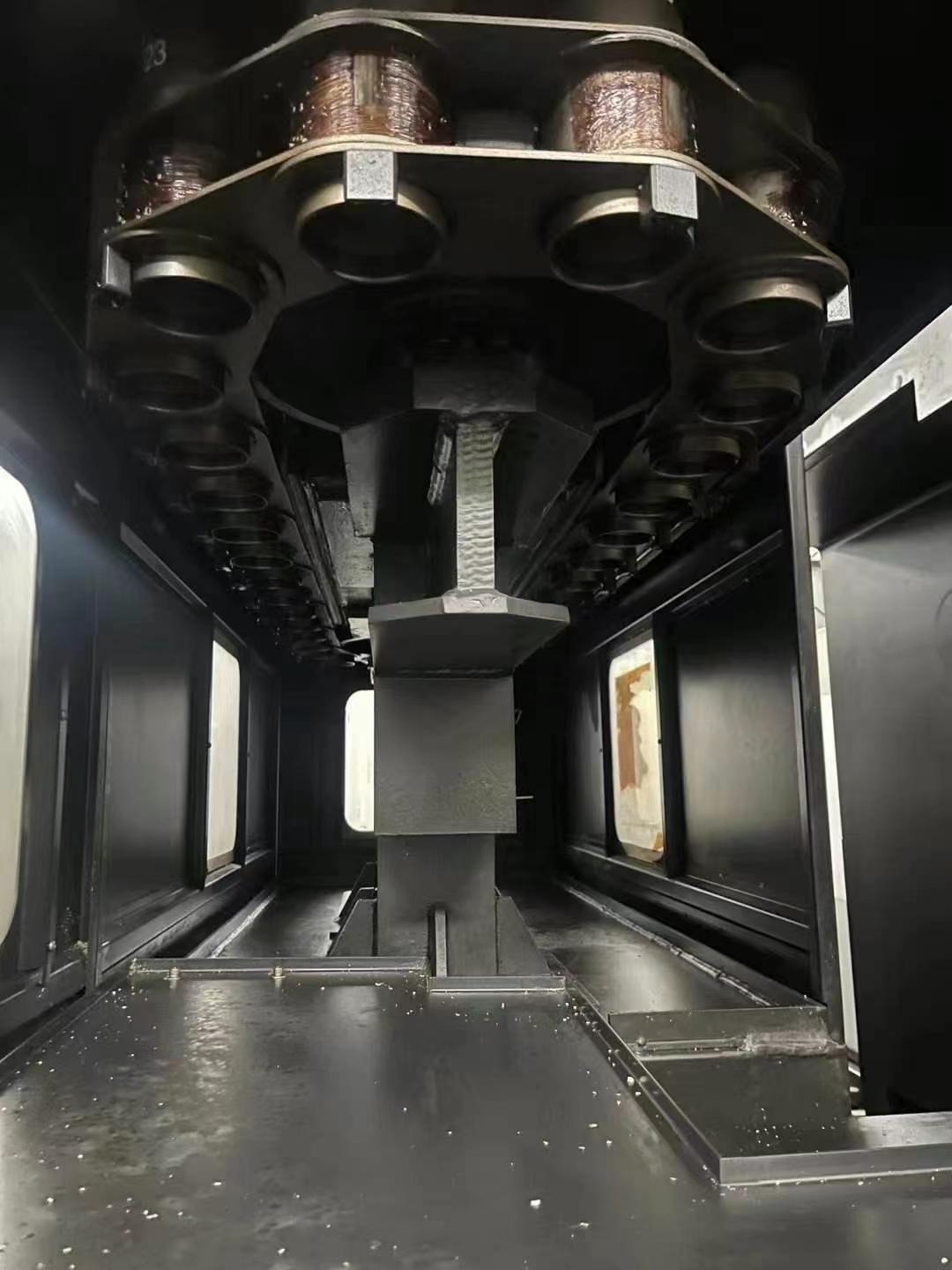

    Arm-type tool magazine: 32

    Worktable size: 2000×1500mm

    Gantry width: 1720mm

    Distance from spindle nose to worktable: 1000mm

    Maximum spindle speed: 10000rpm

    Three axes travel: 2100×1600×800mm

    With water tank, chip conveyor

    Three axes full close loop glass scale,

    Machine weight: 22000kg
