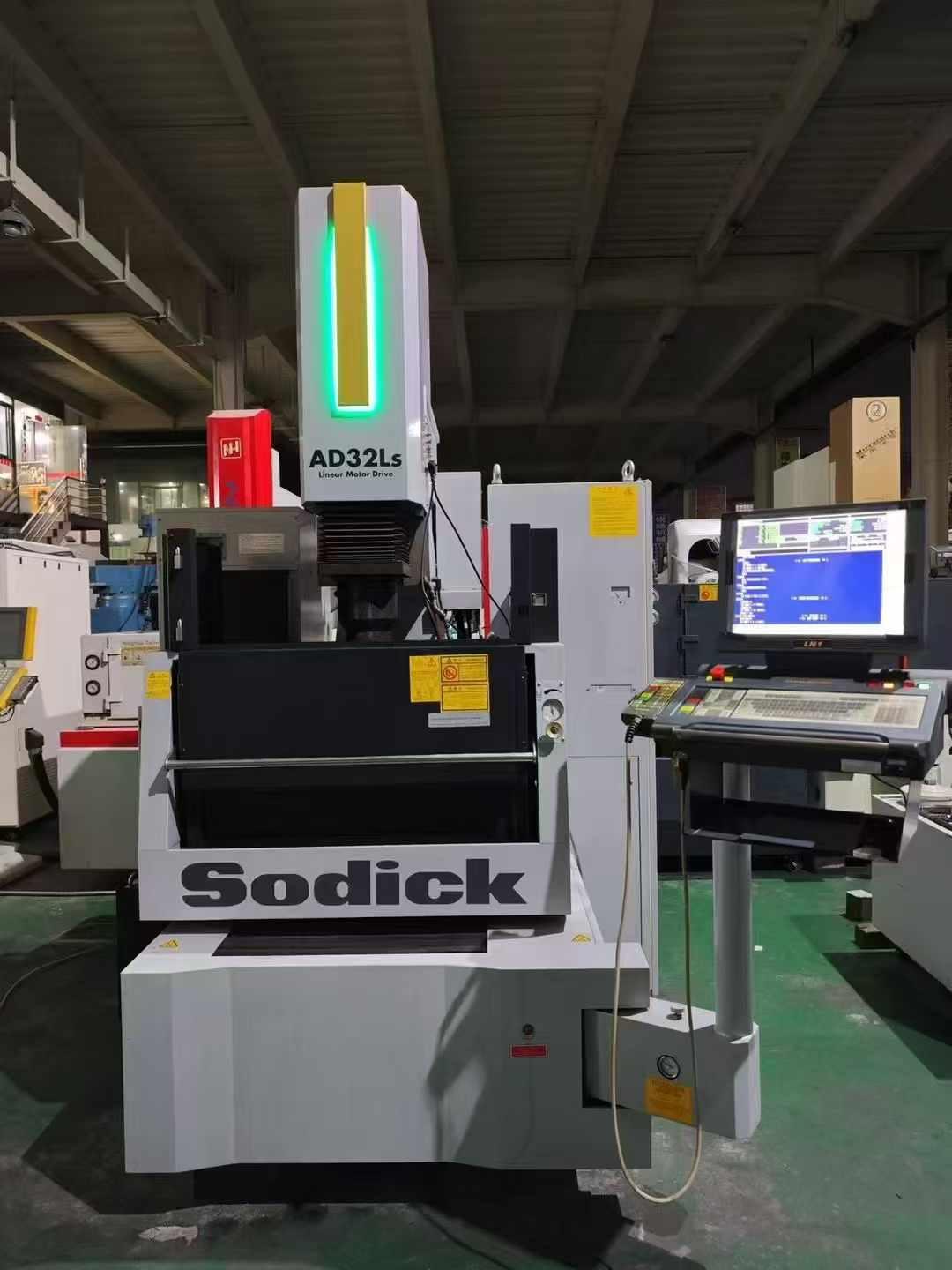

Introduction to Sodick EDM

Shadick spark machine is a kind of high-performance EDM machine tool produced by Shadick Company in Japan, which is widely used in mold making and other fields:

I. Features

High-precision machining: Shadick spark machine adopts advanced technology and precise mechanical structure, which can realize high-precision machining. For example, the machining accuracy of some of its models can be controlled within ± 0.001mm, which can meet the processing needs of industries with extremely high requirements for mold accuracy, such as electronics, optics and other fields.

High machining efficiency: Equipped with a high-performance discharge power supply and advanced machining circuits, it is possible to improve the utilization of discharge energy and accelerate machining speed. For example, the AL60G model adopts the newly developed “SP power supply” and related new control technology and new circuits, resulting in significant improvements in processing speed and quality.

Good surface quality: By optimizing the discharge parameters and processing technology, good surface quality can be obtained, reducing surface roughness, and some models can even achieve mirror effect without subsequent polishing treatment, saving processing time and cost.

High degree of automation: Equipped with automatic electrode exchange device, automatic liquid level adjustment function, automatic monitoring and compensation function of the machining process. Take the high-speed automatic threading device as an example, it can realize high-precision processing under unmanned operation, which improves the production efficiency and processing quality.

Linear motor drive technology: Some high-end models adopt linear motor drive, such as AL series, ALN800G, etc. Compared with the traditional ball screw drive, it has higher response speed, better followability and higher positioning accuracy, and it can realize more stable and precise machining motion control.

Common models and parameters

1、AL60G :

Stroke of each axis: X×Y×Z is 600x420x370mm;

Maximum overhang: 50kg;

Maximum workpiece weight: 1500kg;

Machine body size: W×L×H is 1740x2785x2570mm;

Equipped with: linear motor drive, “SP power supply”, “Arc-less 4” circuit and machining auxiliary function “LN Pro AI”.

2、ALN800G

Stroke of each axis: X-axis 800mm, Y-axis 600mm, Z-axis 500mm;

Features: Suitable for large-size, high-plate-thickness machining, the machine is equipped as standard with an automatic three-sided upper and lower machining chute that supports 500 mm plate thickness impregnation machining, and a ceramic-based “mouth-shaped” workpiece holder, etc., which enables continuous, unmanned operation for high-speed, high-precision machining.

VN400Q :

Stroke of each axis: X-axis 400mm, Y-axis 300mm, Z-axis 230mm;

Features: Entry-level linear motor-driven WEDM machine, standardly equipped with tension servo function, automatic threading device, precision thermal displacement correction function, etc., and the processing assistant system “Heart-NC” with easy programming function, suitable for beginners, and low energy consumption.

Application Fields

Mold Manufacturing: It is used to process various molds, such as injection molds, die-casting molds, stamping molds, etc. It can make complex shapes of cavities and cores, improve the precision and quality of the molds, and prolong the service life of the molds.

Precision parts processing: capable of processing various precision parts, such as aerospace parts, medical equipment parts, electronic components, etc., to meet the requirements of these fields on the parts of high-precision, high-performance.

Special processing: For materials and shapes that are difficult to process by traditional processing methods, such as carbide, hardened steel, deep and fine holes, shaped holes, deep grooves, narrow slits, etc., Shadick spark machines have unique processing advantages, which can realize efficient and precise processing.
