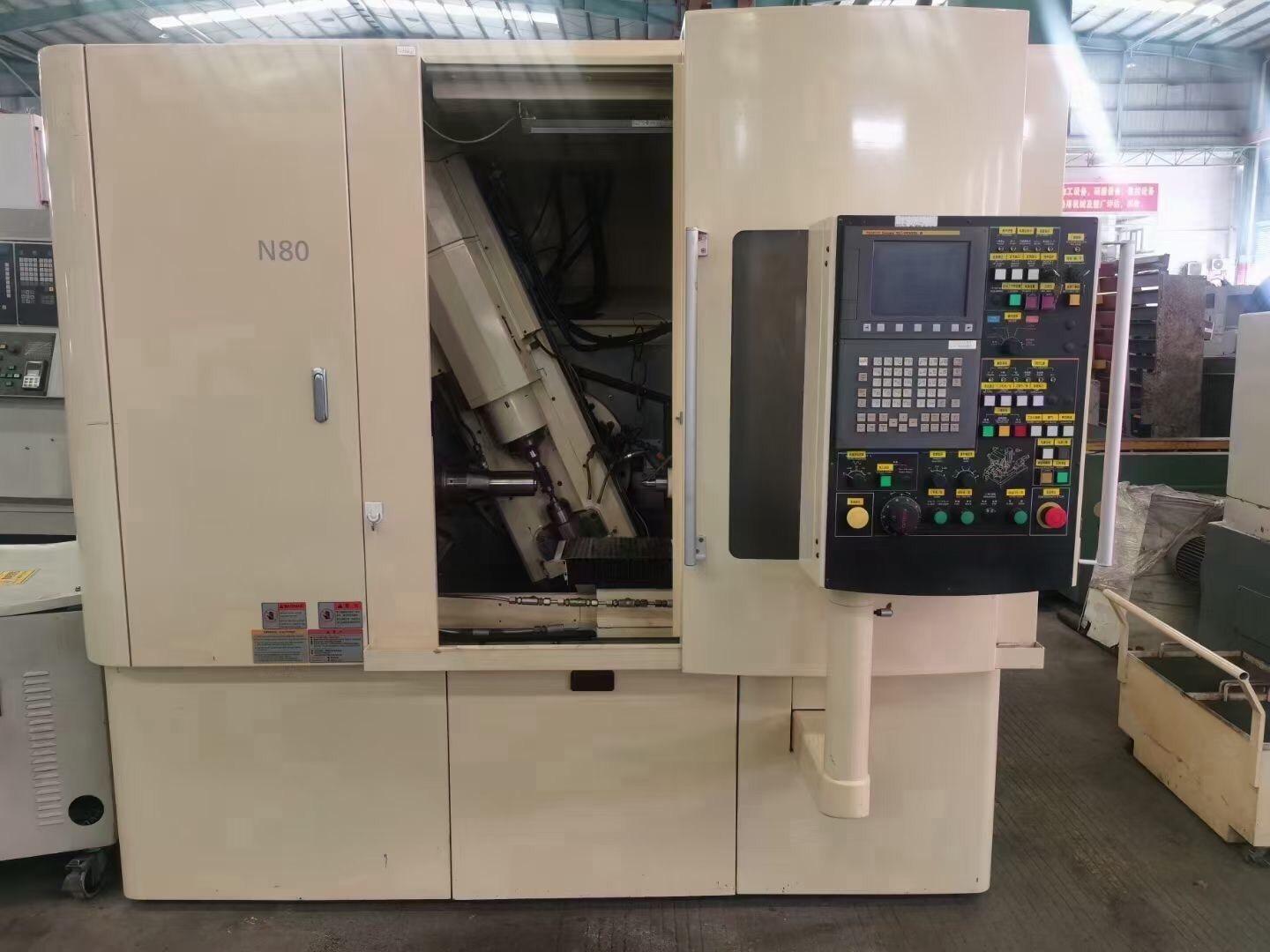

Introduction of Japan Hamai N80 Gear Hobbing Machine

Japan Hamai N80 Gear Hobbing Machine is a high performance CNC Horizontal Precision Gear Hobbing Machine, the following is its detailed introduction:
1.Processing capacity
- **Wide range of processing**: can process straight teeth, helical teeth, cylindrical gears, worm gears, sprocket wheels and other tooth shapes, the maximum machining diameter of 120mm, the maximum machining module is 3.
- **Adaptable to different lengths of workpieces**: the maximum cutting length is 220mm, and it can handle workpieces up to 350mm in length.
2.Performance Characteristics
- **High-speed and high-precision**: 15kw power high-speed tool spindle, rotating speed up to 5000rpm, table speed of up to 1000rpm, 7-axis linkage CNC control system, to ensure high-speed, high-precision gear processing.
- **Wet and dry cutting**: suitable for both dry and wet cutting, dry or wet hobbing of hardened materials, and optional scraping and hobbing.
3. Structural design
- **Strong and stable**: Adopting heavy-duty structural design, the machine weighs 5500kg, which reduces machining vibration and ensures machining accuracy.
- **Convenient tool change**: Hydraulically clamped hob shaft and end support make hob change easier.
- **Tailstock servo control**: The tailstock adopts servo control, which is easy to set and adjust for hobbing.
4.CNC System
Equipped with reliable FANUC Series 31i CNC control system and drive system, with user-friendly dialog-type data input interface, easy to operate and program.
5.Application Areas
Suitable for watch, electric motor, fishing tackle, power tools and other industries, it can meet the needs of small gear processing in the field of small and miniature motors, OA office machines, measuring instruments and so on.
