Specifications:

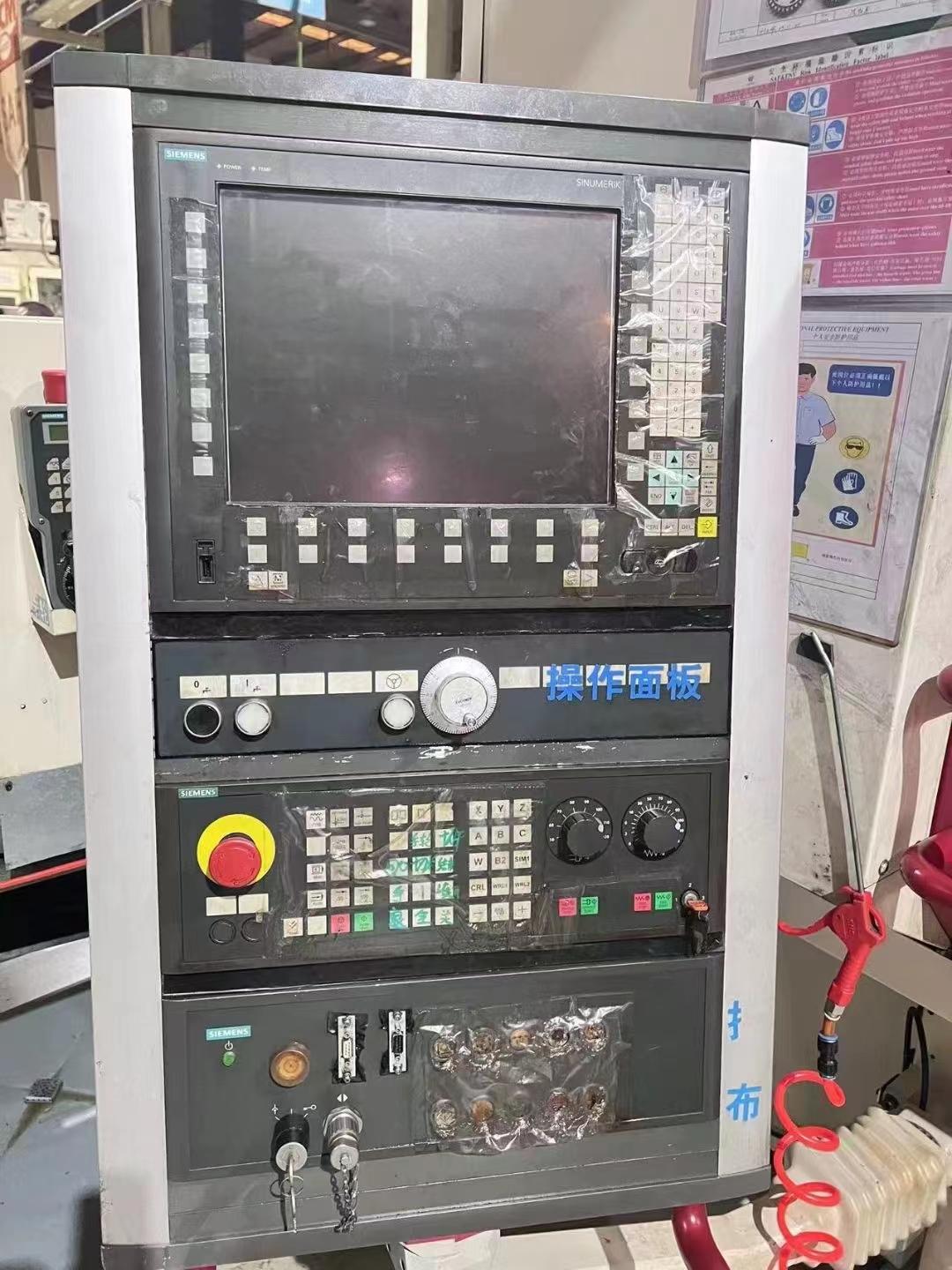

CNC System: Siemens 840D
Gear diameter: 300mm
Gear width: 320mm
Modulus: 8
Small modulus: 0.5
Helix angle: +/-45 deg
Clamping length: 600mm
Number of teeth: 999
Number of small teeth: 1
Workpiece weight: 100kg
Spindle motor: 20KW
Machining speed: 9000rpm
Workpiece spindle stepless variable rate: 2000m/min
Grinding wheel diameter: 320mm
Grinding wheel width: 200mm
Power：86.4KW
Machine weight: 10tons
Gear grinding and milling type grinding, with bar feed system
Hoffmann cooling System
