• Inventory number：90596
• Brand：Hision Seiko

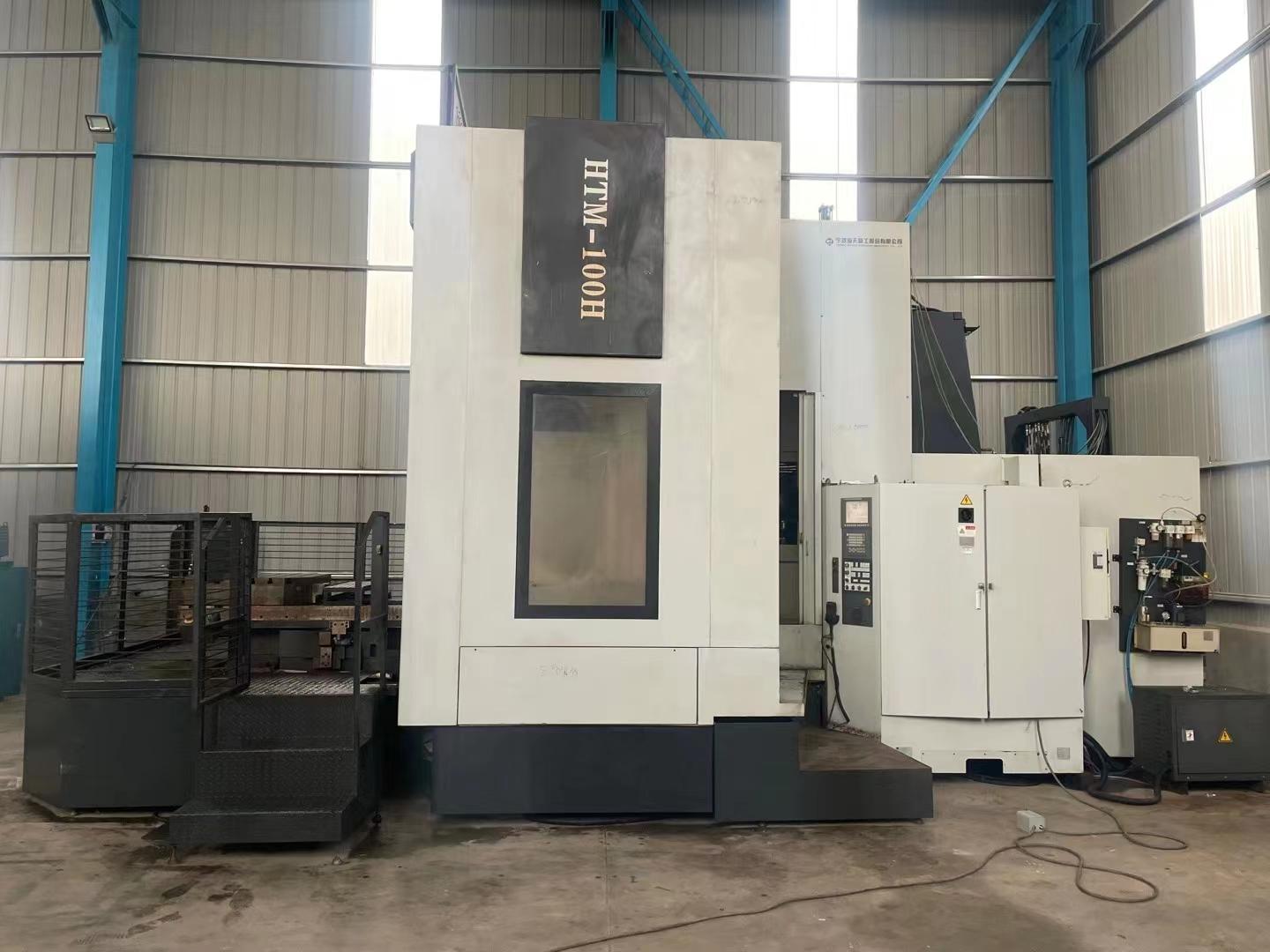

• Model：HTM-100H
• Origin：Japan
• Location：China
• Year：2014
• Create Time：2023-09-18

Specifications:

• X*Y*Z axis travel :1600*1400*1200mm

  Distance from spindle center to worktable surface :0-1500mm

  Distance from spindle nose to worktable center:280-1480mm

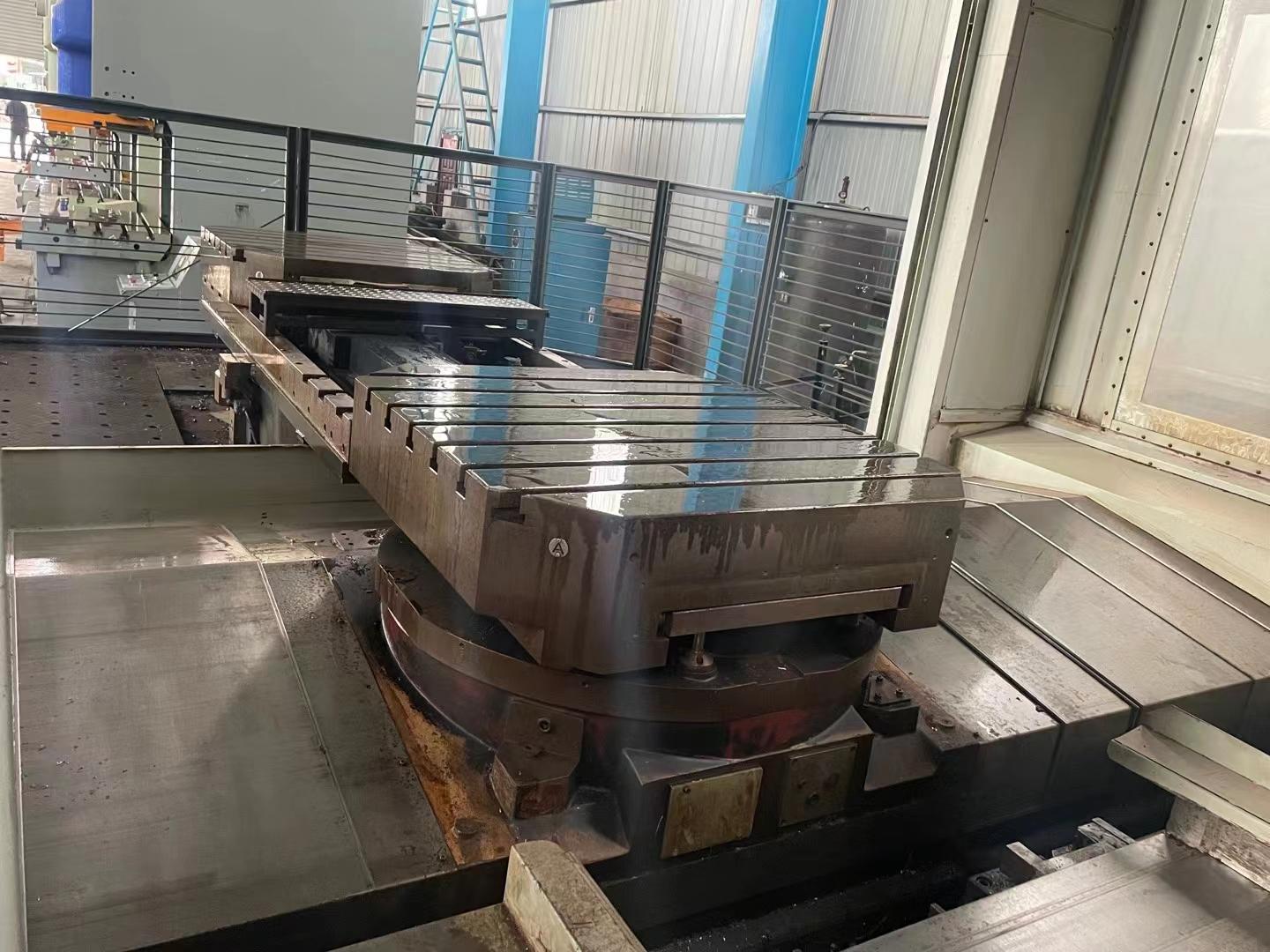

  Worktable size :1000 x 1000mm

  Worktable indexing resolution:1×360°

  Worktable load:3000kg

  Spindle motor power :22/18.5KW

  Spindle speed :20-4500rpm

  Spindle torque :837N.m

  Spindle taper :No.50

  Fast feed feed :14m/min

  Cutting feed rate:1-4000mm/min

  Tool magazine :60

  Tool holder type:BT50

  Tool length :550mm

  Tool diameter :120mm

  Tool diameter (adjacent spare position) :240mm

  Tool weight :30kg

  Tool changing time :5.0s

  Machine weight (approximately):32000kg

  Power capacity :65KVA
