• Inventory number：50113
• Brand：DMG

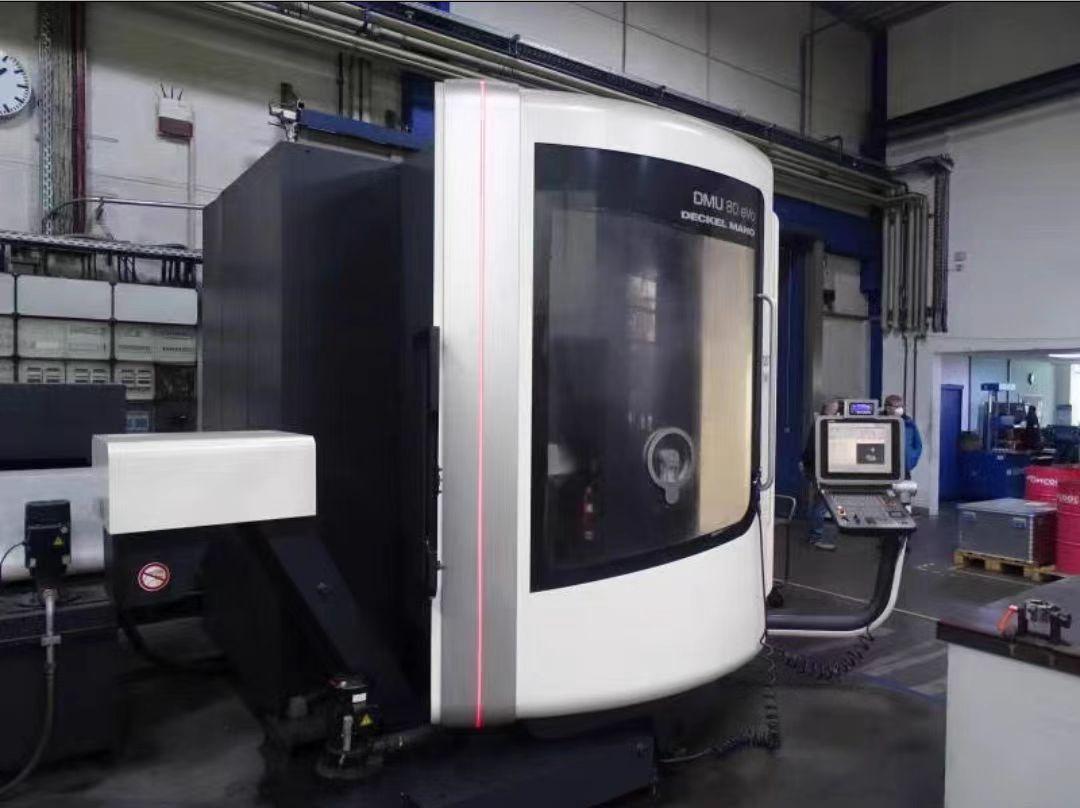

• Model：DMU 80 evo
• Origin：德国
• Location：China
• Year：
• Create Time：2023-09-13

Specifications:

• Three axes travel: 850*650*550mm

  B-axis: -5/+110°

  C-axis: 360°

  Tool magazine: 60

  Maximum tool weight: 6 kg

  Maximum tool diameter: 80 mm

  Maximum tool length: 300mm

  Tool holder: HSK-A63

  Spindle speed : 18000 rpm

  Tool tension force：25kn

  Fast feeding rate: 80 m/min

  Feed rate(linear) : 80000 mm/min

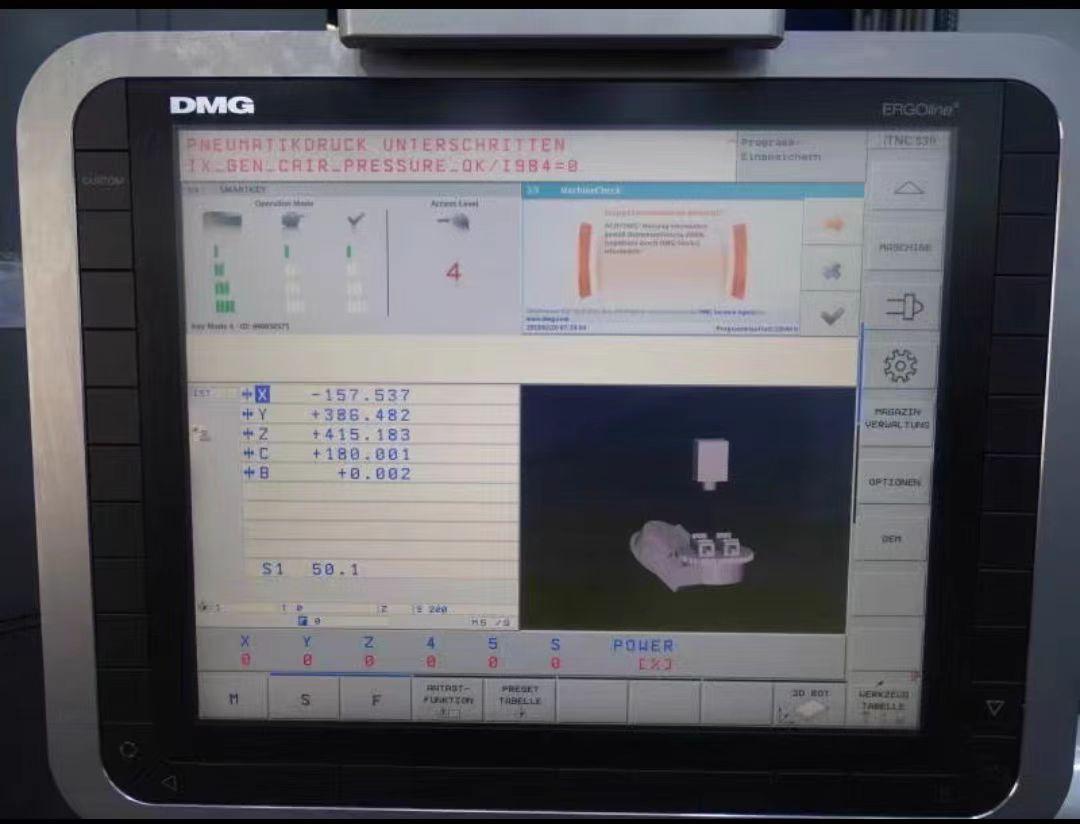

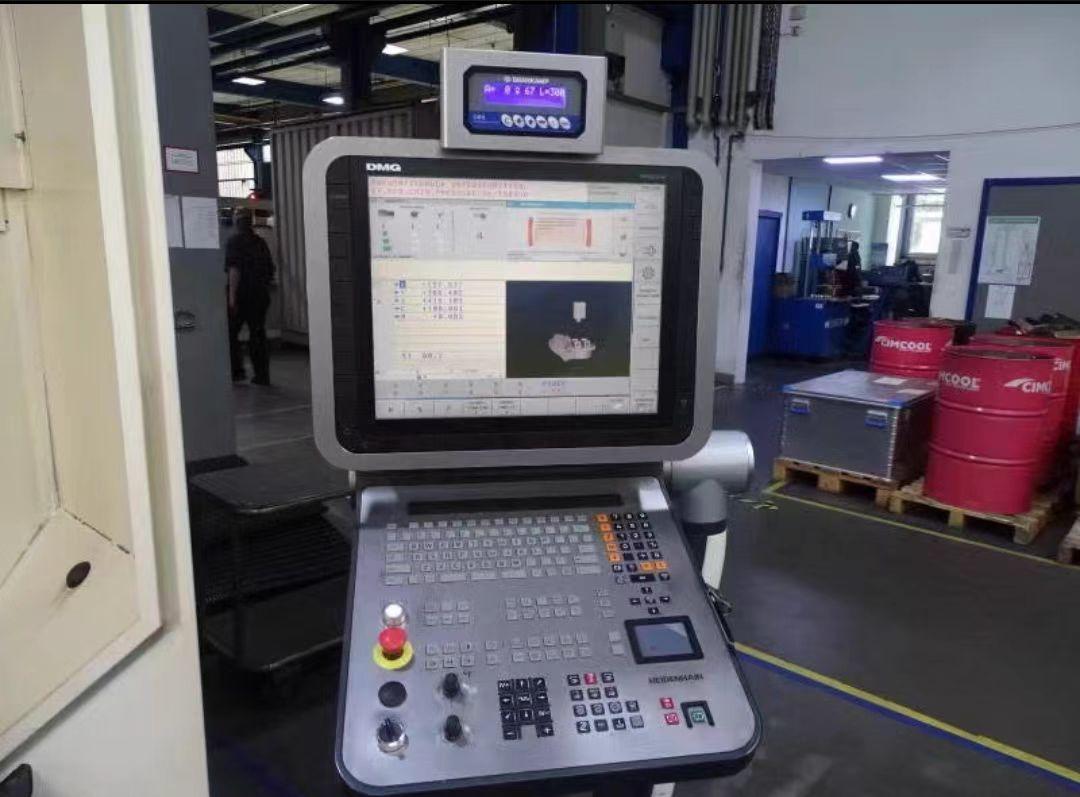

  CNC System: Heidenhain ITNC 530

  Resolution: 0.001mm

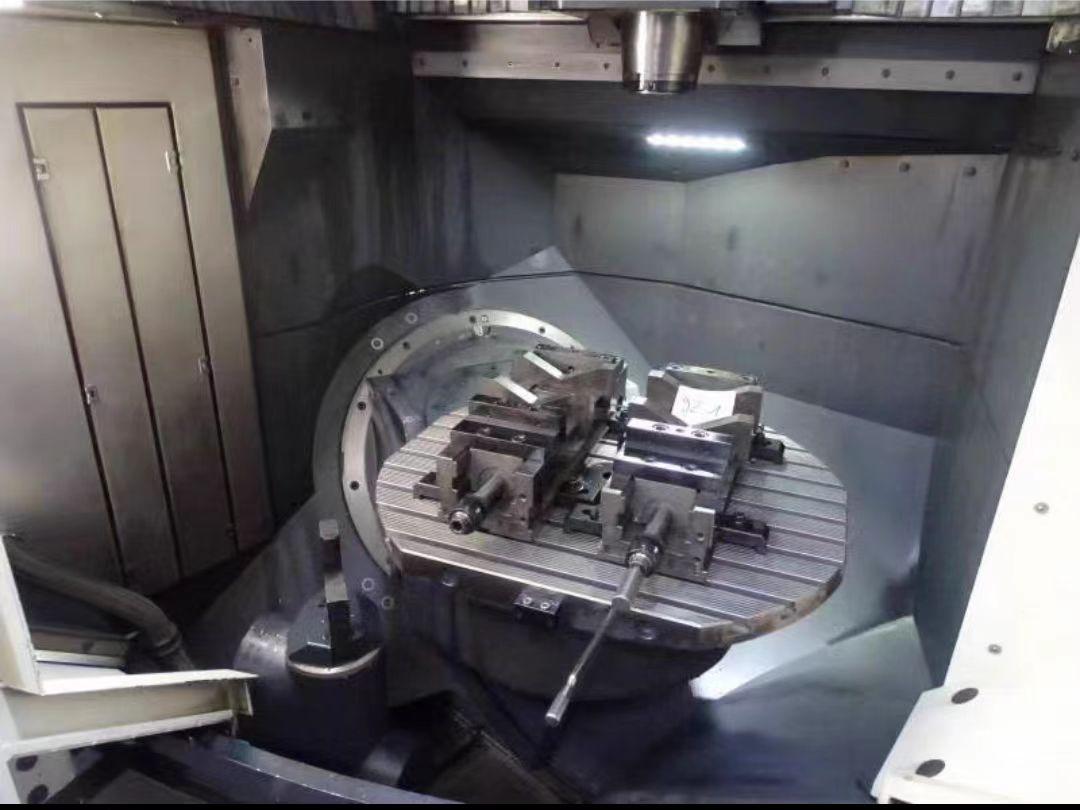

  Fixed worktable size: 800 x 700mm

  Worktable load: 600kg

  Accessories: center flushing, chip conveyor, oil water separator, Ruby probe.
