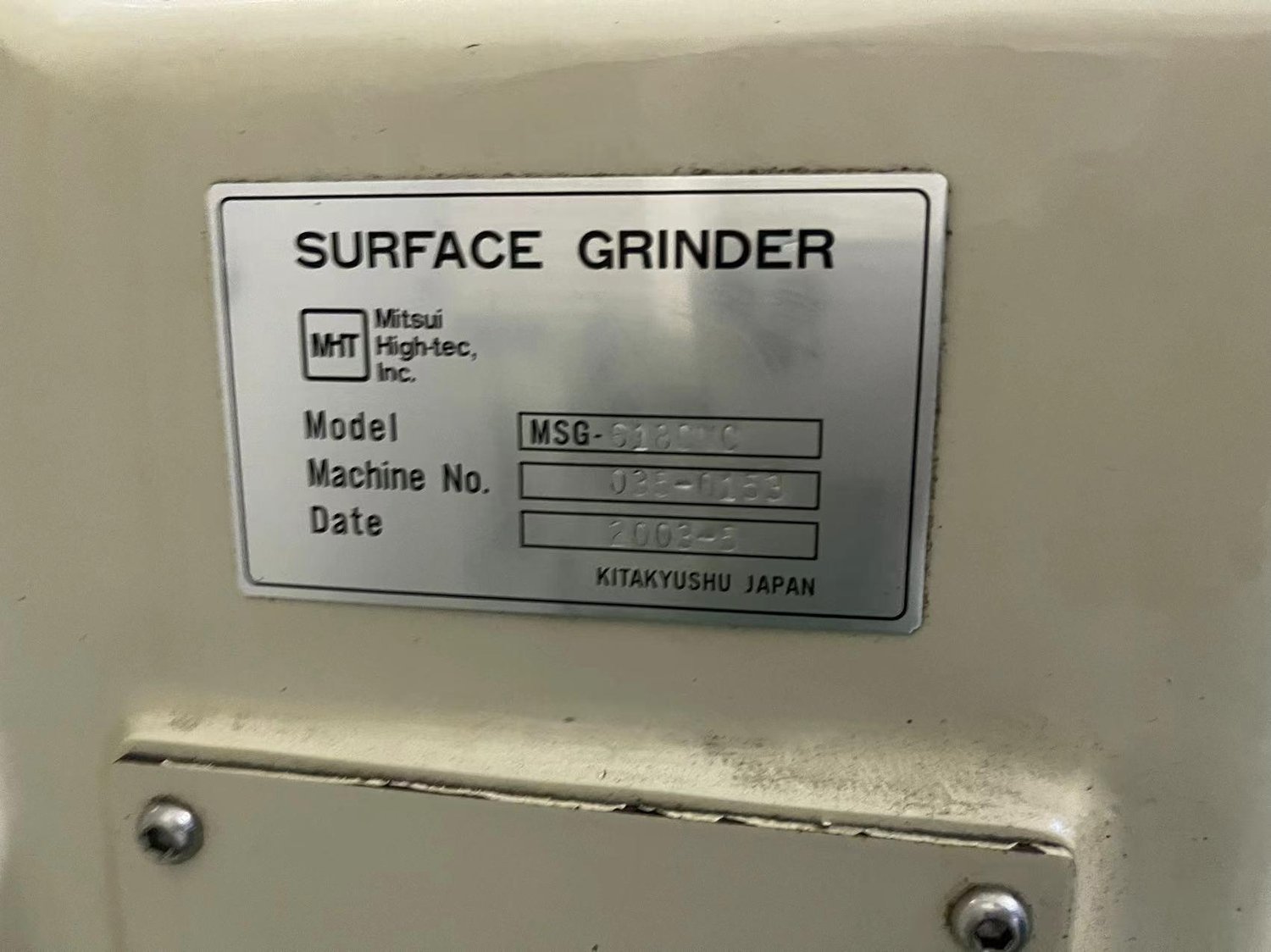

• Inventory number：90487
• Brand：Mitsui
• Model：MSG-618CNC
• Origin：日本
• Location：China
• Year：2003
• Create Time：2023-09-05

Specifications:

• Capacity

  Worktable size:150X480mm

  Worktable travel:180X500mm

  Maximum height:400mm

  Worktable

  Worktable speed:0-15m/min

  Worktable speed (PCNCL):0-25m/min

  Dial scale division:0.01mm

  Continuous feed rate:0-3000mm/min

  Crossfeed

  Dial increment per revolution:0.01/0.1/1mm

  Dial scale division:0.0001mm

  Continuous feed rate:0-330mm/min

  Minimum increment:0.0001mm

  Increment feed:0.0001mm

  Head

  Dial increment per revolution:0.01/0.1/1mm

  Dial scale division:0.0001mm

  Continuous feed rate:0-300mm/min

  Minimum increment:0.0001mm

  Increment feed:0.0001mm

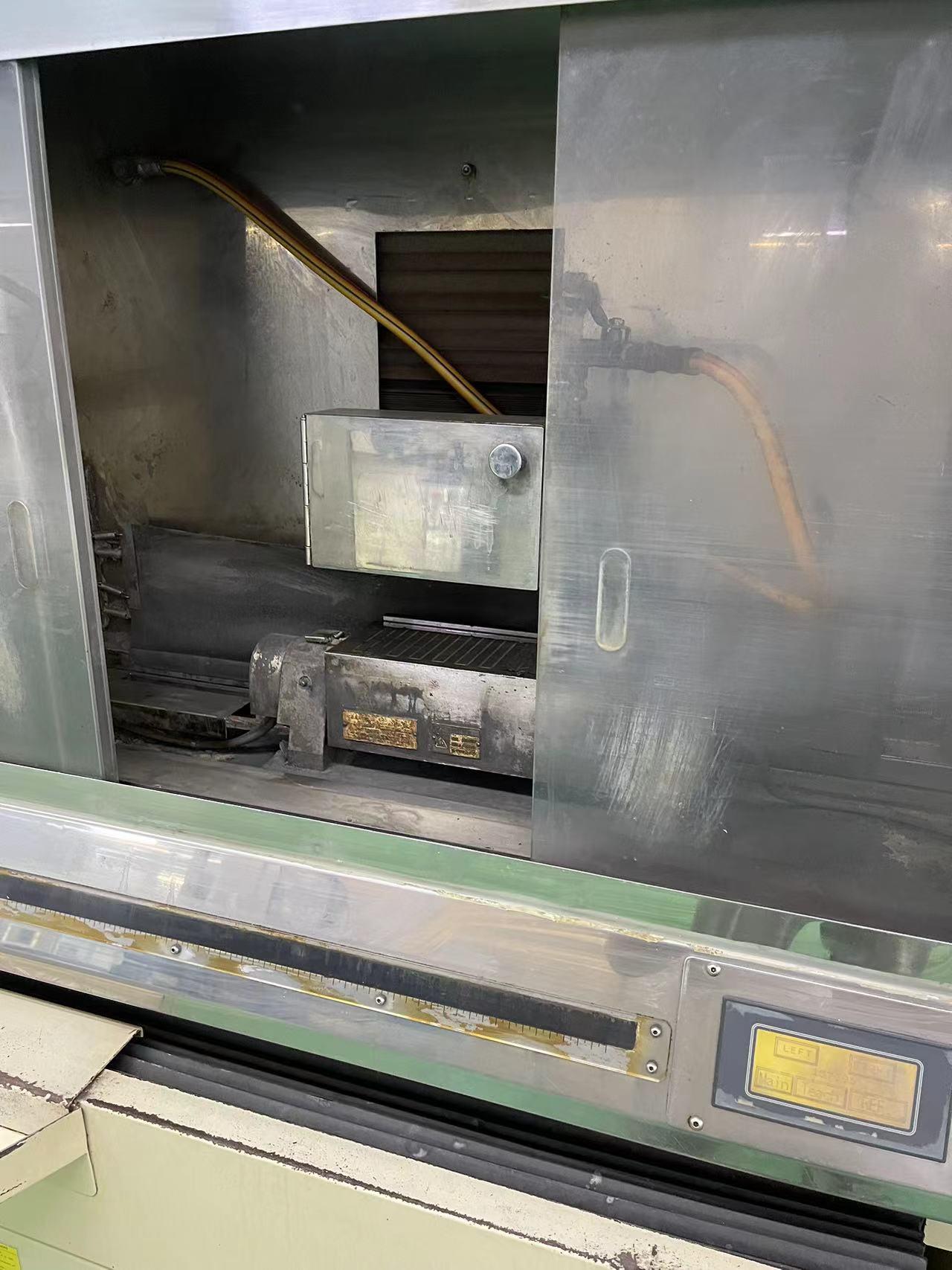

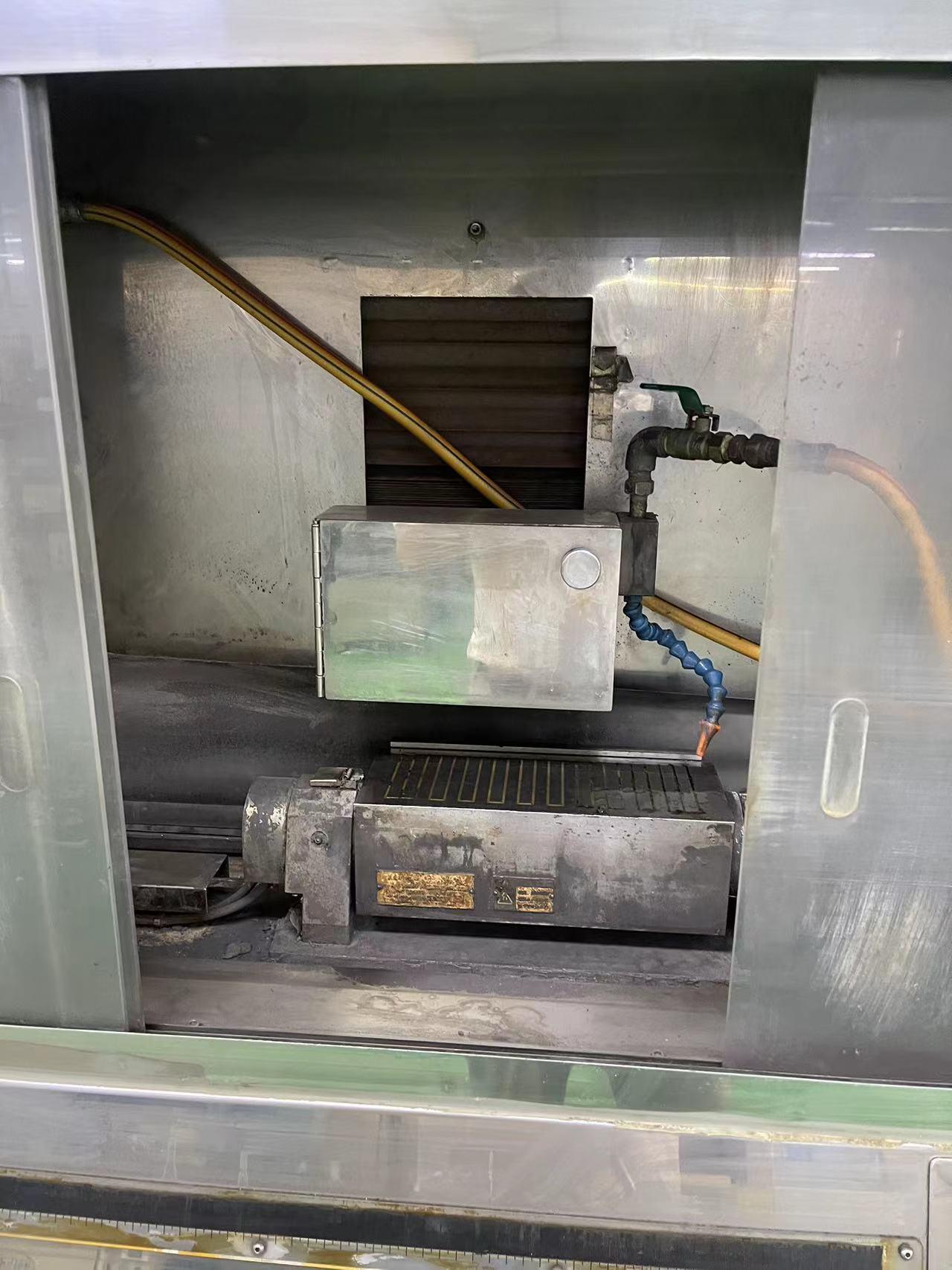

  Wheel

  Wheel size:205X20X31.75mm

  Spindle speed:500-4000rpm

  Motor

  For spindle:0.45KW

  For cross feed:0.45KW

  For vertical feed:0.45KW

  For longitudinal feed:Coreless linear motor 3KW

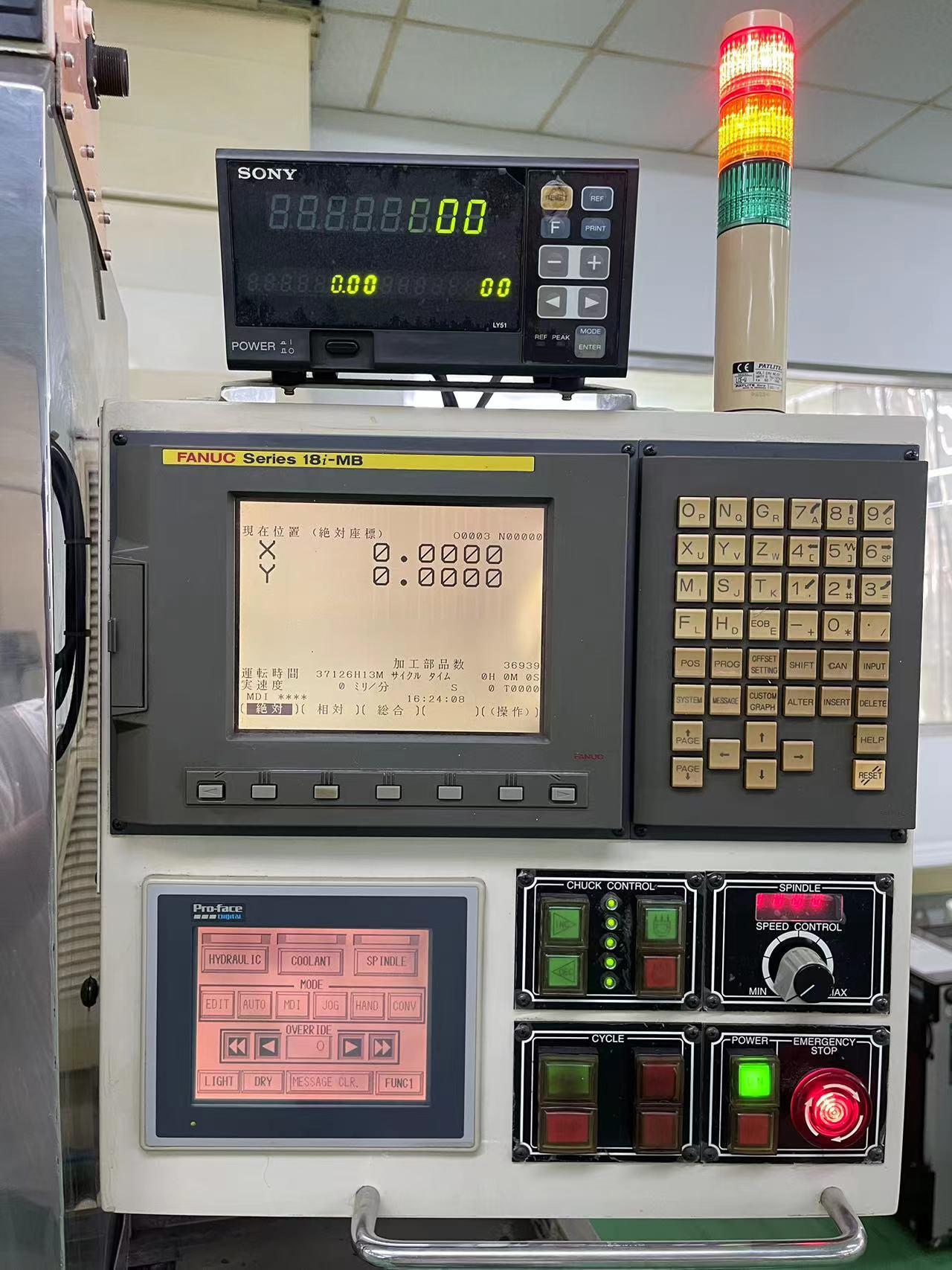

  CNC

  NC System:PC+Motion control

  Control axes:3

  Simultaneous axes:2

  Power supply:3 phase 200-220V 50/60Hz

  Power required:11KVA

  Width x Length x Height:2550X1600X1800mm
