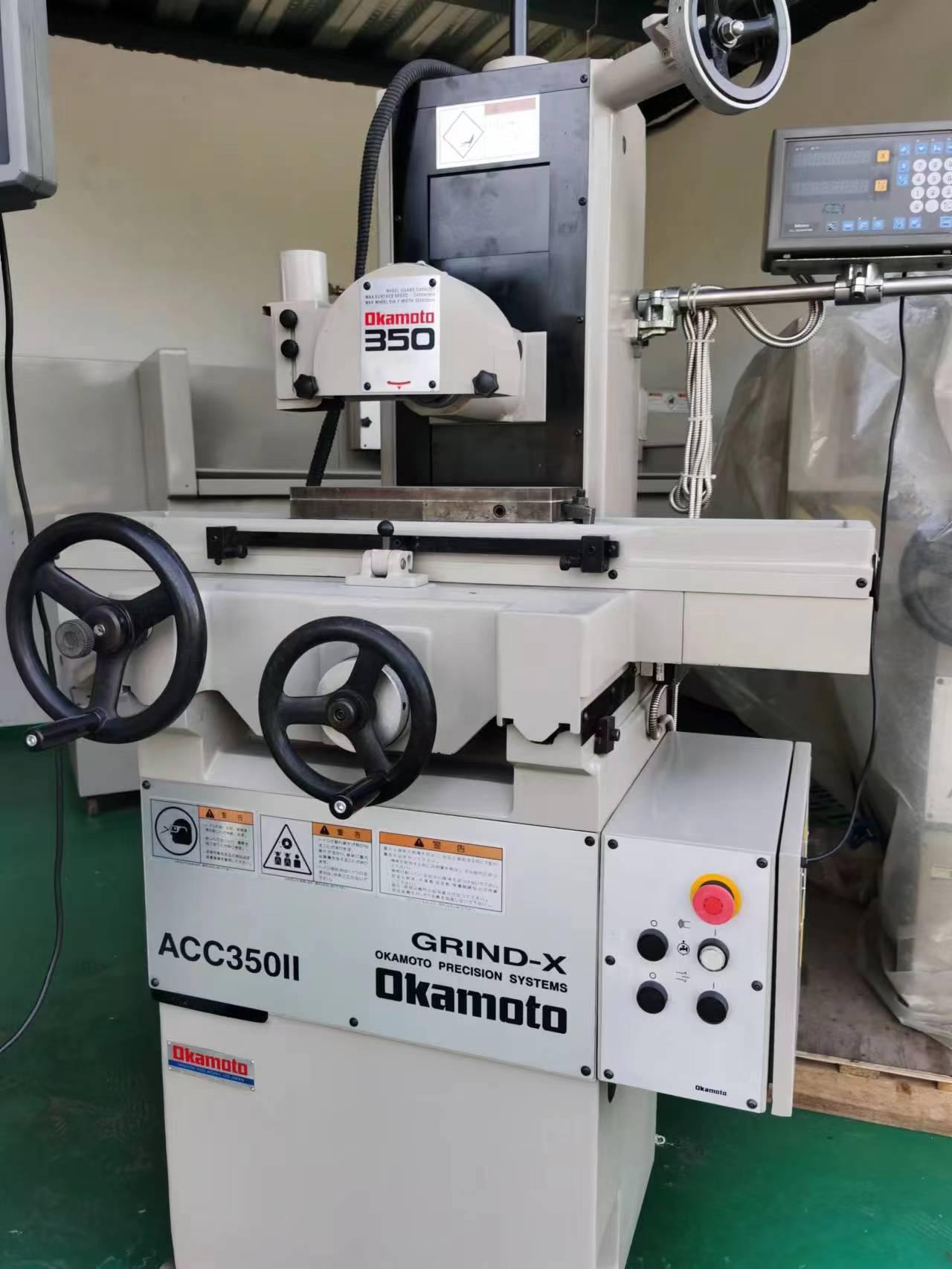

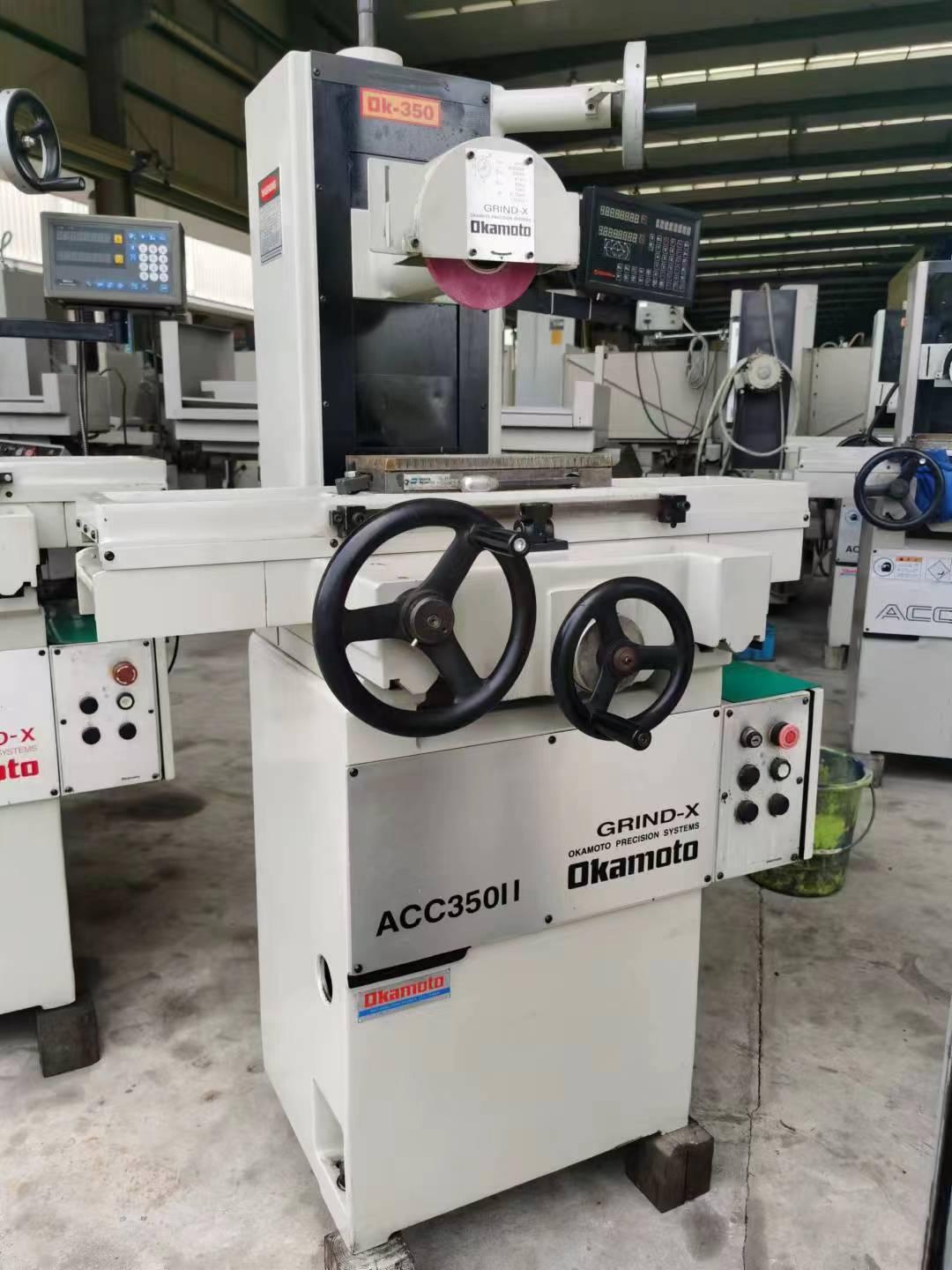

Specifications:
Worktable size:360X150mm
Distance from worktable to bottom of grinding wheel:298mm
Chuck size:350X150mm
Worktable load(including chuck):120KG
T-slot (width X number of slots):17X1mm
Longitudinal feed:
Maximum travel:390mm
Manual feed rate per revolution:100mm
Transverse feed:
Maximum travel:210mm
Manual feed rate per revolution:5.0mm
Remote control box increment:0.02mm
Vertical feed:
Manual feed rate per revolution:1.0mm
Remote control box increment:0.005mm
Wheel diameter - width * internal diameter :205*6-25*38mm
Speed:2900rpm
Spindle motor power:1.5/2kw/p
Motor for dust collection device: 0.4/2kw/p
Machine footage:1555X1381X1918mm
Weight:740KG
