Specifications:

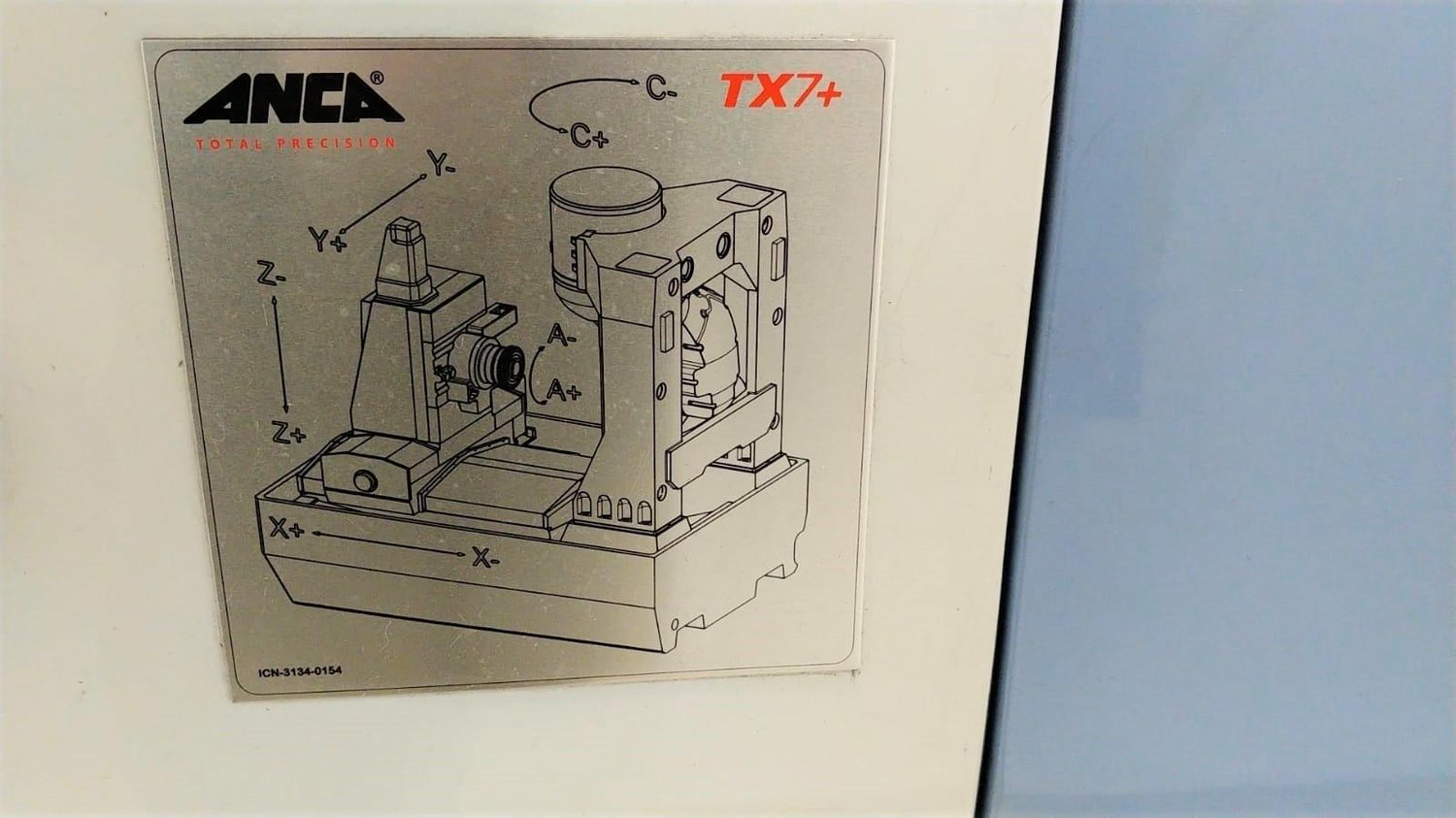

Number of axes: 5
Swing: 305mm
Distance between centers: 400mm
Grinding wheel diameter: 203mm
Power: 49HP
Maximum spindle speed: 10000 RPM
X/Y/Z axes travel: 600/249/406mm
C-axis: 264deg
A axis rotation range: 360deg
Maximum tool diameter: 305mm
Maximum tool length: 400mm
Maximum tool weight: 25kg
Position feedback resolution (X/Y/Z axes) : 0.1μm
Programming resolution (X/Y/Z axes) : 1μm
Position feedback resolution (C/A axis) : 0.0001 degree
Programming resolution (C/A axis) : 0.001 degrees
Grinding spindle power: 49HP
Maximum grinding spindle speed : 10000rpm
Grinding wheel through hole diameter: 51mm
Machine Footages (excluding loader) : 2540x 1499mm
Machine height: 2235mm
Machine weight: 7711kg
Accessories:

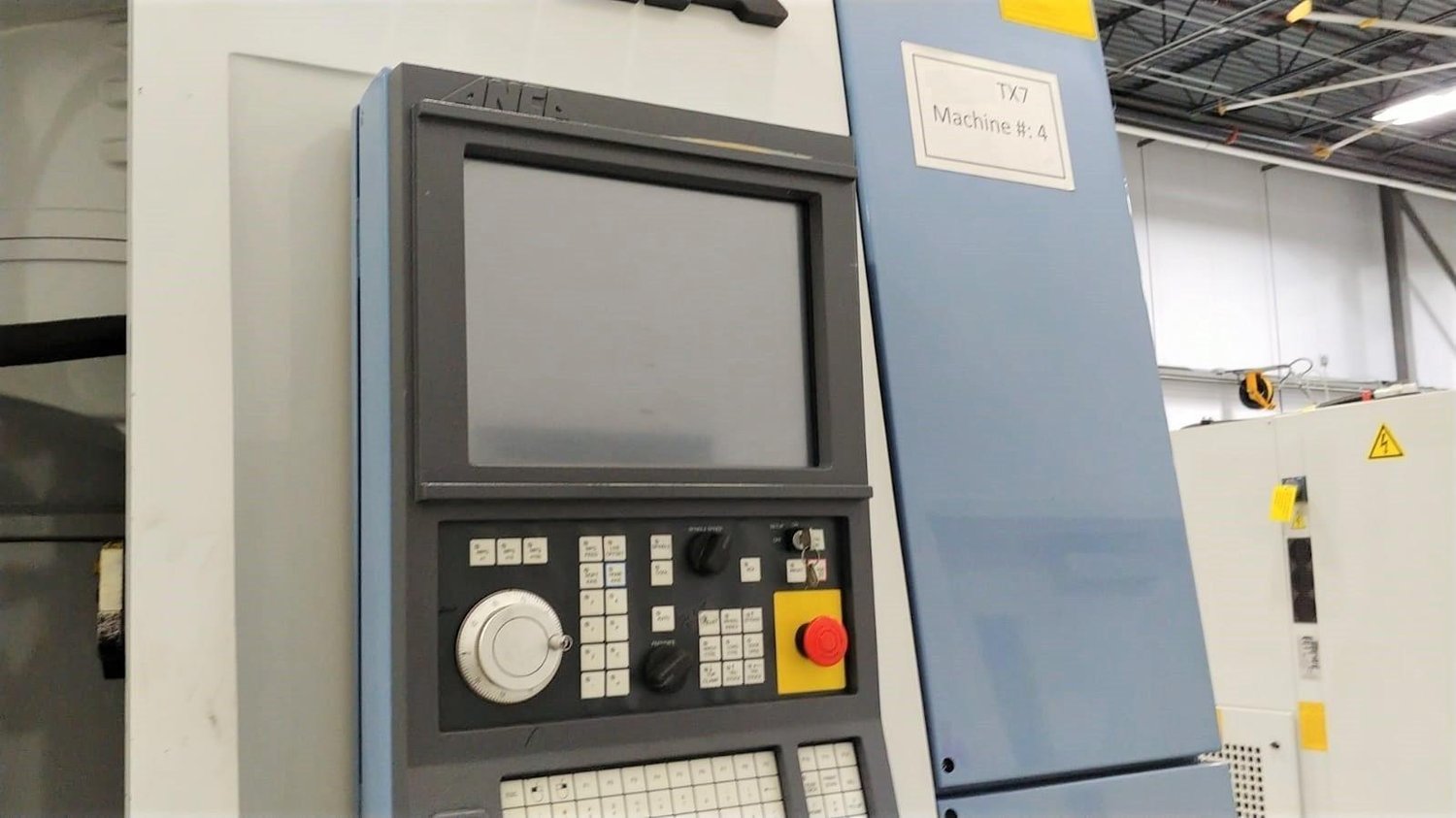

Windows 8 CNC system
RN34 Upgrade USO56758
Manage suite OPC UA RedaX machine
Tool magazine
Gang Drill Gap
Fire extinguisher
2x coolant collecting pipe
