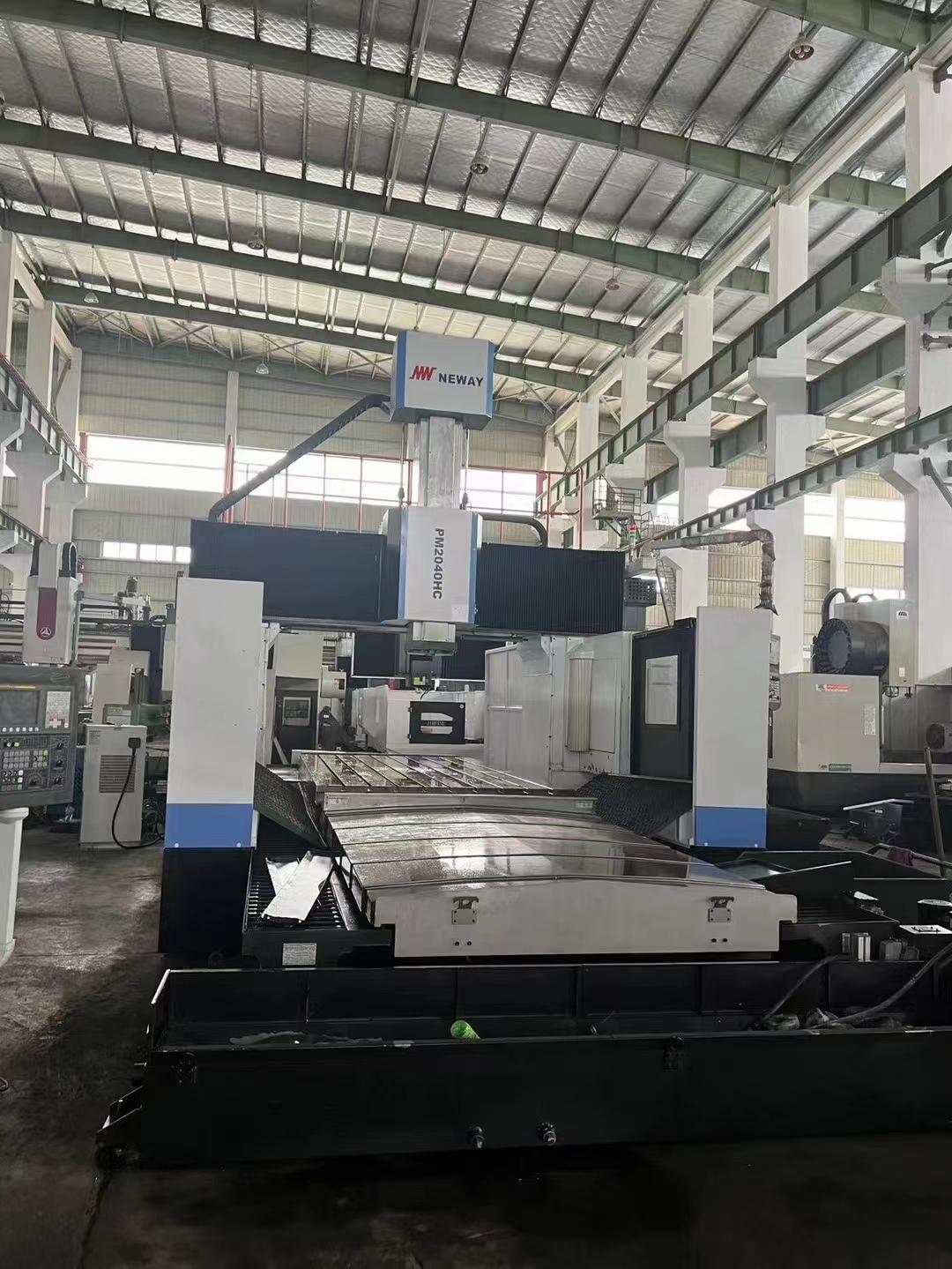

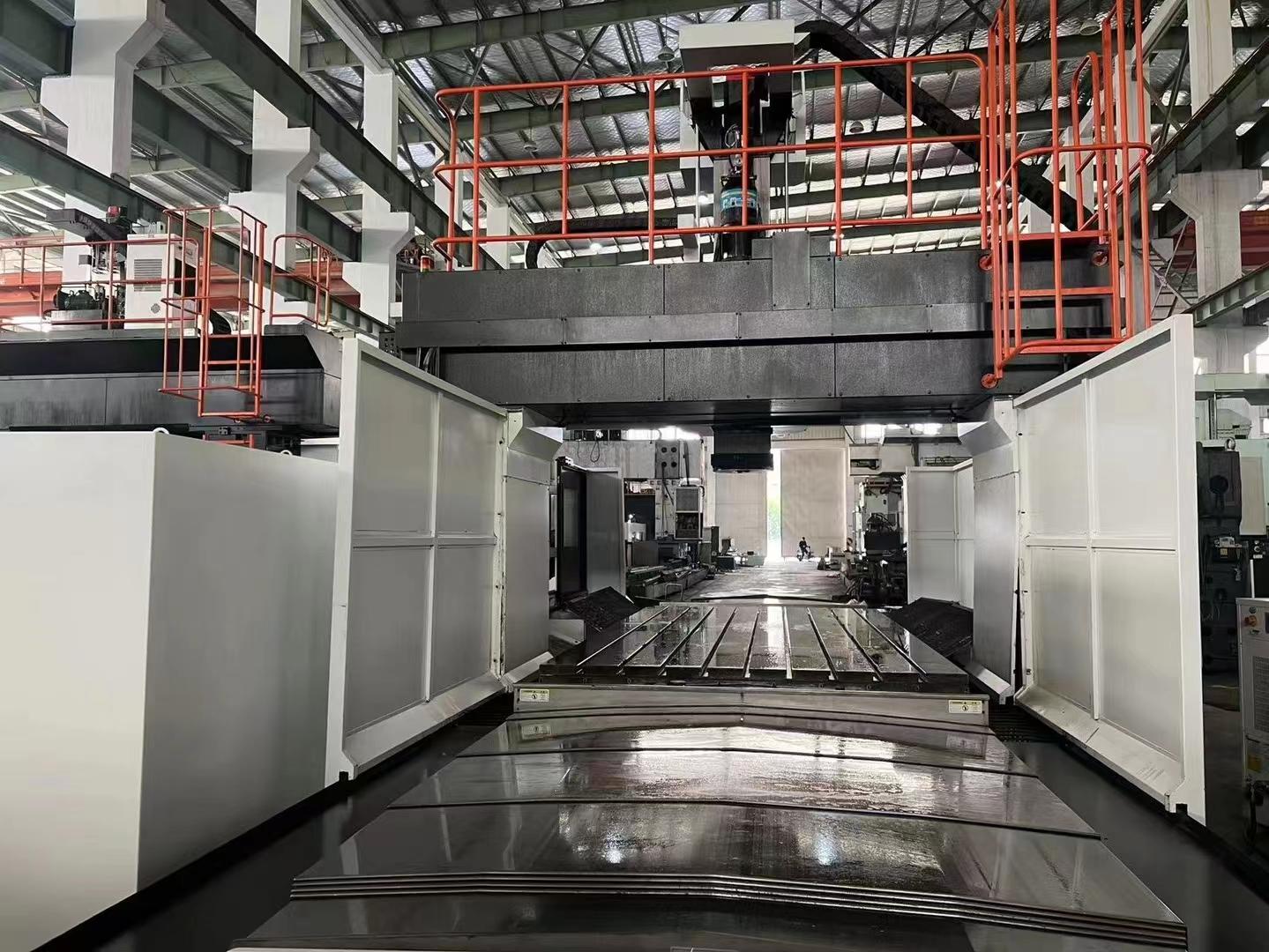

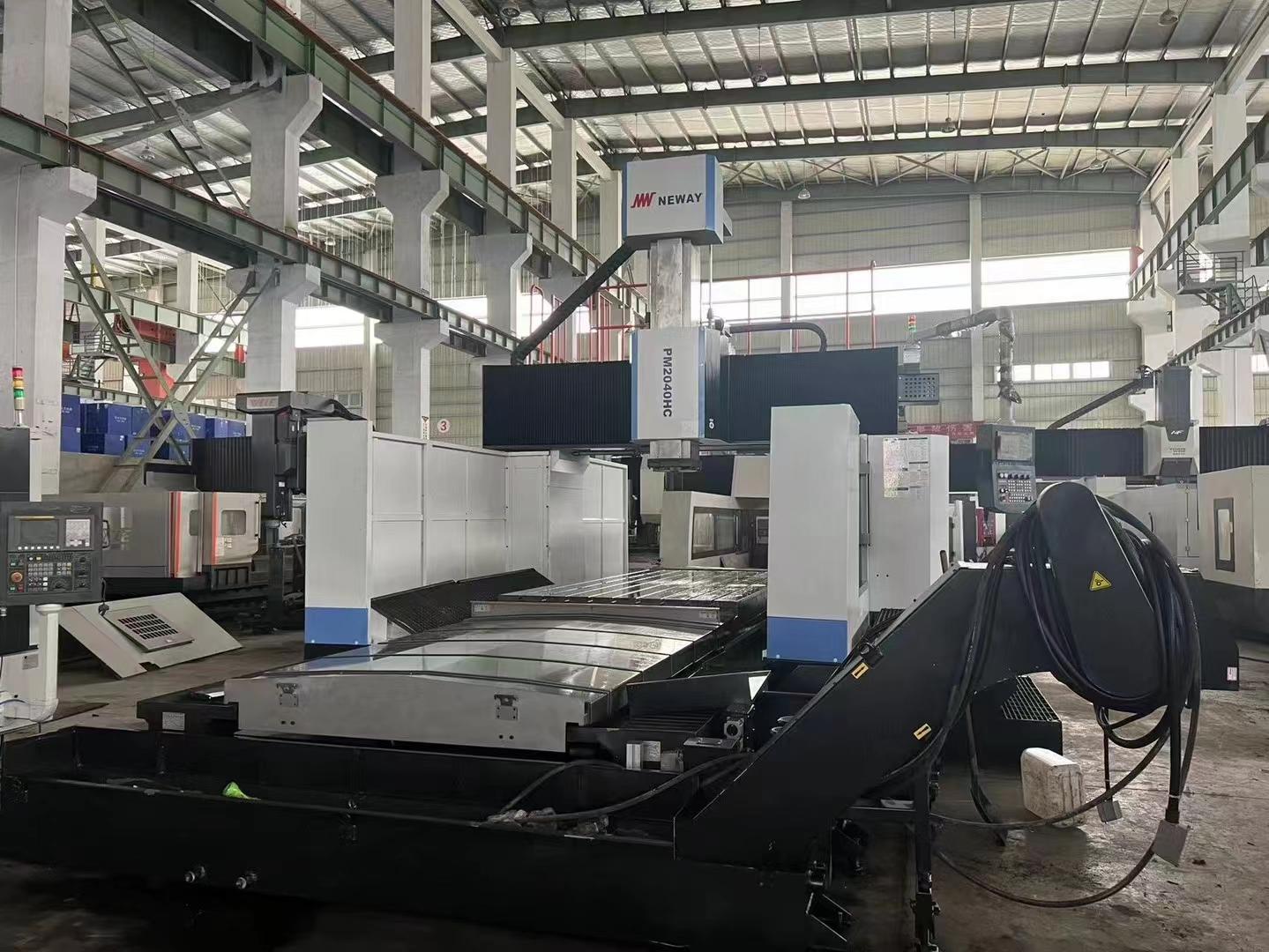

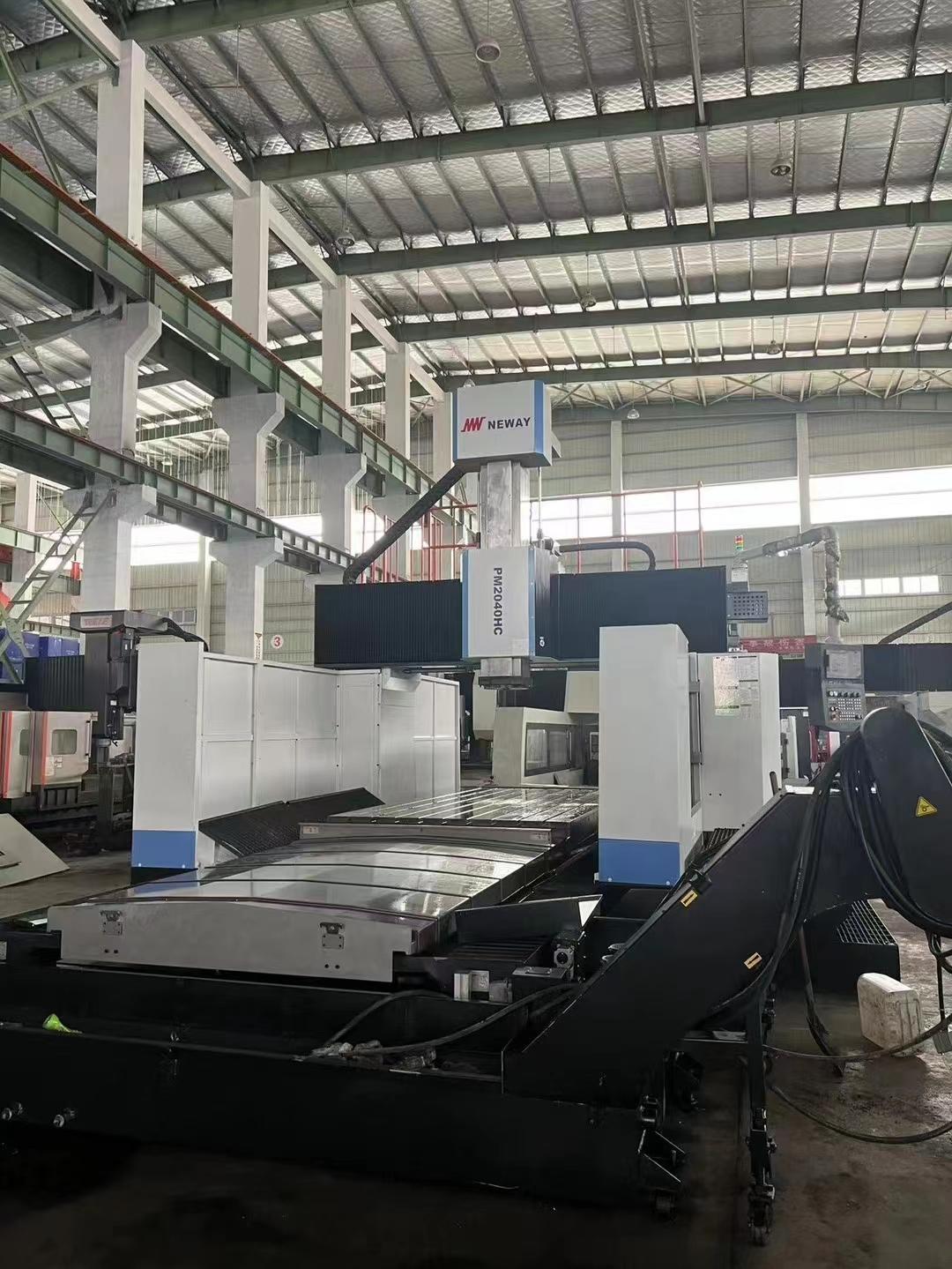

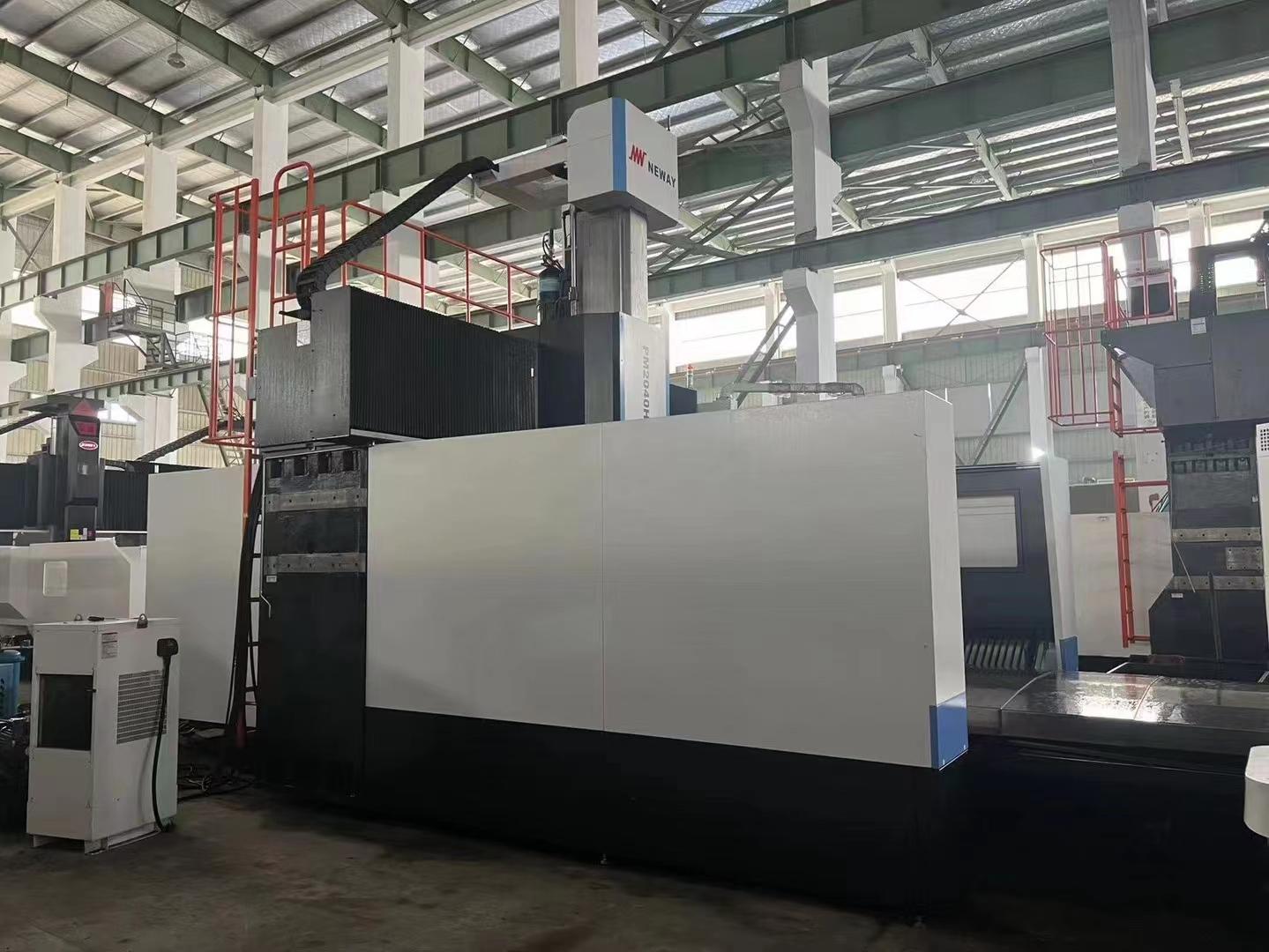

Neway   PM2040HC
Gantry machining centre
[Product Information:]
  • Inventory number：82121
  • Brand：Neway
  • Model：PM2040HC
  • Origin：Taiwan of China
  • Location：China
  • Year：2021
  • Create Time：2023-08-26

Specifications:

  • Worktable size: 2000*4000mm

    Three axes travel: 4200*3200*1250mm

    Distance from spindle nose to worktable: 200-1200mm

    Gantry width: 2800mm

    Gantry height: 1450mm

    Worktable load: 20t

    Spindle taper: BT50

    Spindle speed: 6000rpm

    Ram cross-sectional size: 400*400mm

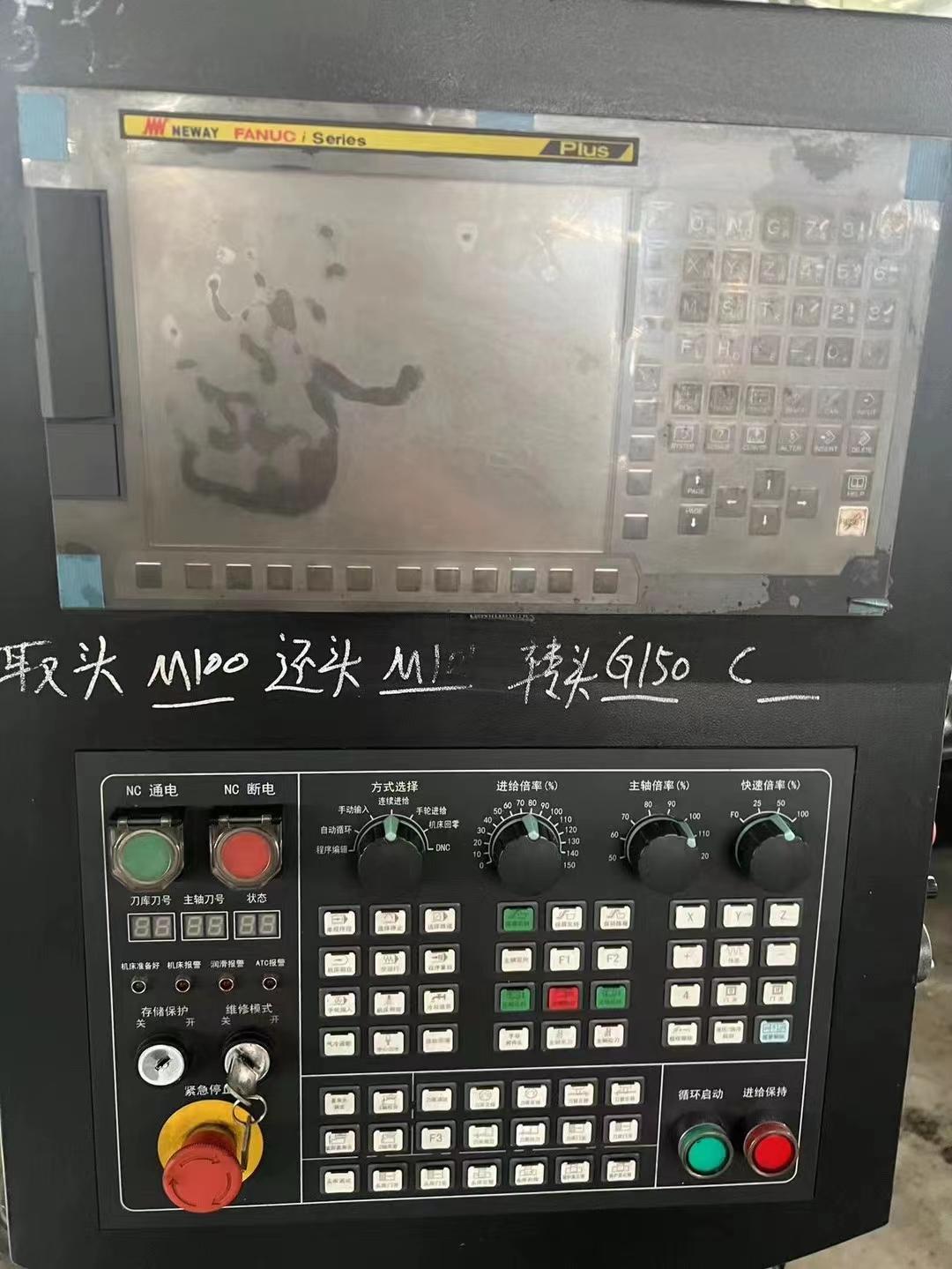

    CNC System: Fanuc Plus

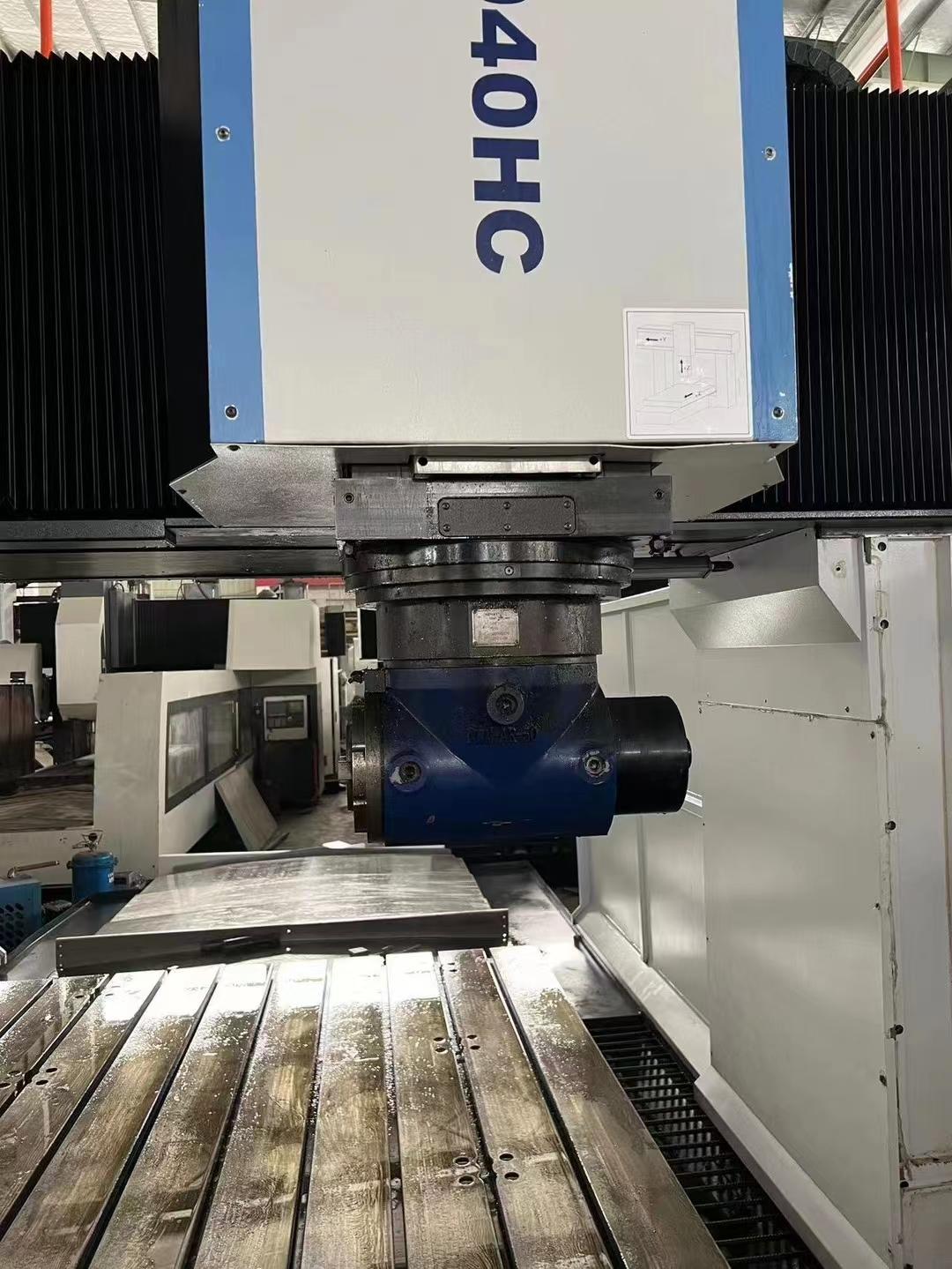

    With full automatic milling head

    Accuracy within 0.01mm
