Specifications:
Center height: 202mm

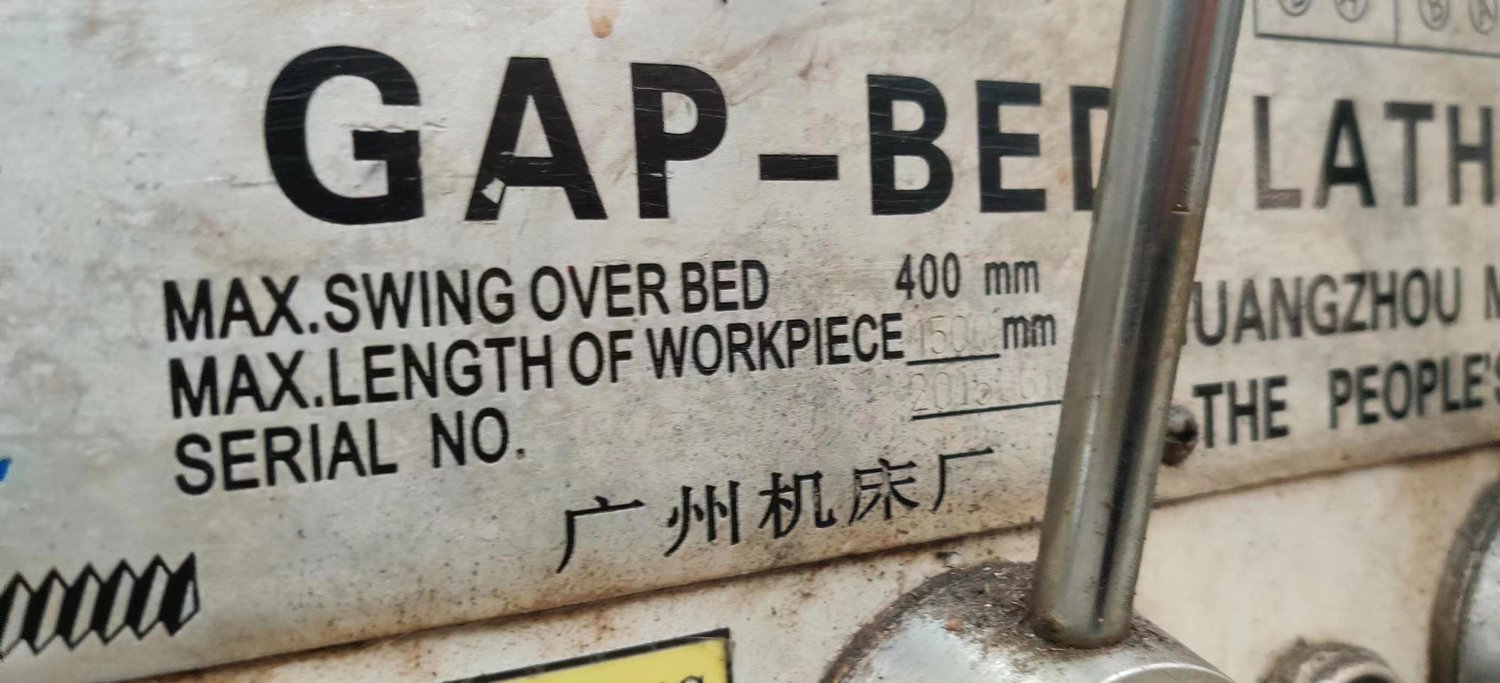

Maximum rotating diameter over bed: 400mm
Maximum working length: 1000mm
Maximum tool rest travel(vertival) : 900mm
Maximum workpiece rotating diameter on tool rest: 240mm
Bar diameter: 45mm
Through hole diameter: 46mm
Taper: NT6
Speed: 50Hz (60Hz) : 25-1600r/min
Maximum tool rest transverse travel: 240mm
Maximum smaller tool rest travel : 140mm
Vertical scale value: 0.5mm/ grid; 100mm/r
Transverse tool rest scale value: 0.05mm grid; 4mm/r
Scale value of smaller tool rest: 0.5mm/ grid; 3mm/r
Tool holder rotation angle range：±45°；1°/grid
Distance from spindle center line to prop supporting surface: 27mm
Tool bar section area: 25mm*20mm
Vertical feed: 0.04~ 2.16mm /r 138 kinds
Lateral feed: 0.02~ 1.08mm /r 138 kinds
Maximum distance from spindle center line to square tool rest side surface: 205mm

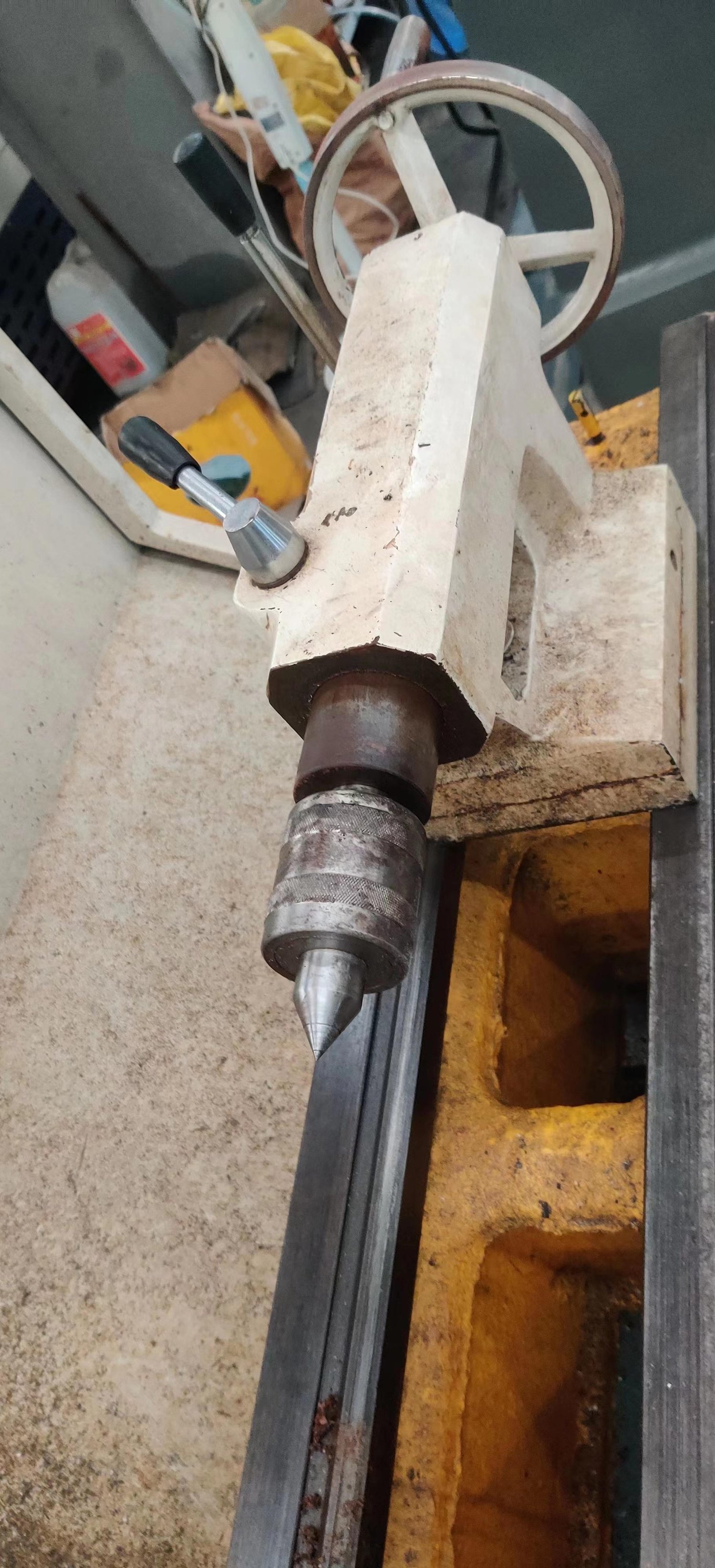

Center sleeve through hole taper: MT4
Center sleeve travel: 130mm
Maximum transverse movement: ±10mm
