• Inventory number：90078
• Brand：Hartford
• Model：VMC850
• Origin：Formosa
• Location：China
• Year：
• Create Time：2023-07-20

Specifications:

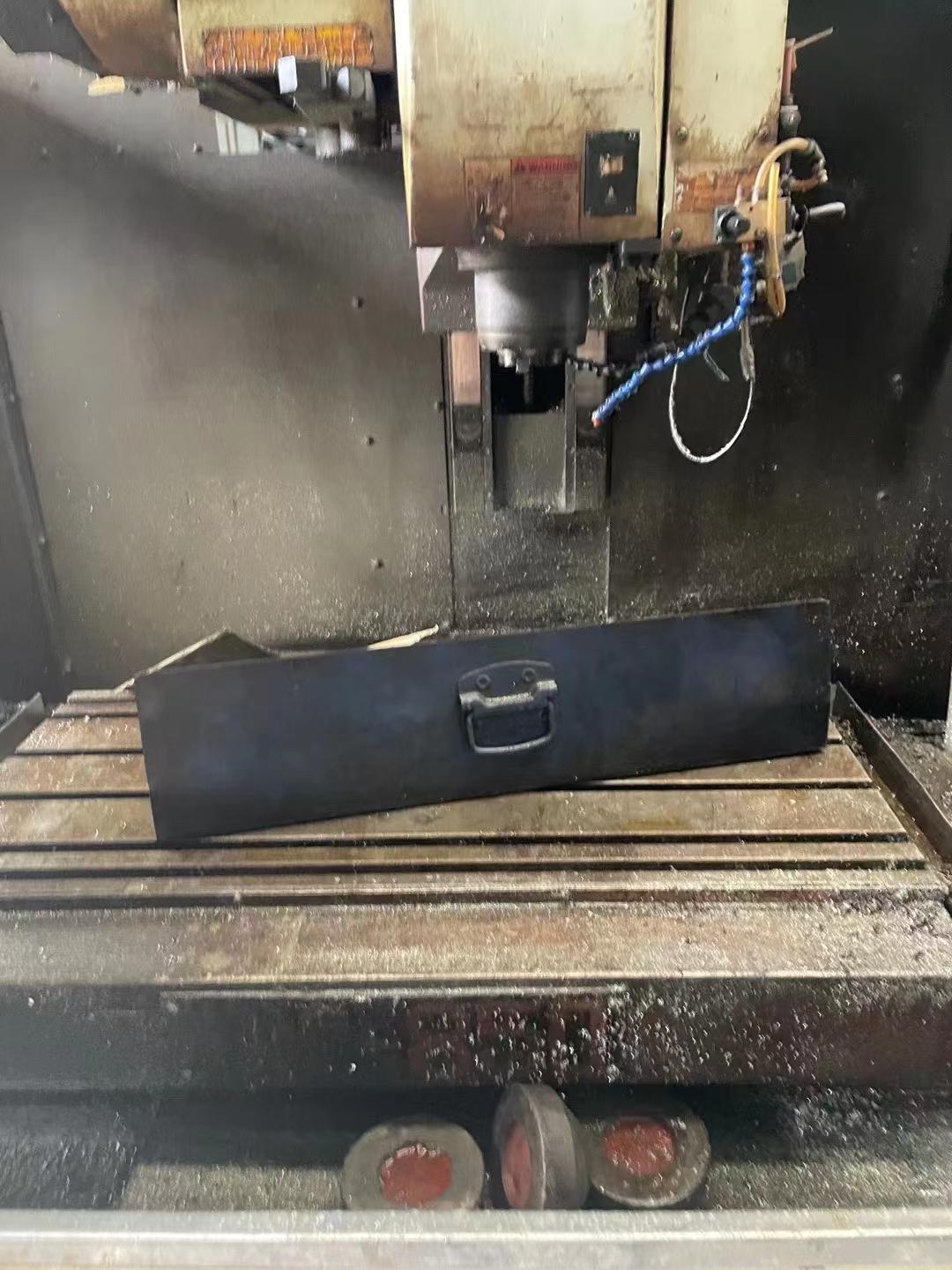

• Worktable size: 500*1000mm

  X/Y/Z axes travel :  800/500/500mm

  Distance from spindle nose to worktable :100-600mm

  Distance from spindle center to column :540mm

  Worktable load :400kg

  Worktable T-slot :  5-18-150mm

  X/Y/Z axes fast feed :48/48/36m/min

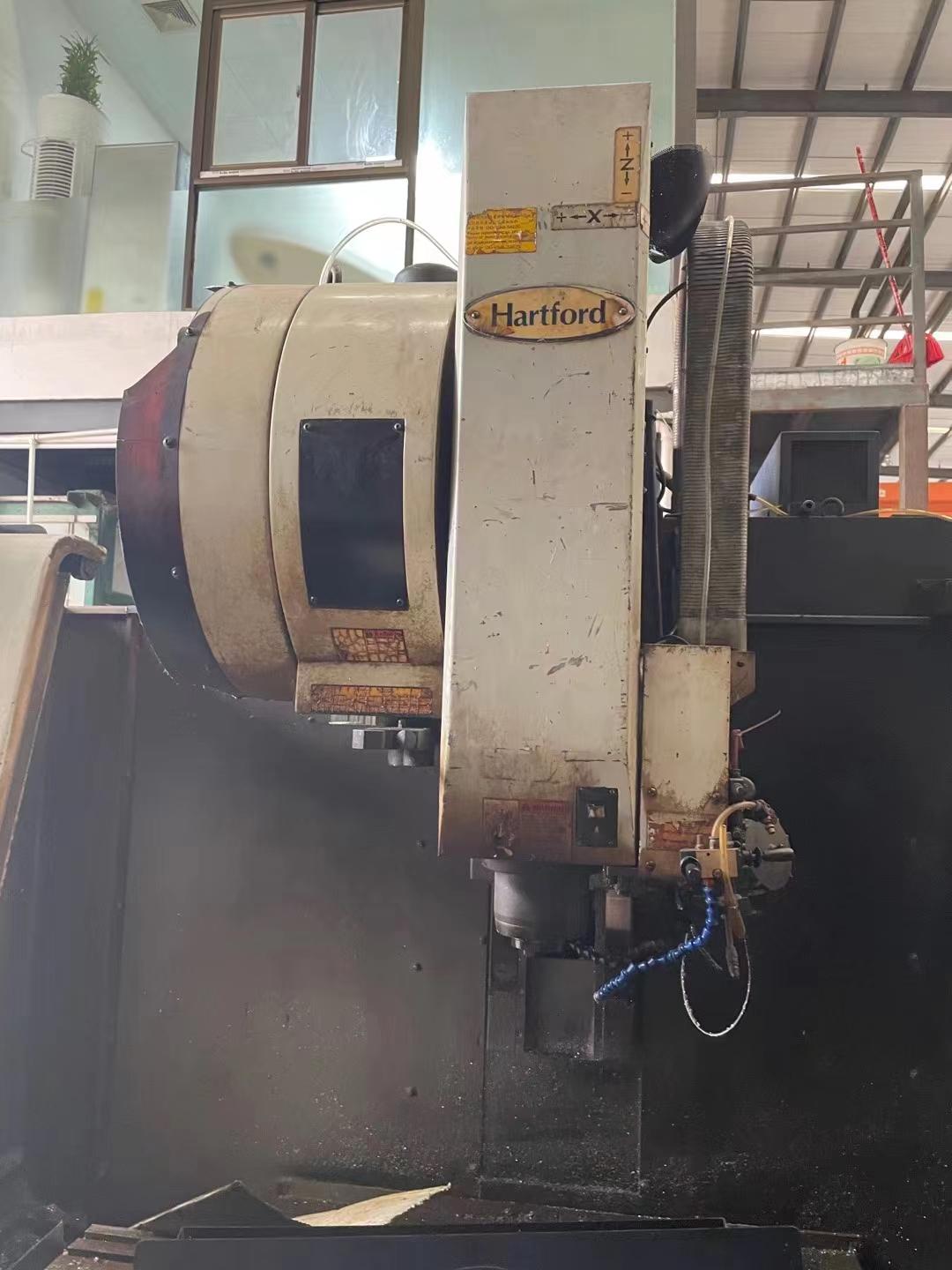

  Spindle taper: BT40-150

  Spindle speed: 8000rpm

  Positioning unit :0.001/300mm

  Disk type tool magazine: 24Tpcs

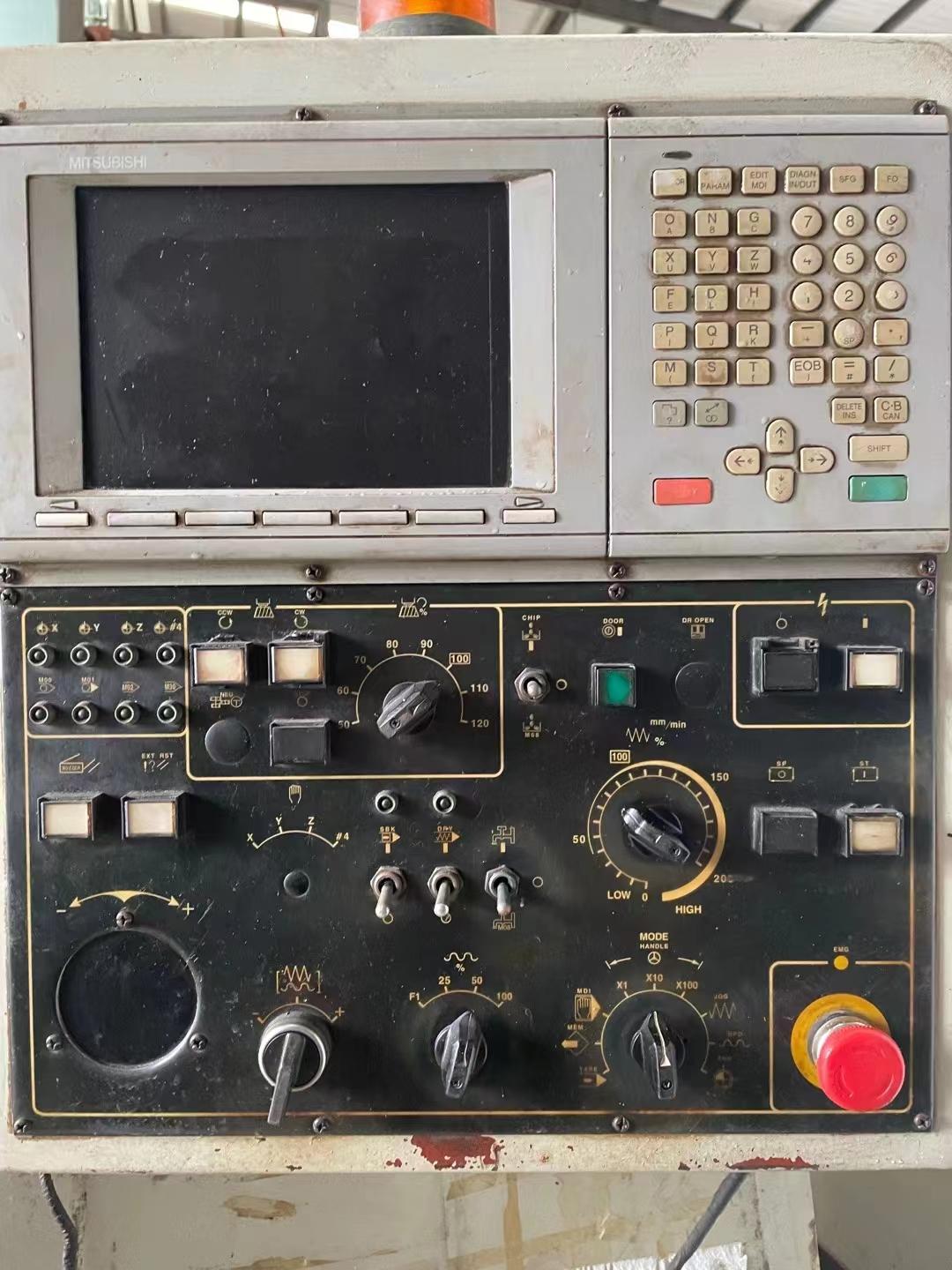

  CNC System：KND CNC

  Spindle motor power: 7.5kw

  Footage: 2600x2360x2400mm

  Machine weight :5500kg
