Specifications:

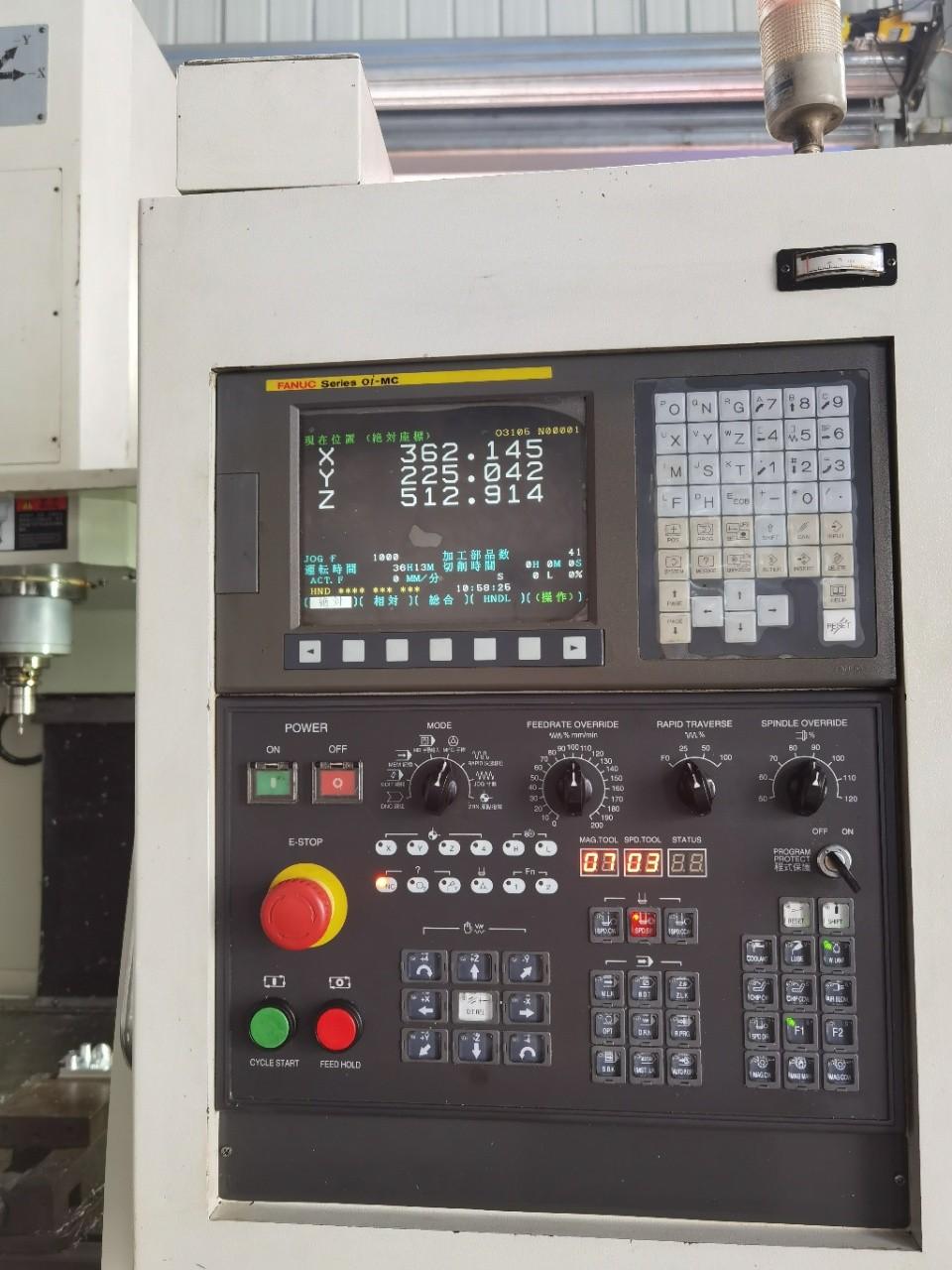

CNC System :FANUC Oi
X-axis travel :800 mm
Y-axis travel :500 mm
Z-axis travel :550 mm
Worktable size: 1000 x 500 mm
Maximum worktable load:800 kg
Spindle speed :10 ~ 8000 rpm
Spindle type :BT 40
Distance from spindle nose to worktable surface :100 ~650 mm
X, Y axis fast feed rate :20,000 mm/min
Z-axis: 20000 mm/min
Cutting feed rate :1 ~ 10000mm/min
Tool magazine :24
Maximum tool diameter :90mm
Max. tool length :260 mm
Maximum tool weight :6 kg
Weight :5800 kg
