• Inventory number：81644
• Brand：Hision
• Model：630
• Origin：China
• Location：China
• Year：2019
• Create Time：2023-07-06

Specifications:

• Three axes travel :1000*850*750mm

  Worktable size :630*630mm

  Distance from spindle nose to worktable center:200-950mm

  Distance from spindle center to worktable :850mm

  Worktable load :1200kg

  Main motor power :22/18.5kw

  Spindle speed :5000rpm

  Spindle torque :730Nm

  Fast feed rate:20m/min

  Cutting feed rate:5000mm/min

  Tool changing time :5.0s

  Worktable exchanging time :38s

  Footage :3500*5550*3250mm

  Spindle: BT50

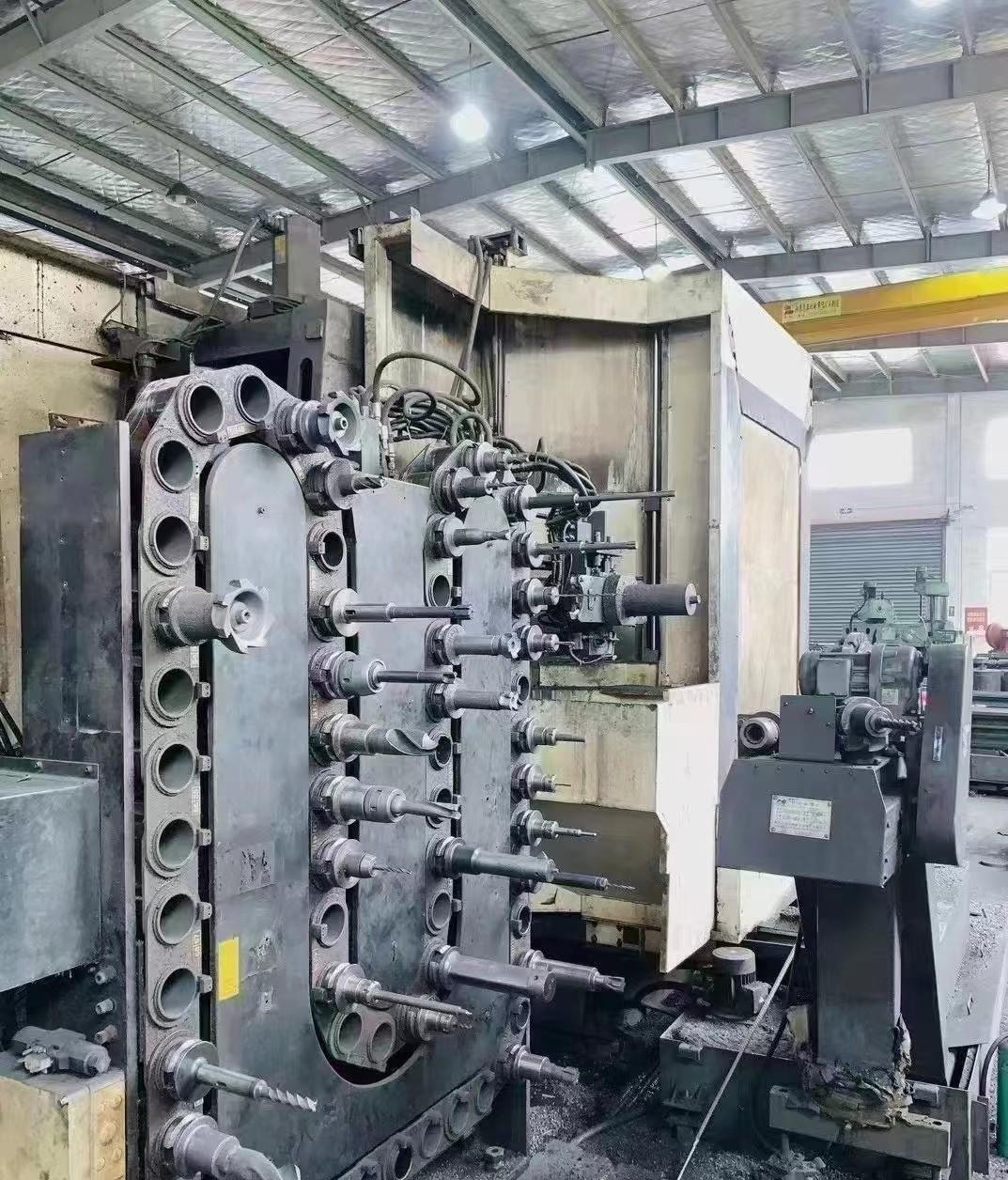

  Tool magazine: 50

  Twin worktable
