Specifications:
Worktable size: 1150*600mm
Three axes travel: 1000*600*600mm
Distance from spindle nose to worktable surface: 110-710mm
Distance from spindle center to column guideway surface: 660mm
Distance from worktable to guideway surface: 985mm
T-slot: 18*5*100mm
Spindle speed: 10000rpm
Spindle diameter: 70mm
Main motor power: 7.5/11kw
Machine footage: 3180*2185*2900mm
Machine weight: 7000kg

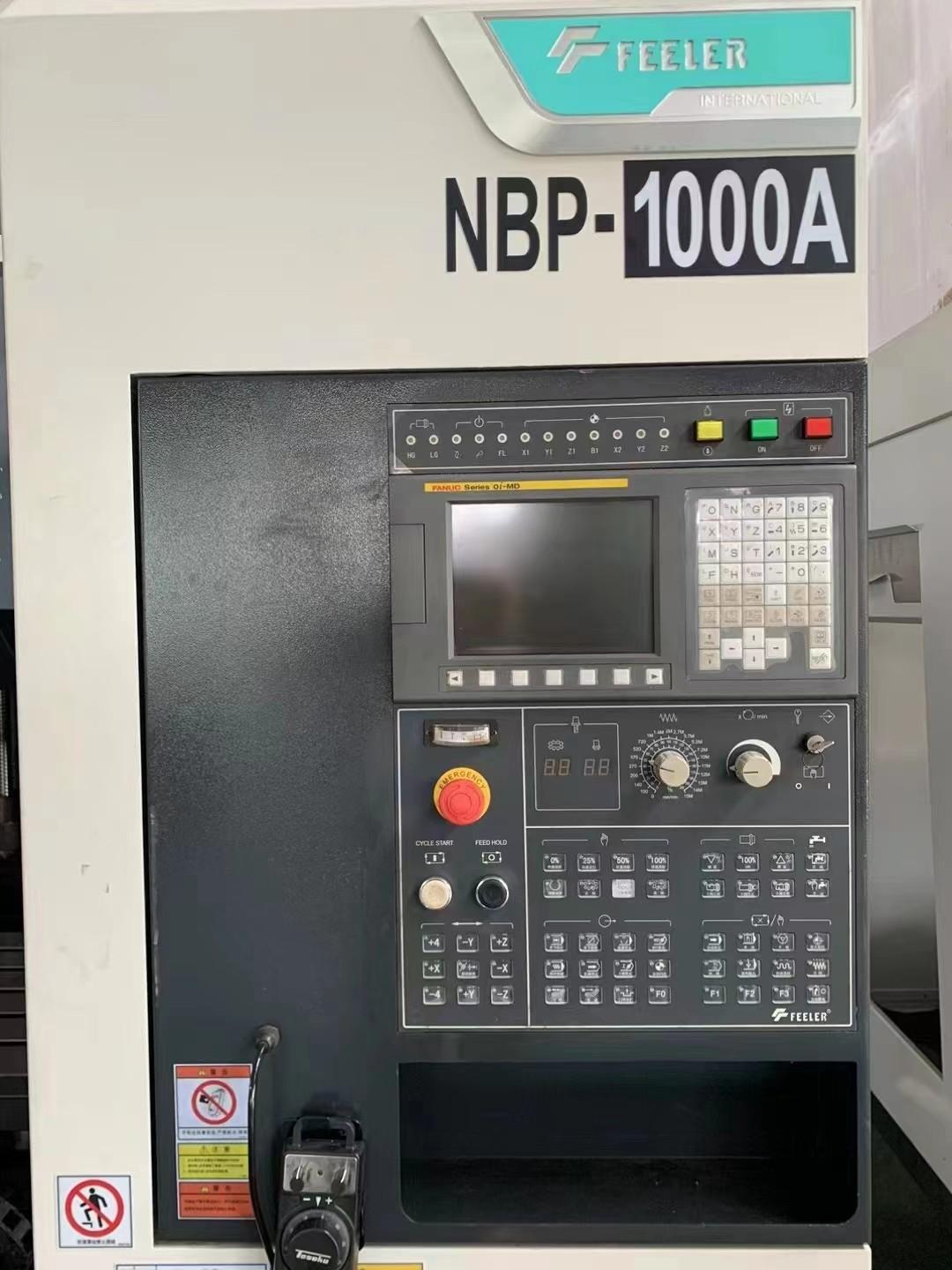

CNC System: Fanuc Oi-MD

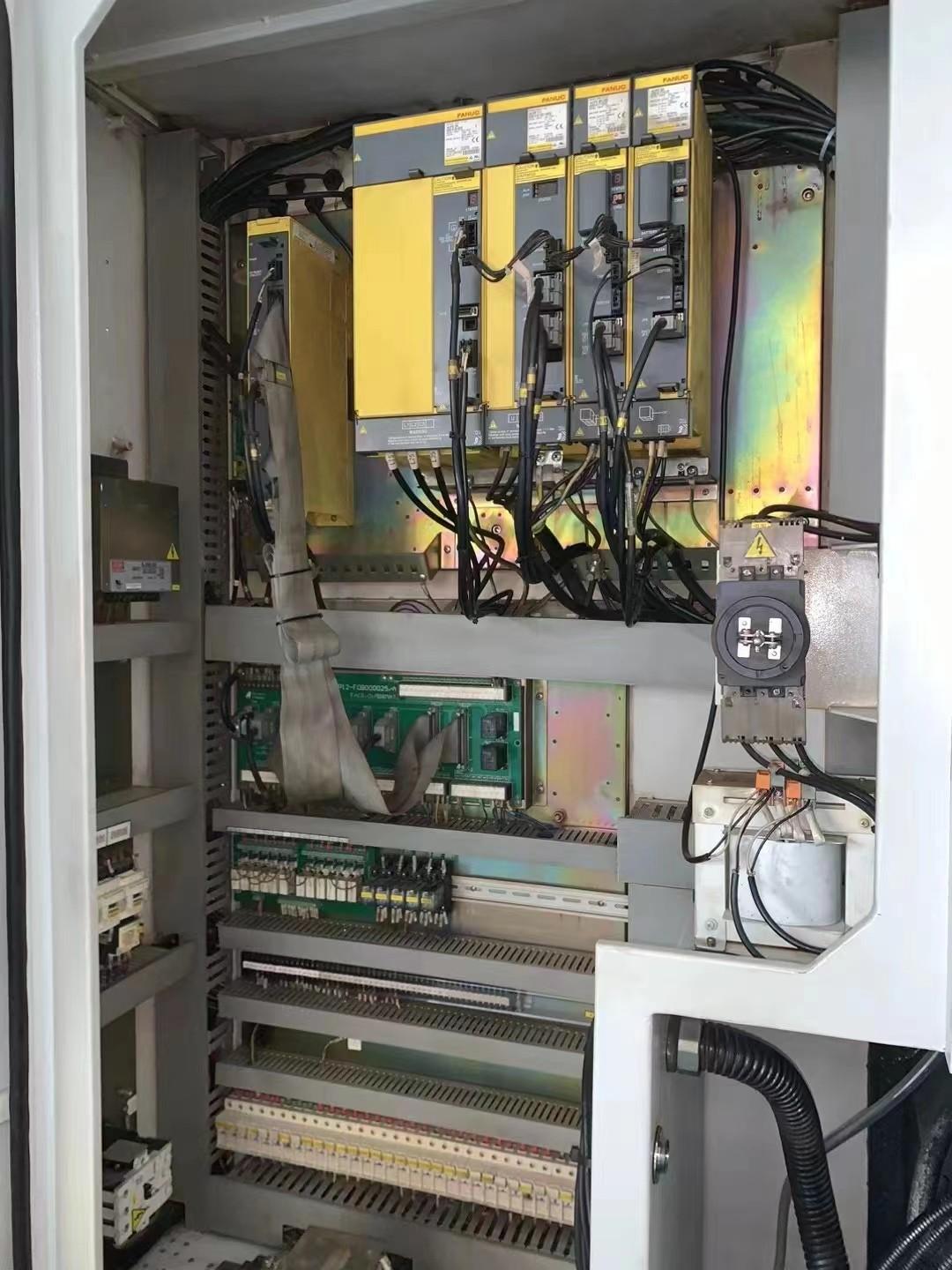

Alpha Motor Drive
Three axes rigid guideway
