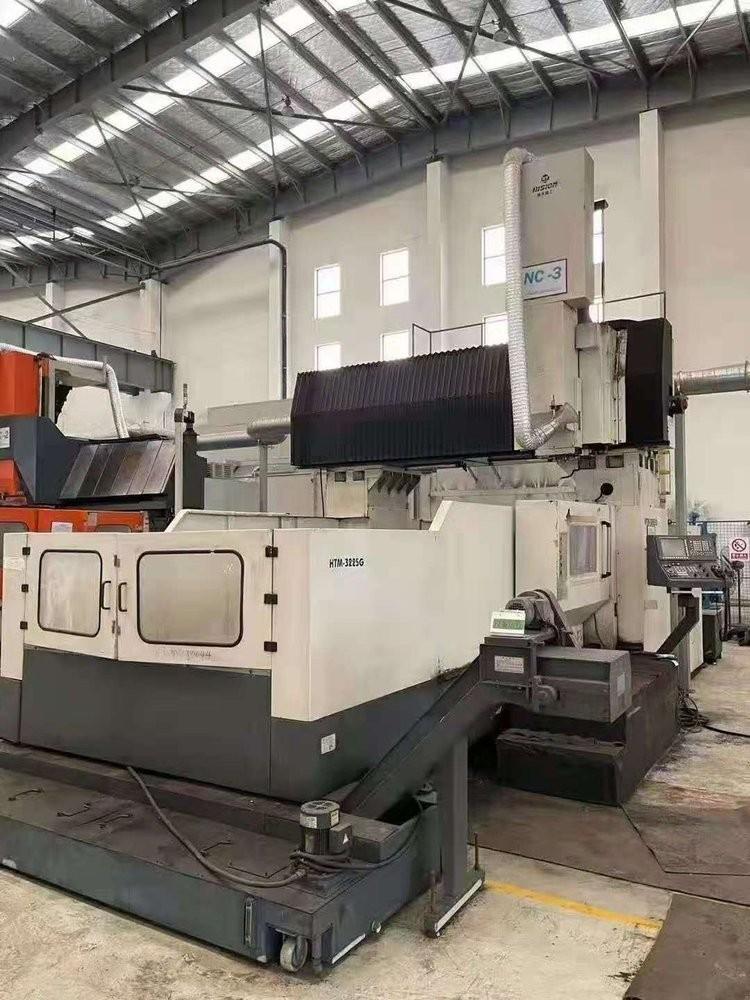

Hision   HTM-3225G
Gantry machining centre
[Product Information:]
  • Inventory number：81318
  • Brand：Hision
  • Model：HTM-3225G
  • Origin：China
  • Location：China
  • Year：2010
  • Create Time：2023-06-08

Specifications:

  • System: Fanuc 31i

    Three-axis travel :3200*2600*1350mm

    Gantry span :2500mm

    Spindle nose to worktable distance:250-1250mm

    Spindle speed :45-6000rpm

    Main motor power :18.5/22kw

    Spindle taper:BT50

    Spindle diameter :100mm

    Spindle torque :470/560nm

    Worktable size:3000* 2000mm

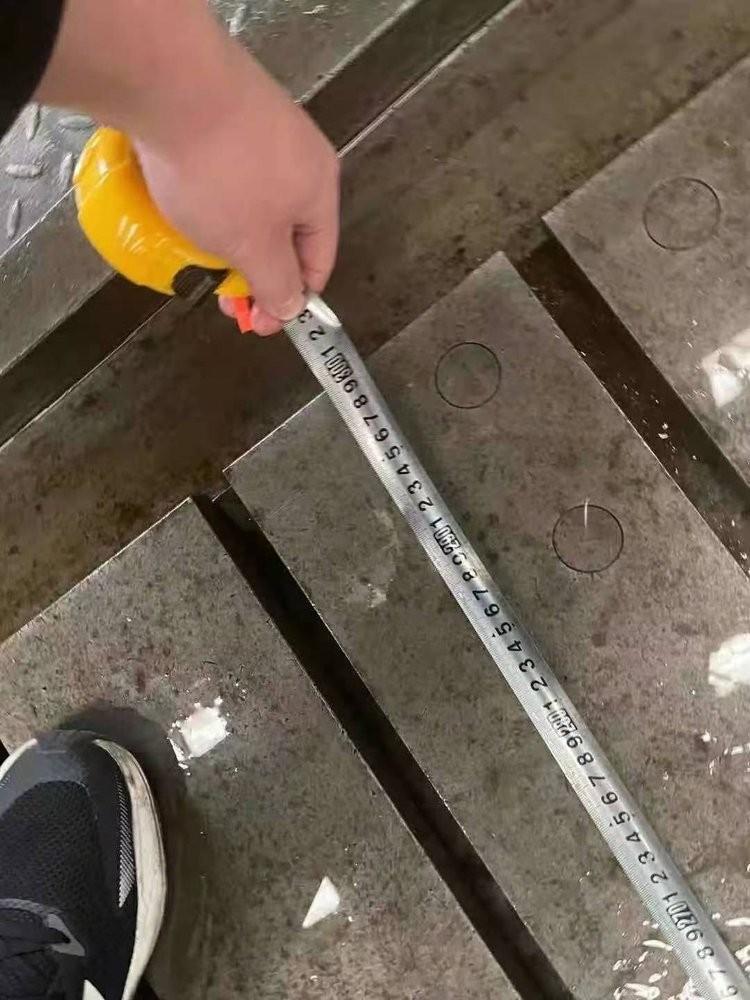

    T-slot :9/22-200mm

    Load:15t

    Weight :46.5t

    Gear spindle
