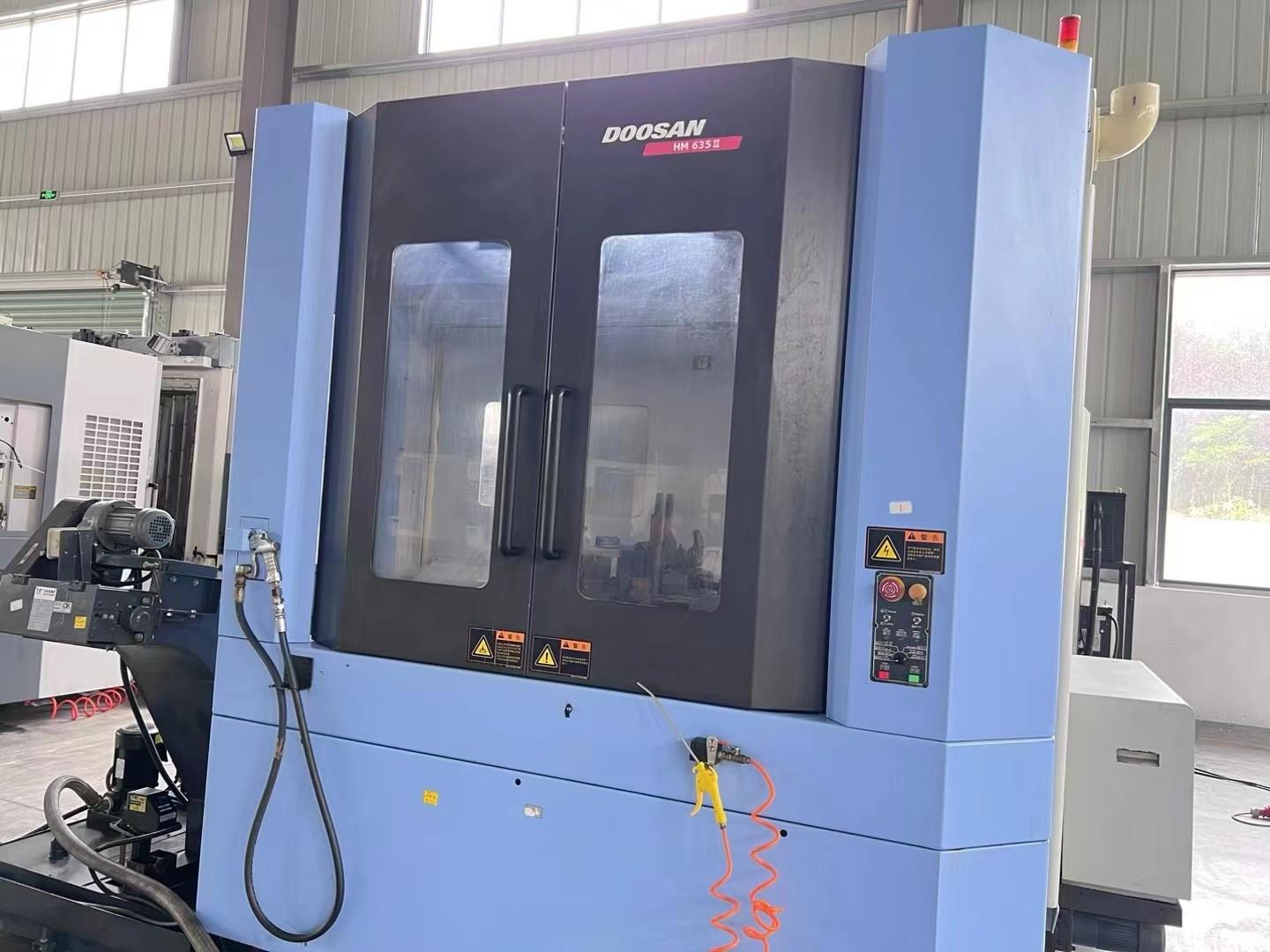

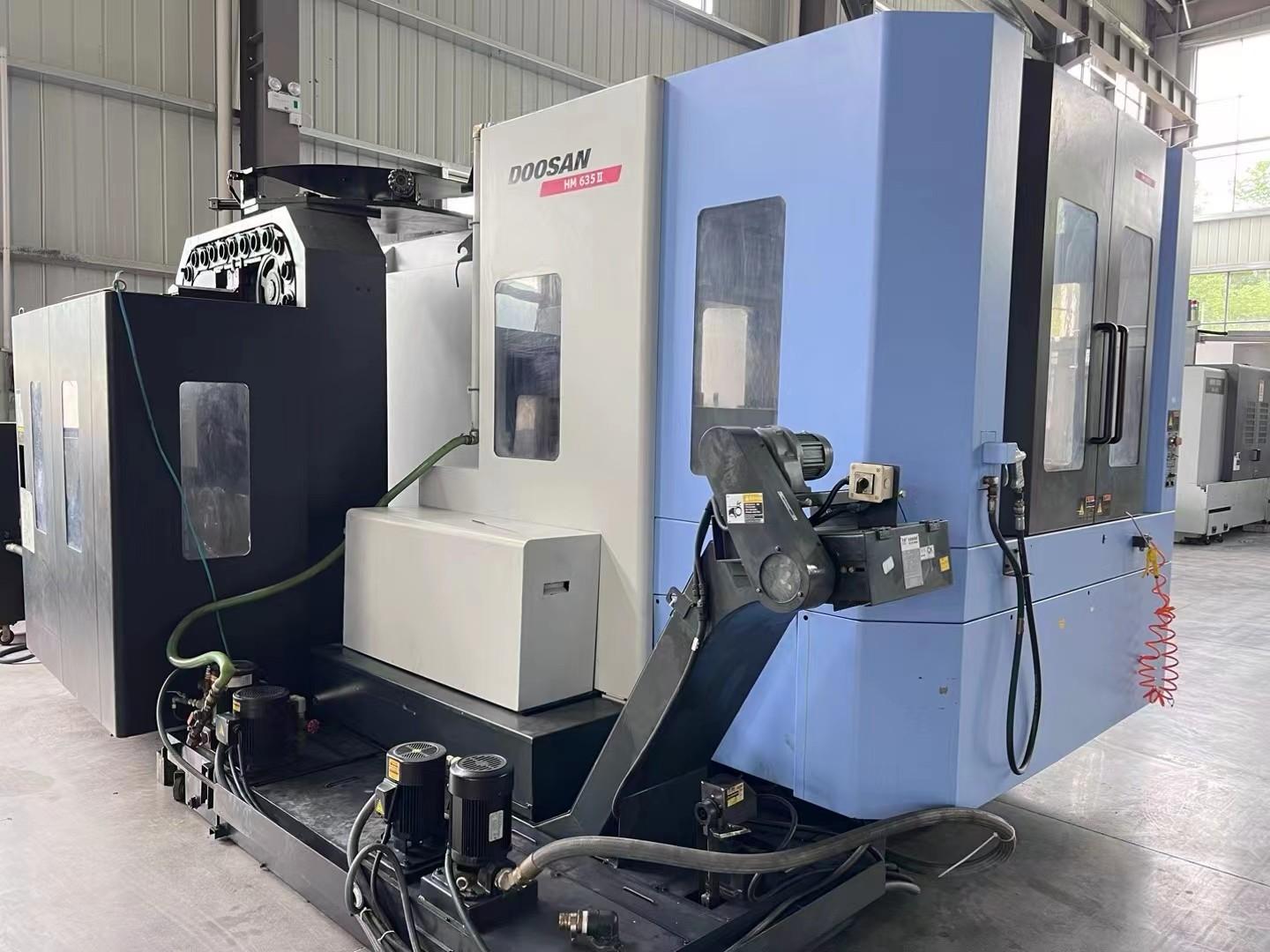

Doosan   HM635II
Horizontal Machining centre
[Product Information:]
  • Inventory number：81166
  • Brand：Doosan
  • Model：HM635II
  • Origin：South Korea
  • Location：China
  • Year：2016
  • Create Time：2023-05-25

Specifications:

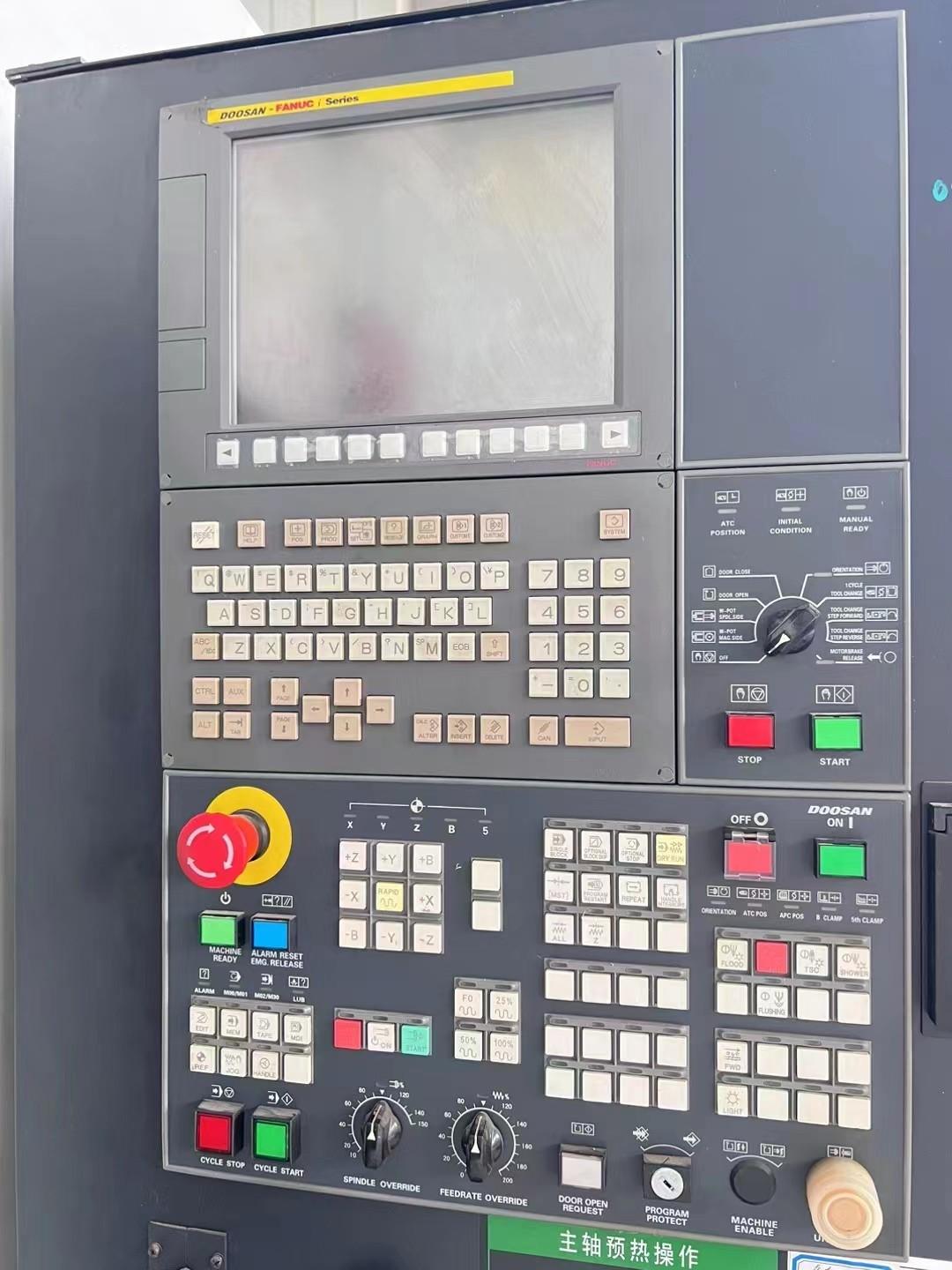

  • System: FANUC 31i system

    Three axes travel :1000*800*850mm

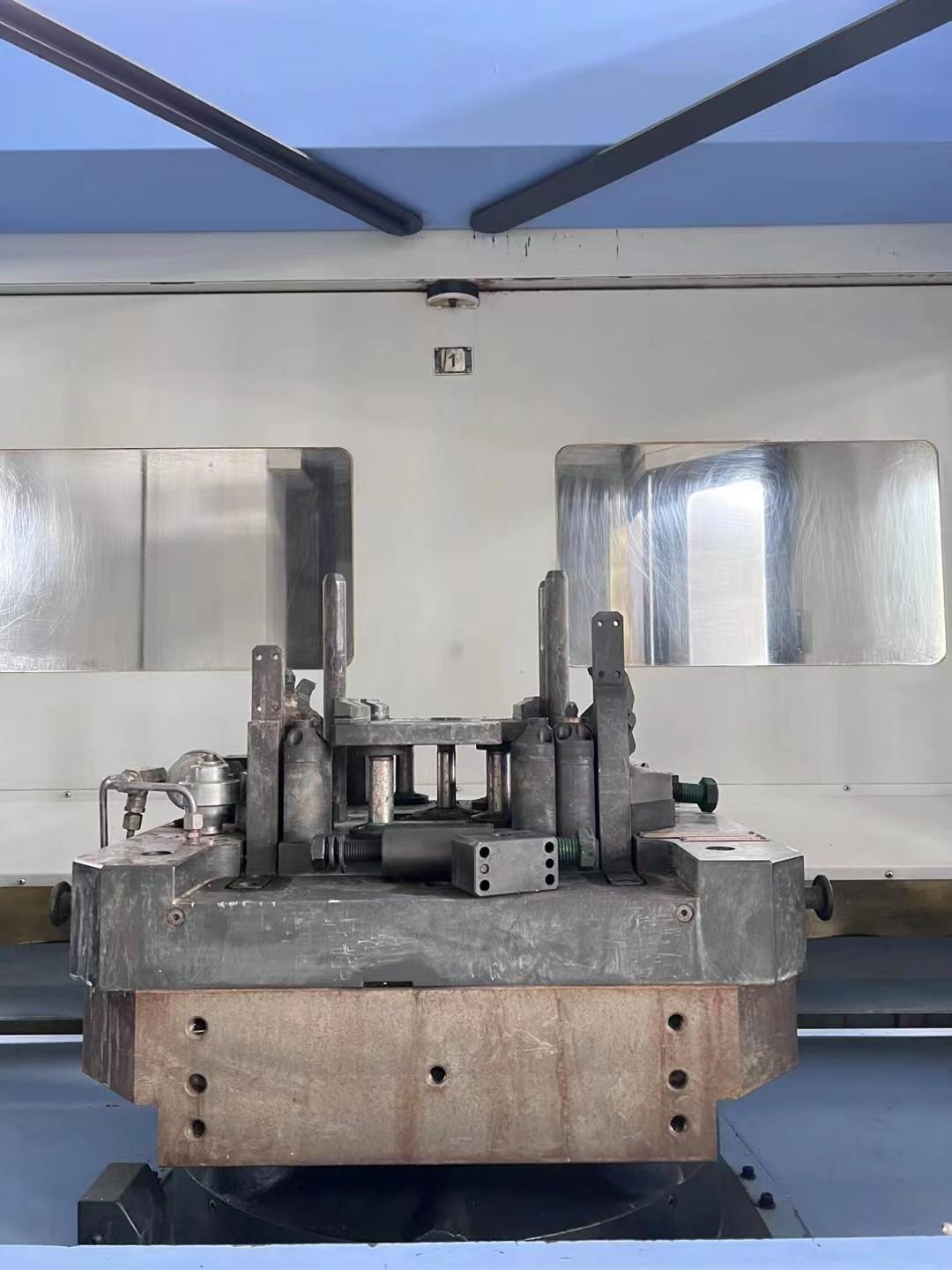

    Worktable size :630*630mm

    Worktable load :1200kg

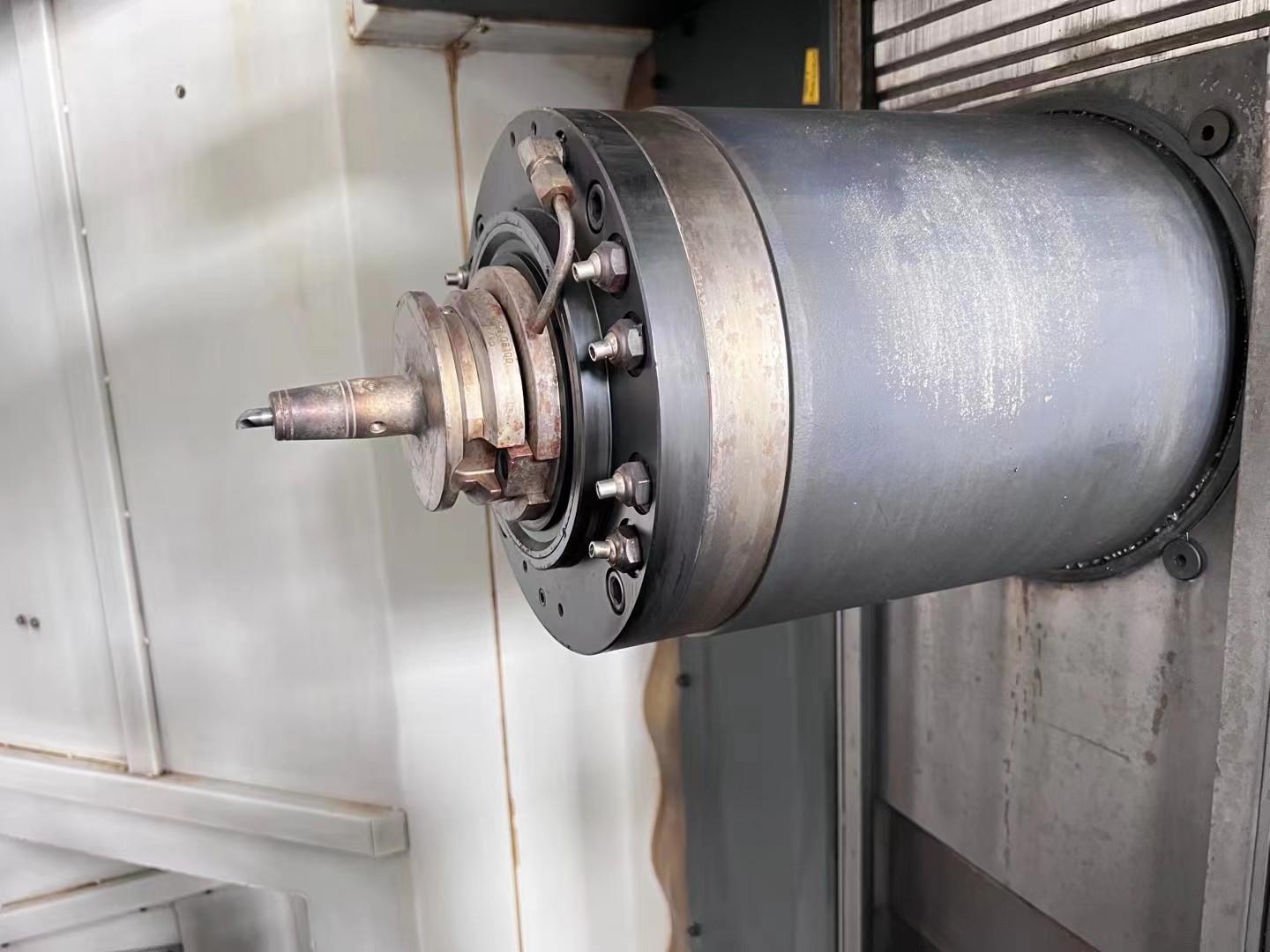

    Spindle type :BT50

    Spindle speed :6000rpm

    Spindle motor :18.5/22kw

    X axis fast moving rate :24m/min

    Z-axis fast moving rate :10m/min

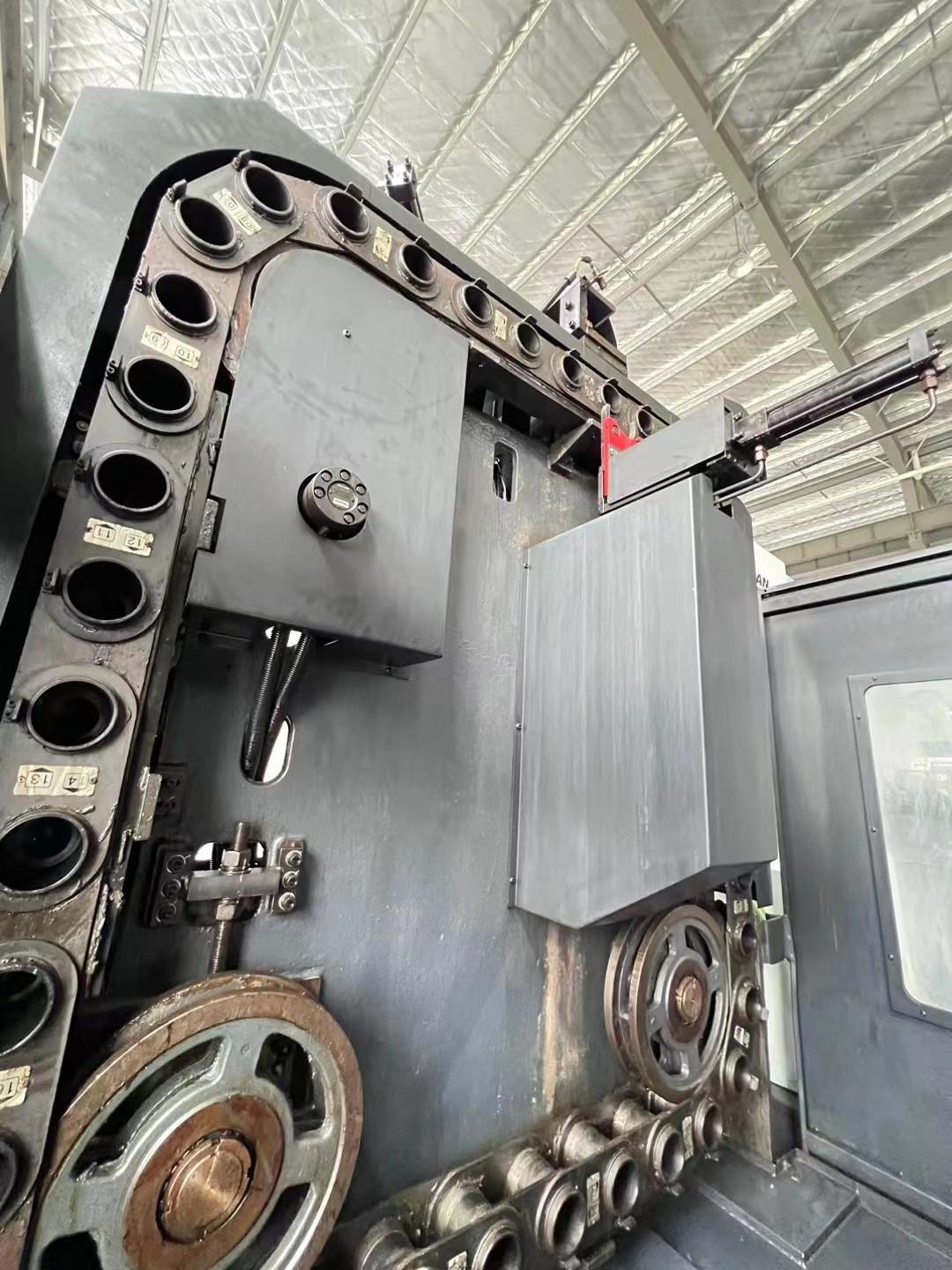

    Tool magazine :40

    Footage :6485x3857x3041mm

    Machine weight :18000kg

    Rotary worktable indexing resolution: 0.001 deg

    Center flushing

    Chain plate chip conveyor

    Three axes rigid guideway

    Hydraulic clamp interface
