• Inventory number：20100
• Brand：DAHLIH
• Model：MCV-1020A
• Origin：Taiwan
• Location：China
• Year：2008
• Create Time：2023-05-04

Specifications:

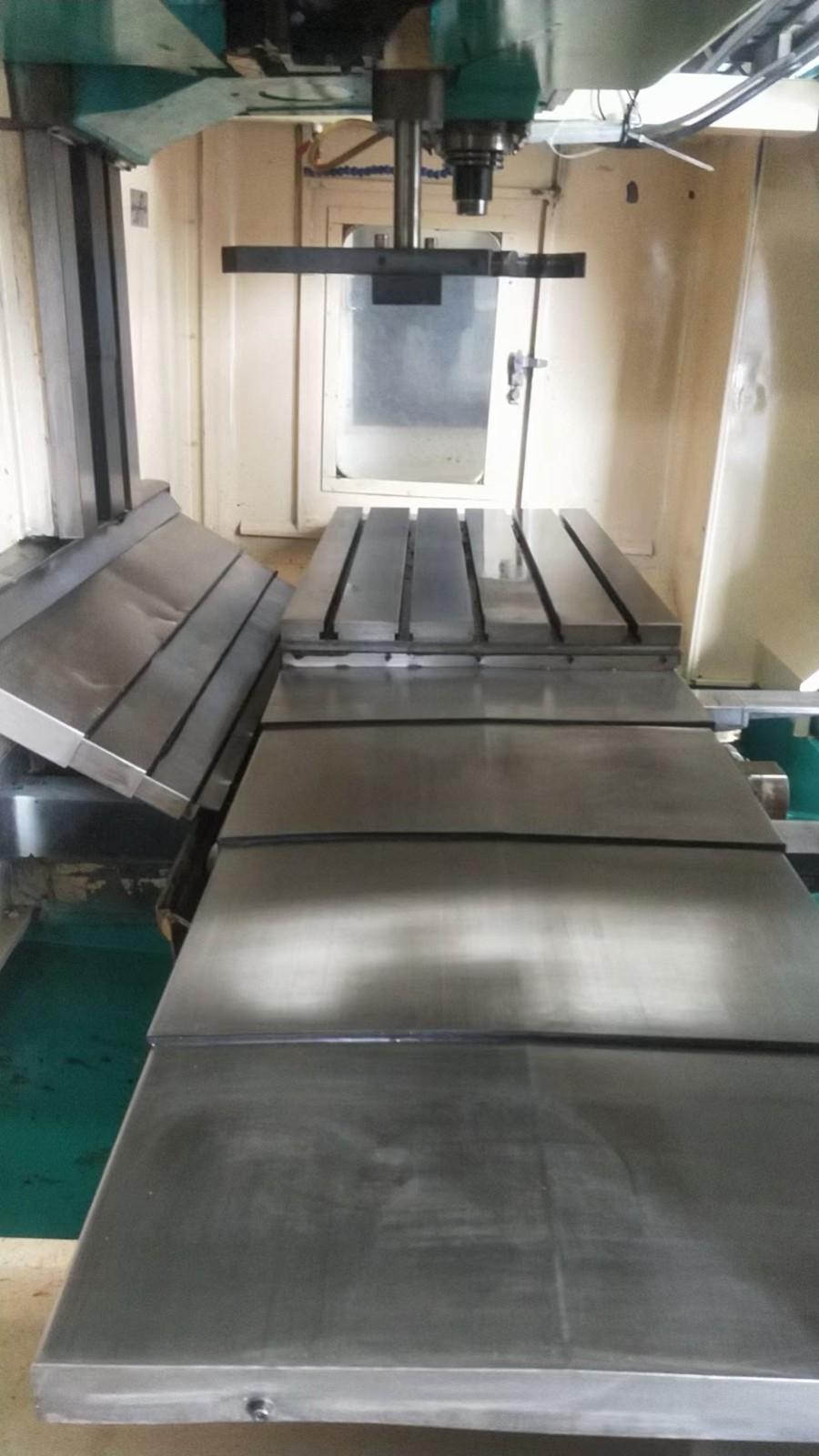

• Worktable size :1250x660mm

  T-slot (width X number of slots):18X5mm

  Worktable load :1000/2200kg

  X*Y*Z axis travels:1020*520*560mm

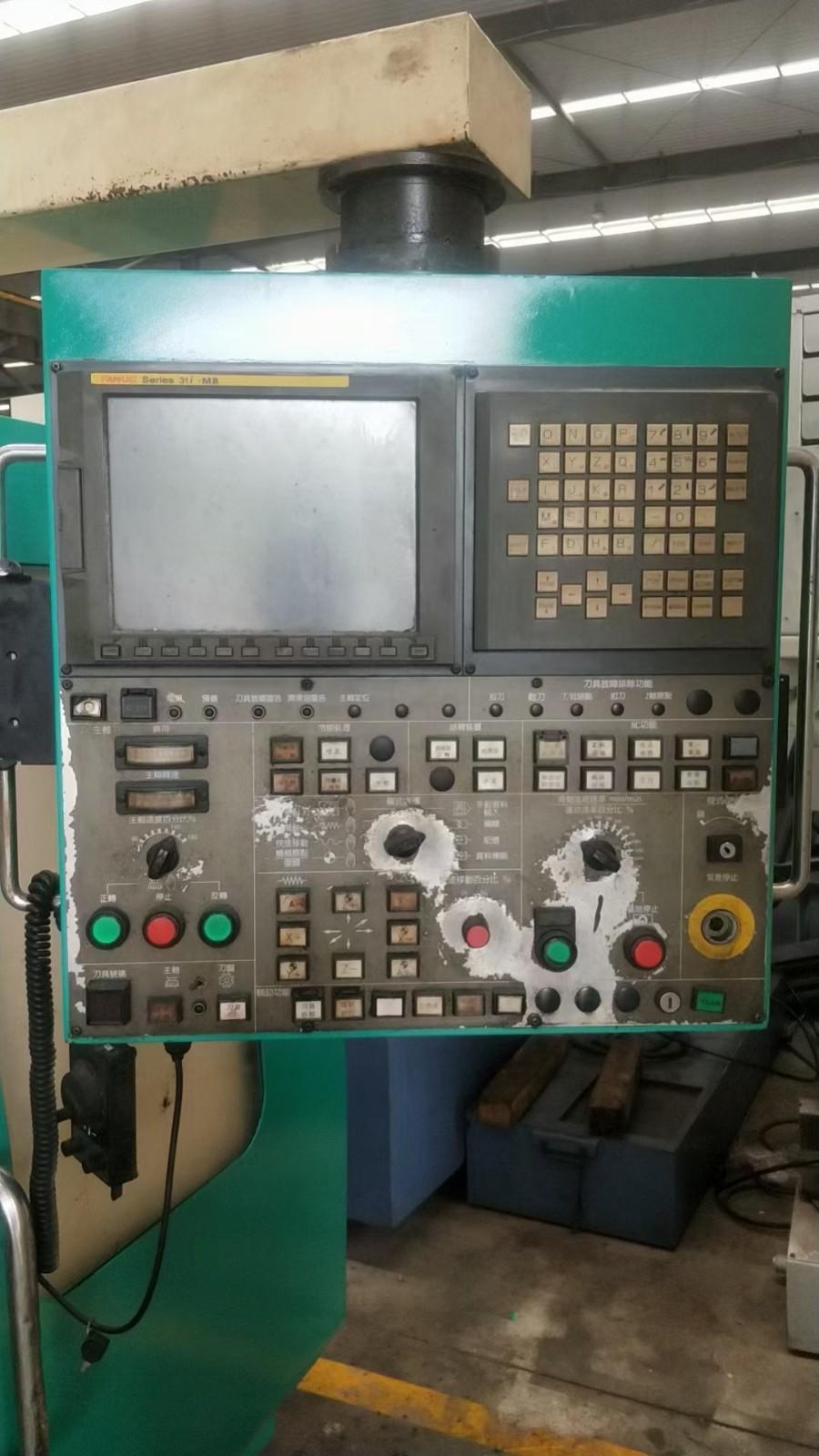

  System: FANUC Oi MD

  Distance from spindle nose to worktable:150-710mm

  Distance from spindle center to machine column surface :600mm

  Spindle speed :6000rpm

  Spindle motor :7.5kw

  Floor area :4440X3575mm

  Net weight: 8000kg

  Three axes rigid guideway

  BT50 spindle

  Gear spindle

  Alpha motor

  A magazine of 24 tools
