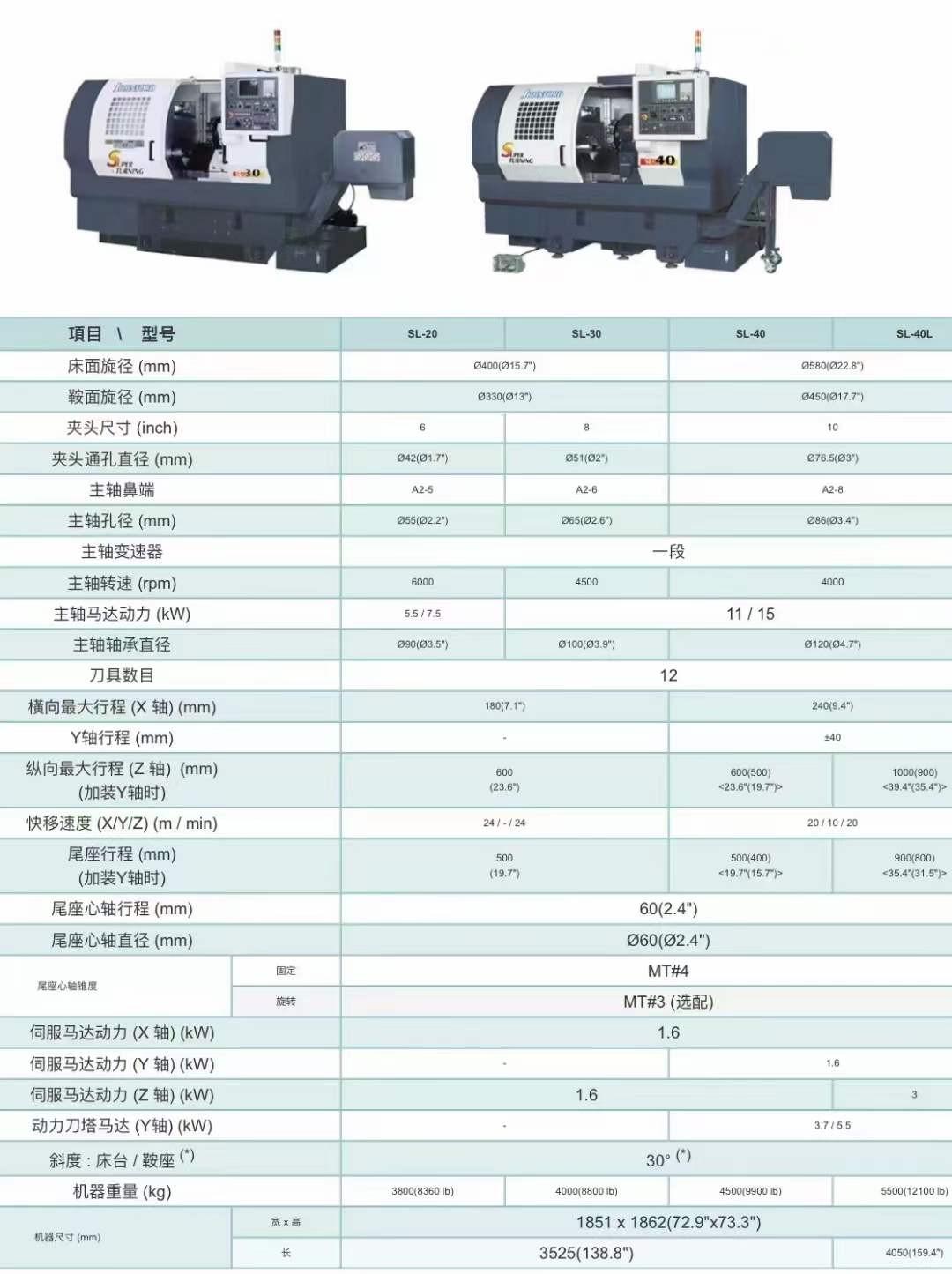

Specifications:
Swing diameter over bed: 400mm
Swing diameter on saddle: 330mm
Chuck size: 8in
Chunk through hole diameter: 51mm
Spindle nose: A2-6
Spindle through hole diameter: 65mm
Spindle speed: 4500rpm
Spindle bearing diameter: 100mm
X * Z axis travels: 180 * 600mm
X * Z fast moving speed: 24 * 24m/min
Machine size (length * width * height): 3525 * 1851 * 1862mm
Machine weight: 4000kg

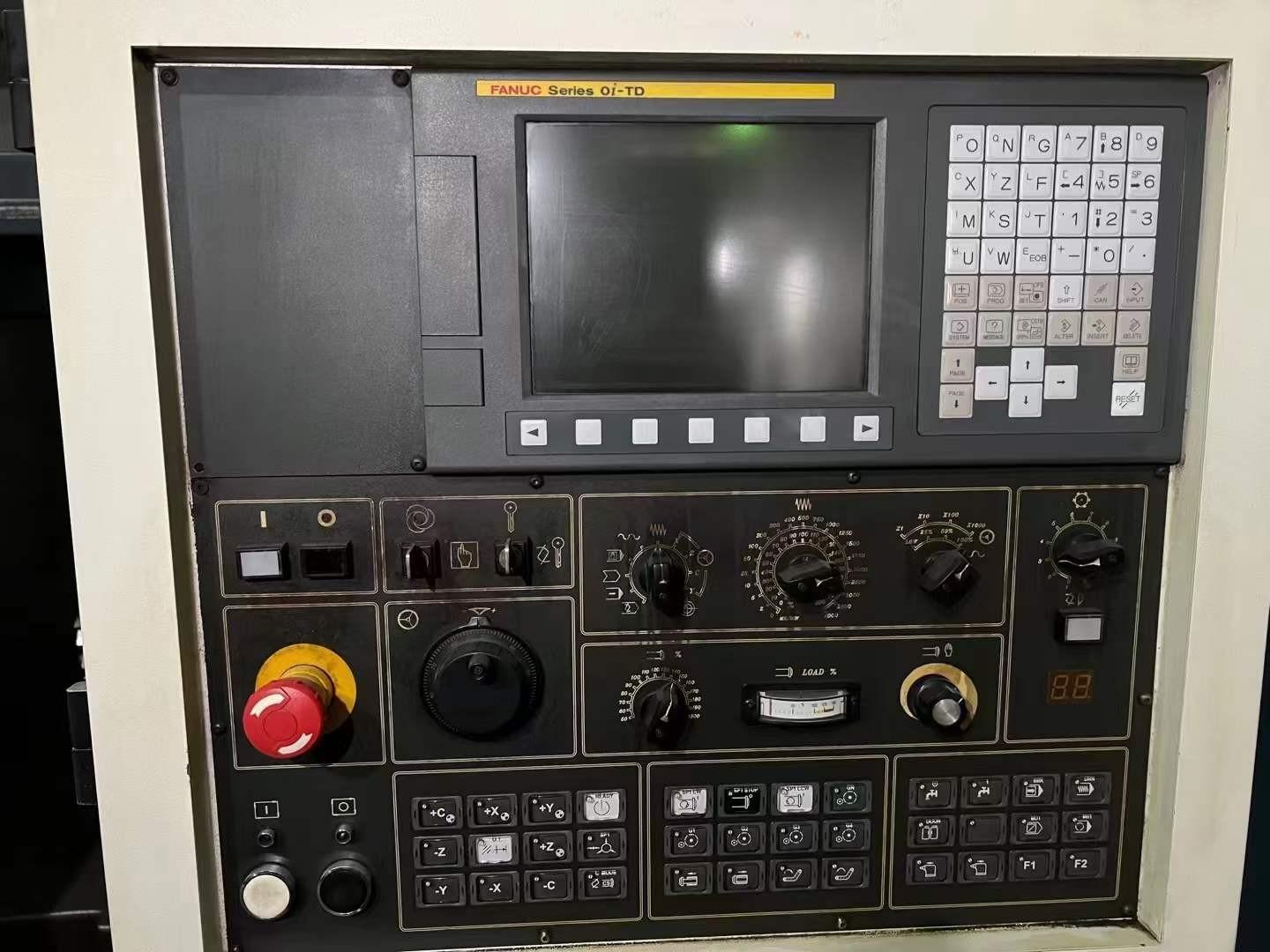

Fanaco Oi TD system
8-inch hydraulic chuck

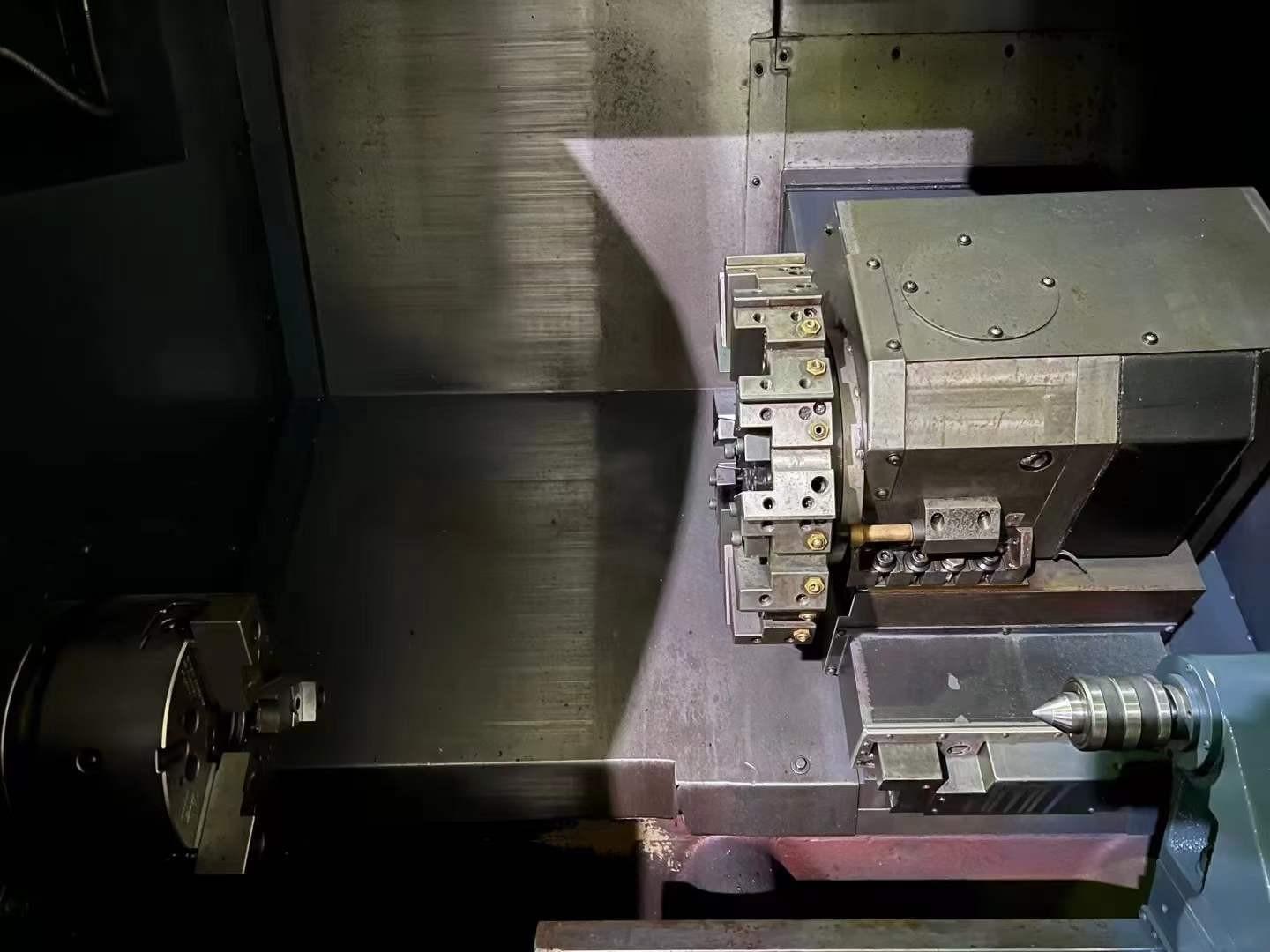

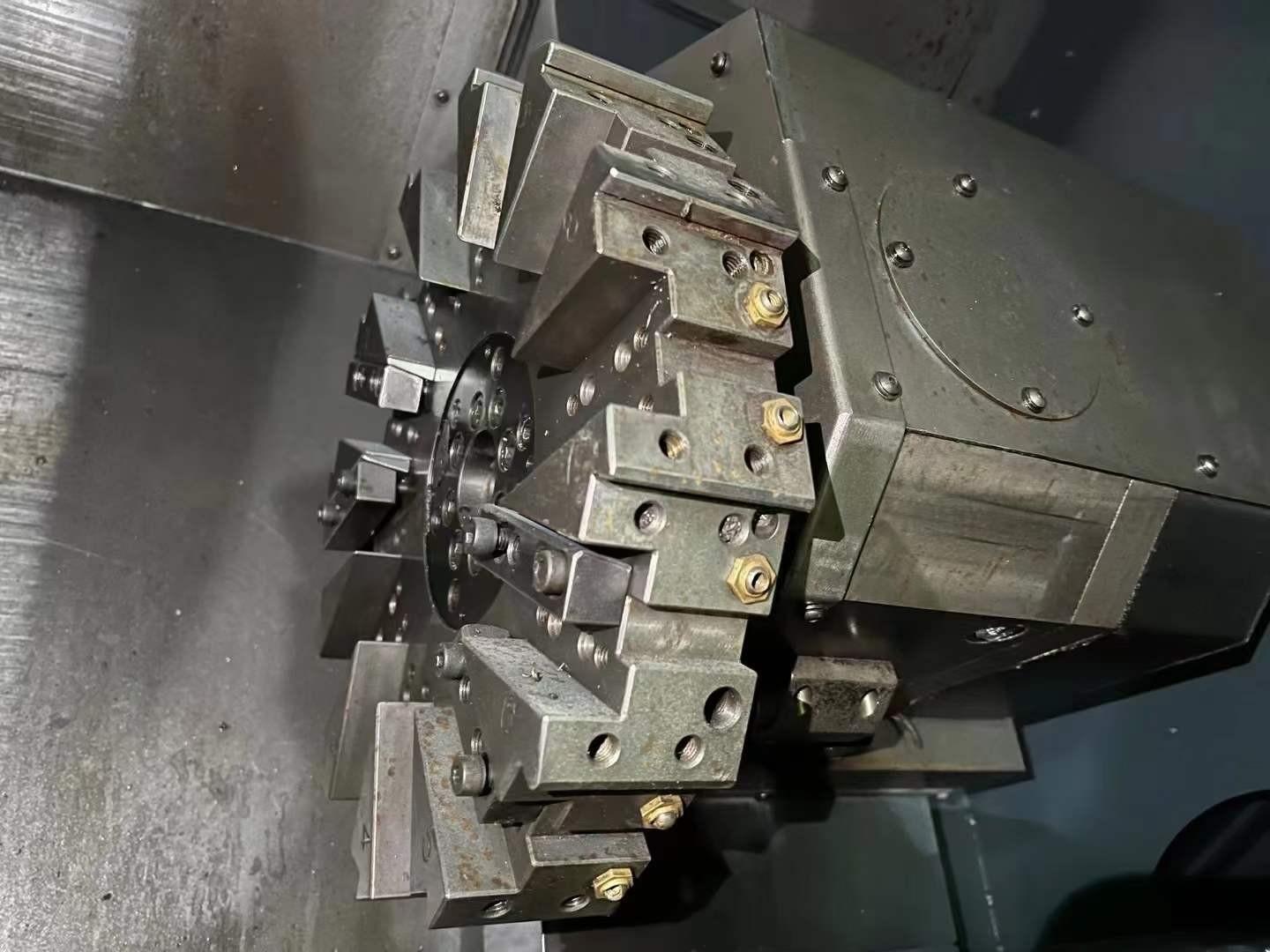

12 positions turret
