Specifications:
Fanuc Oi-TF system

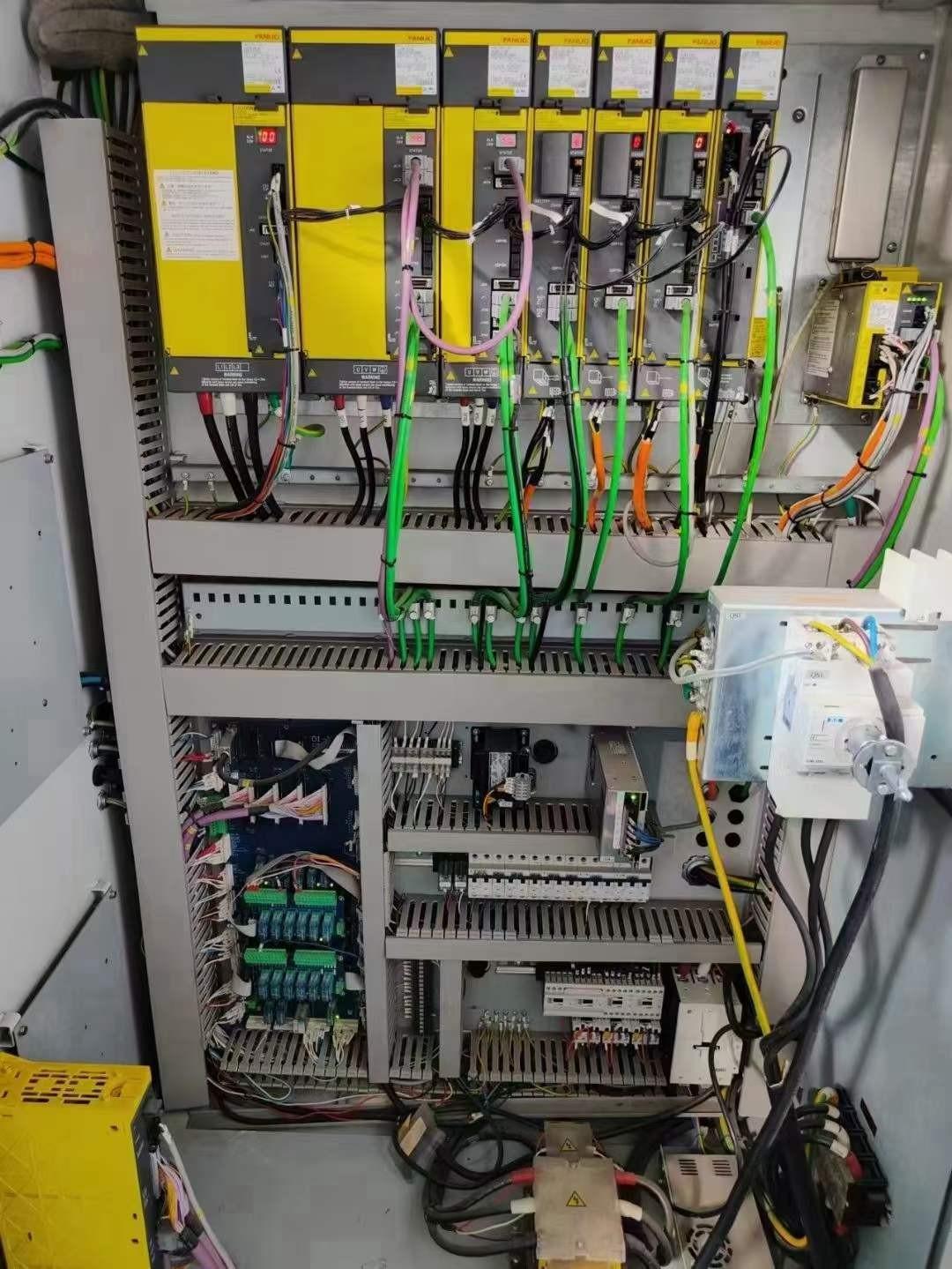

Alpha motor drive
X/Z/B axis travels: 500/550/535mm

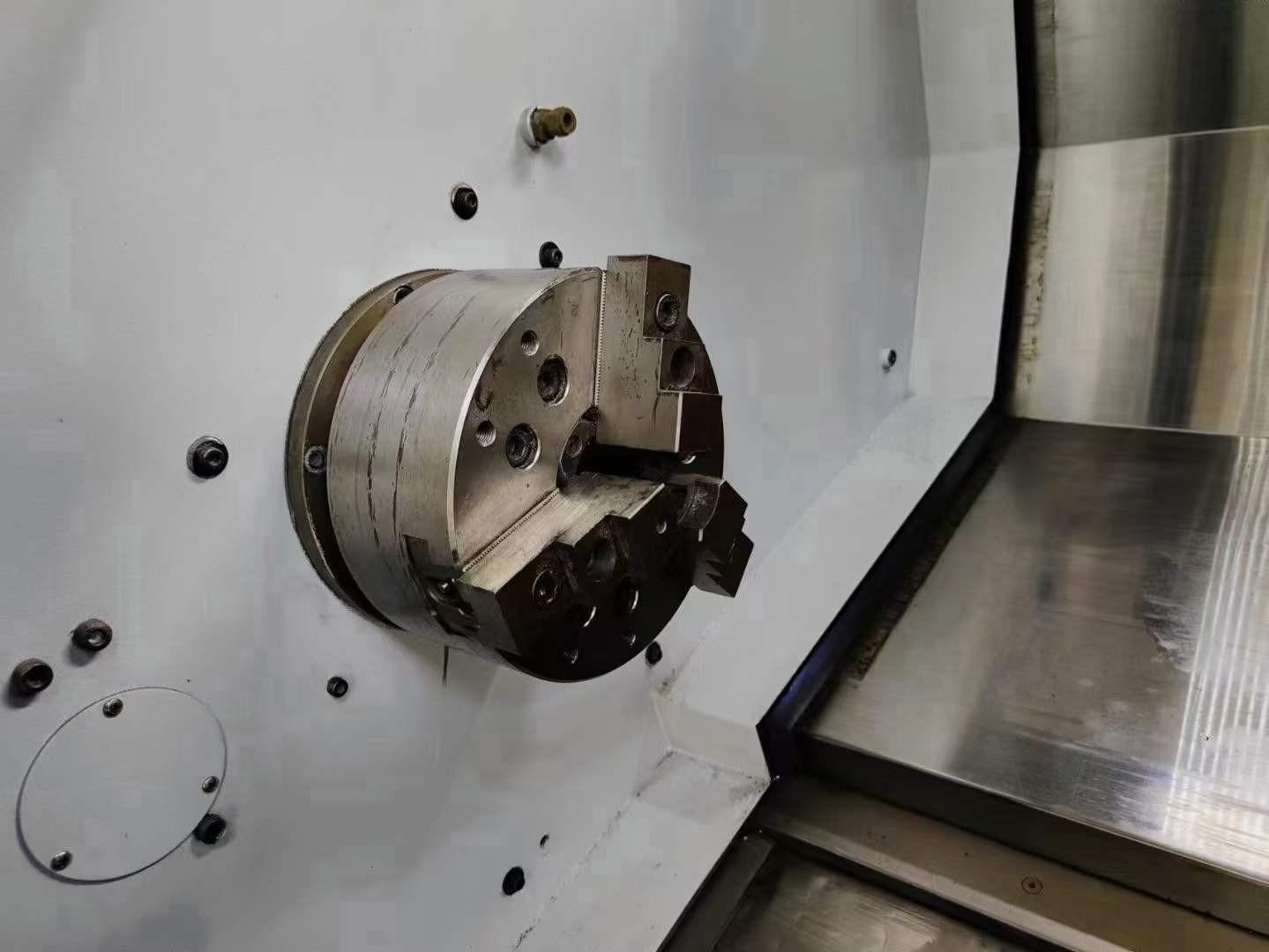

Main chuck:
Chuck size: 8 inches
Maximum bar diameter: 51mm
Maximum speed: 4800rpm
Spindle power: 15KW
Subchuck:
Chuck size: 6 inches
Maximum bar diameter: 46mm
Maximum speed: 6000rpm
Spindle power: 7.5KW
Adjacent tool change time: 0.2 seconds
Diagonal tool change time: 0.5 seconds
Maximum power tool speed: 4000rpm

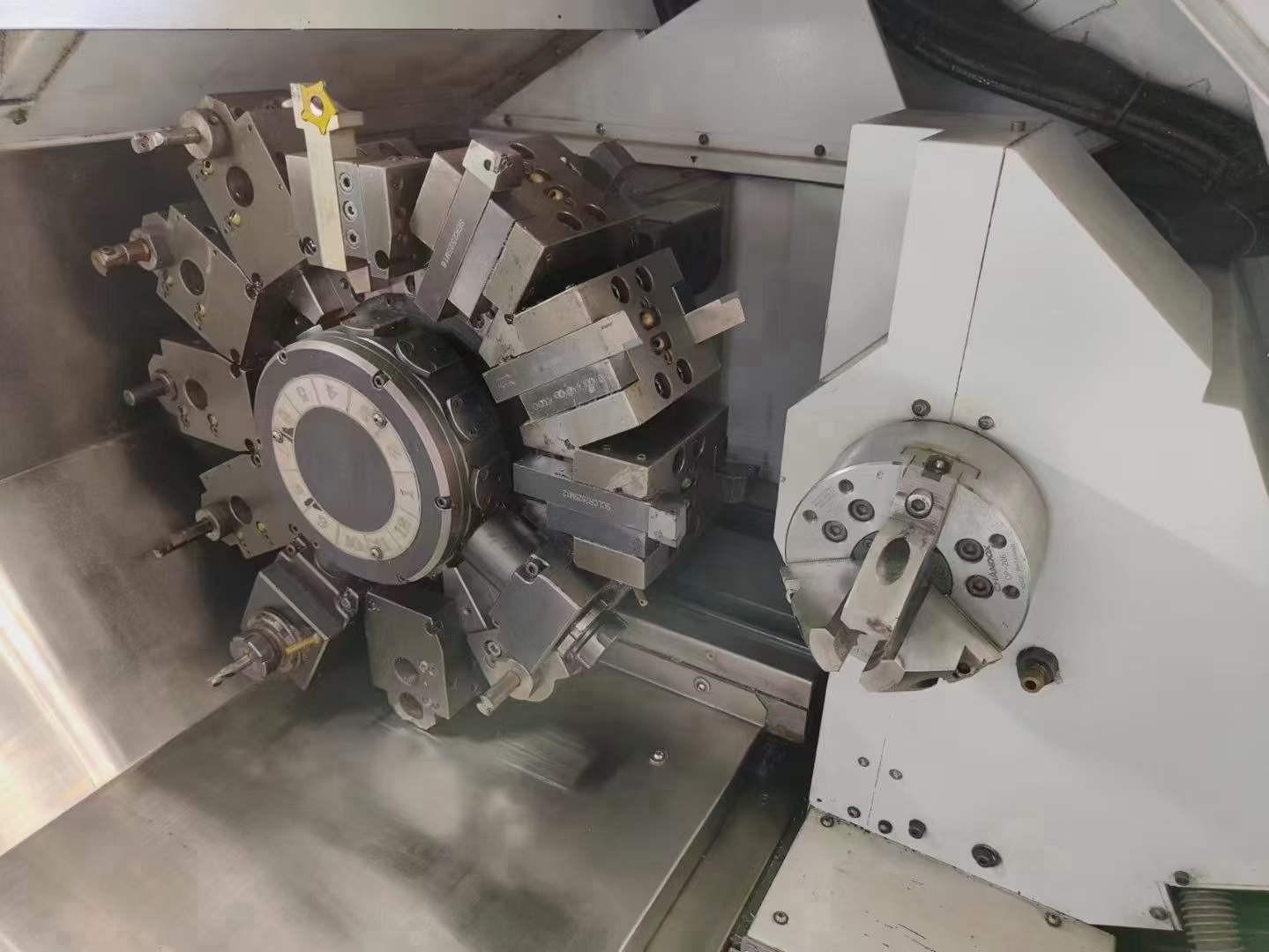

12 positions double-face servo turret
12 positions can be equipped with clamping power tool holders
With chain chip conveyor

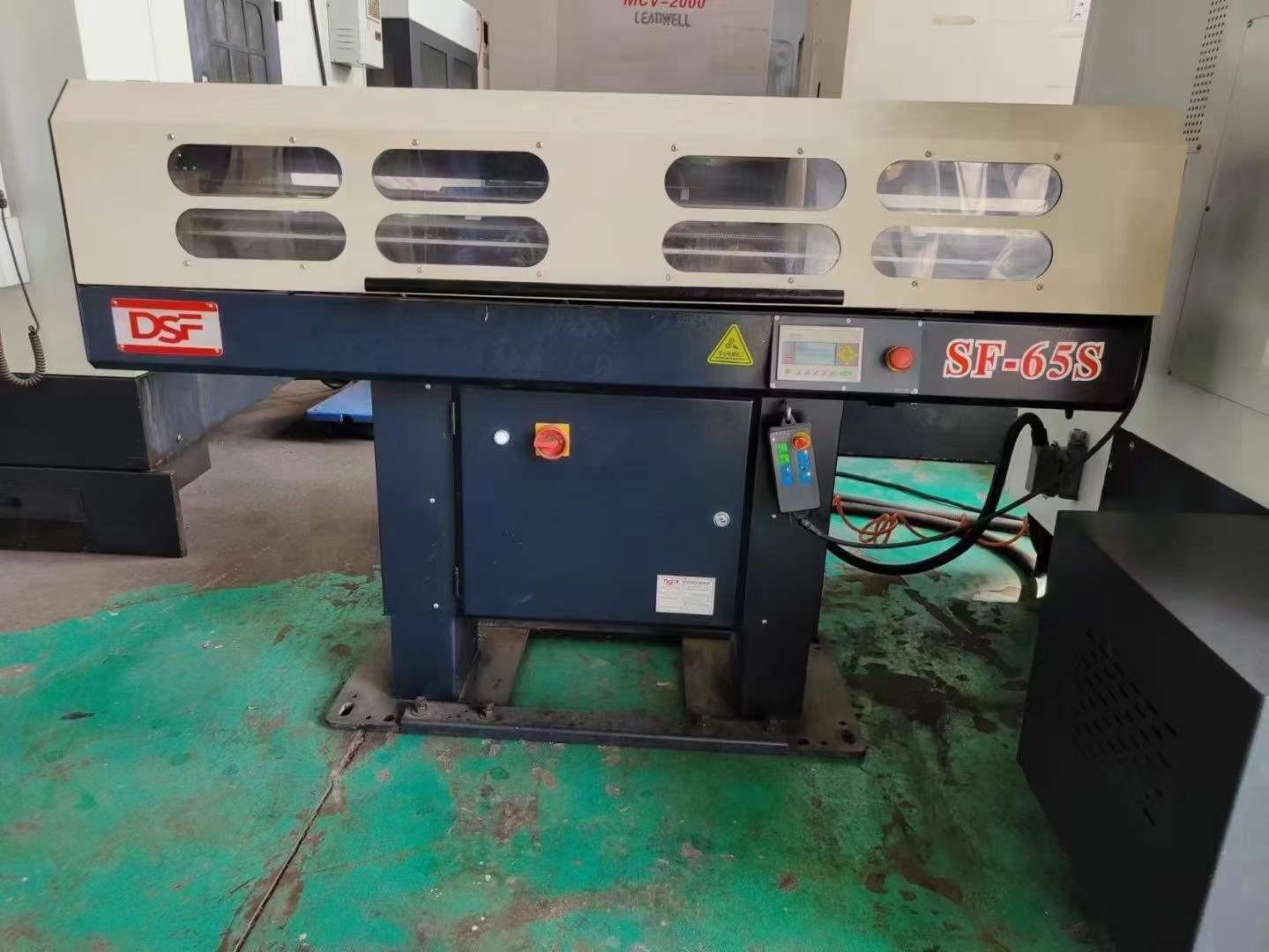

With automatic bar feeder
Used for 3000 hours after installation
