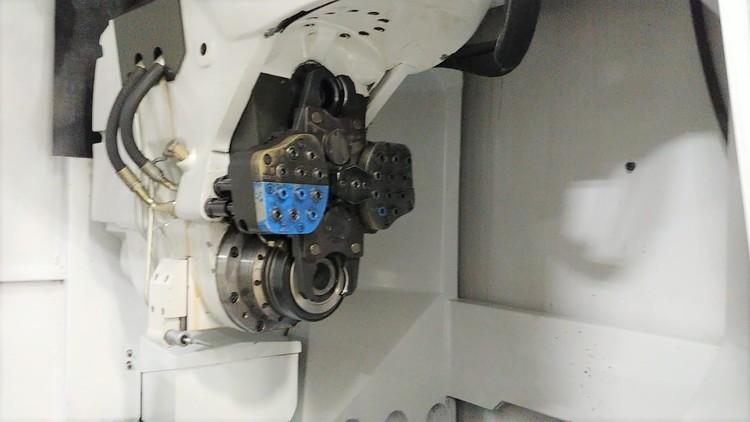

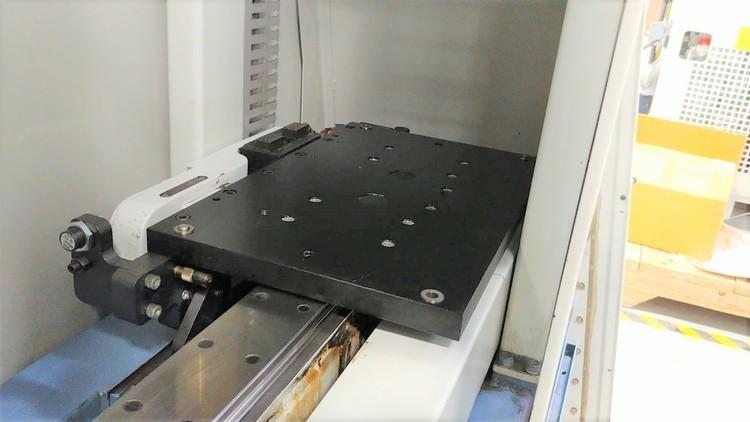

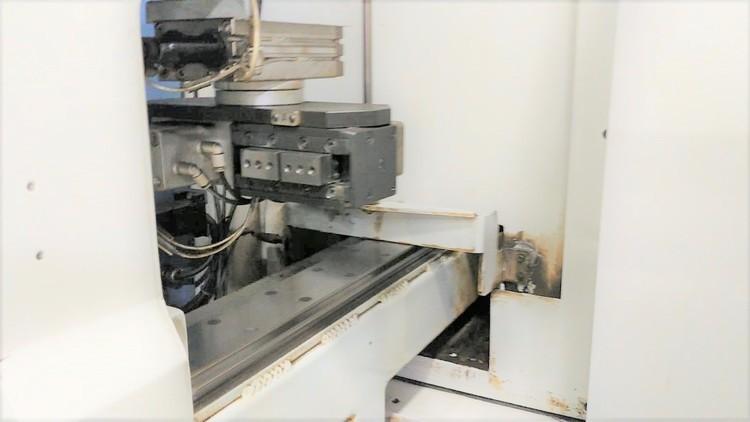

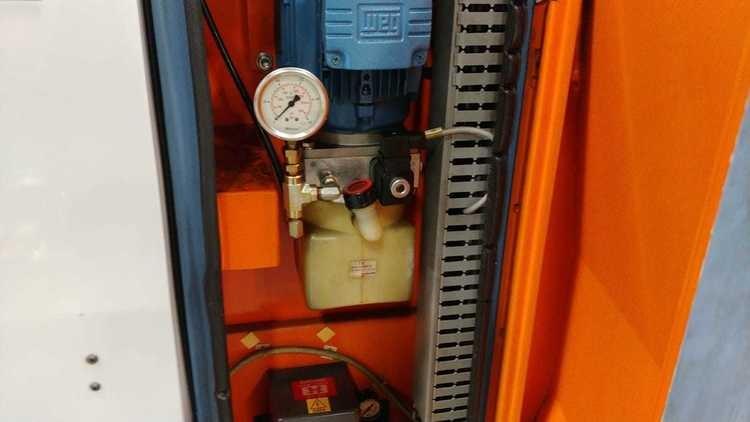

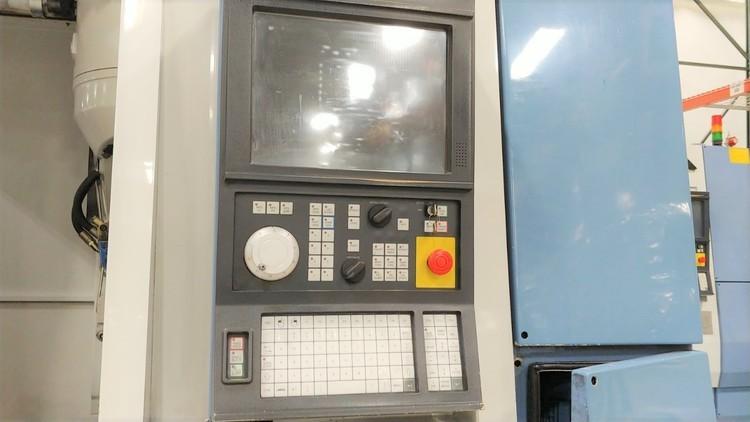

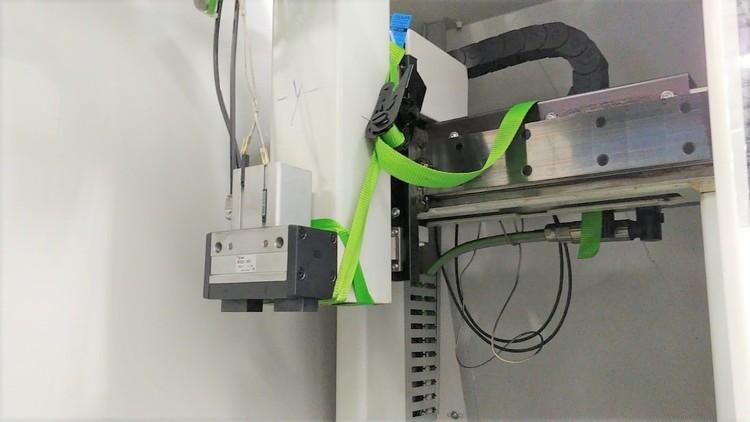

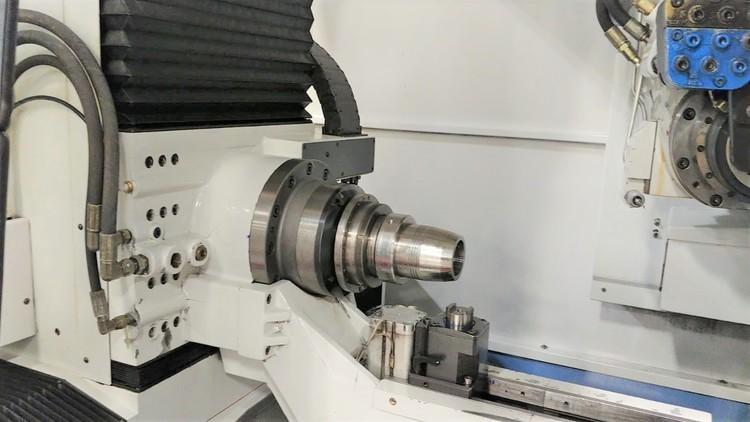

ANCA   TX7+
Tool grinder
[Product Information:]
  • Inventory number:10456
  • Brand:ANCA
  • Model:TX7+
  • Origin:Australia
  • Location:China
  • Year:2007
  • Create Time:2023-04-07

Specifications:

  • Number of axes: 5

    Swing: 305mm

    Distance between centers: 400mm

    Grinding wheel diameter: 203mm

    Power: 49HP

    Maximum spindle speed: 10000 RPM

    X/Y/Z axes travel: 600/249/406mm

    C-axis: 264deg

    A axis rotation range: 360deg

    Maximum tool diameter: 305mm

    Maximum tool length: 400mm

    Maximum tool weight: 25kg

    Position feedback resolution (X/Y/Z axes) : 0.1μm

    Programming resolution (X/Y/Z axes) : 1μm

    Position feedback resolution (C/A axis) : 0.0001 degree

    Programming resolution (C/A axis) : 0.001 degrees

    Grinding spindle power: 49HP

    Maximum grinding spindle speed : 10000rpm

    Grinding wheel diameter: 203mm

    Grinding wheel through hole diameter: 51mm

    Machine Footages (excluding loader) : 2540x 1499mm

    Machine height: 2235mm

    Machine weight: 7711kg

    Accessories:

    Windows 8 system

    RN34 Upgrade USO56758

    Manage suite OPC UA RedaX machine

    2 wheel mandrels

    Fire extinguisher

    2x coolant concentrated pipe
