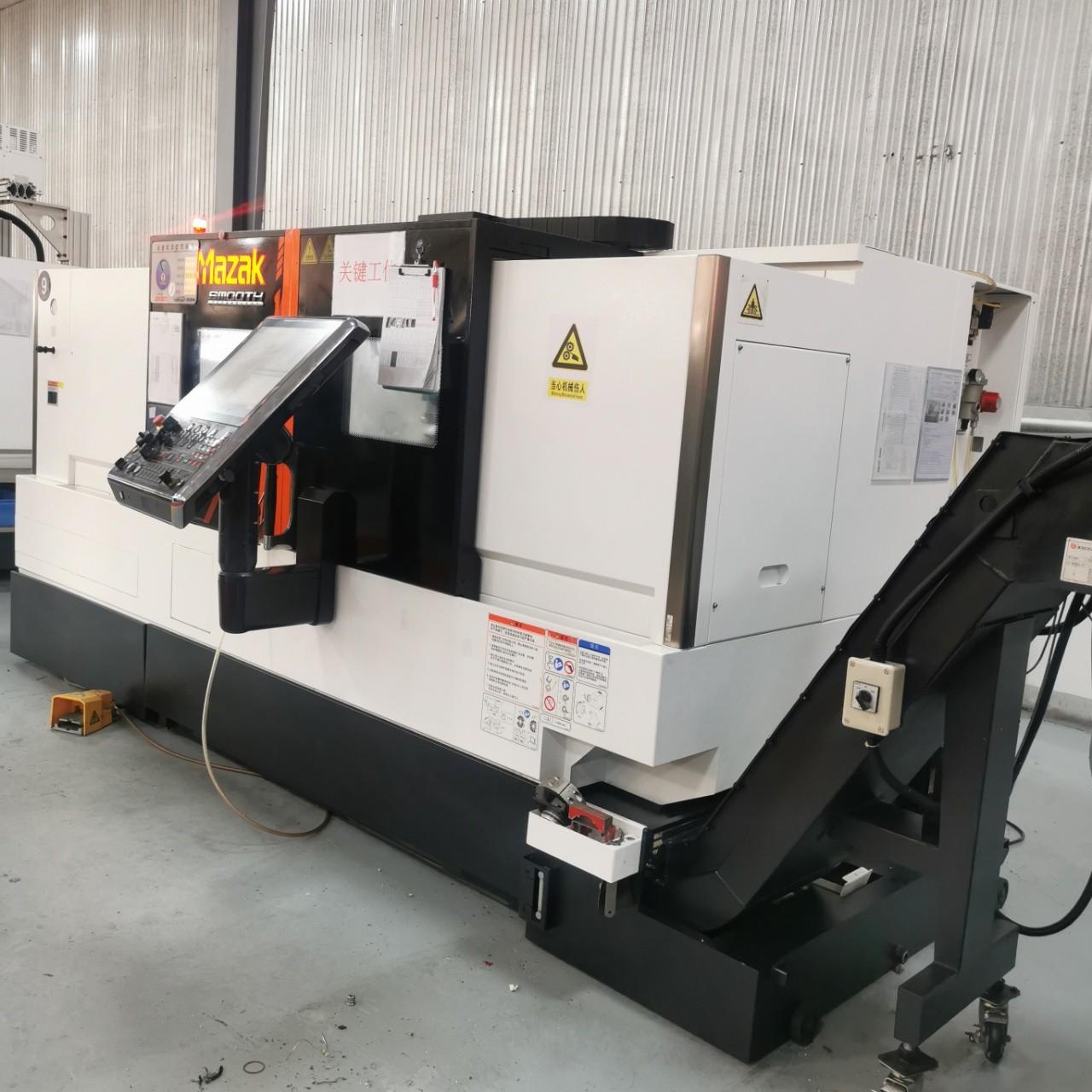

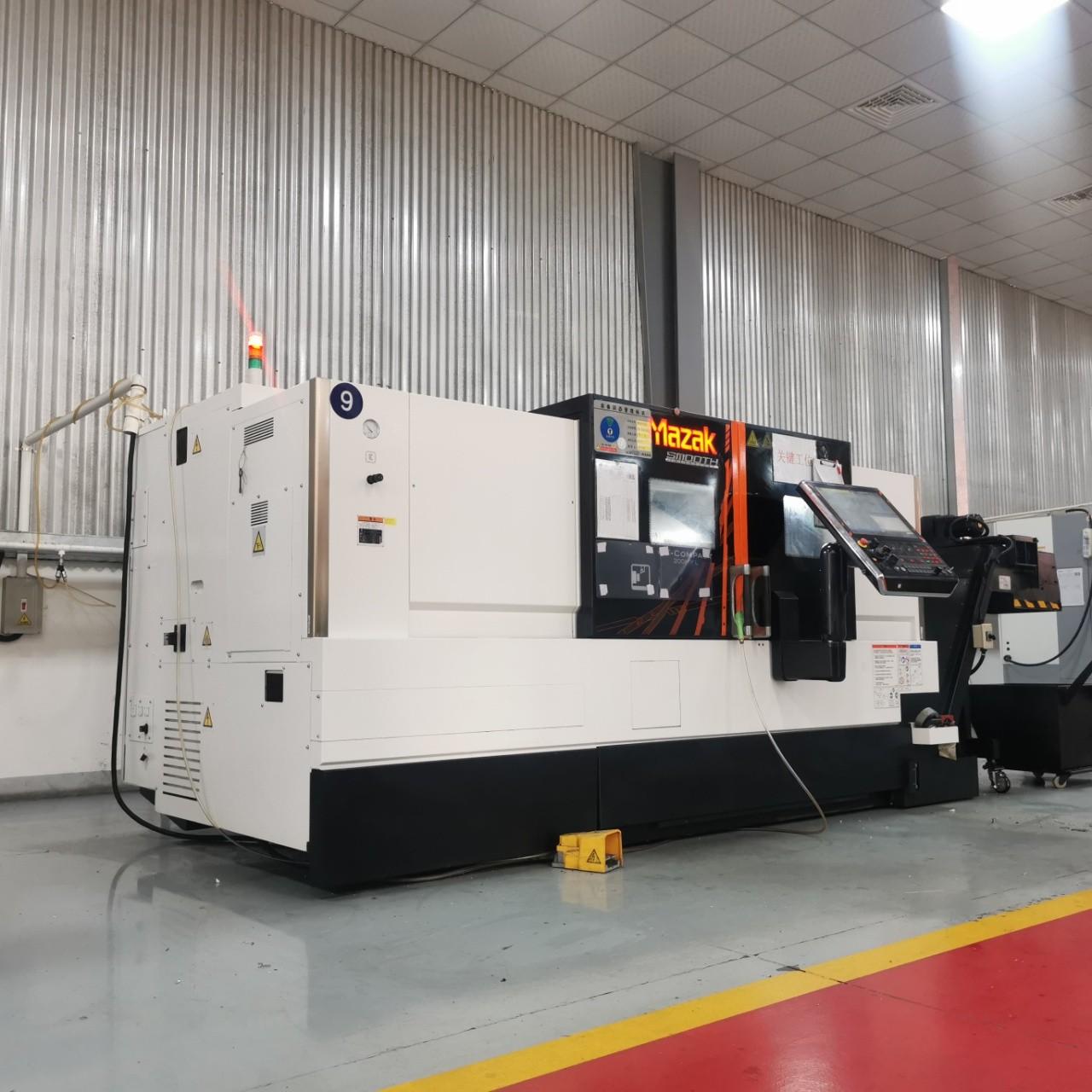

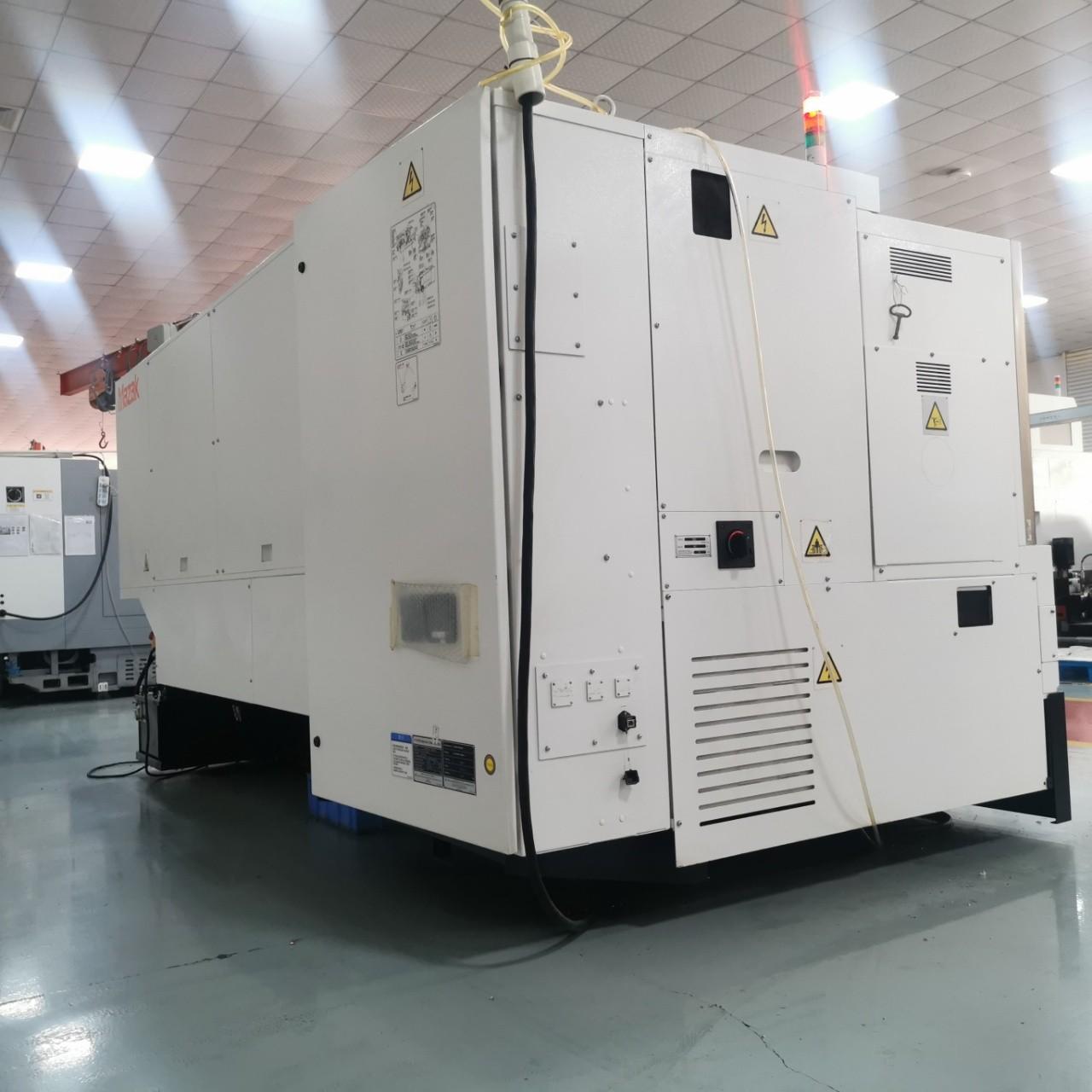

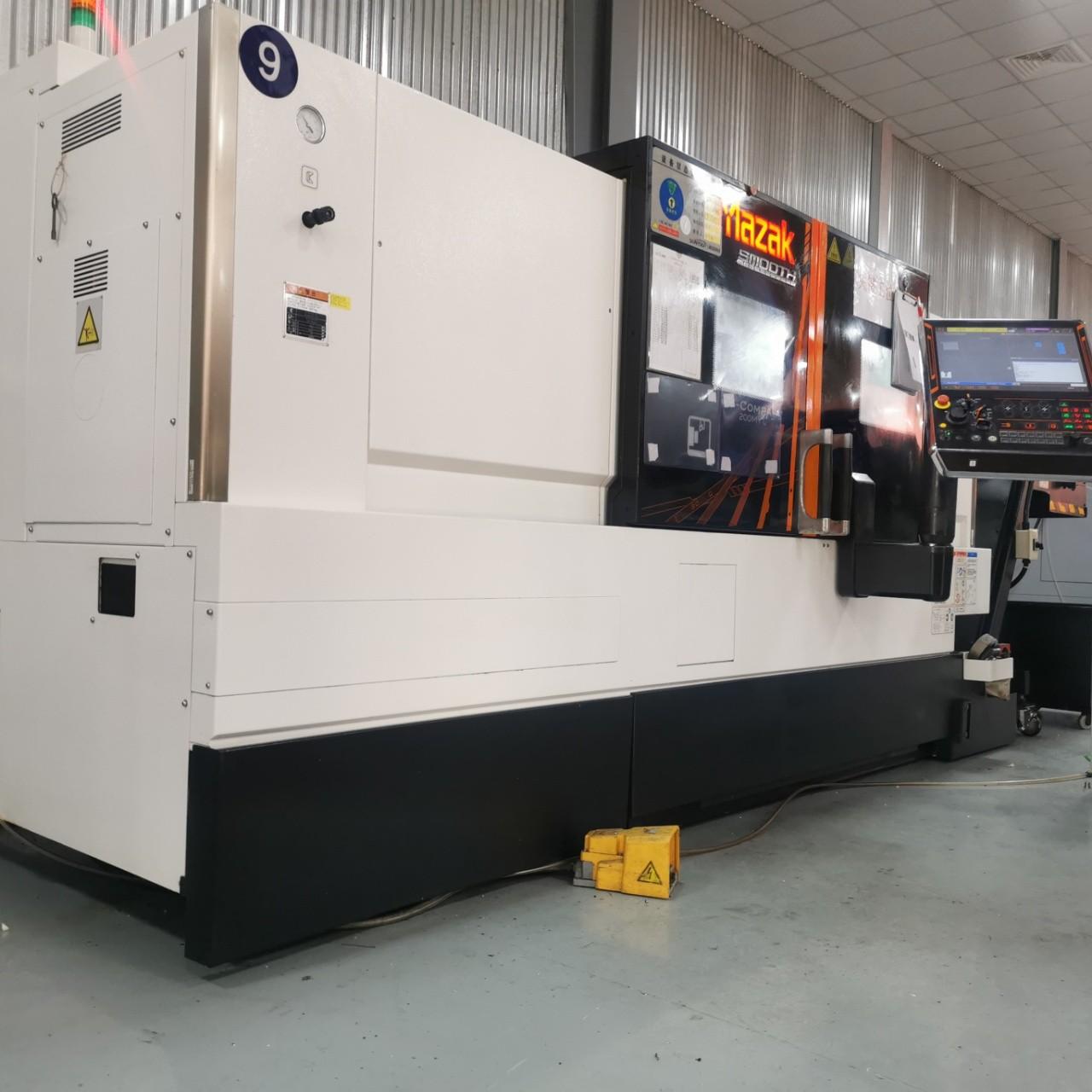

Mazak   QT-COMPACT 200MYL
Turn Mill Machining Centre
[Product Information:]
  • Inventory number：70644
  • Brand：Mazak
  • Model：QT-COMPACT 200MYL
  • Origin：Japan
  • Location：China
  • Year：2020
  • Create Time：2023-03-30

Specifications:

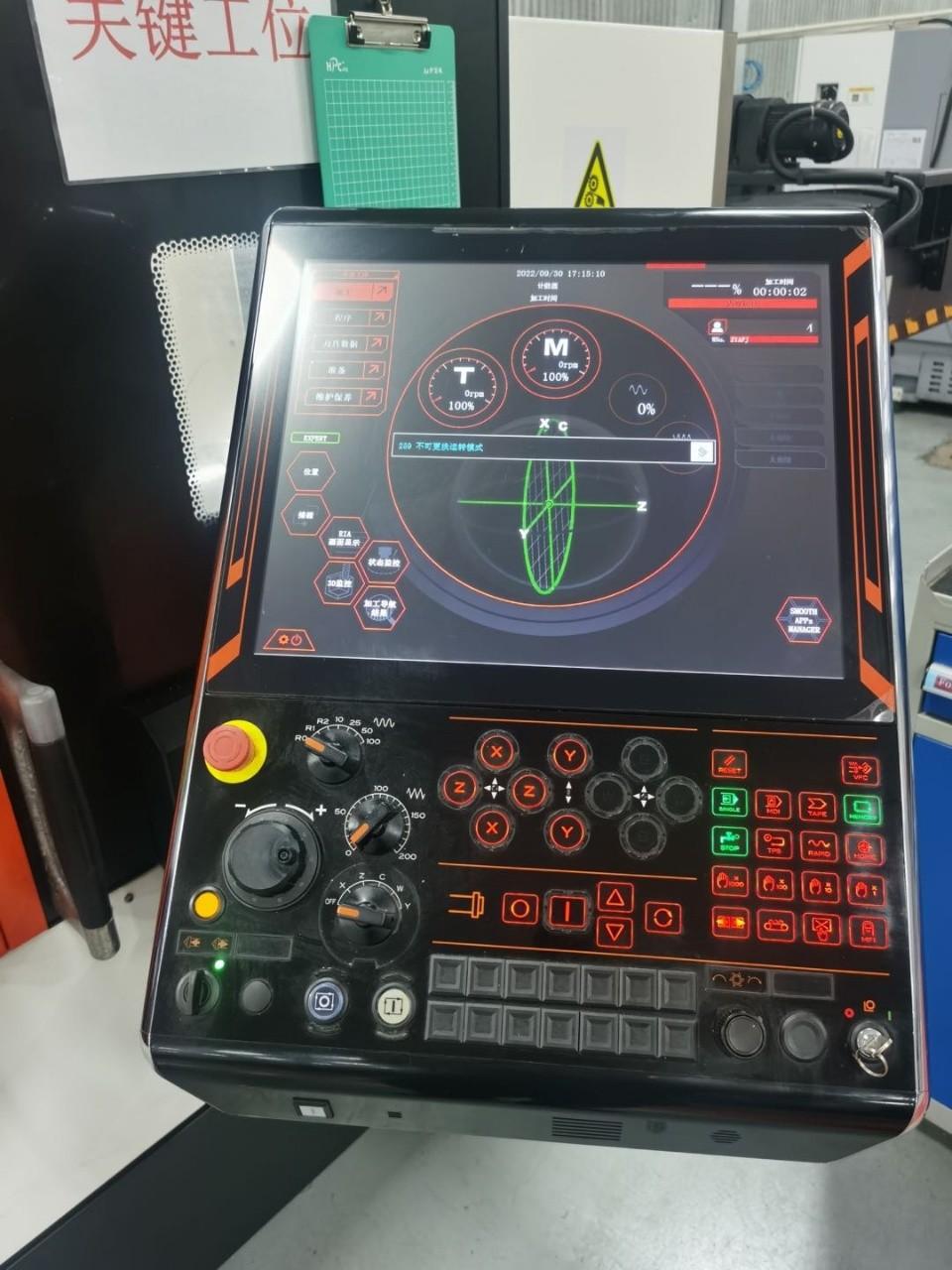

  • Control system :MAZATROL

    X axis travel: 215mm

    Y axis travel: 100mm(± 50mm)

    Z axis travel: 1155mm

    Chuck :8 inches

    Maximum turning diameter: 695mm

    Maximum machining diameter: 340mm

    Maximum turning length: 1085mm

    Spindle through hole: 65mm

    Spindle power: 15kw

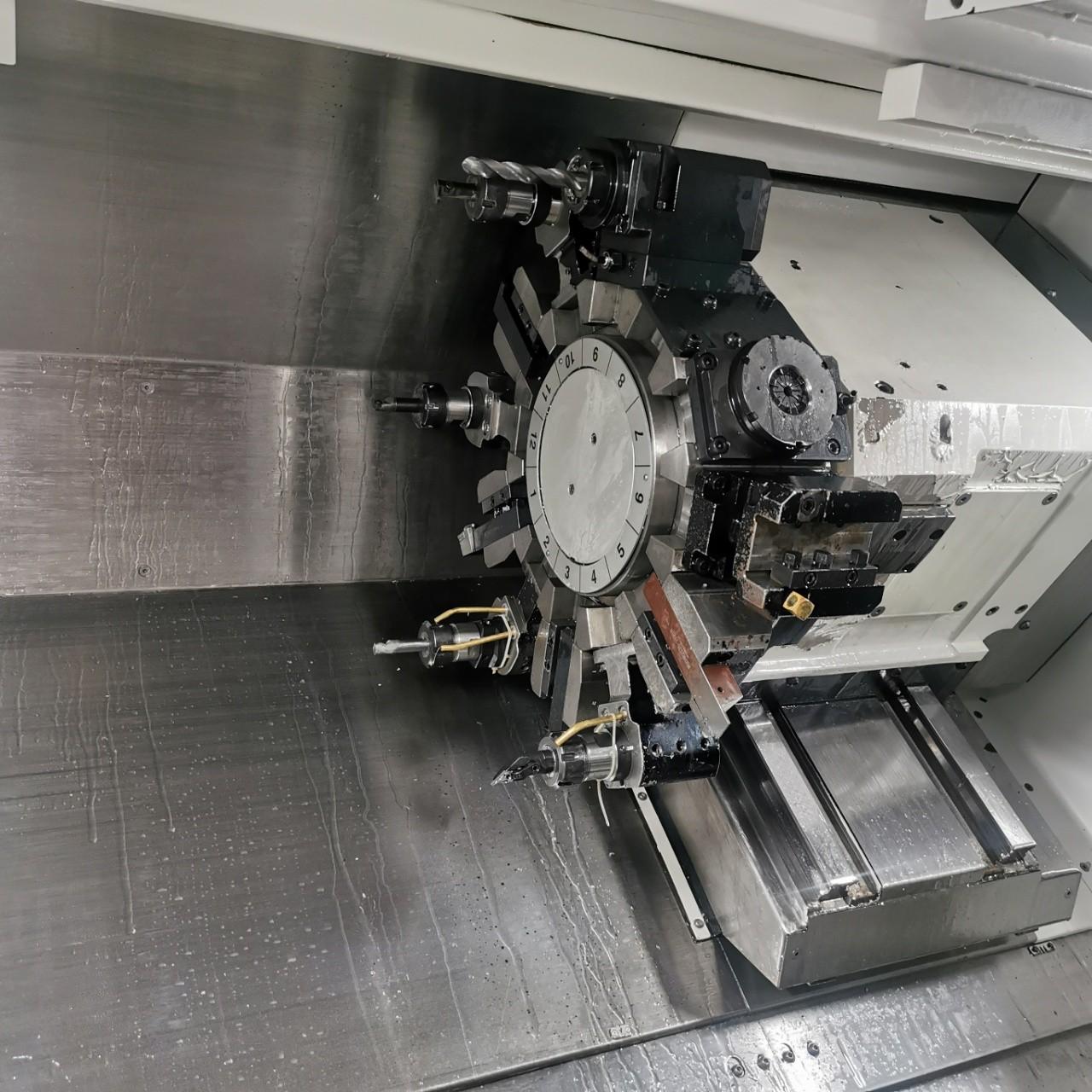

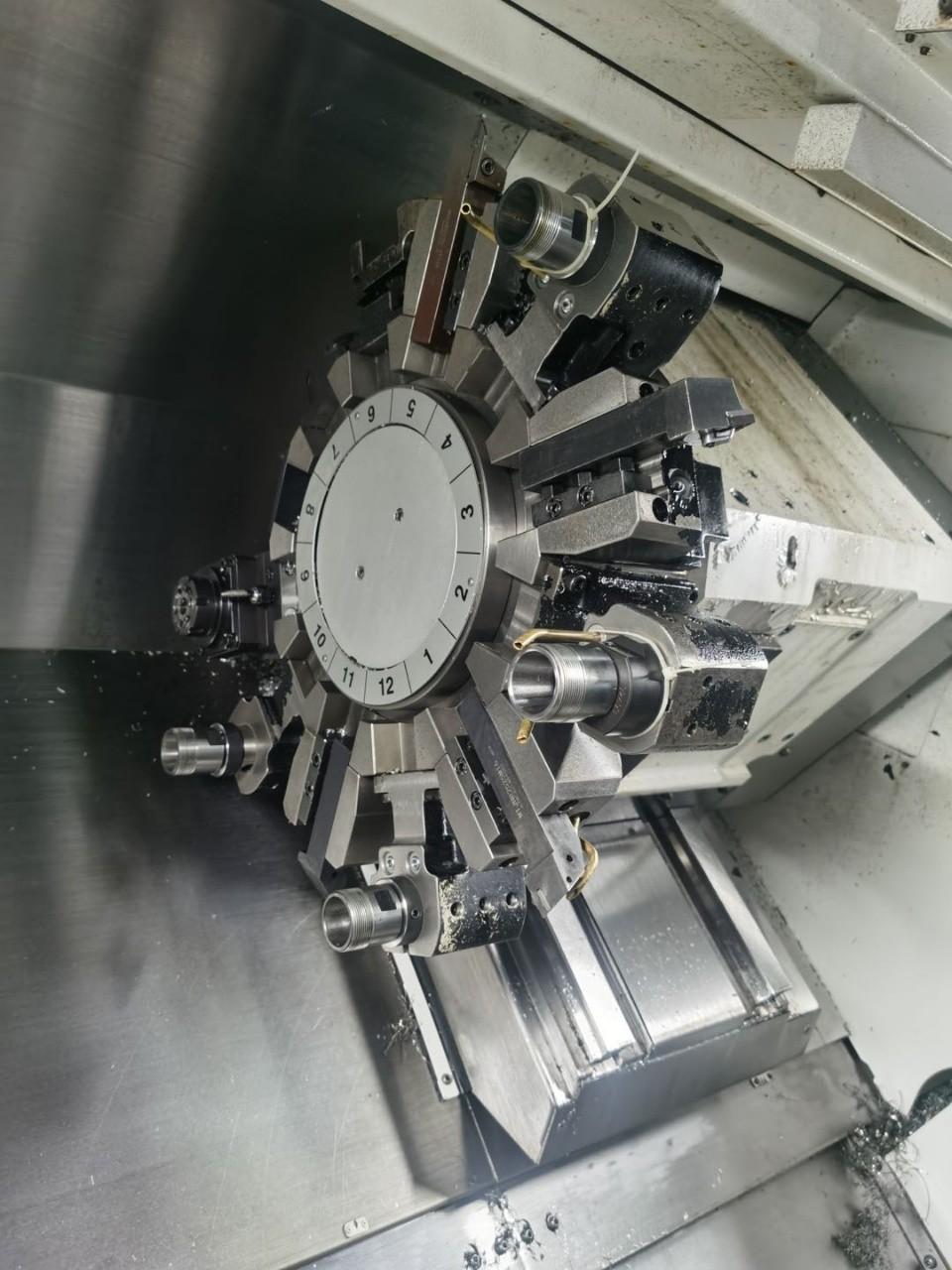

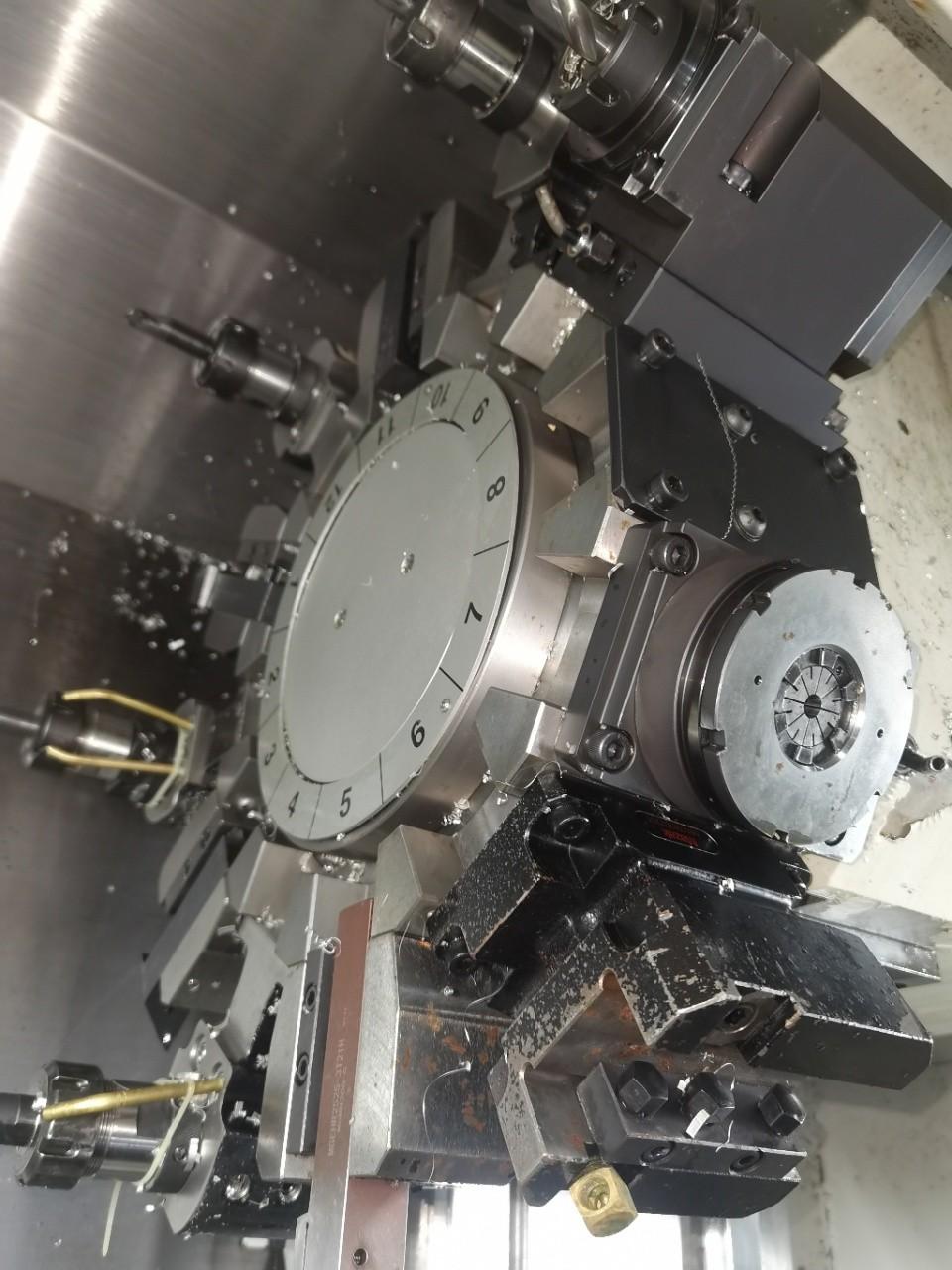

    Turret: 12 positions

    Spindle speed: 6000rpm

    Milling spindle speed: 4500rpm

    X axis fast feed rate: 20000mm/min

    Z axis fast feed rate: 24000mm/min

    Machine footages: 2700*1690*1725mm

    Machine weight: 4650kg
