• Inventory number：70551

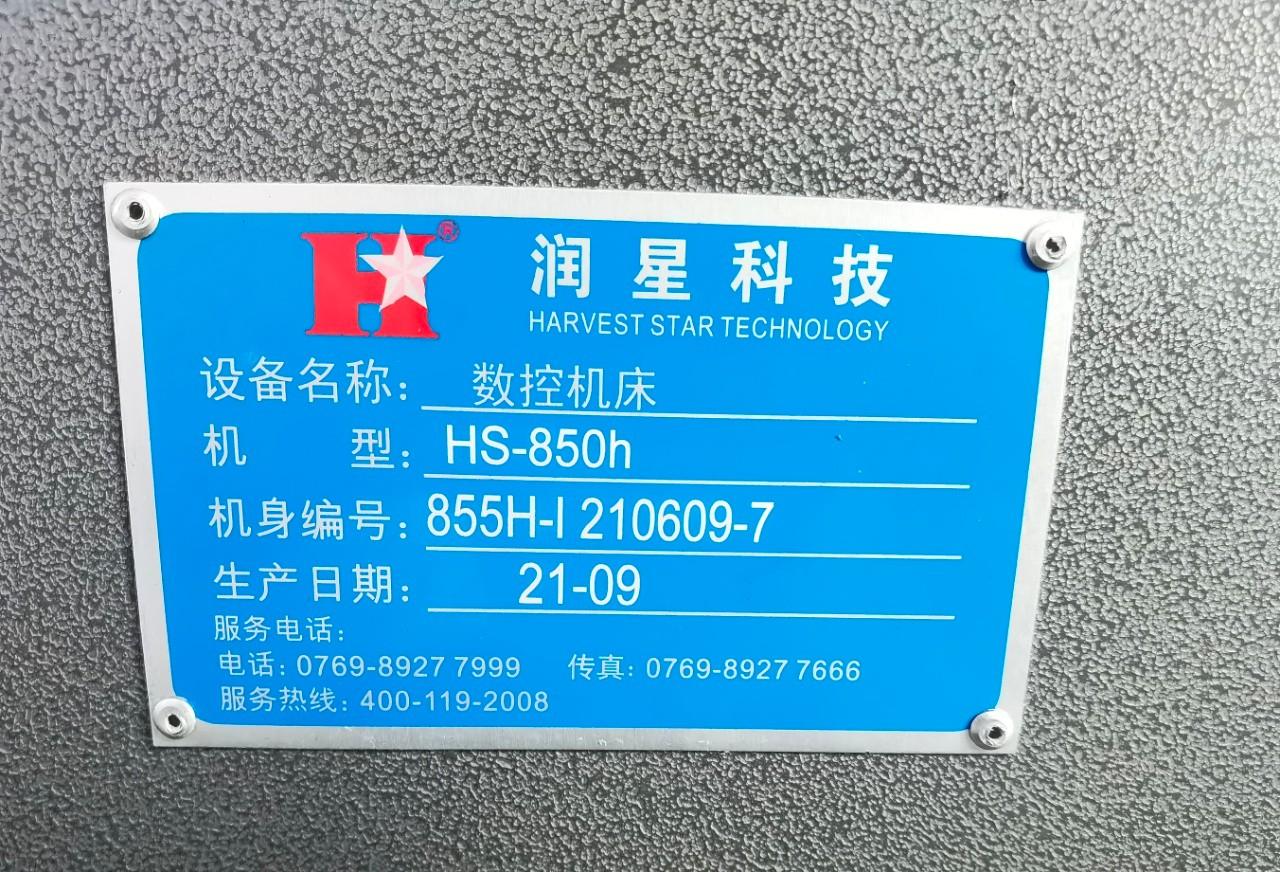

• Brand：HARVEST STAR

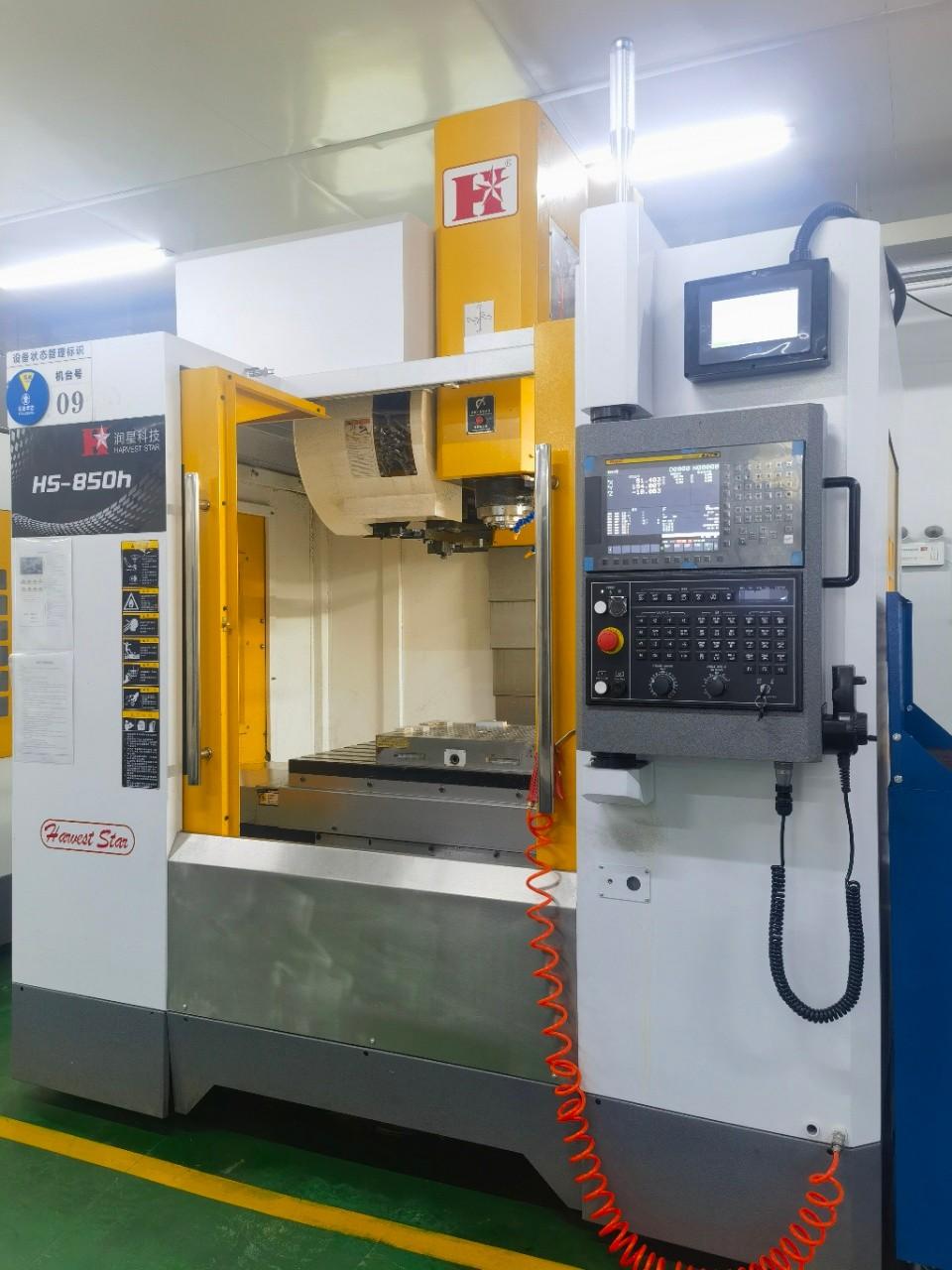

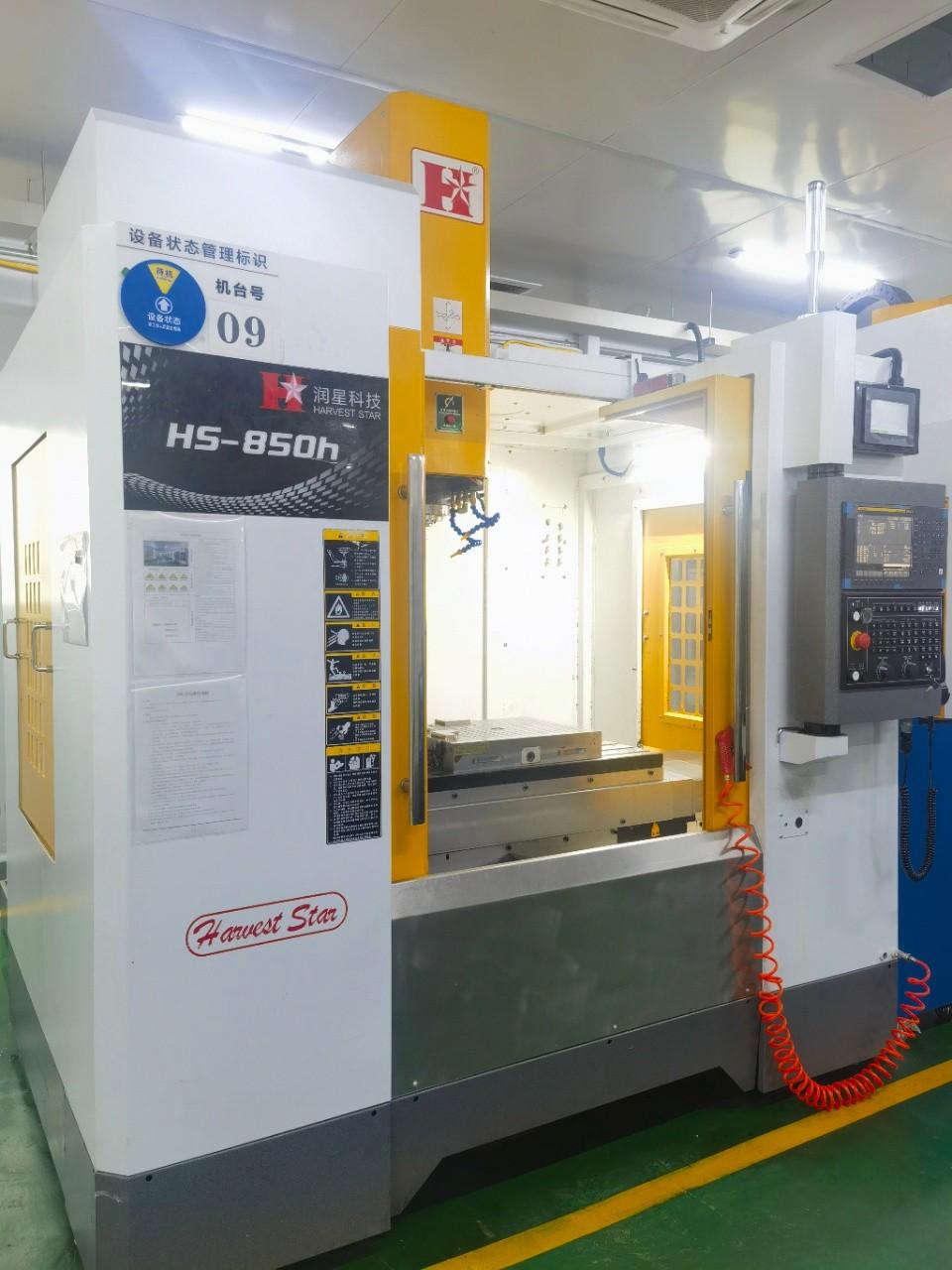

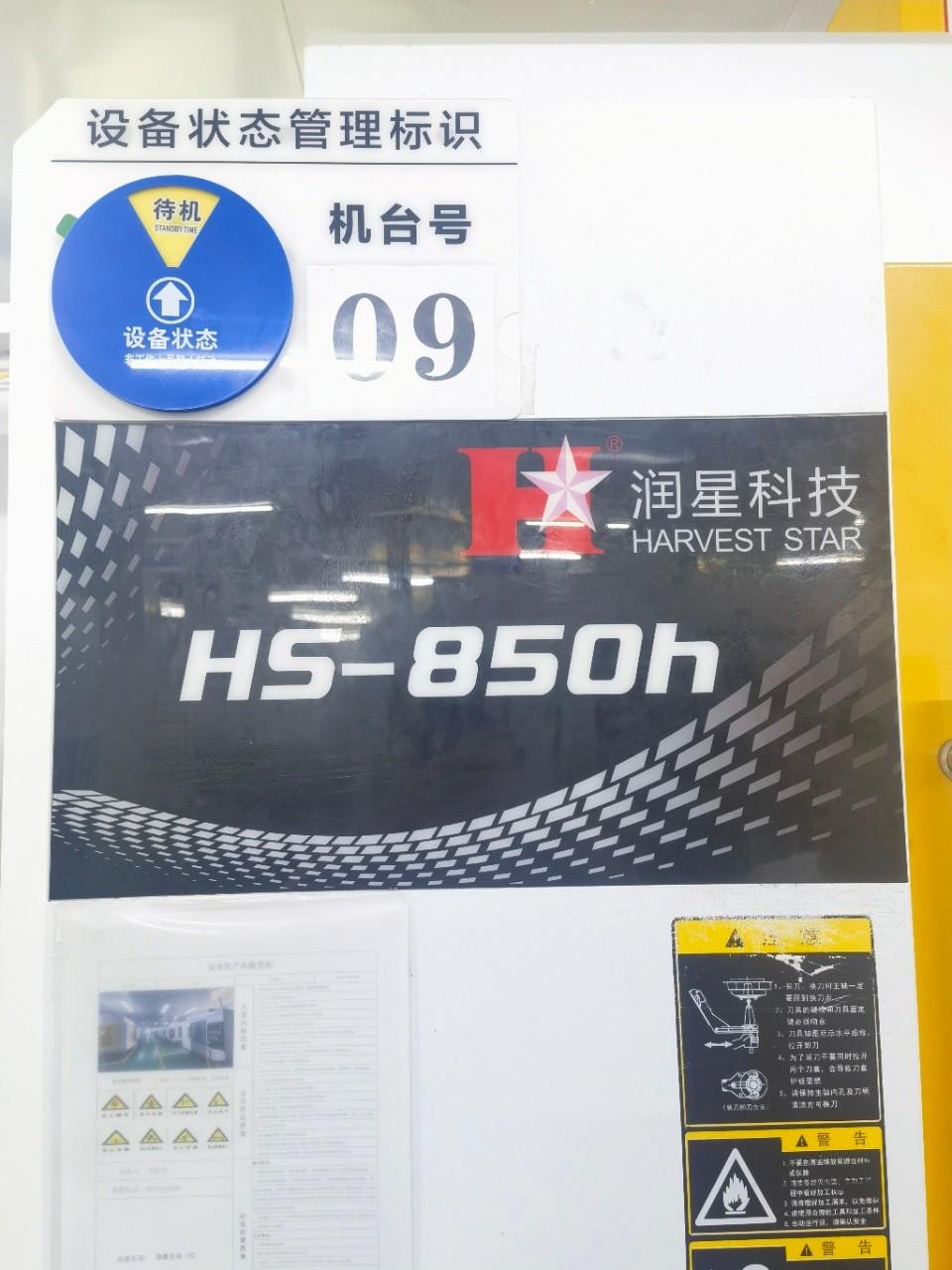

• Model：HS-850h
• Origin：China
• Location：China
• Year：China
• Create Time：2023-03-16

Specifications:

• X/Y/Z travels   800/550/600 mm


  Distance between spindle nose and worktable 100-700mm

  Distance between spindle center and Z axis shield 560 mm

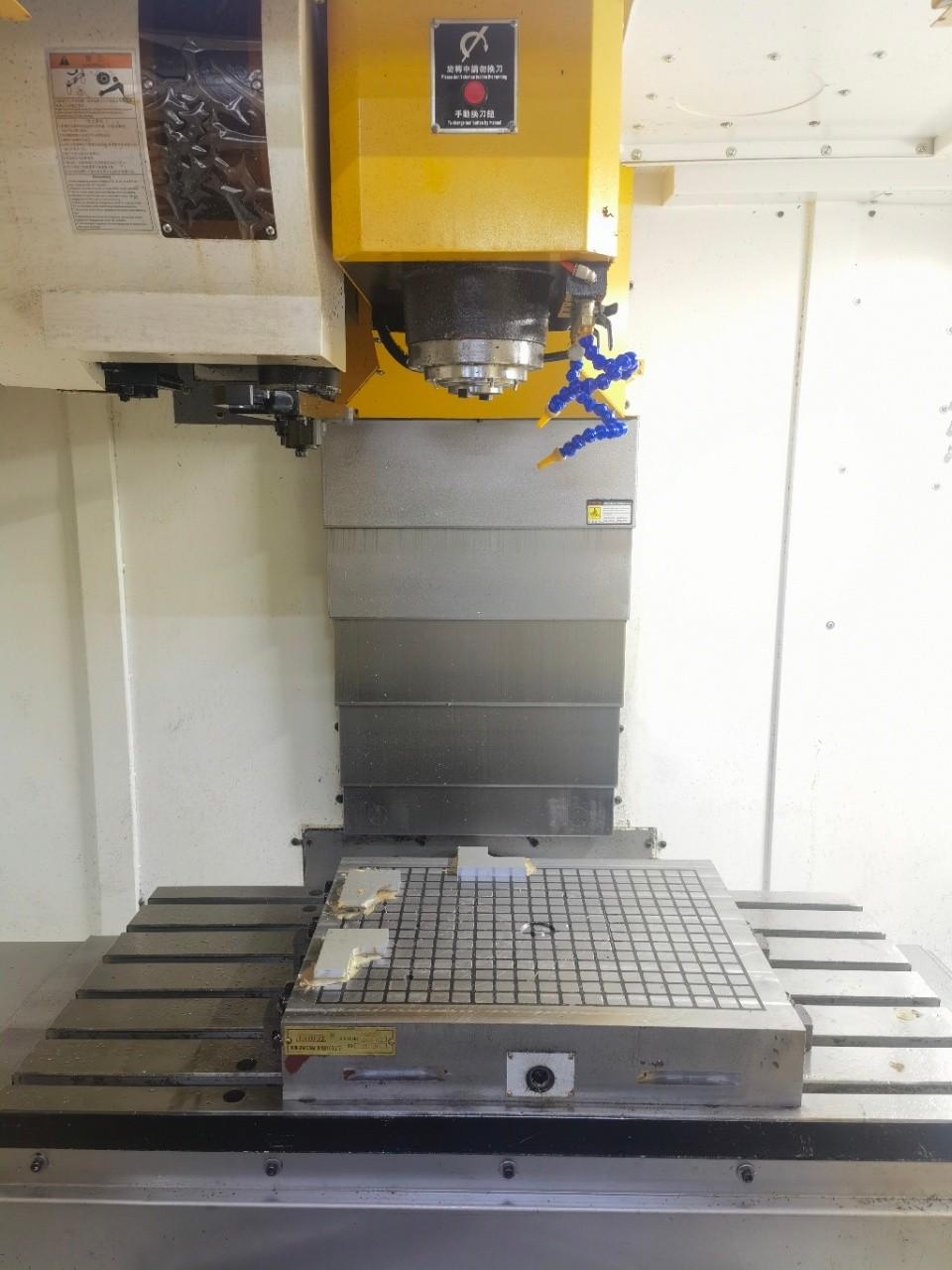

  Worktable size 1000x500 mm

  T-slot size (quantity x size x spacing)6x18x80 mm

  Worktable load   600 kg

  Spindle speed 12000 rpm

  Spindle power (continuous /25%) 7.5(11)kW

  Spindle torque (continuous /25%) 35.8(70) N·m

  Cutting rate 1-10000 mm/min

  X/Y/Z Fast moving rate 48/48/48 m/min

  Positioning accuracy ±0.005/300 mm

  Repeated positioning accuracy ±0.003/300 mm

  Machine weight 5800 kg

  Machine footages 2300x3310x2750 mm
